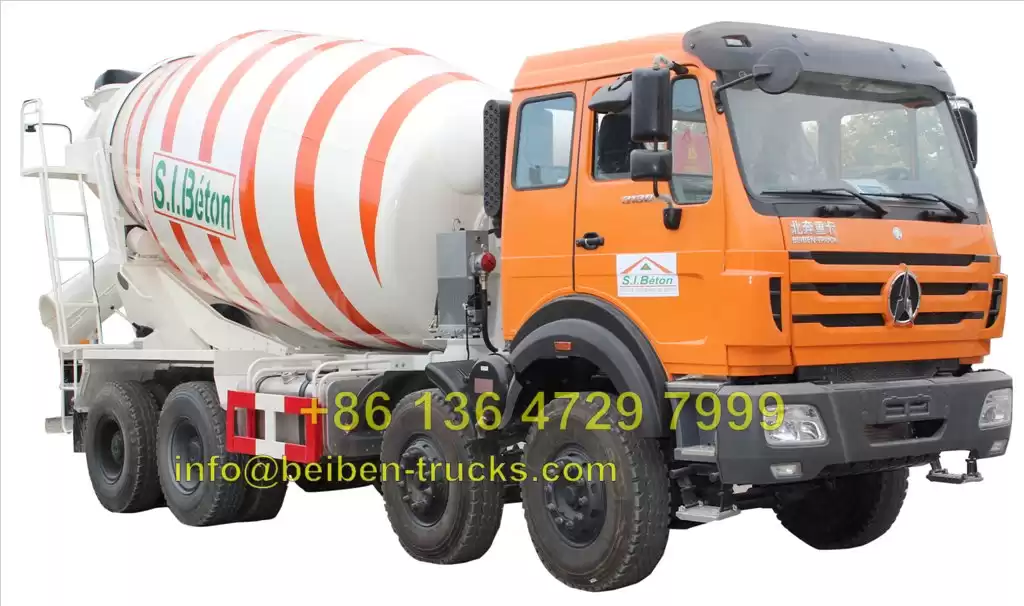

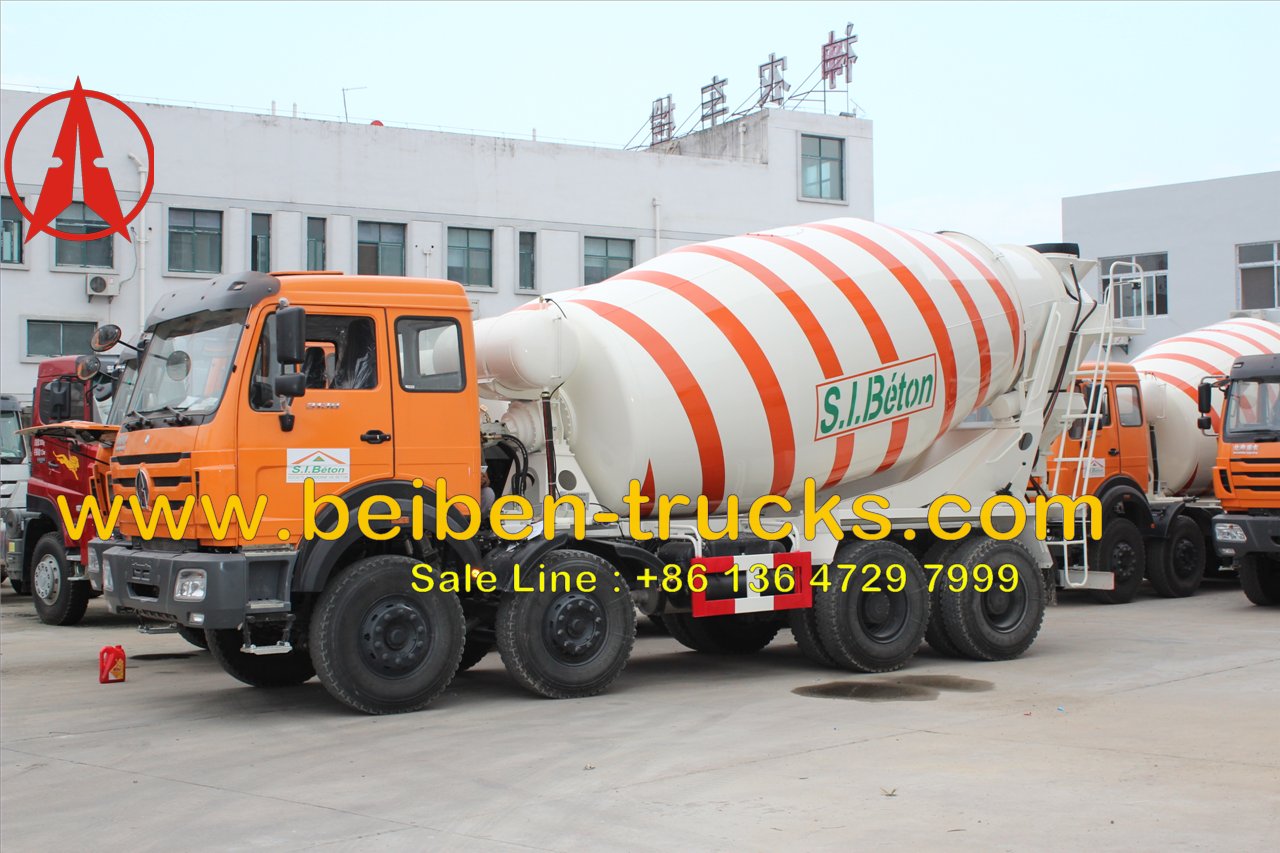

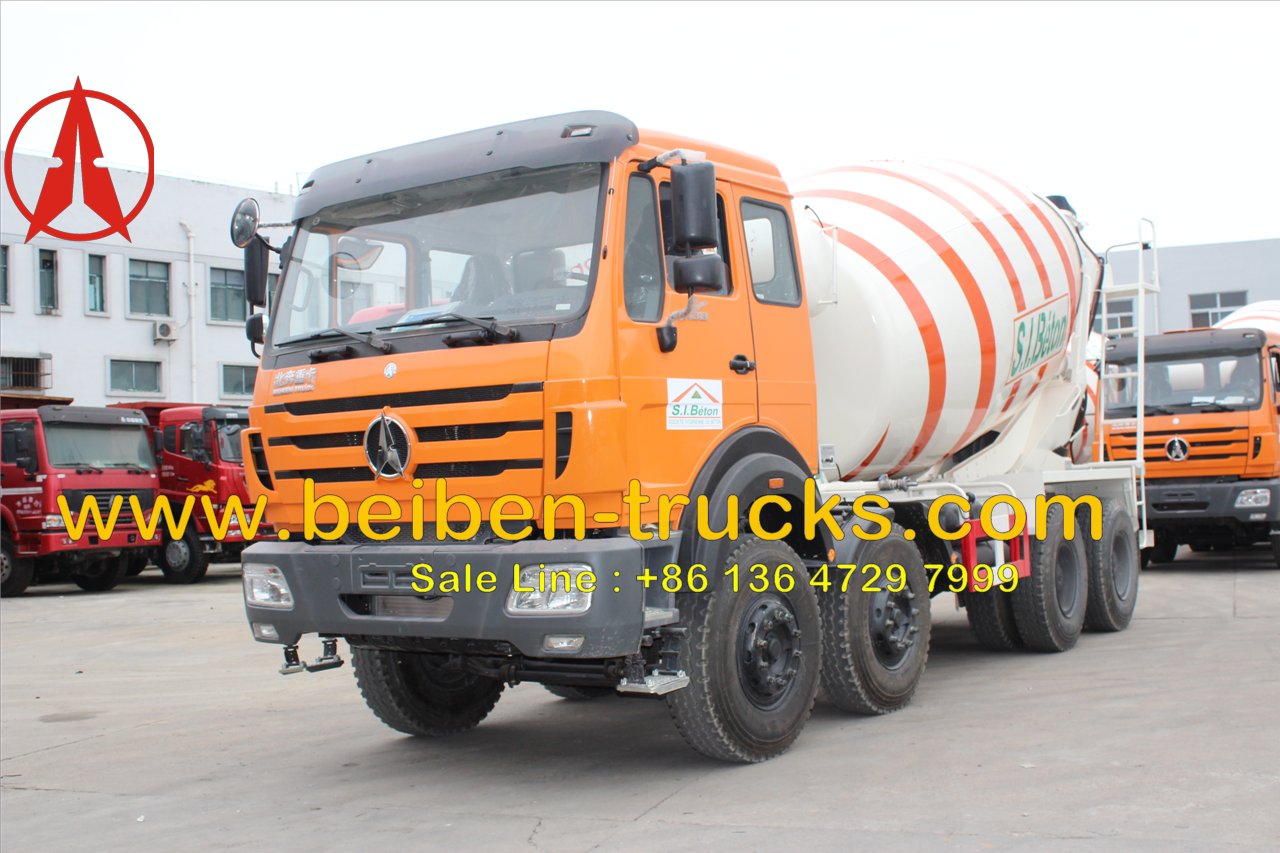

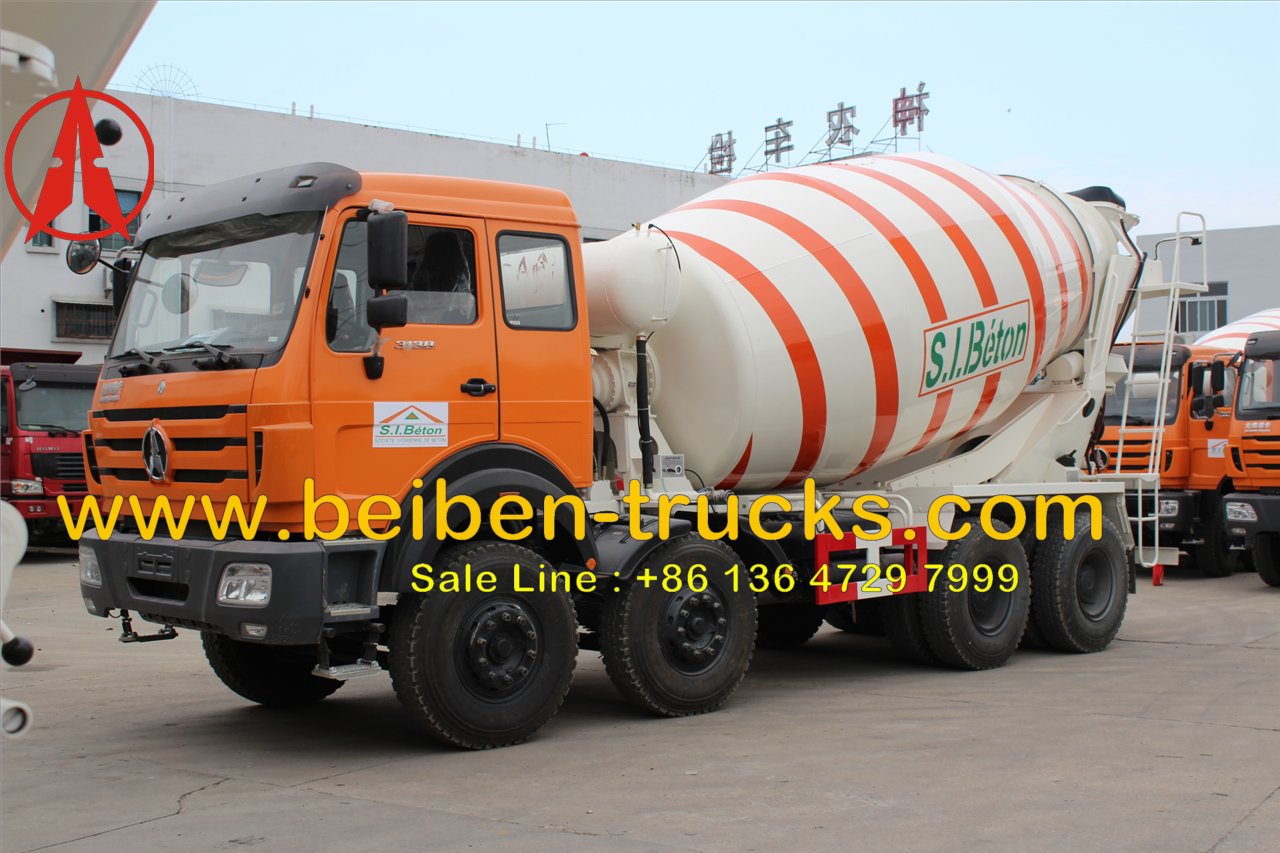

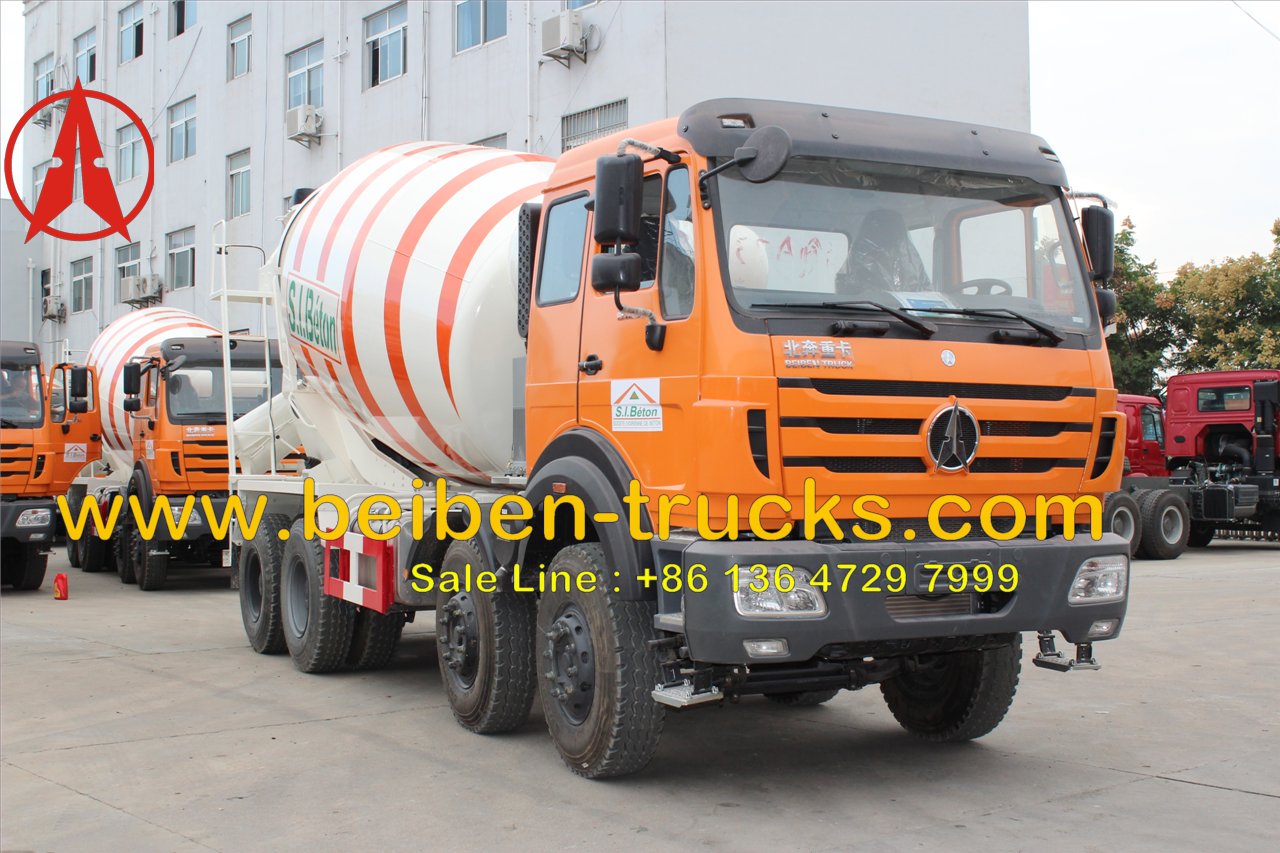

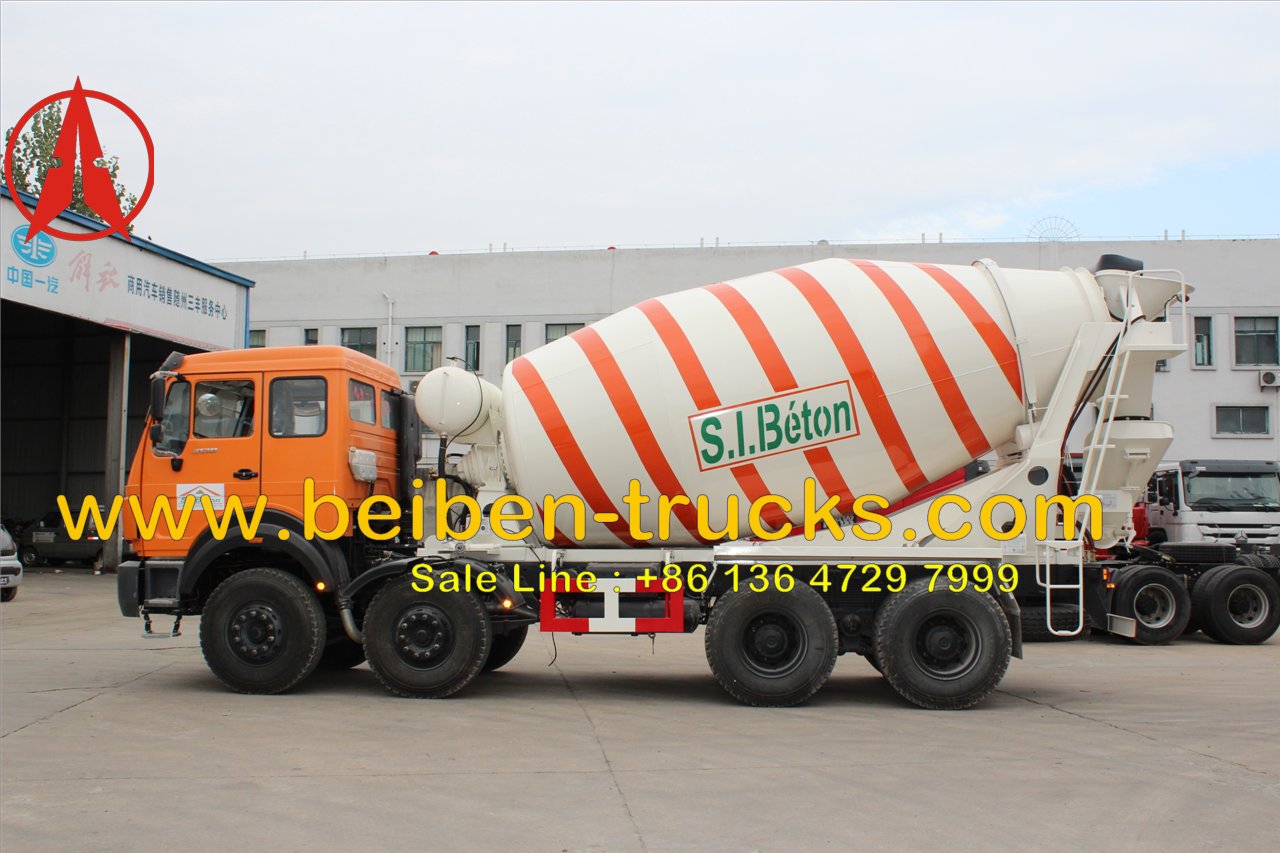

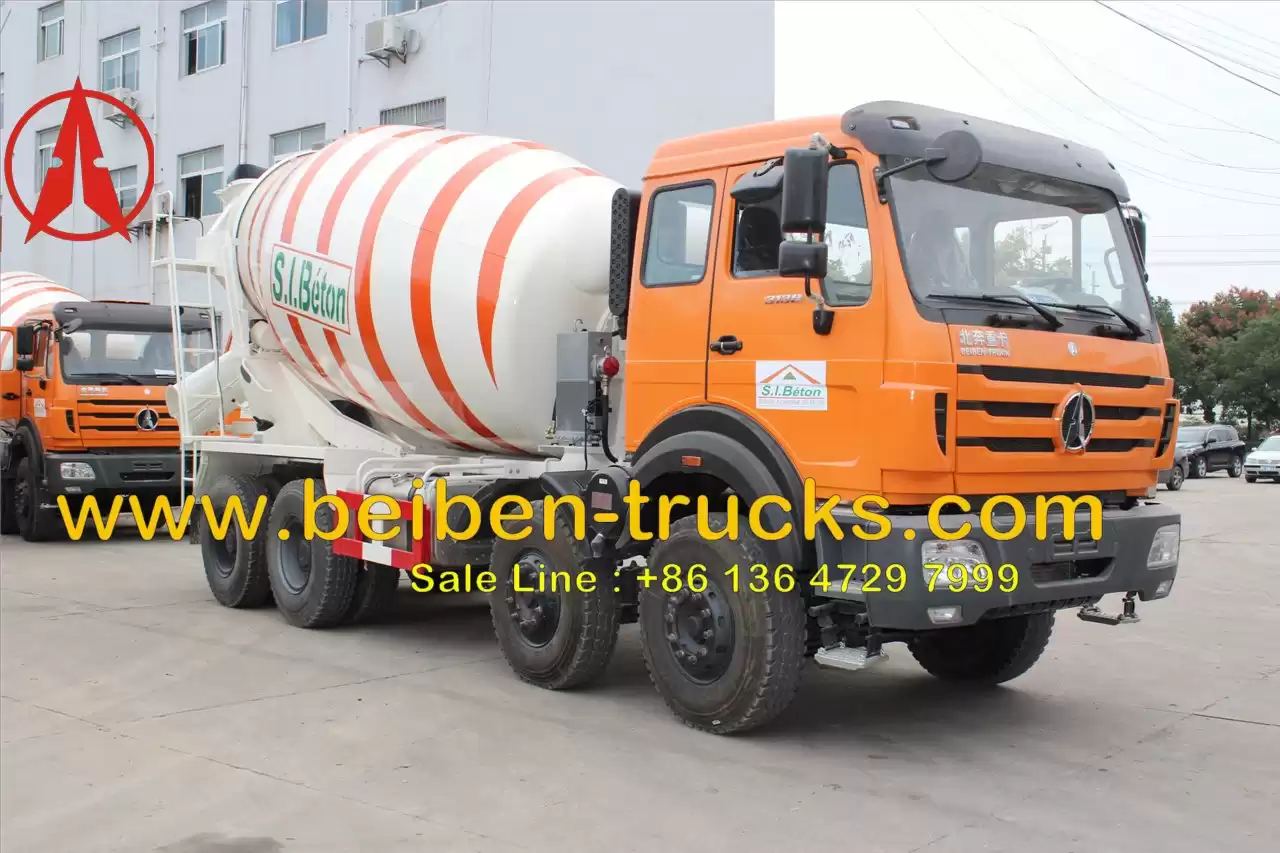

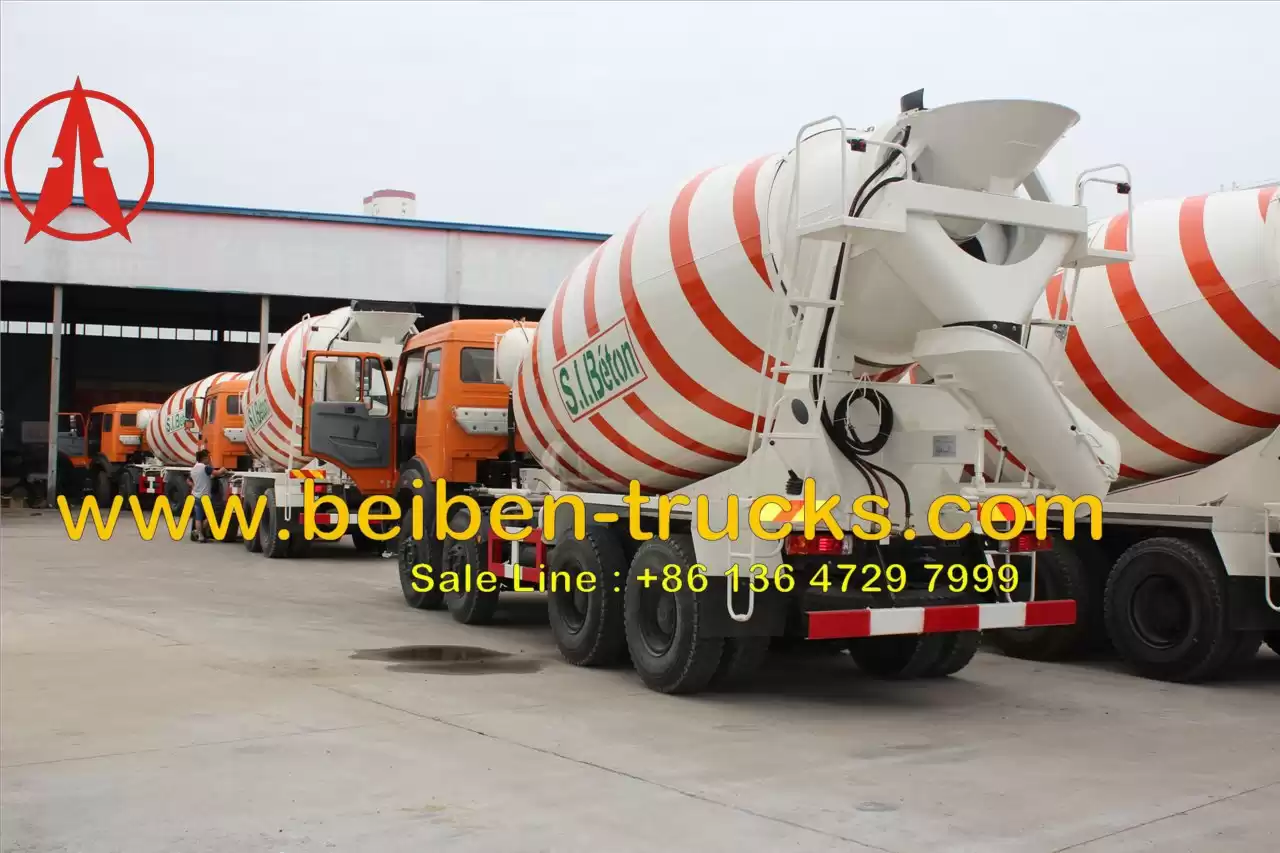

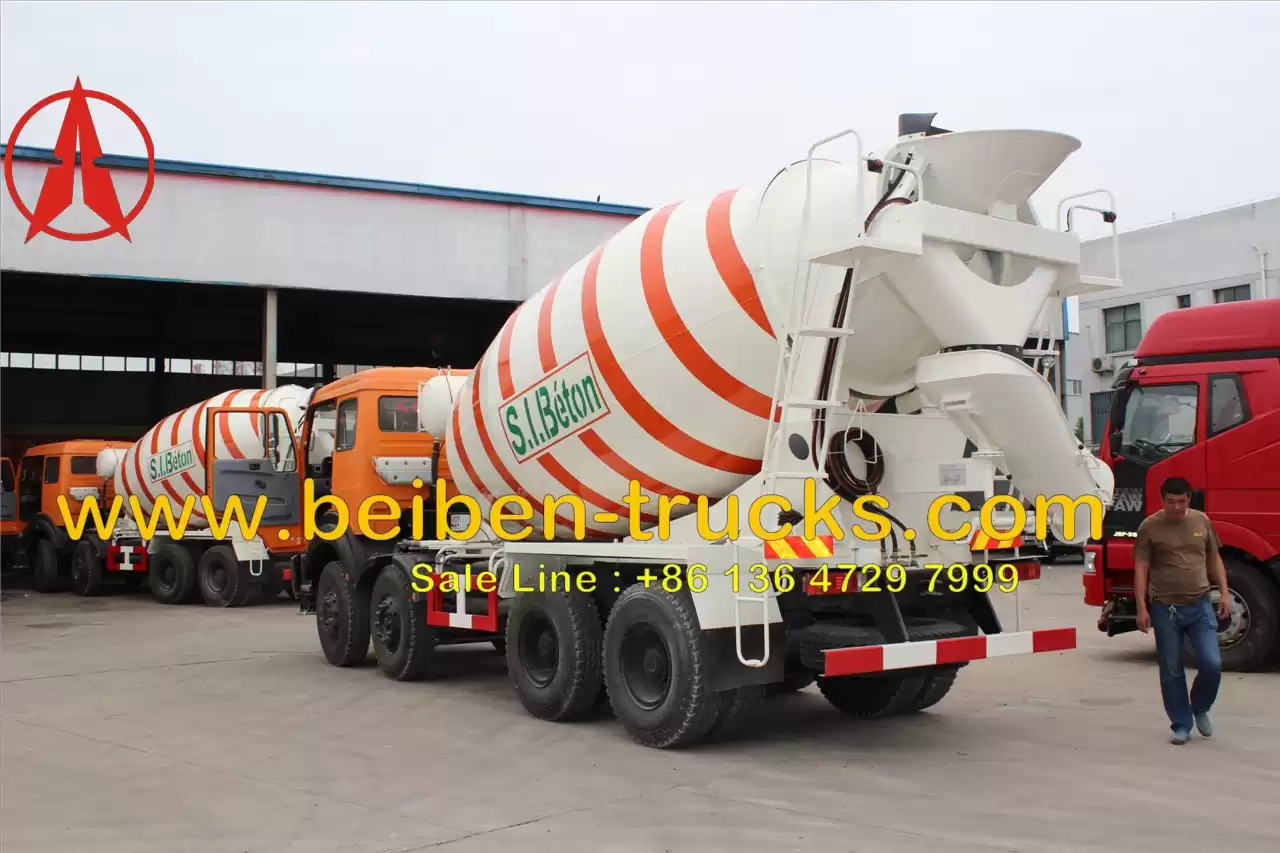

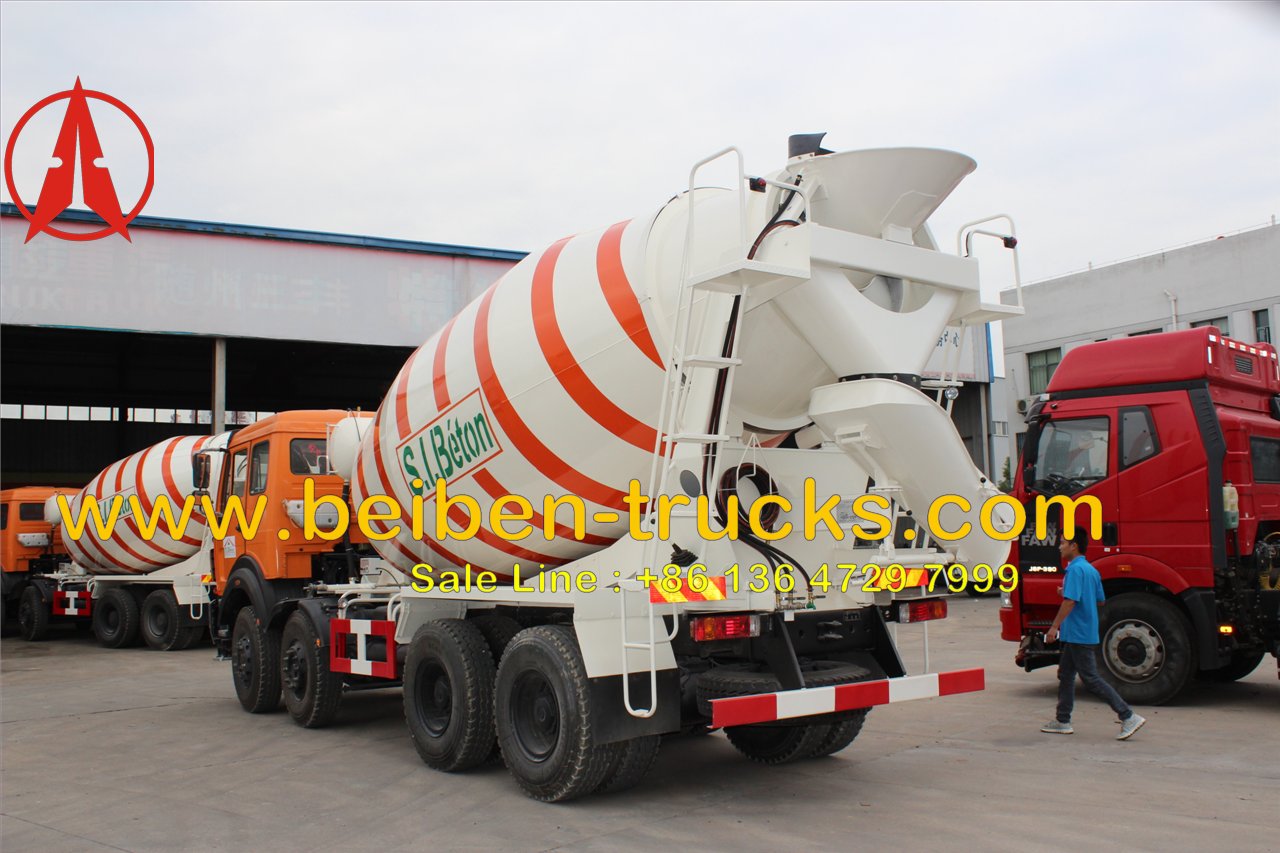

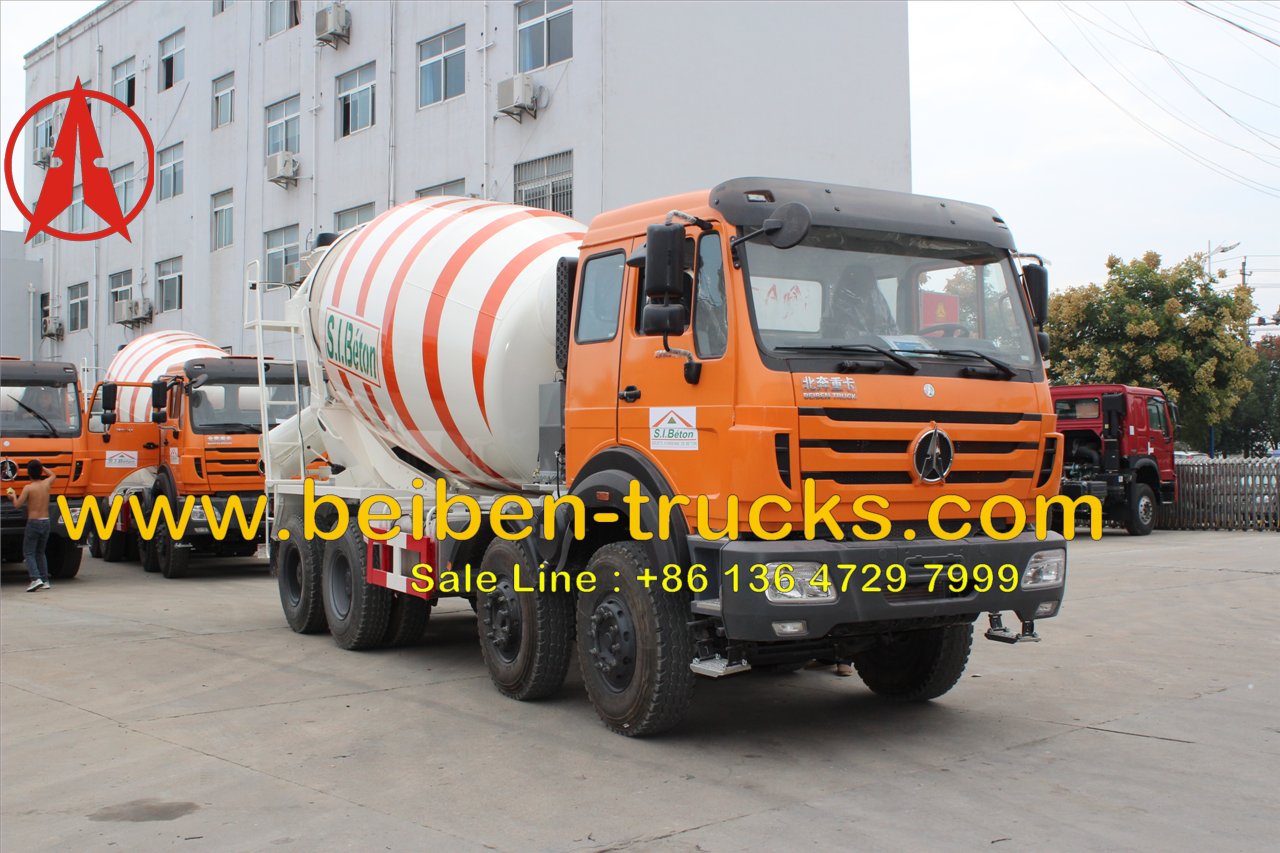

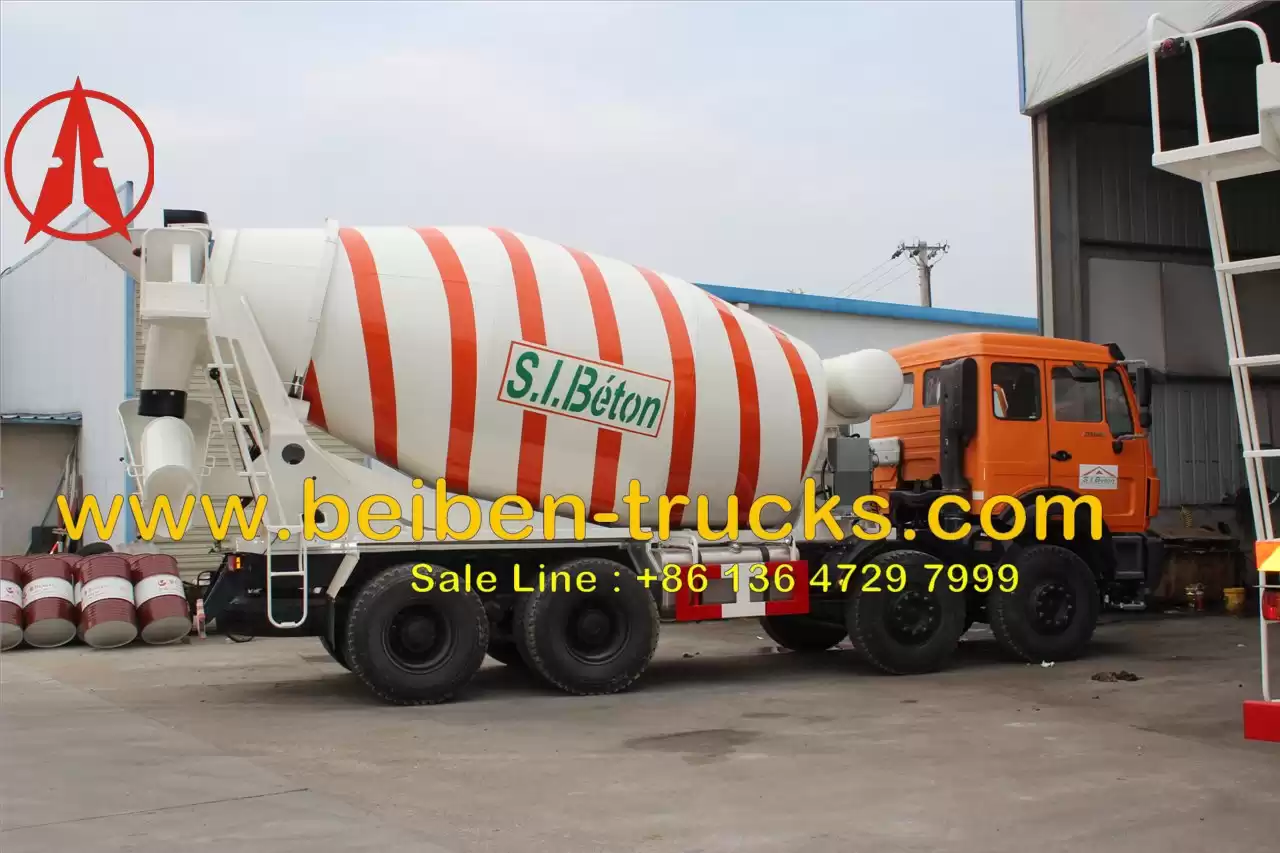

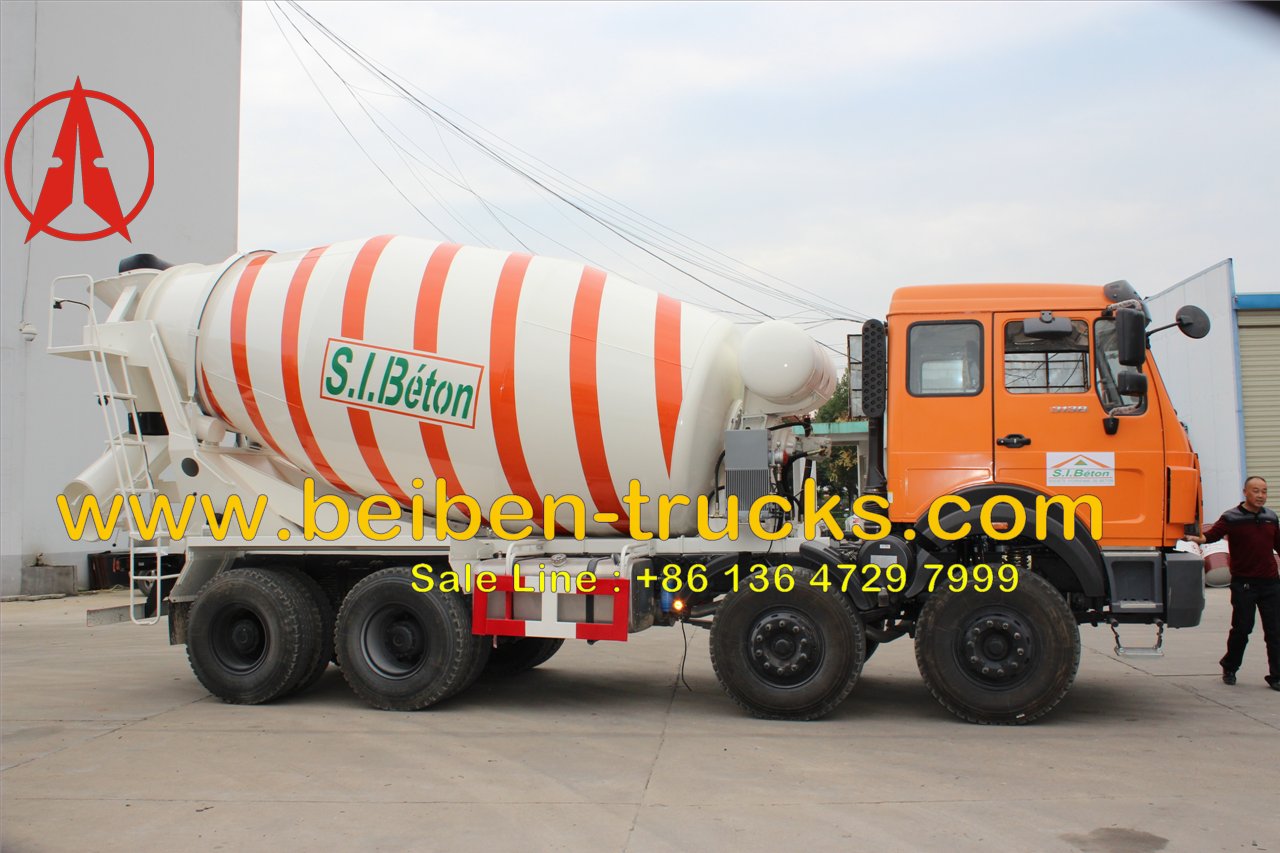

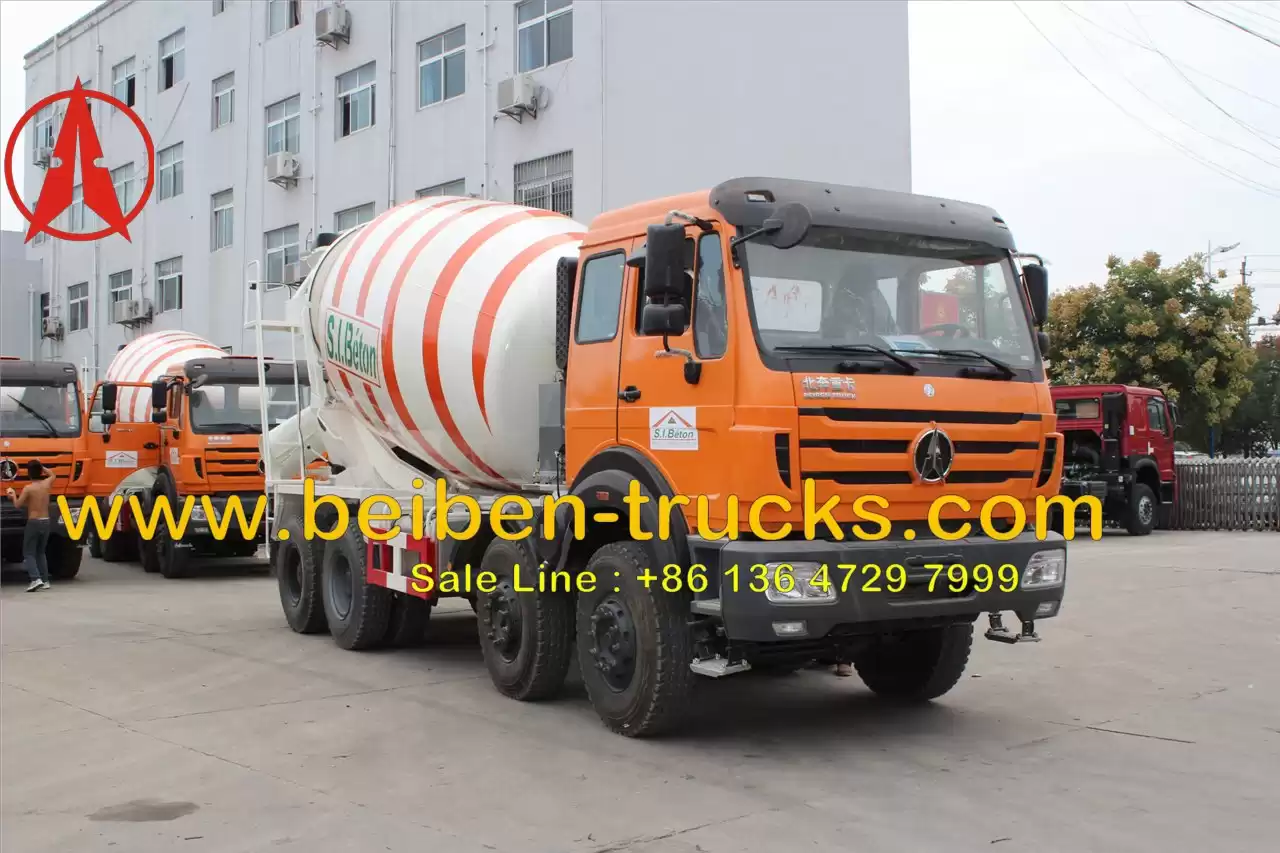

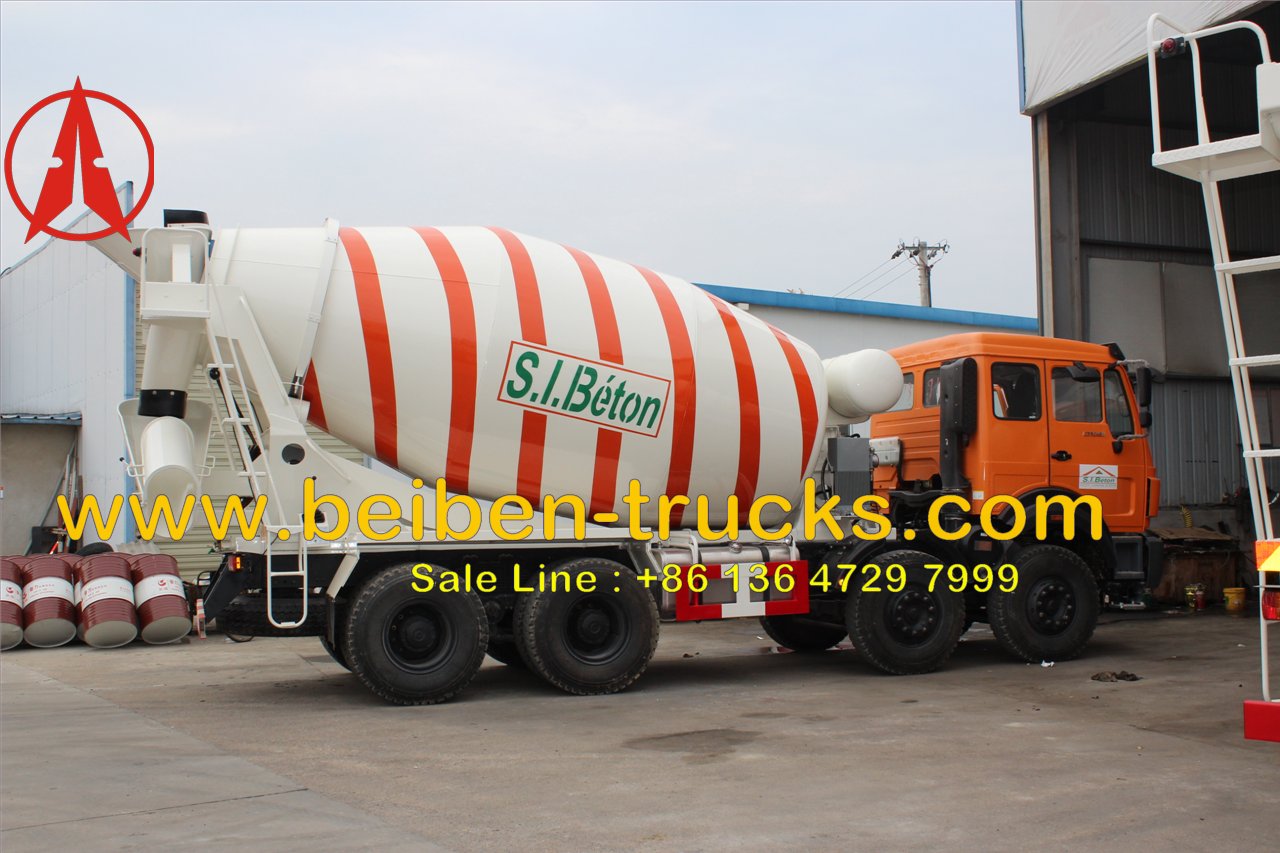

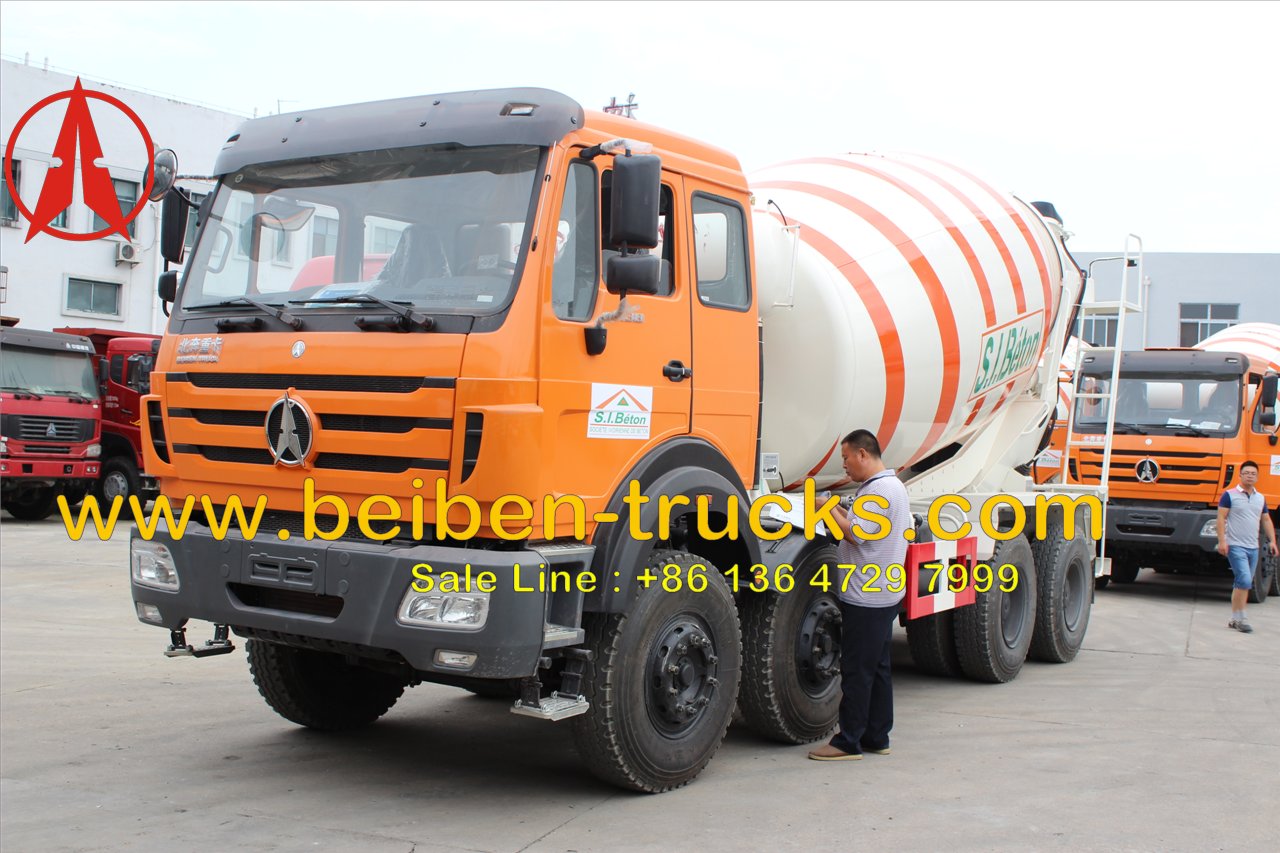

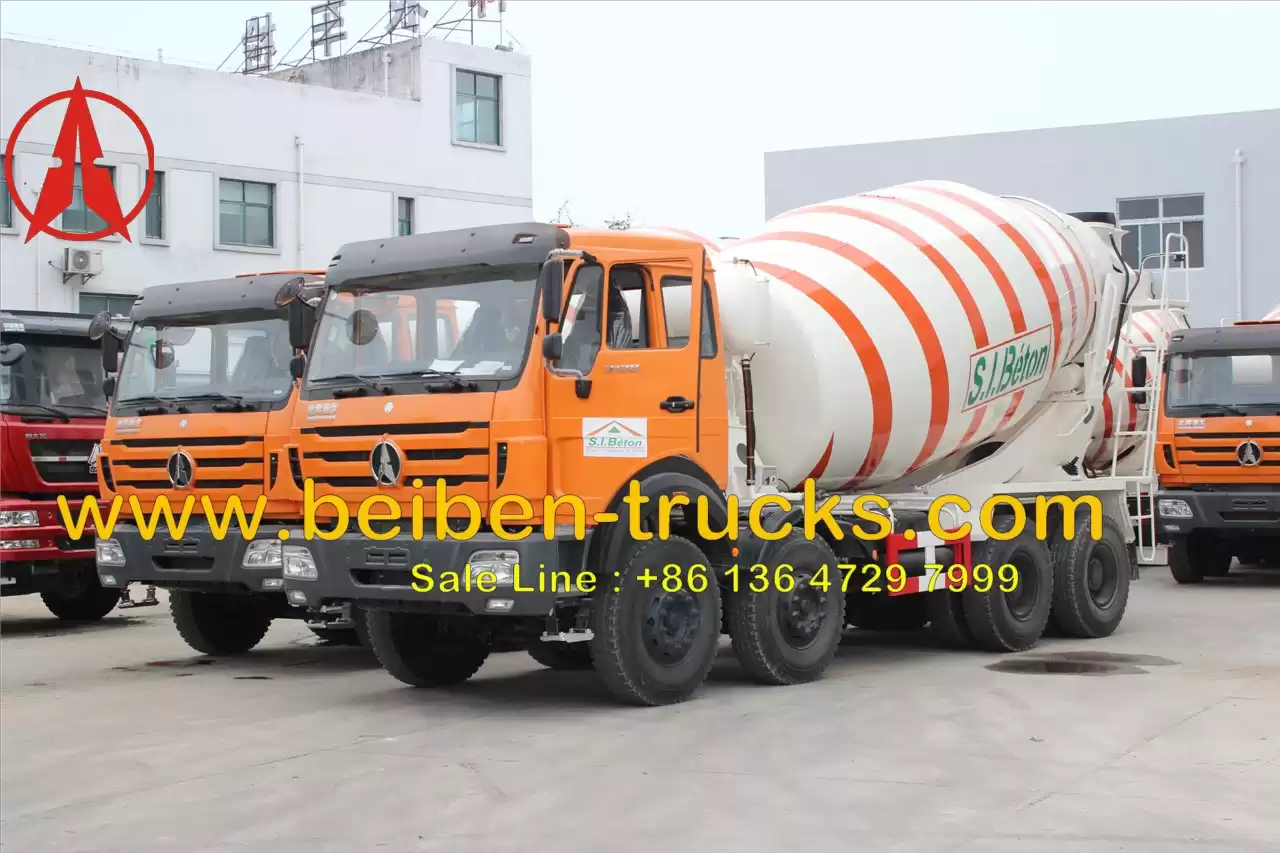

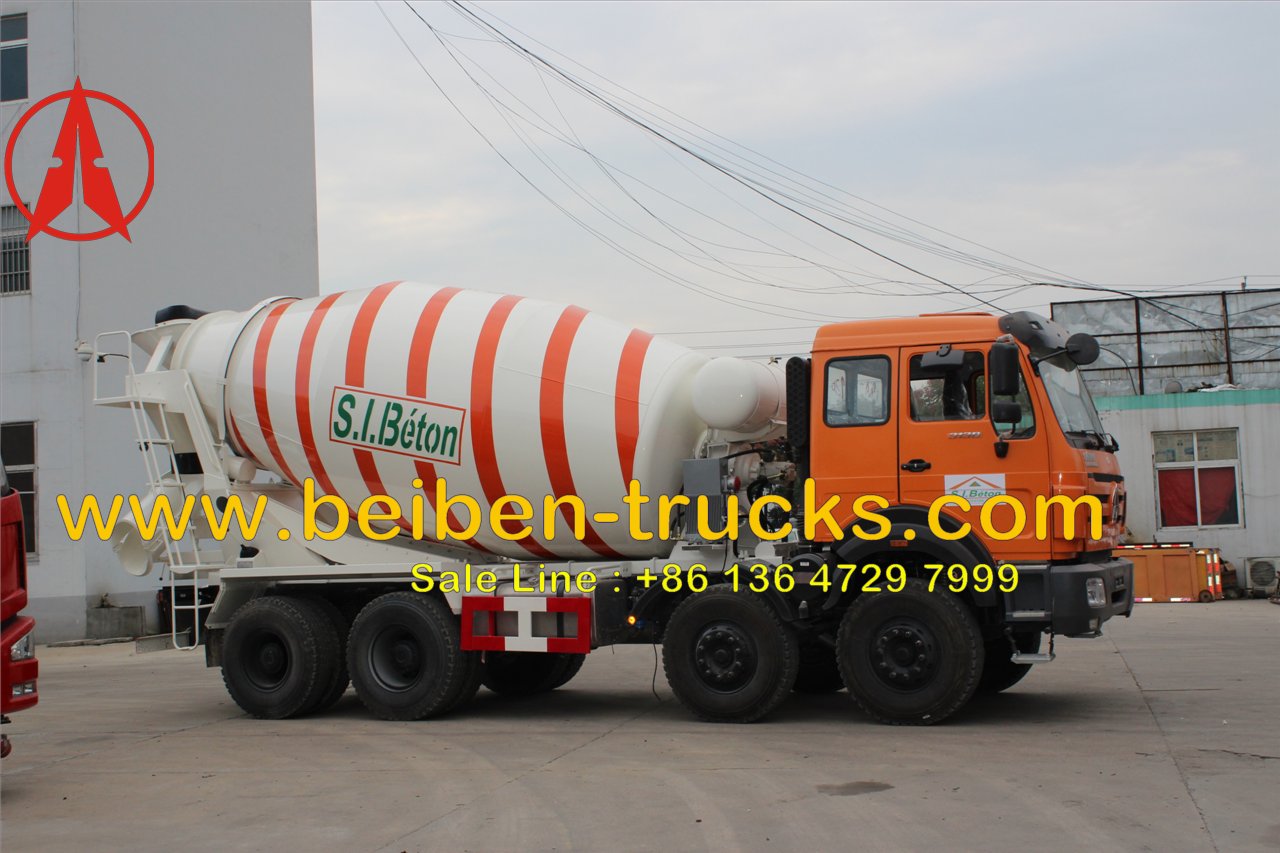

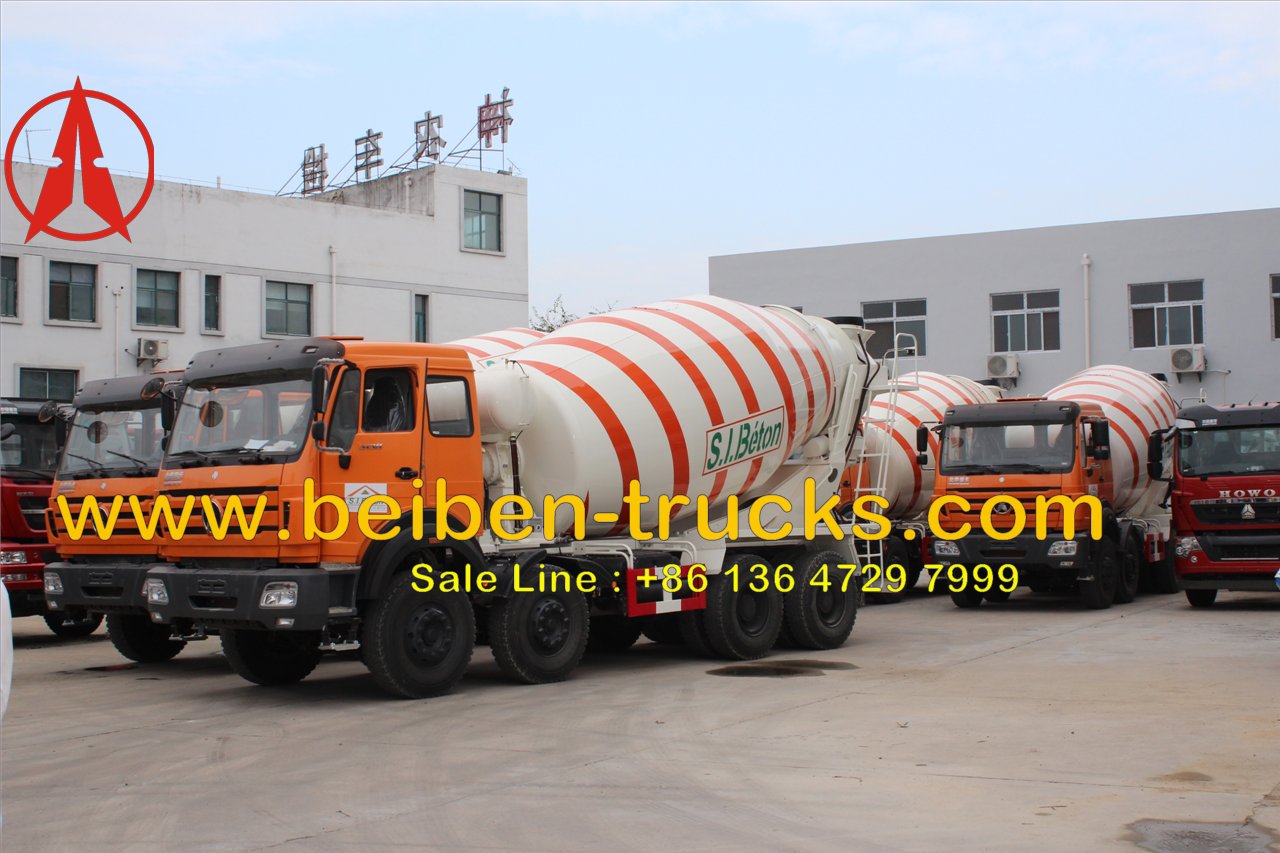

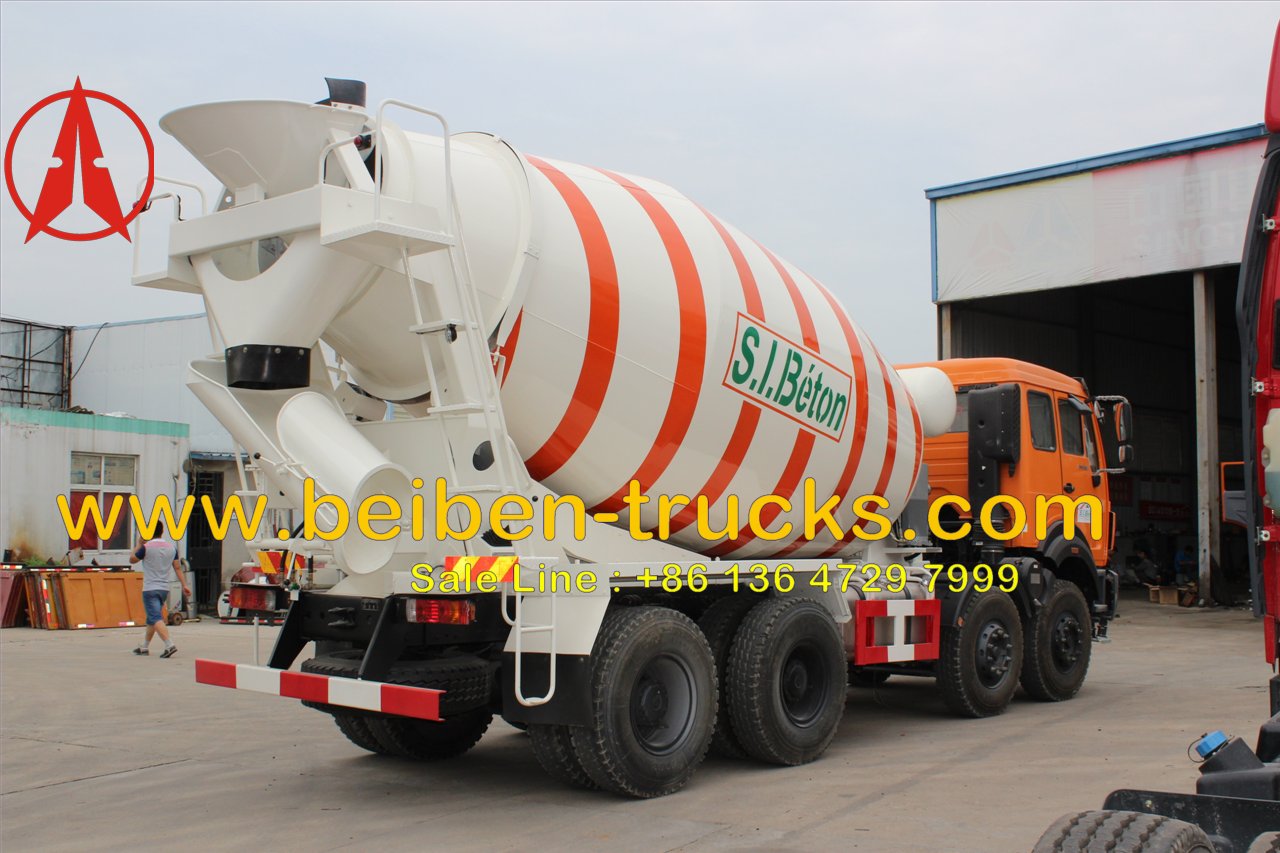

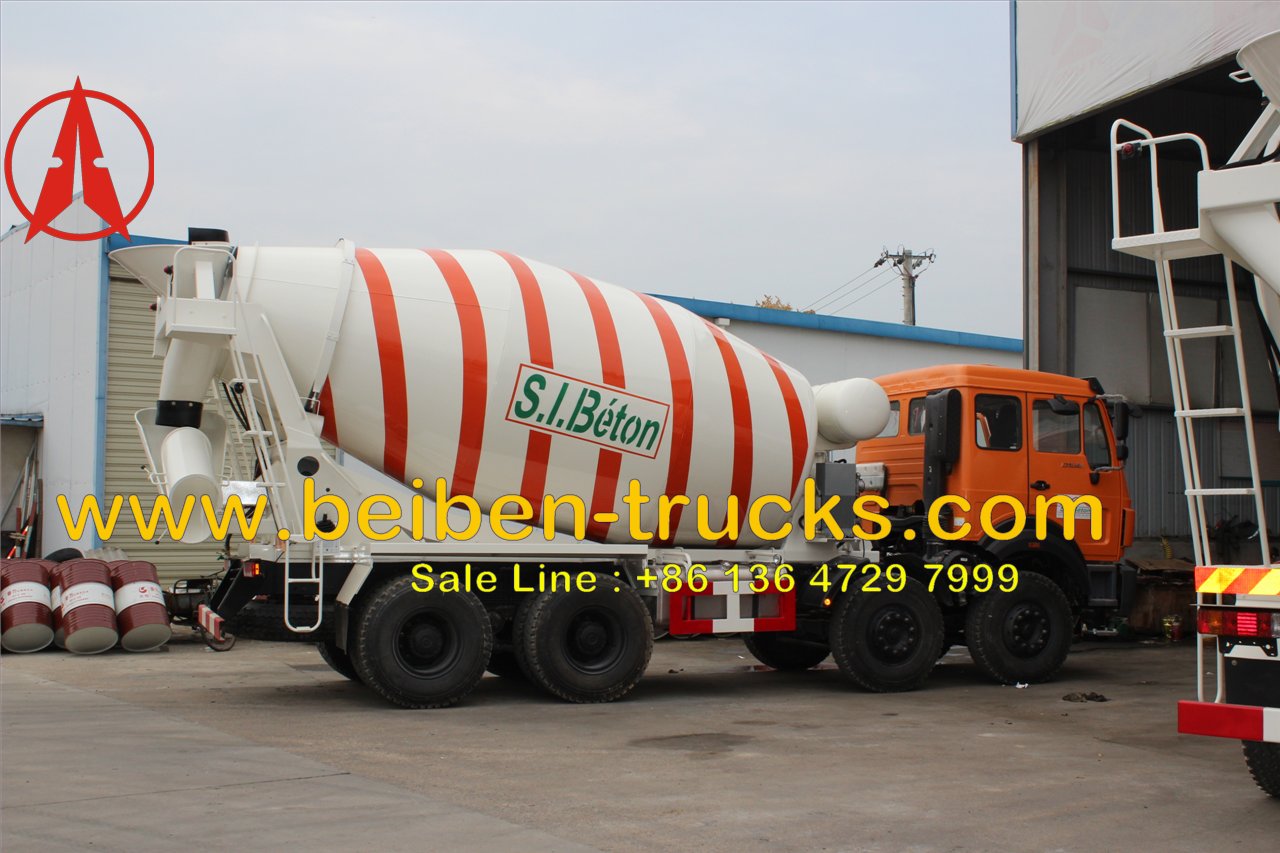

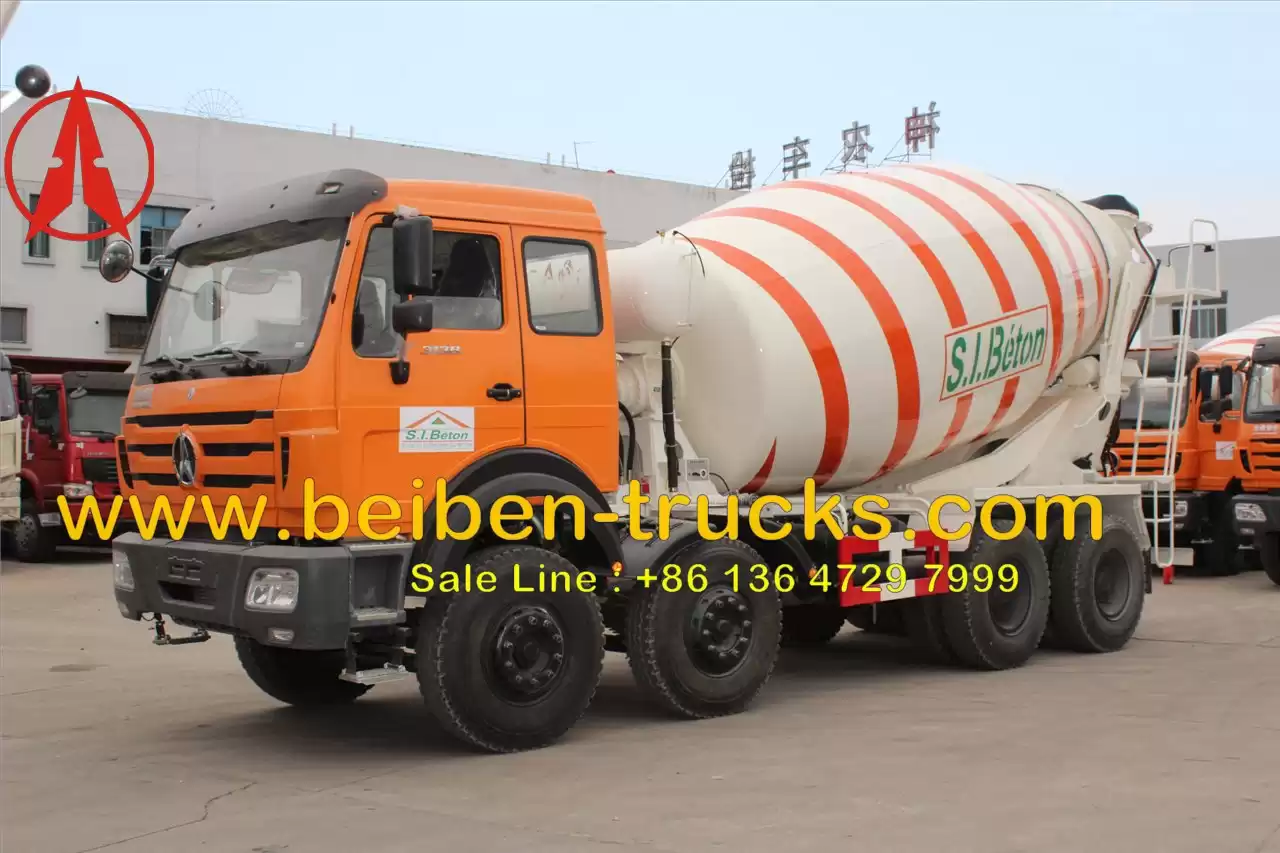

China Beiben 3138 concrete mixer truck manufacturer

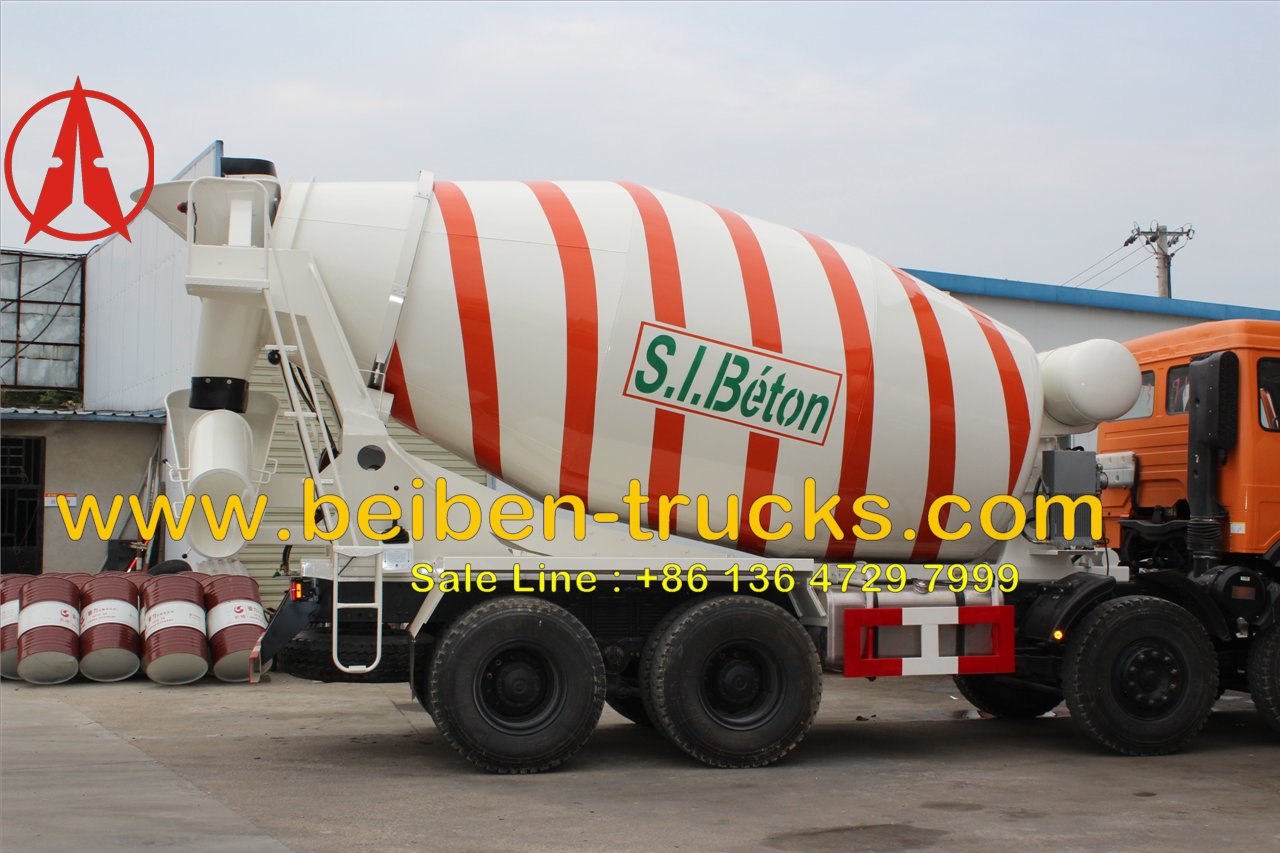

1.High-performance
mixing drum
China beiben 3138 transit mixer, The combination of the large capacity mixing
drum and the uniquely-designed double logarithmic variable pitch helical blade
enables the beiben mixer truck get
perfect balance between the concrete mixing quality and discharging speed, it
not only meets the requirements of pumping while discharging at idle speed but
also ensures our beiben cement mixer trucks the uniformity of concrete mixing.

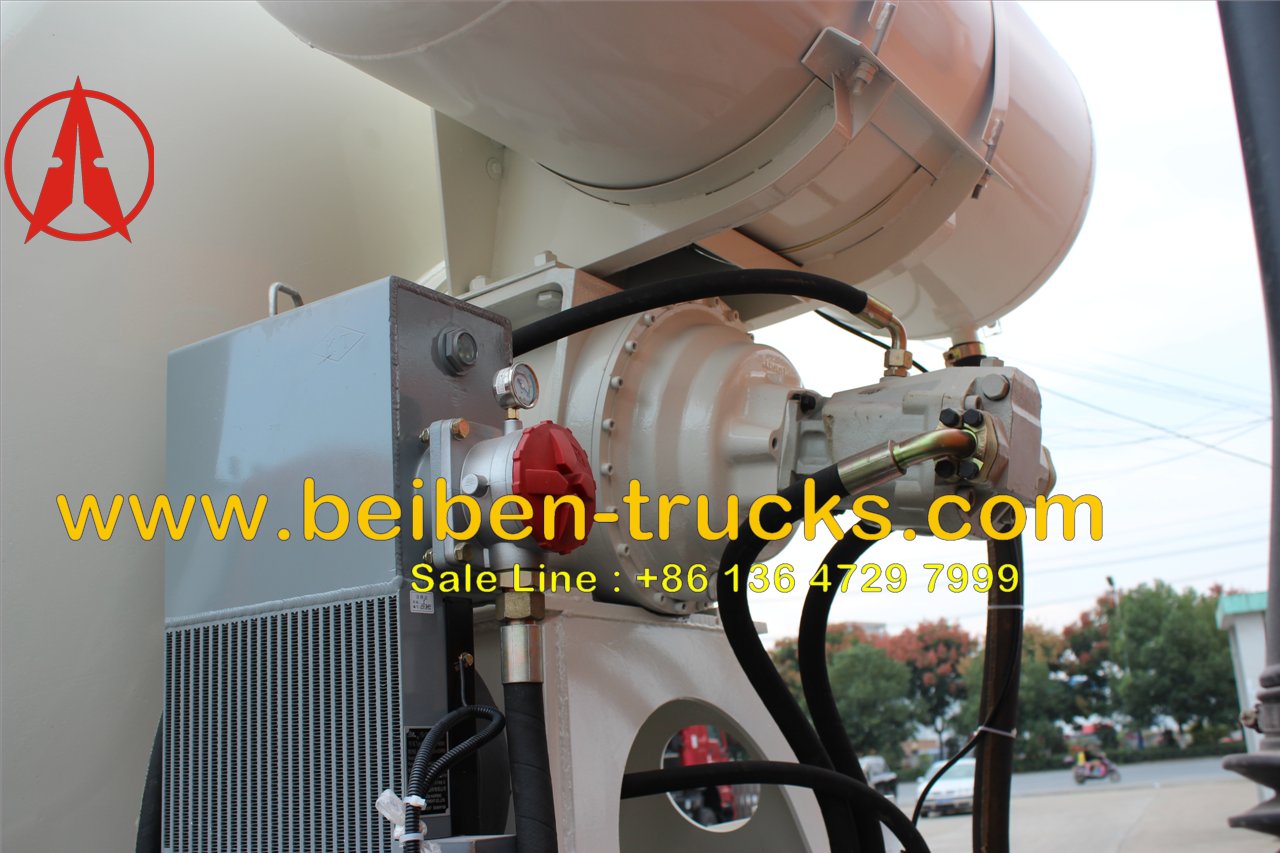

2.World

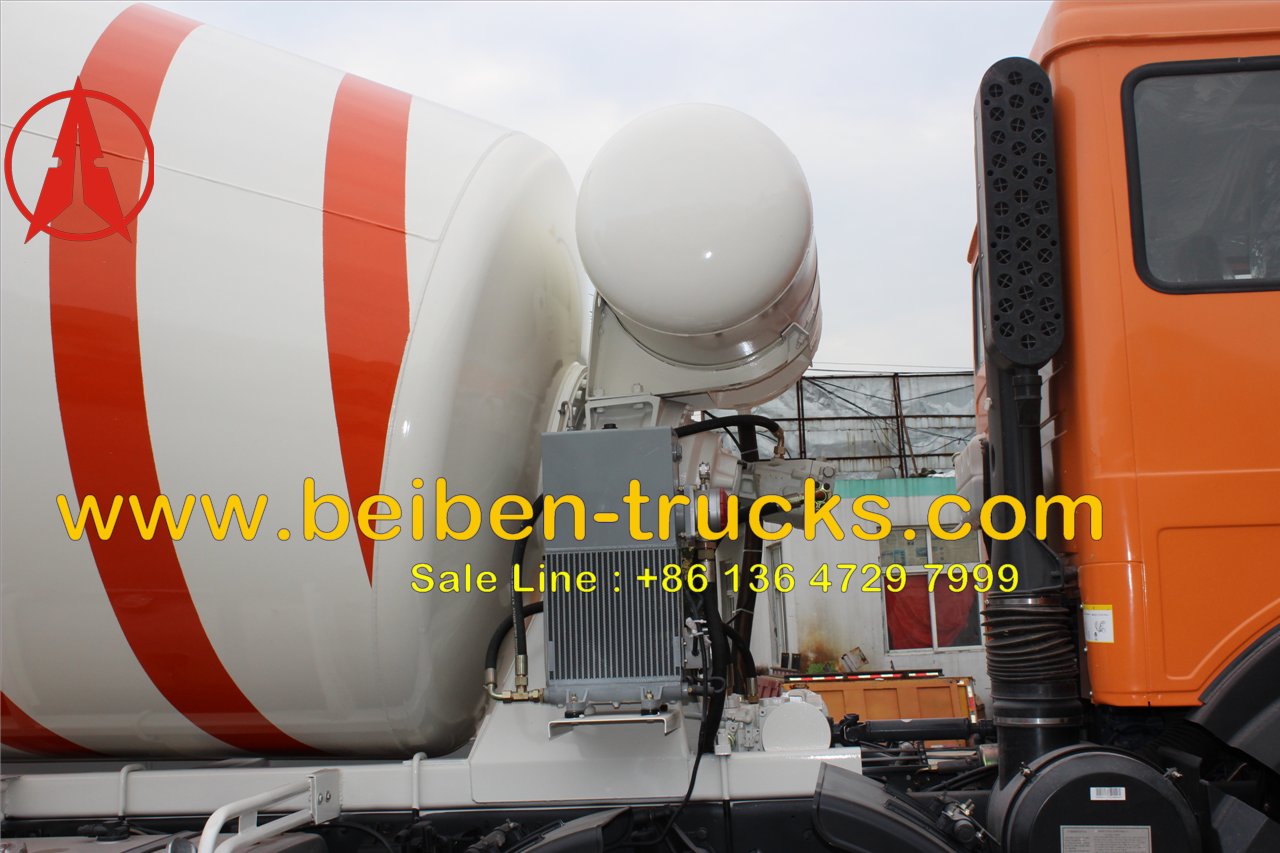

famous hydraulic transmission parts:
Qualified
hydraulic transmission part is the important guarantee of the reliability of beibentruck-mounted concrete mixer, thus
our products adopts the world famous components.
Hydraulic oil pump: Rexroth, EATON, , ARK
Hydraulic motor: Rexroth, EATON, , ARK
Reducer: AF, SAUER, PMP, TOPUNION
Radiator: AKG, ASA and domestic famous brands
3 .Water-supply
system:
Electric
water pump and pneumatic types are optional.
mixer drum
capacity: 6 M3 ,8 m3, 10 m3, 14 M3 .
mixer engine :
Cummins, Hino, Weichai
mixer
horse power : 260- 375 HP
|
Overall dimension (mm)
|
11080×2500×3900
|
|
Driving Model
|
8x4
|
|
Wheel base (mm)
|
1500+3550+1450
|
|
Curb weight （kg）
|
16500
|
|
Engine Model
|
WD615.38，water-cooled，four strokes，6 cylinders straight in line，turbocharged
|
|
Gearbox Model
|
9T-180, mechanical type，9 Forward speed gear
|
|
Frame
|
Based on Germany Benz Technology
|
|
Axle(Front, Middle and Rear)
|
Based on Mercedes Benz Technology
|
|
Brake system
|
Safe(consist of Service brake, Assistant
brake and Park brake)
|
|
Steering system Model
|
ZF8098
|
|

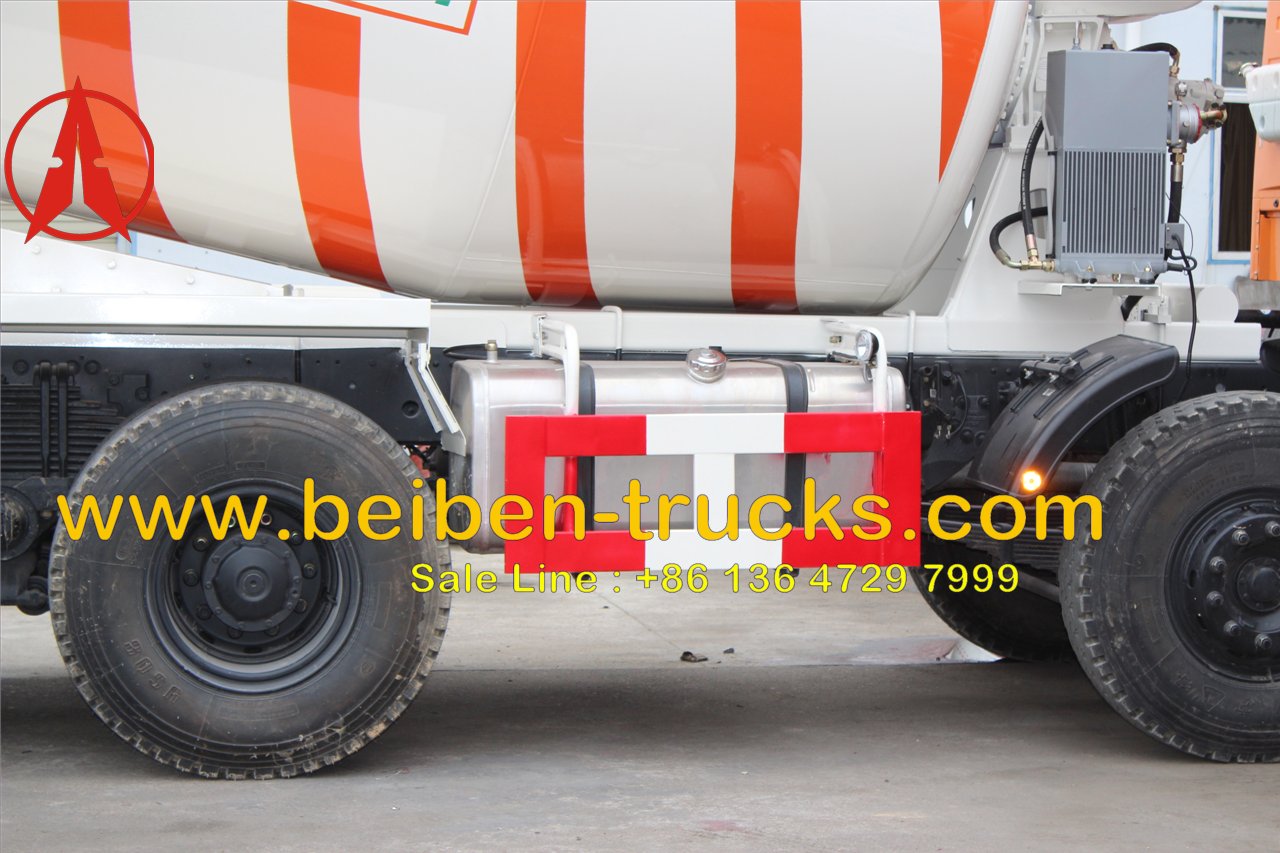

Fuel tanker capacity （L）
|
400
|
|
Clutch Model
|
430，Hydraulic
boosting
|
|
Tire
|
12.00R20 radial tire
|
|
Electrical system
|
2 Batteries (12V/135Ah each )
|
|
Safe Cab(driver die Zero record)
|
full steel skeleton structure, covered
with double layer steel plate;
|
|
Upper body dimension(CBM)
|
10
|
