Residential/ Industrial Best Quality Micro Grid-tied PV Inverter 600W for Home/Commerical Use
Grid-tie Micro Inverter System.
Grid tied micro-inverter is a device used in photovoltaics that converts direct current (DC) generated by a single
solar module to alternating current (AC). Micro inverter contrast with conventional string and central solar
inverters, which are connected to multiple solar modules or panels of the PV system.
Micro inverters have several advantages over conventional inverters:
1.Small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure,
do not disproportionately reduce the output of the entire array.
2.Each microinverter harvests optimum power by performing maximum power point tracking for its connected
module.
3.Simplicity in system design, lower amperage wires, simplified stock management, and added safety are other
factors introduced with the microinverter solution.

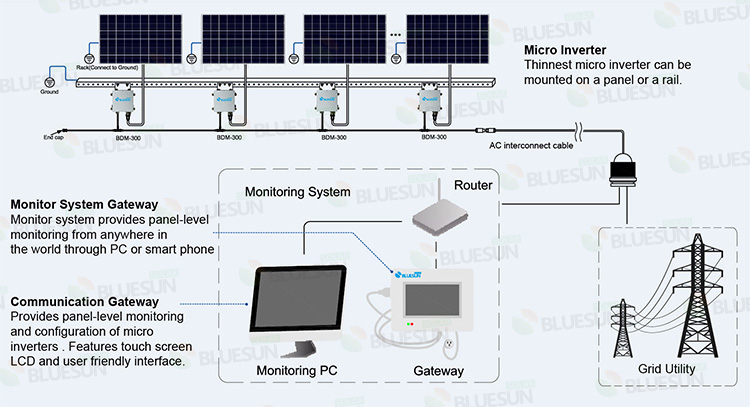

Micro Inverter Solar System Connection Diagram

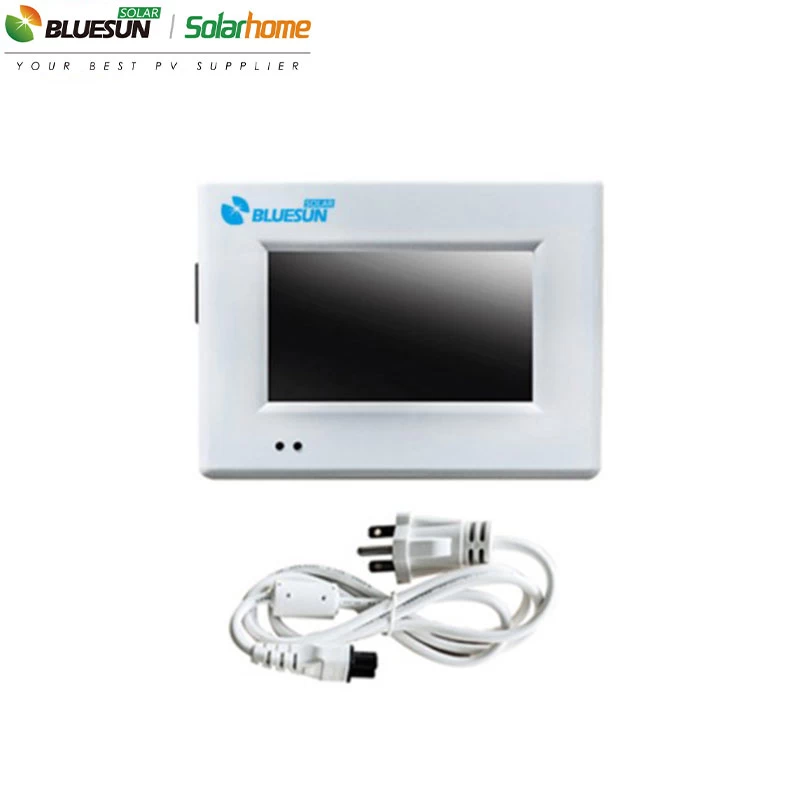

Monitoring Device
Features.
> Touch screen for user friendly interface.
> Web portal interface for configuring BDM micro inverters.
> Support NEPVIEWER remote monitoring from anywhere at any time on any smart devices.
> Touch screen provides instant readings on each individual inverters for trouble shooting.
> Dual voltage and frequency (110/230 Vac,50/60Hz).
|
Ethernet
|
10/100 auto-sensing, auto-negotiation
|
|
USB
|
USB 2.0 interface, auto-sensing, auto-negotiation
|
|
Monitoring capacity
|
255 micro inverters (depending on interference on power grid)
|
|
AC inlet
|
100 - 240 Vac, 50/60 Hz, 60mA
|
|
Dimensions (W x H x D)
|
6.69” x 4.33” x 1.46” (170 mm x 110mm x 37mm)
|
|
Weight
|
5.29 oz (150g)
|
|
Ambient temperature range
|
-40˚C to +55˚C (-40˚ to 131˚F)
|
|
Cooling
|
Natural convection – no fans
|
Package & Delivery
