Best selling 500mA 35w triac dimmable led power driver
Product parameters:
|
Model |
Input voltage(vAC) |
Working Frequency (Hz) |
Output voltage
(vDC) |
Output Current |
power (Watt) |
Working.
Temp |
Protection grade |
|
SMT-060-0500CT |
90-135V/170-265v |
47~63Hz |
40-60V |
500mA |
30W |
-40~50°C |
IP40 |
| SMT-048-0500CT | 90-135V/170-265v | 47~63Hz | 30-48V | 500mA | 24W | -40~50°C | IP40 |

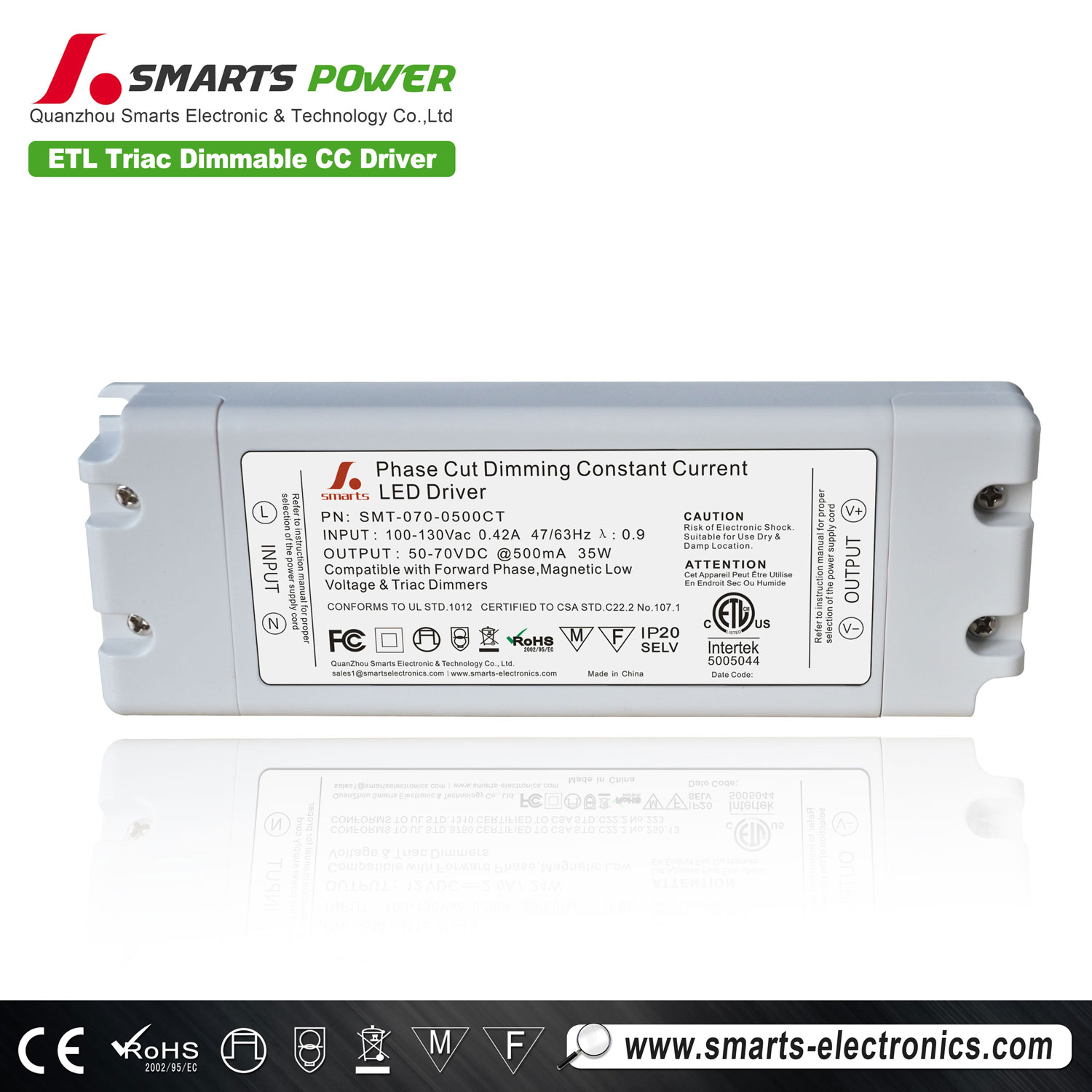

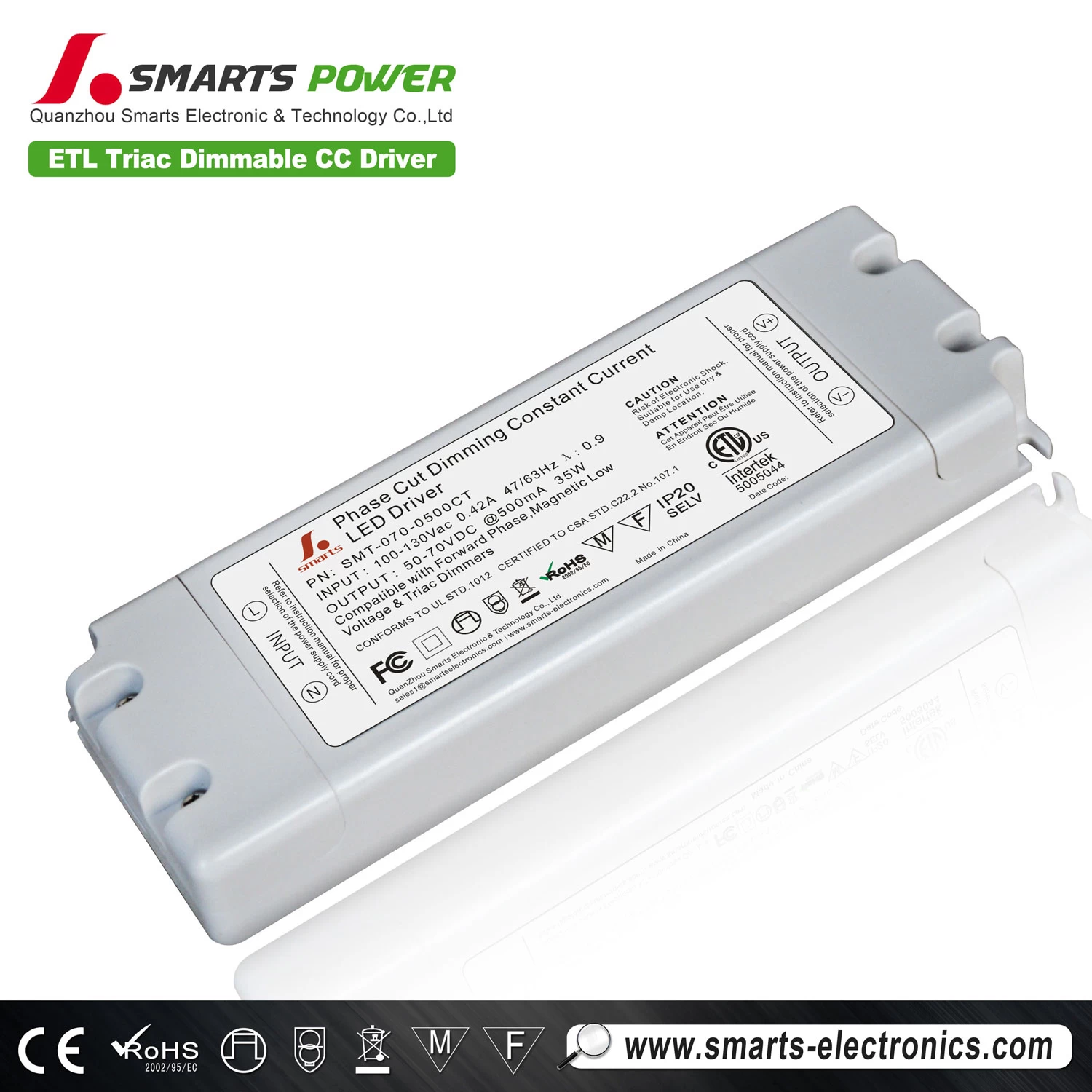

| SMT-070-0500CT | 90-135V/170-265v | 47~63Hz | 50-70V | 500mA | 35W | -40~50°C | IP40 |
|
SMT-045-0700CT |
90-135V/170-265v |
47~63Hz |
20-45V |
700mA |
31W |
-40~50°C |
IP40 |
| SMT-030-0700CT | 90-135V/170-265v | 47~63Hz | 15-30V | 700mA | 21W | -40~50°C | IP40 |
Features:
- Input range :90-135VAC / 170-265VAC
- Built-in PFC function
- Efficiency > 84% / PF>0.9
- Protections:Short circuit/over Voltage
- Fully isolated plastic case
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- 3 years warranty
- Lifespan:(MTBF)50,000 hours
Protection:
- Short Circuit: Hiccup mode, recovers automatically after fault condition
- Over voltage: <270VAC 0r =270VAC
Environment parameter:
- Working temperature: -40~+60℃
- Working humidity:20~90%RH,non-condensing
- Storage TEM.,Humidity: -40~+80℃,10~95%RH
- TEMP.coefficient: ±0.03%/℃(0~50℃)
- Vibration: 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety &EMC:
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
- EMC EMISSION: Compliance toEN55015,EN61000-3-2 (> or=50%load)
- EMC IMMUNITY : Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)
Notes:
- All parameters NOT specially mentioned are measured at 110V/ 230VAC input , rated load and25℃of ambient temperature
- Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pairwire terminated with a 0.1uf &47uf parallel capacitor.
- Tolerance:includes set us tolerance,line regulation and load regulation
Application:
- Outdoor LED illuminating lights, LED Neon
- LED City Decoration, LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle LightsController Panels
