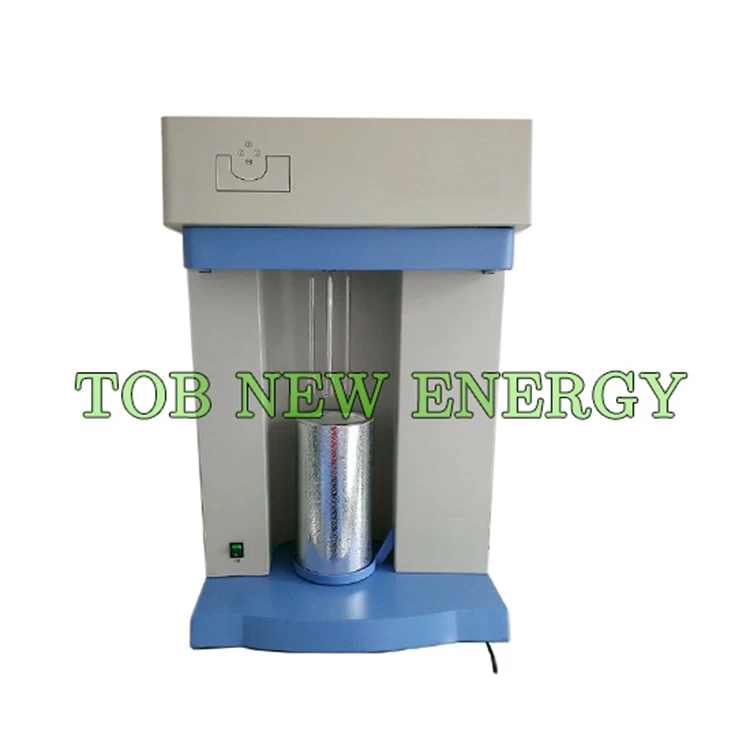

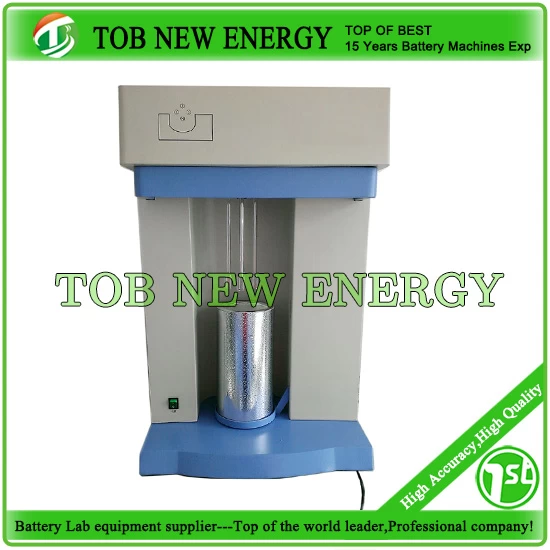

Bet Surface Area Analyzer For Powder Material Specific Surface Area And Aperture Analyzer
SPECIFICATIONS
1 The BET Surface Area Analyzer work principle isothermal physical international general adsorption static volumetric method,the automatic control of the whole computer, without the need for manual monitoring.
2 TOB-S4300 Series BET Surface Area Analyzer is automatic specific surface area and pore size analyzer,which can simultaneously up to three samples are analyzed, developed by our company equipment operating software.
3 The instrument can be a single point, more BET than multiple data surface area, mesoporous BJH,DR and MP pore, pore distribution, pore size and total pore volume and average pore size of area, and the analysis of its specific surface area analysis, ranging from 0.01m2/g to no known upper bound analysis, aperture range is 0.35-500nm, which can meet the the demands of various working conditions.
|
Model
|
BET Surface Area Analyzer TOB-S-4300
|
|
Source voltage
|
110v-240v customized, 50/60HZ
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Measuring Method
|
Vacuum static volumetric method
|
|
Adsorbed gas
|
N2,H2,He,Kr,CO,CO2,CH4, Etc.
|
|
Analysis station
|
3 Parallel samples analysis export
1 independent saturated vapor pressure export
|
|
Measuring range
|
≥0.01M2/g
|
|
Analysis range
|
0.35-500nm
|
|
Micropore analysis
|
0.35-2nm
|
|
Mesoporous analysis
|
2-50nm
|
|
Macropore analysis
|
50-500nm
|
|
Report output
|

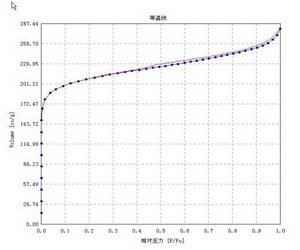

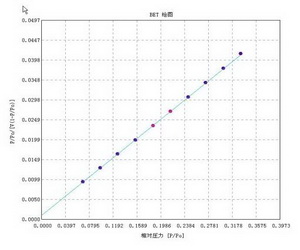

The BET specific surface area / analysis / adsorption isotherm
adsorption and desorption by /BJH pore volume,
pore area analysis / total pore volume / total pore area /
Langmuir method of the specific surface area analysis
|
|
Analysis accuracy
|
≤±1%
|
|
Pressure detection system
|
Imports pressure sensor measurement
(0-10Torr 0-1000Torr)
|
|
Pressure detection accuracy
|
0.15％
|
|
Analysis temperature
|
-196 - 100 Degree Celsius
|
|
Partial pressure range
|
P/P0 4×10－7－0.995
|
|
Vacuum system
|
4 x 104Pa (German mechanical pump) or 1 x 106Pa
(German molecular pump) can choose
|
|
Software control system
|
INTERNET remote control
|
|
Sample pretreatment
|
Sample independent preparation station (degassing)
|
|

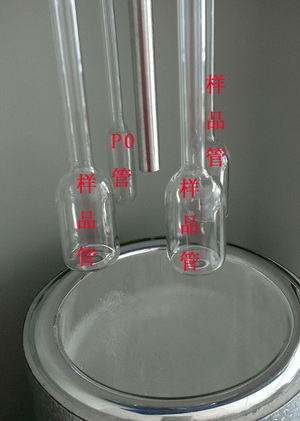

Sample pipe size
|
10ml
|

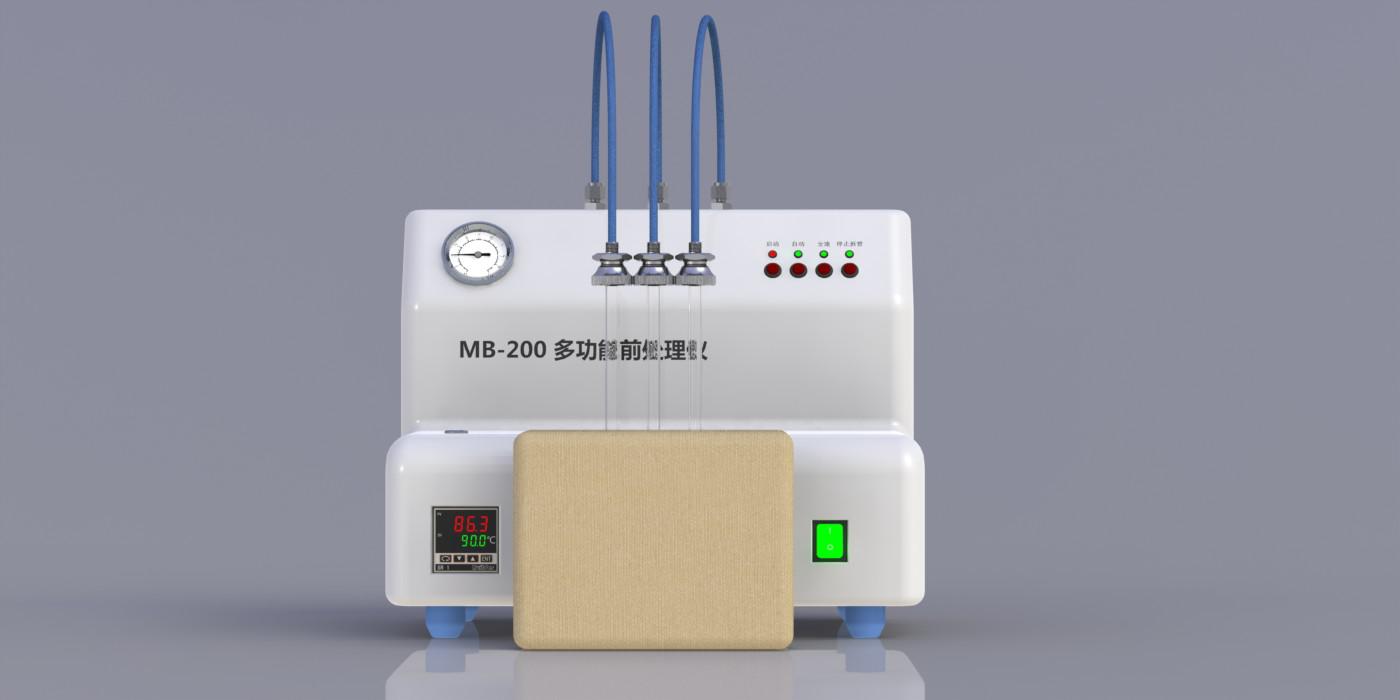

MD-200 automatic sample processor
