United Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.
Quality is the Company Culture of UNITED ENERGY!
1.Smart Soldering-Uniform smart soldering increases the power and efficiency of the module, and improves the power load capacity
2.Gallium-doped technology overcomes LID degradation and guarantees the long-term power generation of the module.
3.Smart Module Packaging and Logistics-Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics.
4.Superior Warranty-12 years products warranty 30 years linear power output warranty
5.Bifacial Energy Yield-Additional power generation from the backside of bifacial modules increases the overall energy yield, which has been verified by customers and third-party testing organizations.
Electrical Specification
| Model Number |
UE445M-72HG |
UE450M-72HG |
UE455M-72HG |
UE460M-72HG |
UE470M-72HG |
| Maximum Power (Pmax/W) |
445 |
450 |
455 |
460 |
470 |
| Open Circuit Voltage (Voc/V) |
49.4 |
49.6 |
49.8 |
50.0 |
50.4 |
| Short Circuit Current (Isc/A) |
11.46 |
11.53 |
11.6 |
11.67 |
11.81 |
| Voltage at Maximum Power (Vmp/V) |
40.8 |
41 |
41.2 |
41.4 |
41.8 |
| Current at Maximum Power (Imp/A) |
10.91 |
10.98 |
11.05 |
11.12 |
11.25 |
| Efficiency(%) |
20.48 |
20.71 |
20.9 |
21.17 |
21.63 |
The Key Features of United Energy Solar Panel
1. Half-cut technology, power output enhancement Compared with the whole cell, the voltage of the half-cut cell remains the same, the power is halved, the current is halved, the internal loss is reduced, and the power is reduced after series and parallel connection.
2. Up to 25% additional power gain from back side depending on albedo
3. Shaft string structure to reduce shading losses
4. With its special parallel-string structure, the half-cut module can be arranged in the longitudinal direction to improve the utilization of the stand and the land, and at the same time, to reduce the loss of power generation caused by shadows.
5. Full set of safety certification and regulation, meet certificate requirements in most of the countries.
FAQ：
What watts of this panel?
Mono 450W 460W 470W solar panel
What dimension of this panel?

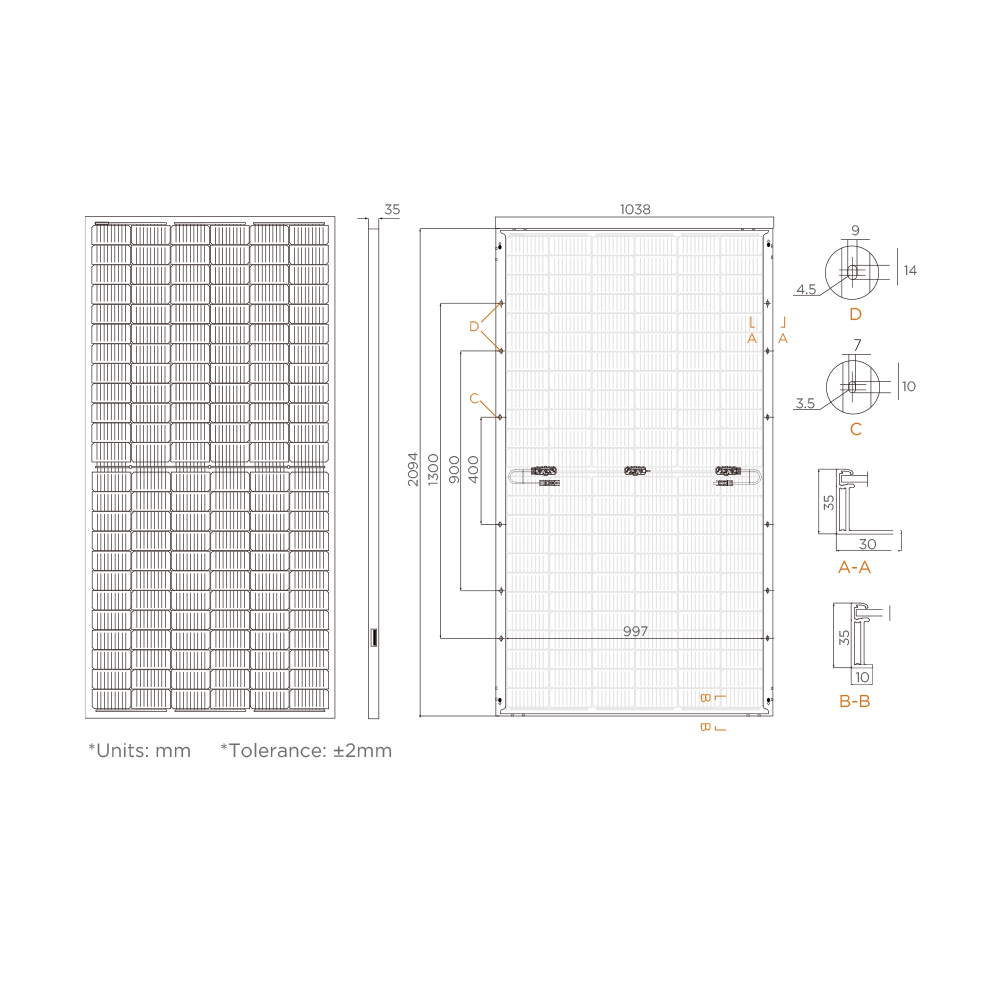

2094*1038*35mm
How much is the loading quantity and shipping method?

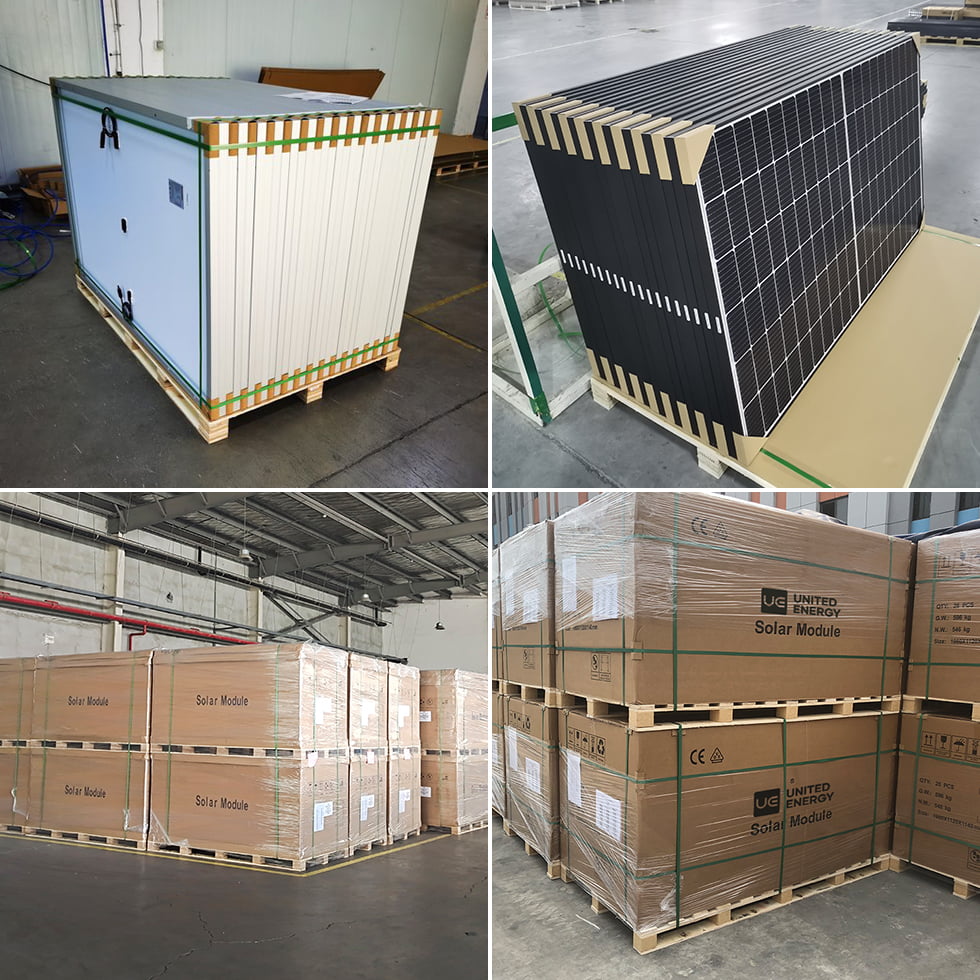

30pcs/pallet ; 150pcs/20GP ; 660pcs/40HQ ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.
How long is the Delivery time?
Normally production will takes around 10 workings days, depends on the order quantity.
