Overview

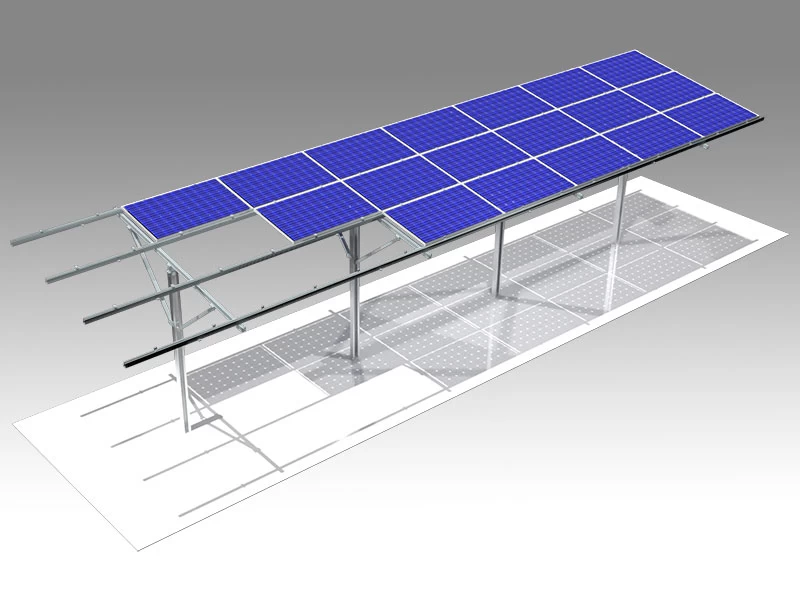

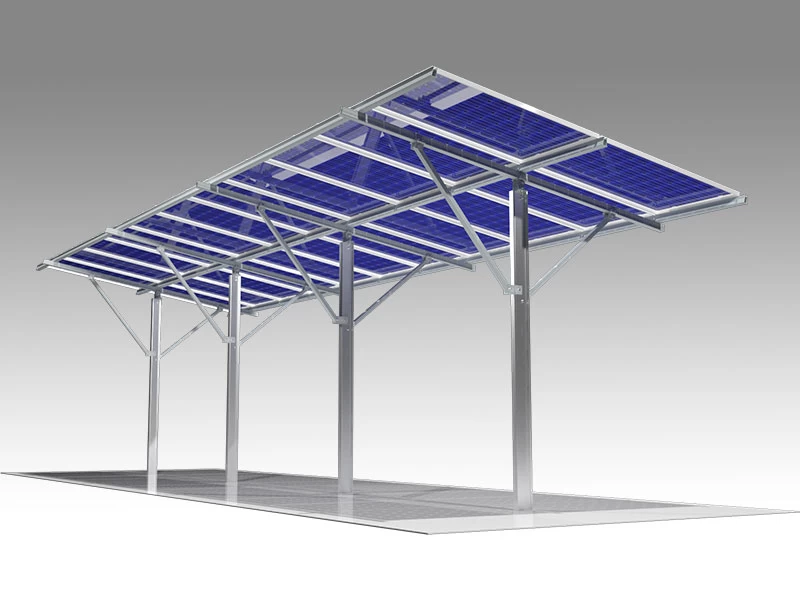

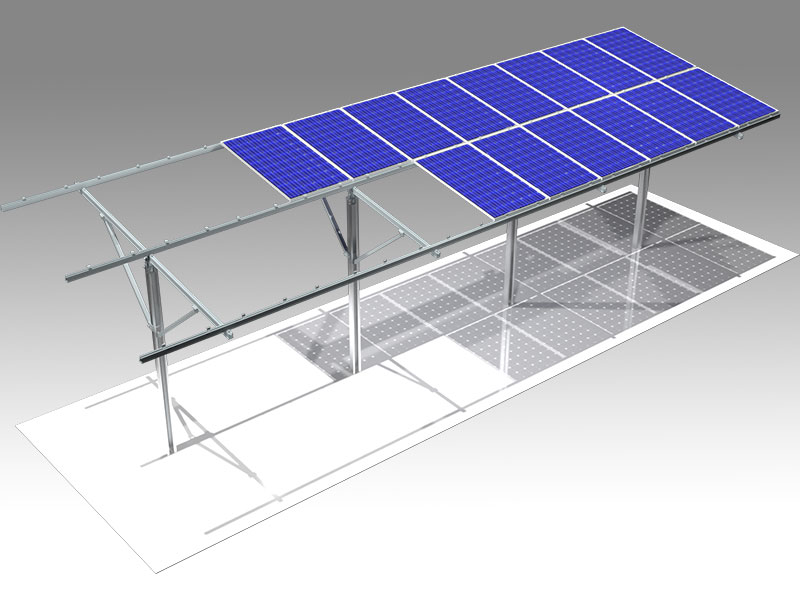

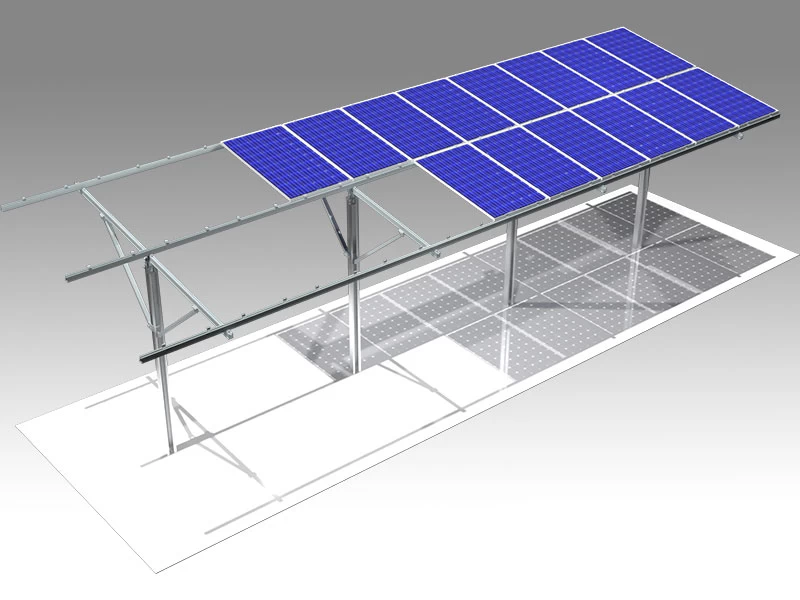

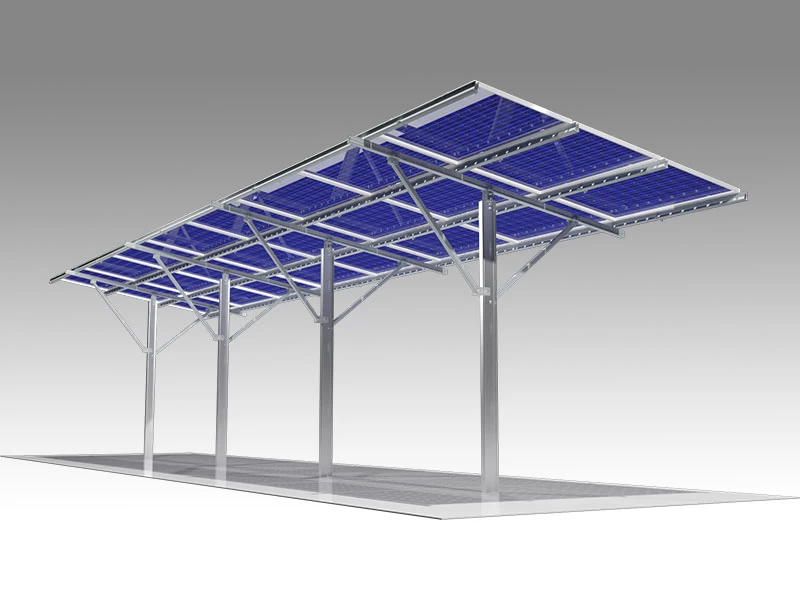

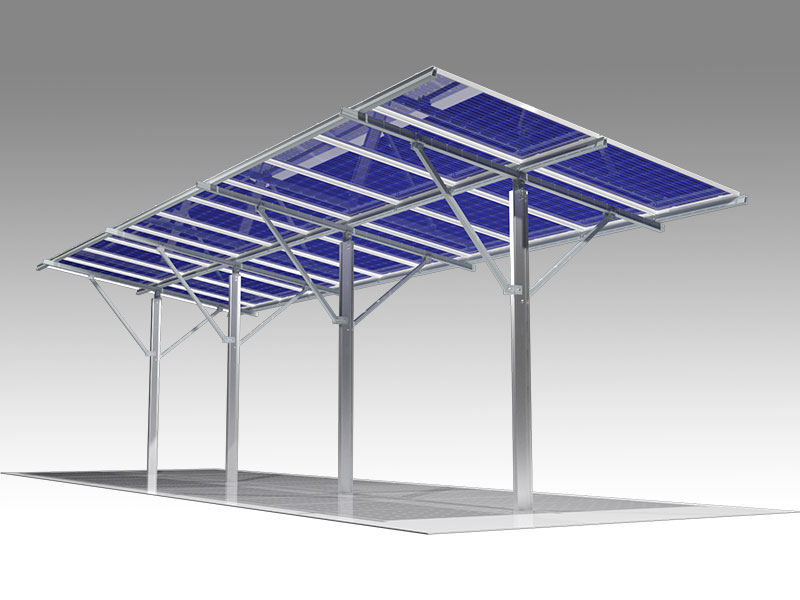

Special mounting structure design for bi-facial solar modules, no shading at the backside with all angles, more than 15% higher power generated.
Features
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled
in factory, no onsite cut and drill request, saving the onsite
installation time and cost.

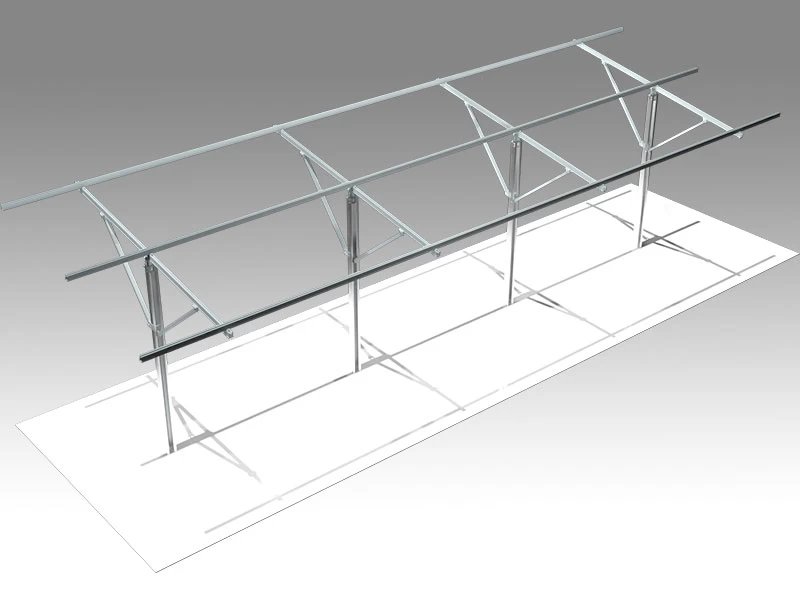

Symmetrical Rail Application
Applying the symmetrical rail design, saving material cost with
stable enough structure strength, making whole system more
cost-effective.
Single-Pile Design
Single-pile design reduce half of the ramming time, saving the
construction cost.
Structure Configuration Multi-Options
Single or double embrace bars structure configuration available
to meet varied projects requests.
|
Technical Parameter
|
|
Installation Site
|
Ground
|
|
Foundation
|
几-shape Piles
|
|
Tilt Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Ground Clearance
|
500-2000mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized)&Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 & Zinc-Nickel Alloy Electroplated Steel
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Technology Certification
