This type screw pile system is not appropriate for the foundation in stiff soil or soil containing gravel because the helix plates may be damage in driving process. Therefore, this type of pile system usually used in the sand, silt and clay.
|

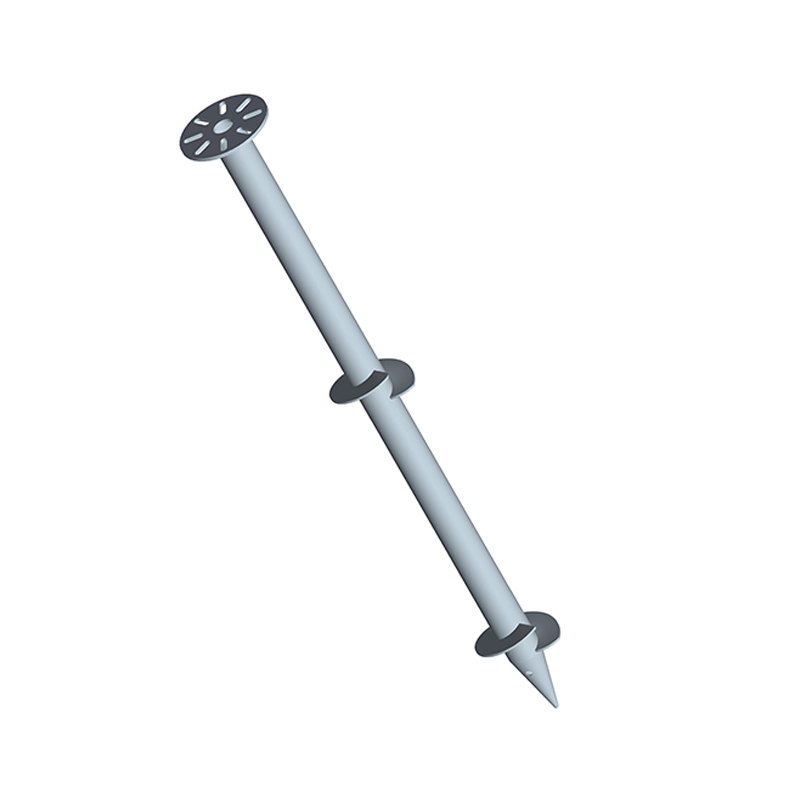

Normal ground screw with flange
|
|
Item NO.
|
Length(mm)
|
Dia.of flange(mm)
|
Minium galvnized thickness (um)
|
OD(mm)
|
Thickness of tube(mm)
|
Remarks(mm)
|
|
F76-1200-T3
|
1200
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-1400-T3
|
1400
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-1600-T3
|
1600
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-1800-T3
|
1800
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-2000-T3
|
2000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-2400-T3
|
2400
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-2500-T3
|
2500
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-3000-T3
|
3000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-1600-T3
|
1600
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-1800-T3
|
1800
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2000-T3
|
2000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2100-T3
|
2100
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2400-T3
|
2400
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2500-T3
|
2500
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-3000-T3
|
3000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
Note: Shuangheng offers different type of ground screw based on different installation conditions,dimension can be customized.
|
Production process of ground screws

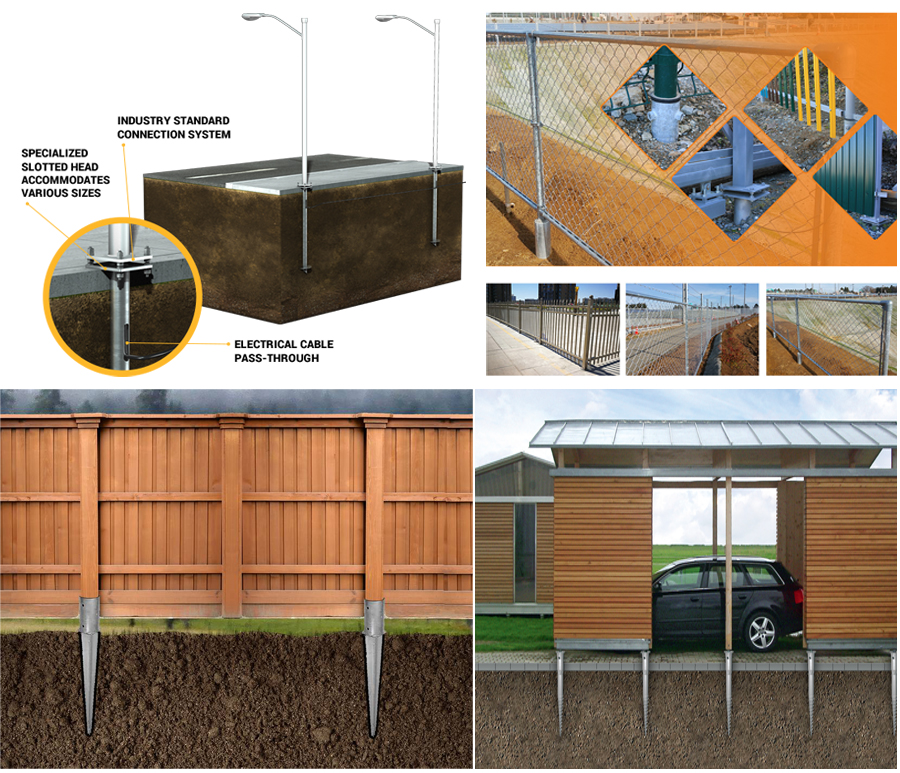

Application of ground screws
Ground screws have a wide variety of application,not only for solar mounting system foundation, but also for light industrial projects, wooden structures to fencing, streetlinghts and storage containers, etc. Install into ground without concrete save your labor and material cost, and its environment friendly and recycle.
