HCET-B series temperature switch for domestic appliances
HCET-B series bimetallic temperature switch has thermal protection function and control current overload time exactly.You can choose to cut off the power and then turn on again,sensitive temperature switches ensure a higher level of safety protection.Widely used in home appliances, such as washing machines, juice machines, soybean milk machines, vacuum cleaners and so on.
Features
Both temperature and current sensitive.
With hand-reset function.
Set overload trip current according to the customer request,up to 35A.
Accurate trip off time can prevent motor from overheating (3〜8s).
Small size, insulation shell make it more flexible and easy to install.
Each type of parts strictly implemented European ROHS environmental standards.
Specifications
|
Item No.
|
HCET-B
|
|
Electrical specifications
|
30 amps/15 volts DC
|
|
15 amps/30 volts DC
|
|
15 amps/250 volts AC
|
|
30 amps/125 volts AC
|
|
Operating temperature range
|
50°C-180°C
|
|
Temperature tolerance
|
± 5°C, ± 8°C
|
|
Trip off current range
|
1-35A
|
|
Trip off time
|
3-8s.(according to customer's requirements)
|
|
Case material
|
Plastic
|
|
Case size(mm)
|
20*8.5*4.4
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |
| Electric tools |

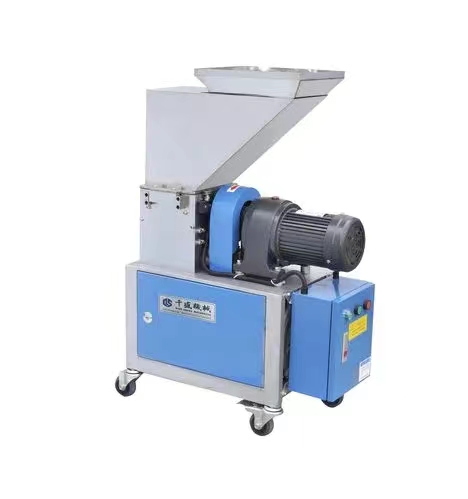

Grinders |

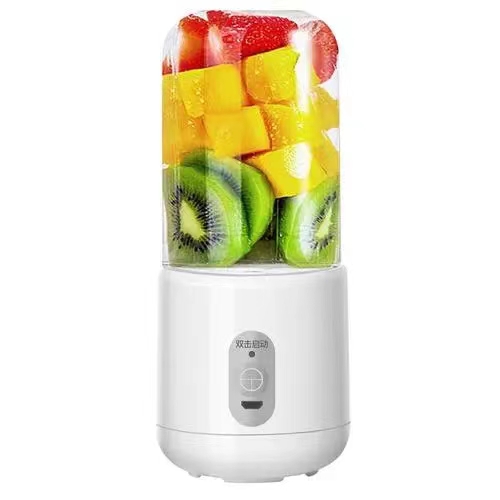

Juicers |

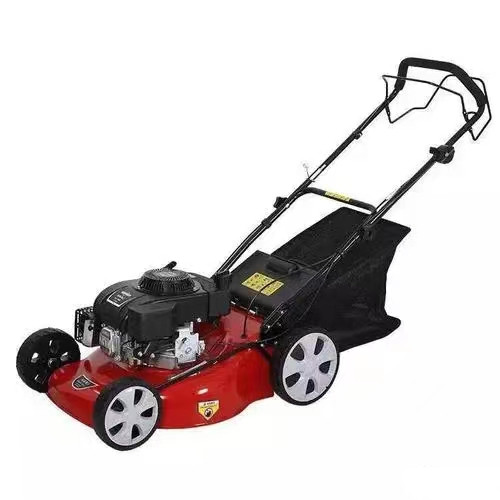

Lawn mowers |
 |
 |
 |
 |

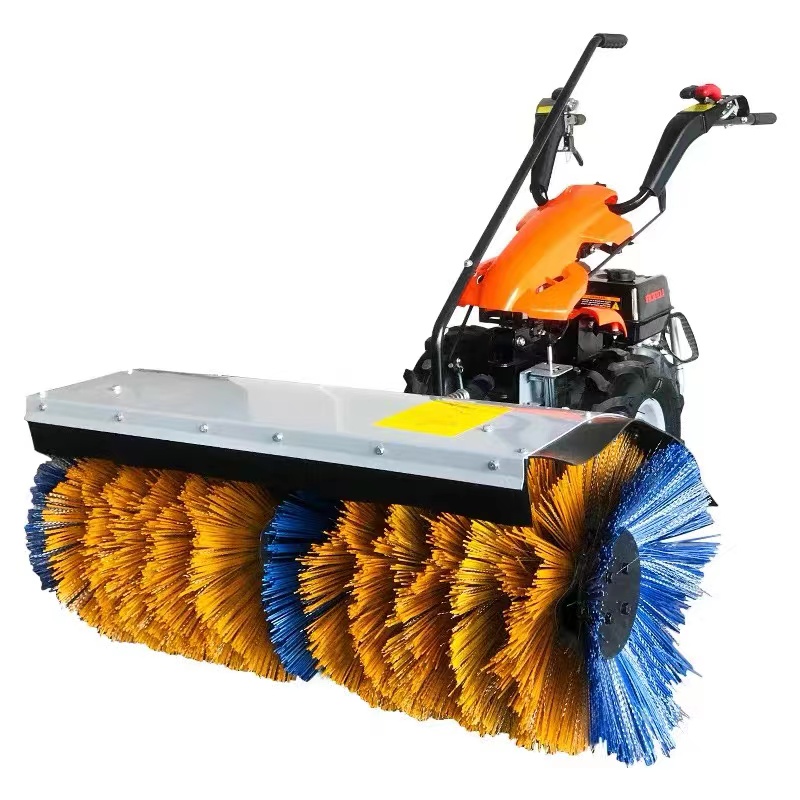

| Snowplows |

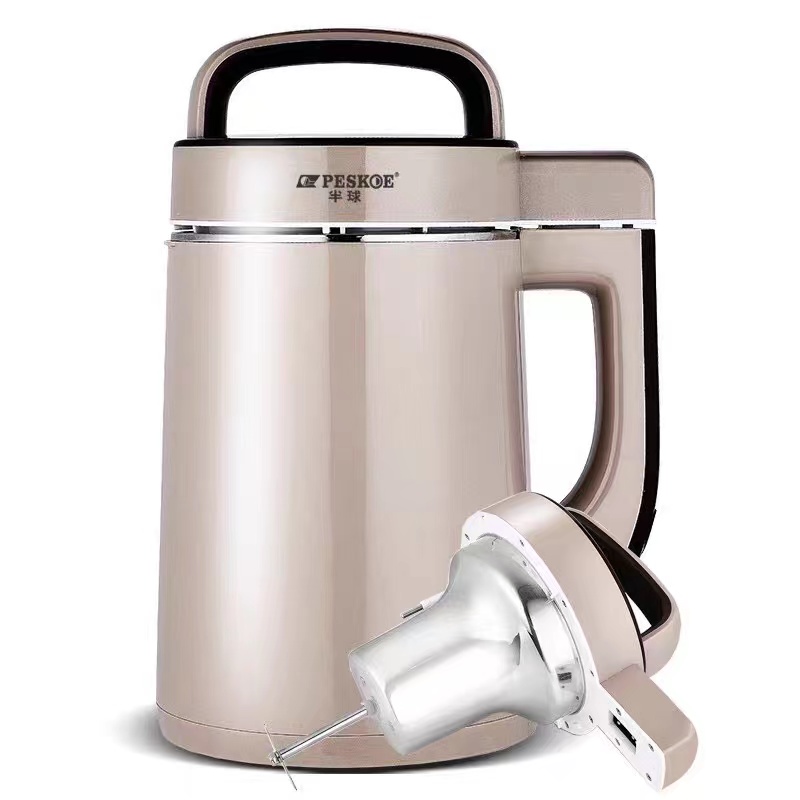

Soybean milk machines |

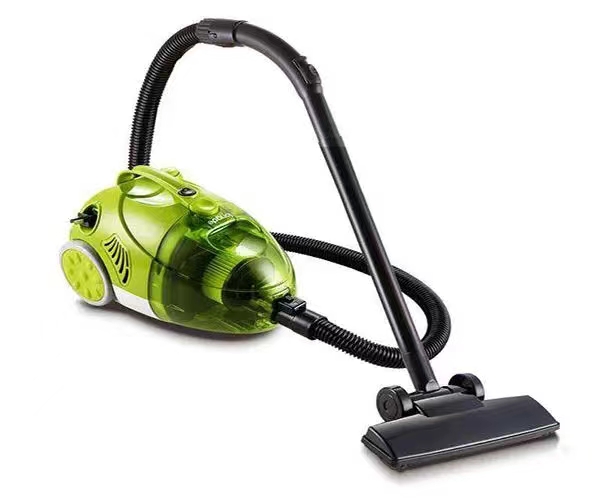

Vacuum cleaners |

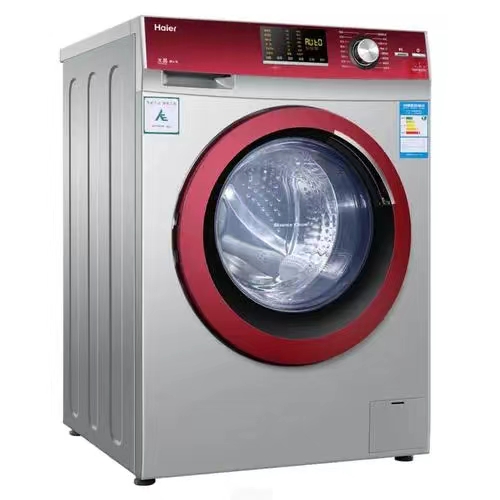

Washing machines |

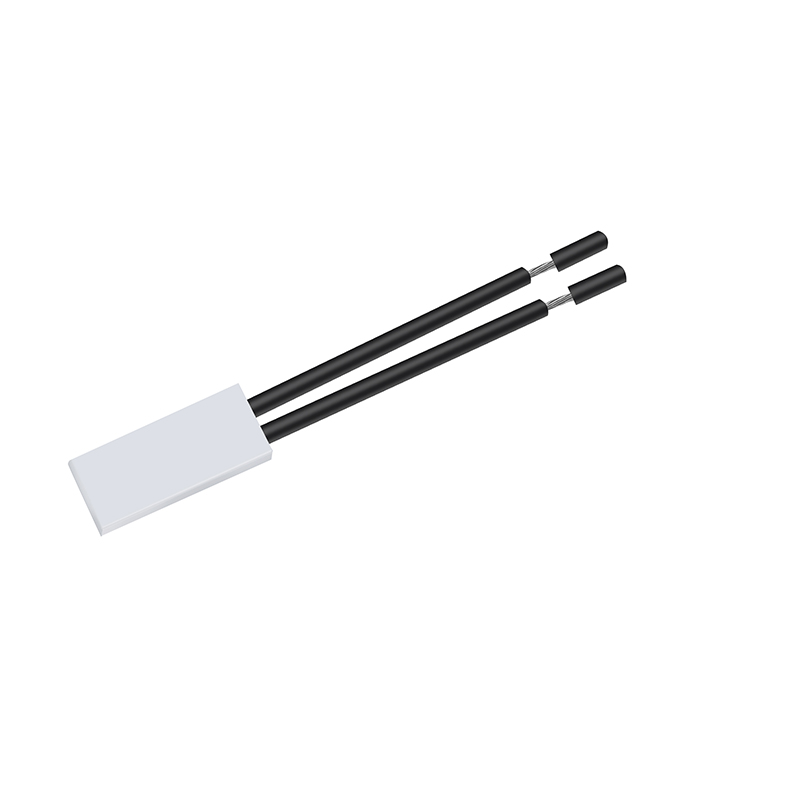

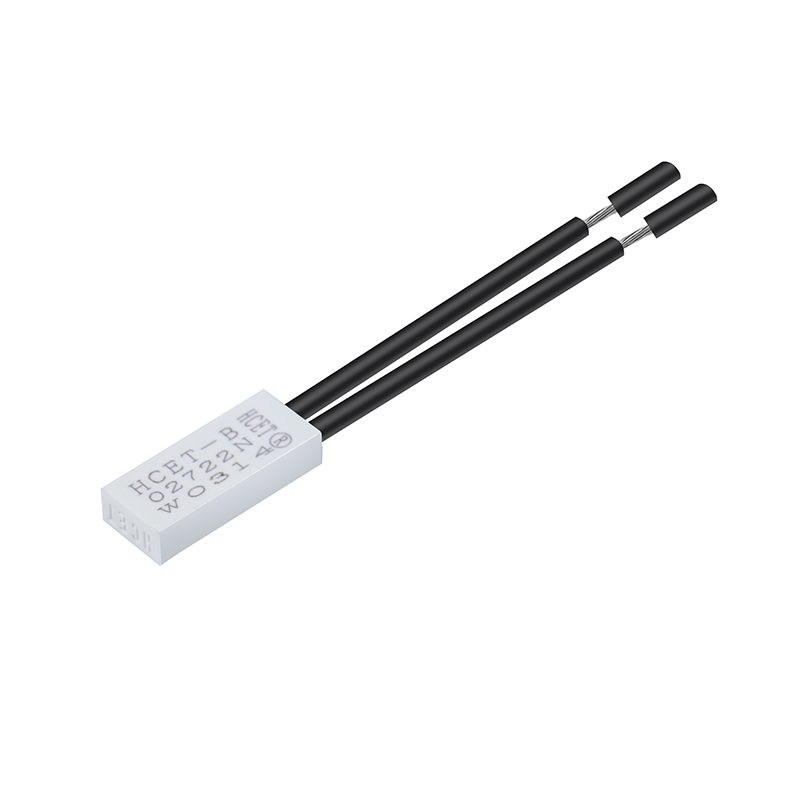

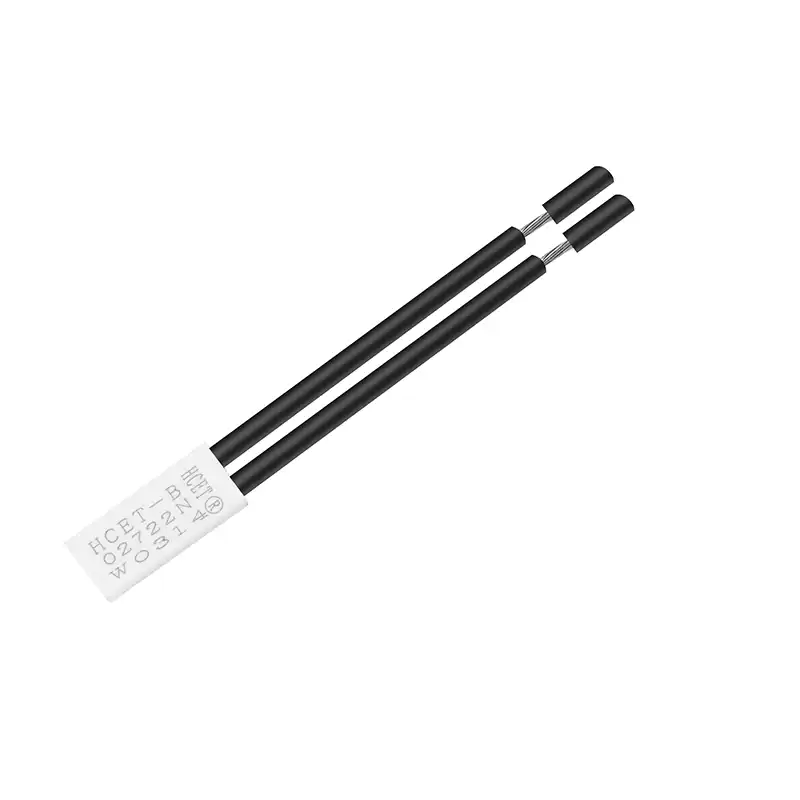

Product display

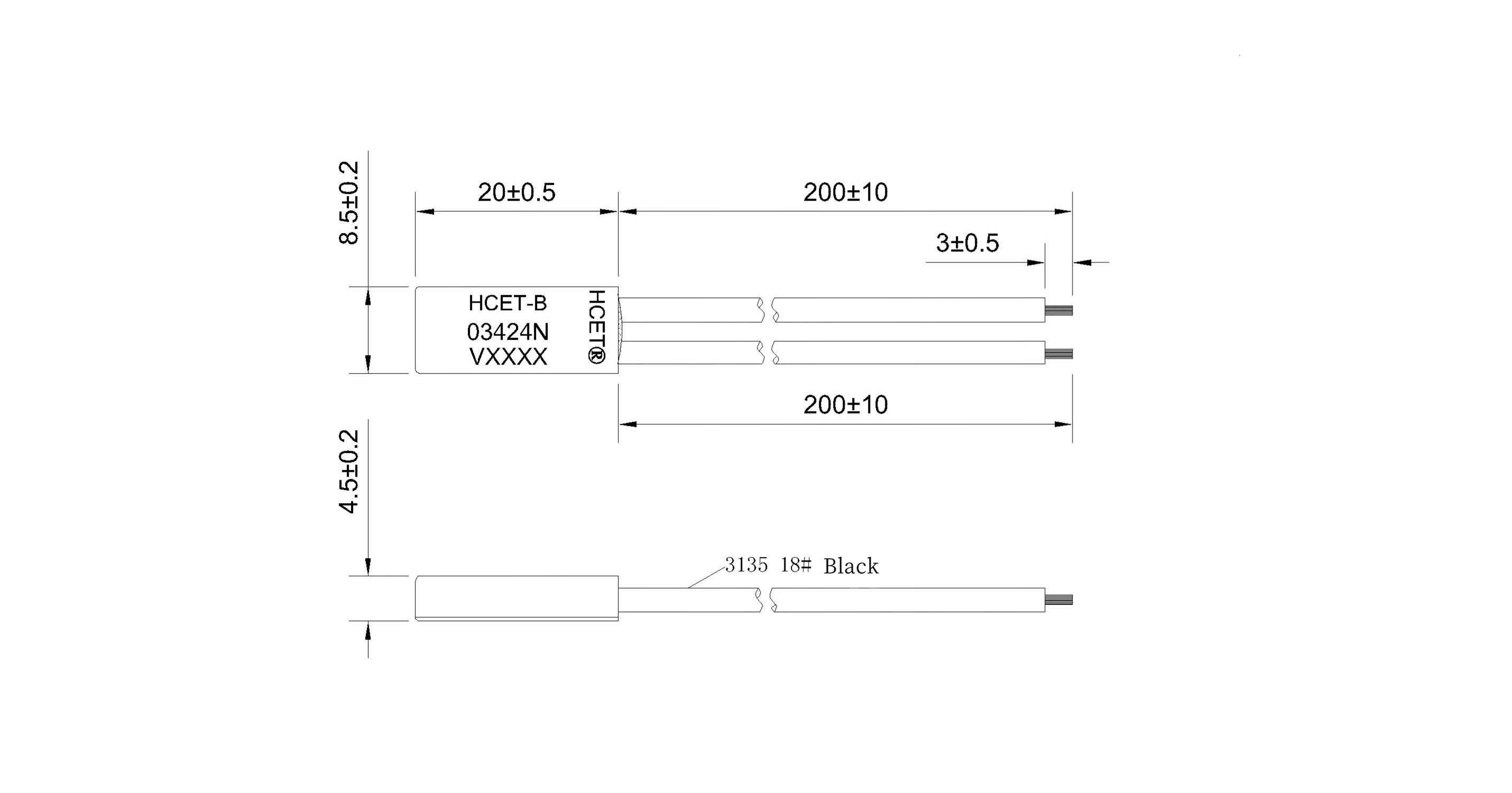

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.

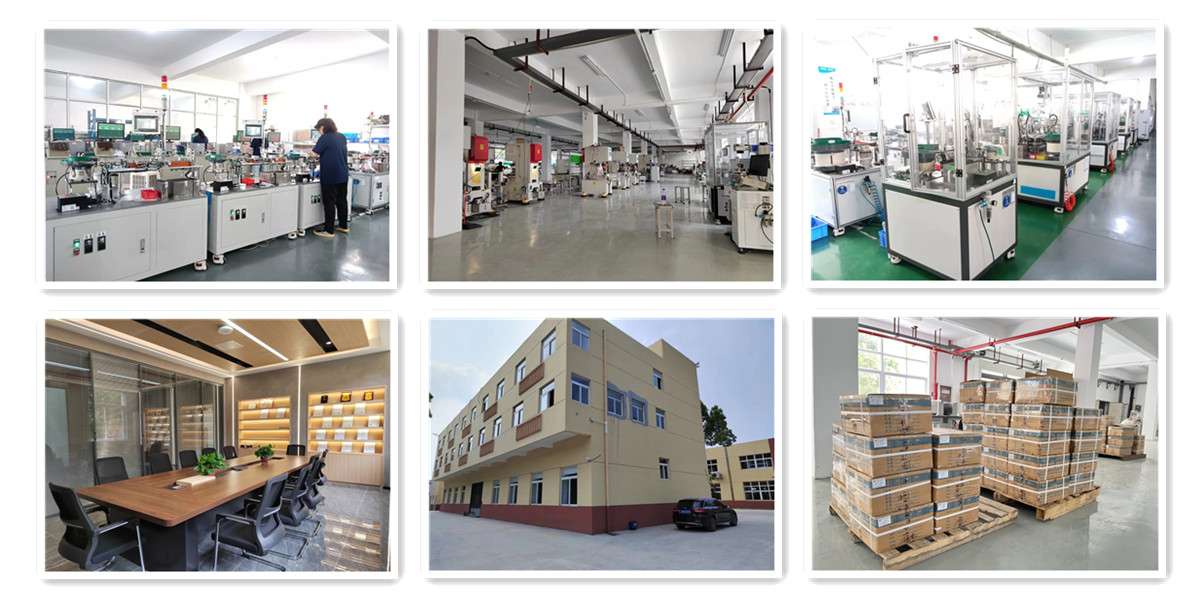

Factory display
