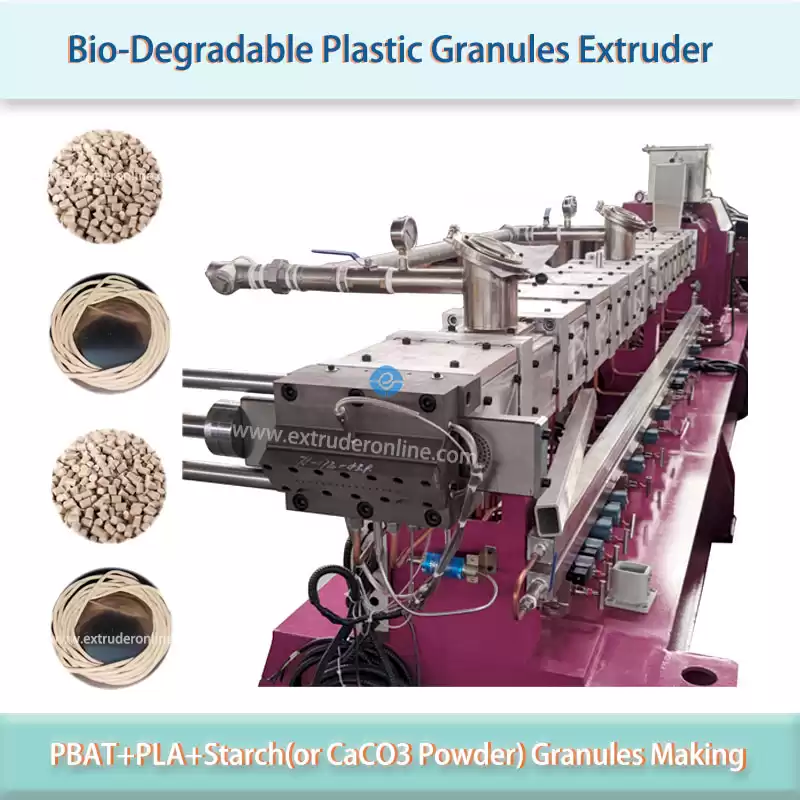

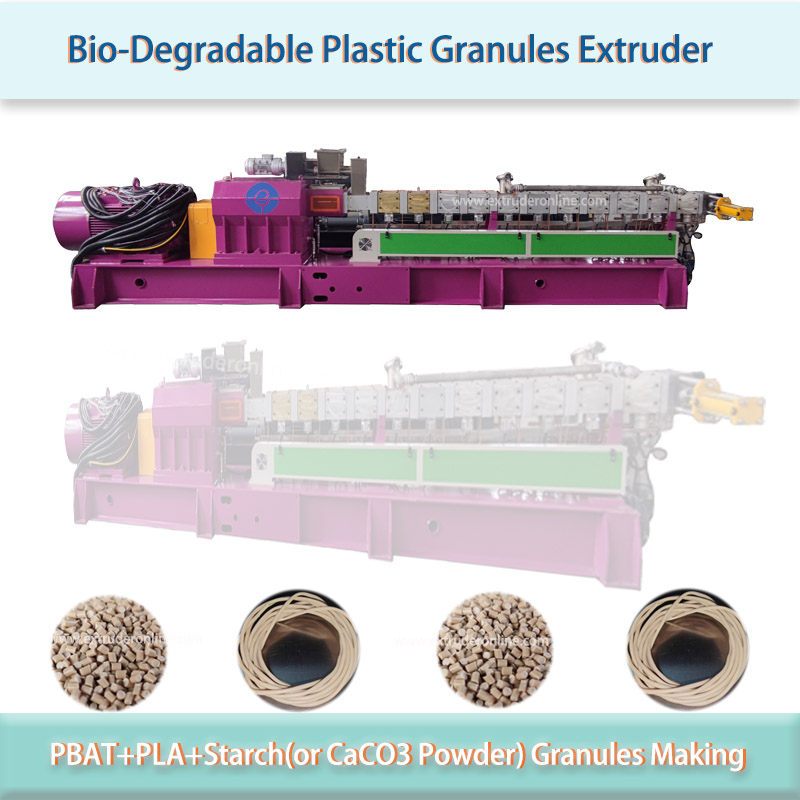

BIO Mass Degradable Plastic Granules Particles Extruder

Degradation Plastic material Extruder (bright color/ jump color collocation for painting)

https://youtu.be/pBIc6HO_DYI

This Machine line is for PLA and other BIO mass Degradable plastic materials to make polymer granules (Plastic particles);

L/D: 48:1, 160KW, 400rpm; 6.3L Hydraulic workstation(1.5KW)

Hole No.: 17, Dia.: 3.8mm, Side hole Dia.: 4mm

The machine line includs:

1) With SRL-Z500/1000 high-speed mixing group;

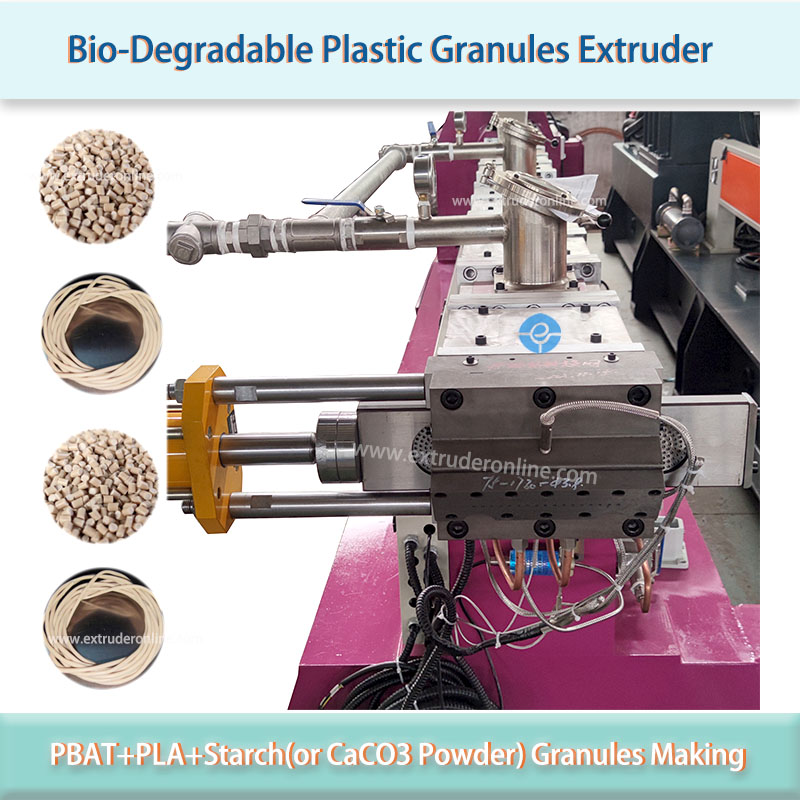

2) Main extrusion machine with water cooling tank for barrels, vacuum system for barrels, melt pump and screen change with hydraulic workstation;

3) 500 Pelletizer special for Bio-Degradable material

4) 500 3 layers of vibrating sieve, top mesh diameter: 6mm, bottom(2 layers) hole Dia.：2mm

5) PLC+Touch screen

6) Air cooling strands belt conveying system: 24 meters controlled by inverter;

7) 500Kgs/hr output capacity of Pelletizer with the relative capacity of vibrating sieve,

The particles will be blown into the silo by high-pressure blow, (or instead of the Vacuum negative pressure suction devices).

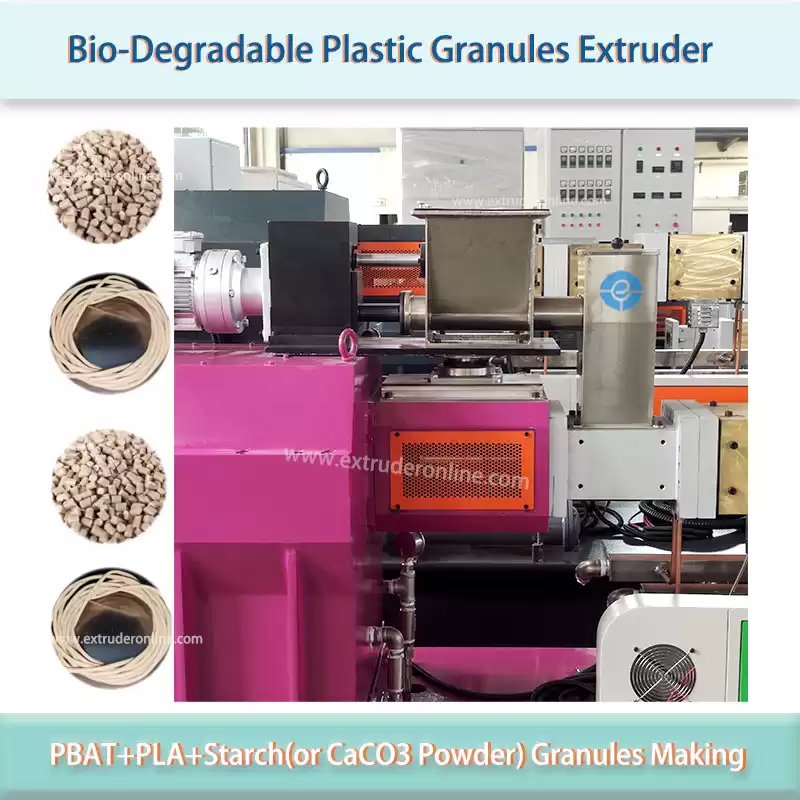

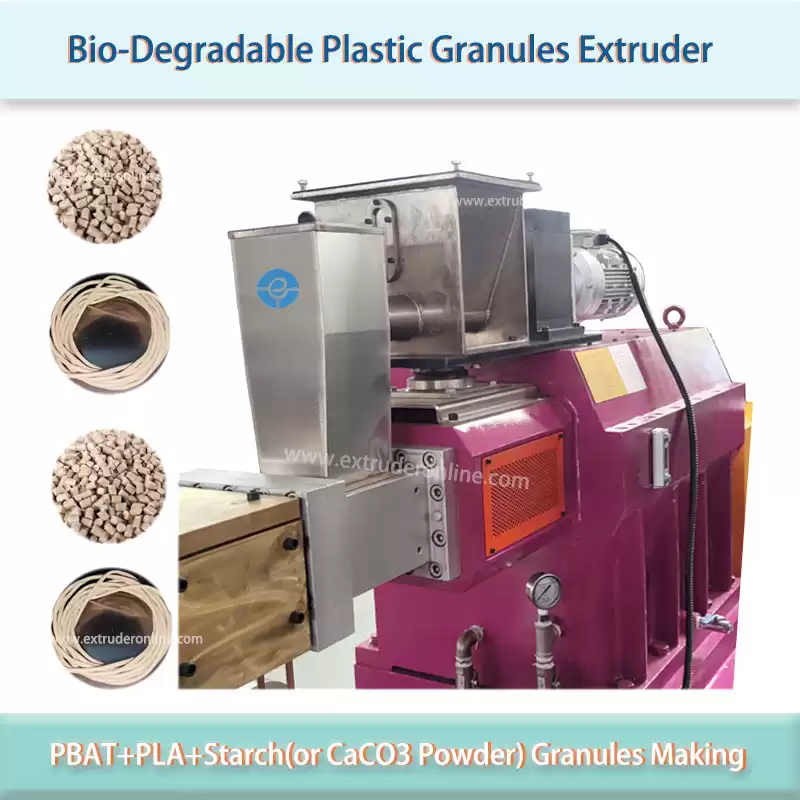

8) automatic feeding system: equipped Vector type weight in losing devices:

one way of  liquid feeding device;

two ways of granules feeding devices;

one way of powder feeding device;

(equipped vector's installation platform)

Technical Parameter:

Our machine can process the following materials:

1) Diifferent kind of Bio-Mass or other degaradable plasic material, like to sya, PLA, PHA, PBS & Etc.;

2) PC granules (for mobil use, for PCB insulation);

3) PE granules;

4) PVC granules

5) other plastic particles;
