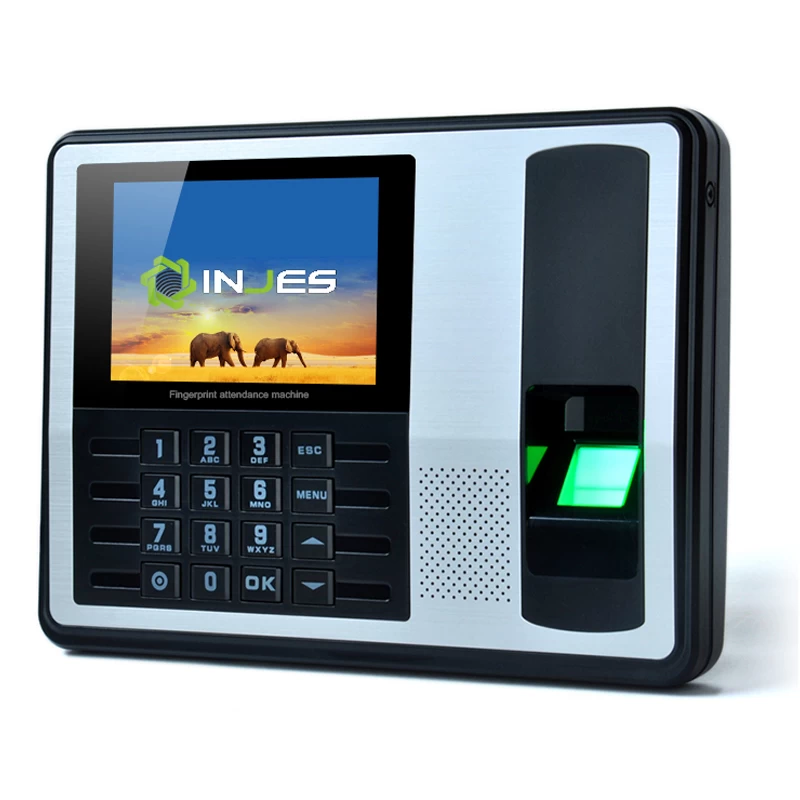

Product Name: Biometric Attendance System with RJ45 Network Large Color LCD Screen
Description:
MYA7 is an innovative biometric fingerprint time attendance system applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The standalone fingerprint time attendance system MYA7 features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor.
The 4 inch large TFT Screen can display more information vividly, including fingerprint image quality and verification result etc. TCP/IP communication port is standard and make sure the data transmission between terminal and PC can be easily done within several seconds.
Features:
．Color TFT screen with GUI Interface for ease of use.
．Scratch-proof Optical Sensor
．1 touch a-second user recognition
．Stores ,000 templates and 60,000 transactions
．Reads Fingerprint and/or Password
．Optional integrated proximity or smart card reader

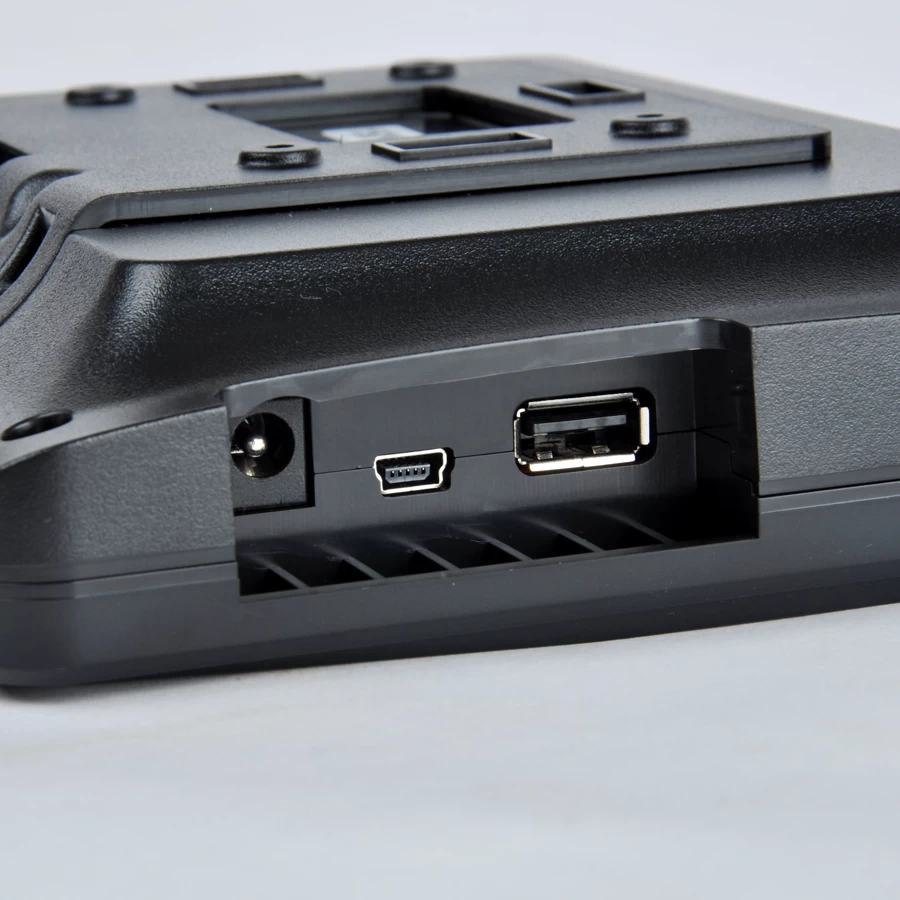

．Built-in Ethernet ports
．Built-in USB port allows for manual data transfer when network isn't available
．Multi Language Support
．Built in bell scheduling
．Optional Built in backup battery
．Audio-Visual indications for acceptance and rejection of valid/invalid fingers
．SDK available for OEM customers and software developers
Specifications:
|
Fingerprint Capacity
|
1000
|
|
Transaction Capacity
|
100,000
|
|
Hardware Platform
|
AM11
|
|
Sensor
|
Optical Sensor
|
|
Verification speed
|
<1s
|
|
Communication
|
TCP/IP,USB host
|
|
Standard Functions
|
Fingerprint, password verification,U disk, Self-Service Record,
T9 input
|
|
Optional Functions
|
ID card/ IC (MF) card, backup battery
|
|
Display
|
4.0 inch TFT Screen
|
|
Power Supply
|
5V DC
|
|
Operating Temperature
|
0 °C- 45 °C
|
|
Operating Humidity
|
20%-80%
|
|
Dimension
|
190*140*39mm
|
|
Gross Weight
|
1.20 KG
|

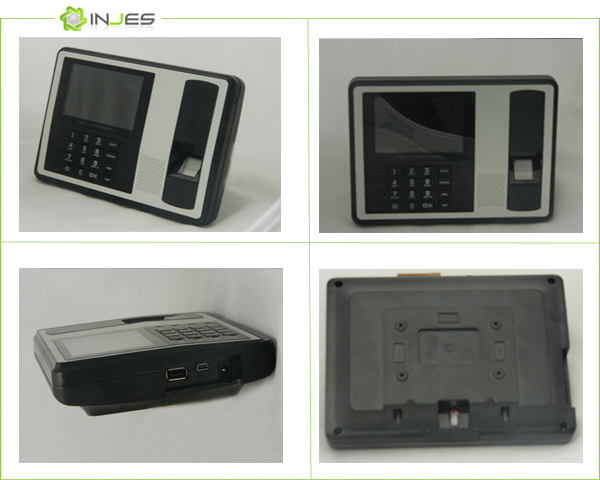

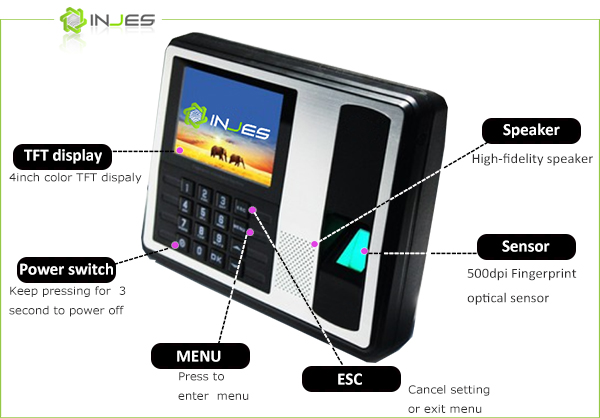

Introductions:

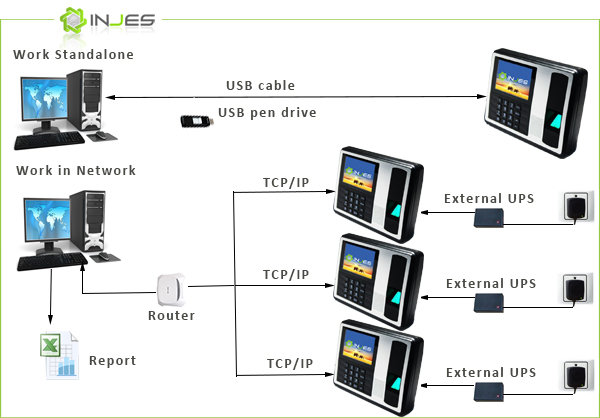

Configuration:

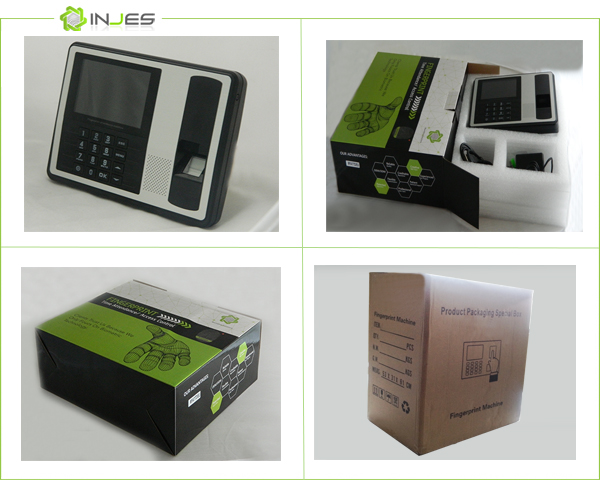

Package:
