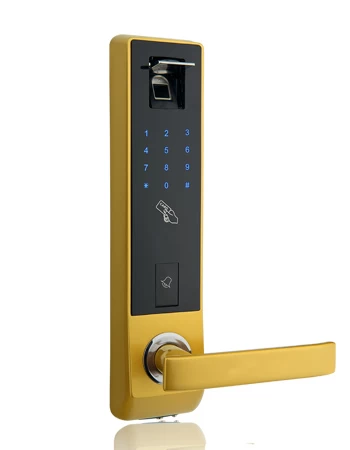

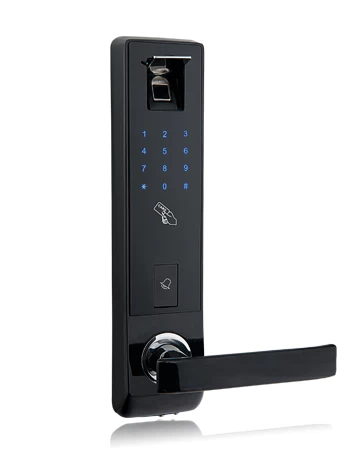

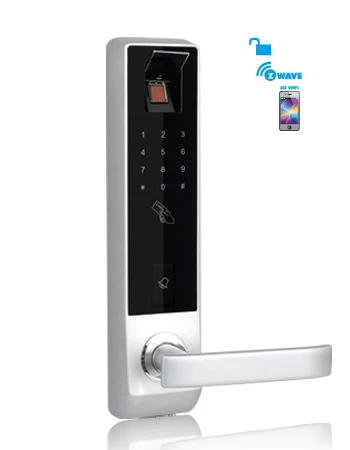

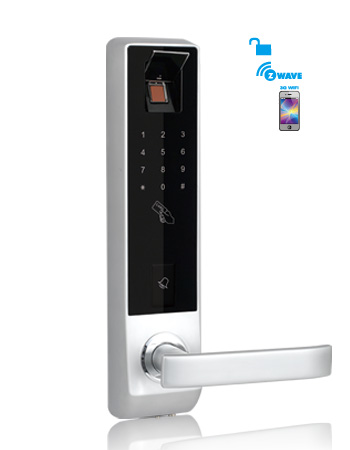

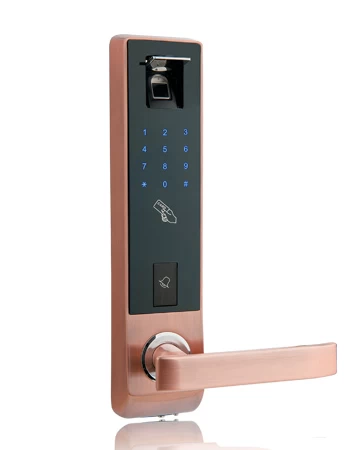

Biometric fingerprint door locks Z-Wave APP control

AES 128 bits encryption for zwave lock--Check lock status remotely to see if doors are locked by Mobile App freely,the transmission signal has been encryted by AES 128 bits with high security.

Biometric semi-conductor fingerprint sensor--The Swedish FPC providing for hte fingerprint,132 international banks to witness the quality of application.

Self-locking protection--Lock shuts down after 5 time attempts and return to the standard program in 3 min.

Shedule setting--You can set the opening time according to the user ID NO.

Emergency power supplier--When the batteries are compeletly discharged,you can easily supply emergency power to the lock with the standard 9V battery.

Low battery indicator--It warms with alarm and LED in the event of low batter.

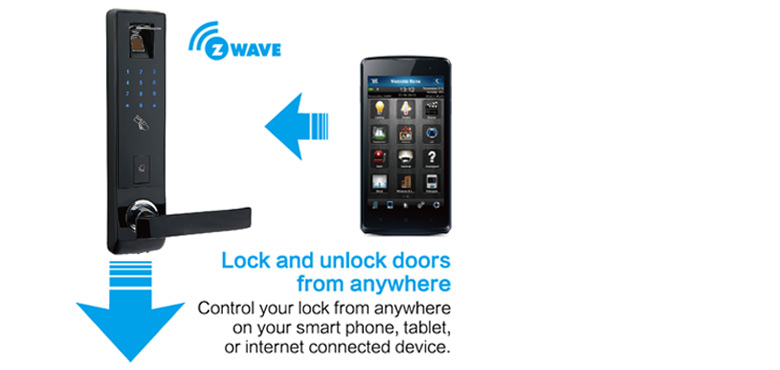

1. It is operated through smart phone over Apps to control the lock from anywhere on your smart phone, tablet.

 2. Works with the Home center 2, Vera gateway. (z-wave frequency:868.42MHz (EU), 921.42MHz (AU))(Gateway not included)

 3. Unlocking by zwave command+fingerprint + card + password + mechanical key in emergency

 4. User capacity: support 1 master code and 100pcs fingerprint user, 100pcs user card, 100pcs user code

 5. Swedish FPC semi-conductor fingerprint sensor, living dermis layer scanning

 6. Voice navigation for easy operation

 7. Auto lock in 5S

 8. Passage mode (constant unlocking) for meeting / party

 9. Powered by 4pcs AA Alkaline battery

 10. Low voltage alarm

 11. Touch screen keypad, blue backlight digits

 12. ANSI standard mortise, free to change the direction.

 13. Reversible handle

 14. Lift handle for double lock

 15. External power pole in case out of power

 16. Override hidden cylinder

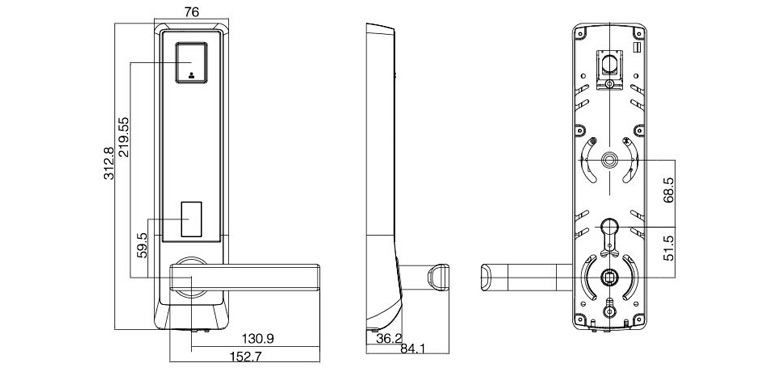

 17. Panel size:W76×H312.8×D84.1mm






Application:






 Zwave Gateway (not included)

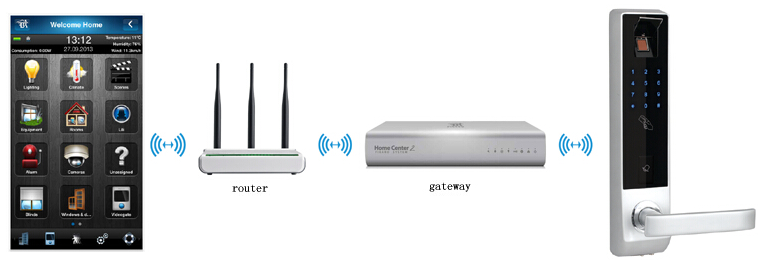

• Our Zwave Lock works well with Fibaro Z-wave Gateway, if you already have a z-wave gateway, just add our zwave lock in the APPs, and you can control it through smart phone.
• If you want to control the zwave lock in city "A" through smart phone with WIFI in city "B", just make sure you zwave gateway connected with the WIFI router.
• If you want to change the code through smart phone, we'd suggest to use Micasa z-wave gateway
• If you hope to set up passage mode, password with time limit, you can choose Micasa z-wave gateway
