Product Item: Bitex BX303F/R hub + Sapim CX-Ray spoke custom road bicycle wheelset
WHEELSET SPECS
----------------------
Rim:
Carbonal rim brake 700c road carbon rims tubular & clincher tubeless. Aerodynamics, lightweight, stiff and durable.
5 years warranty & 2 years crash replacement.
Rim carbon weaves available in: UD, 3k, 3k twill, 6k and marble, see different carbon weaves.

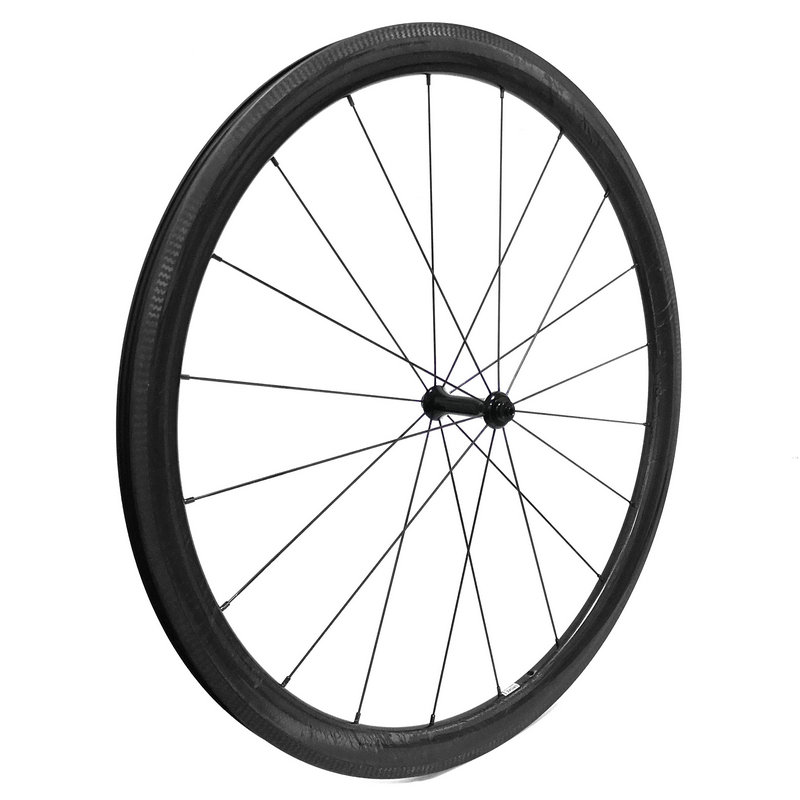

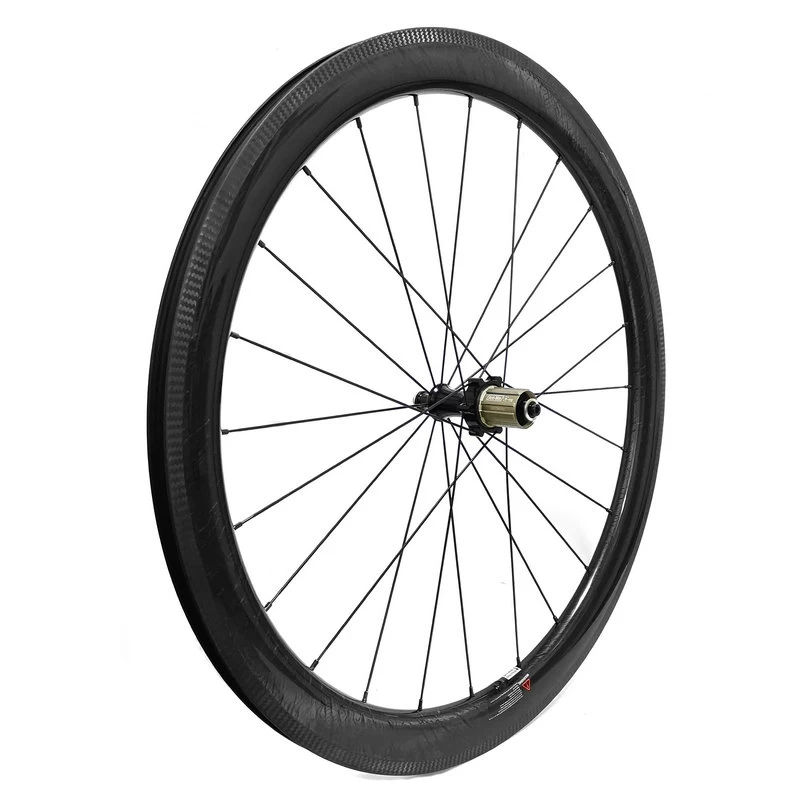

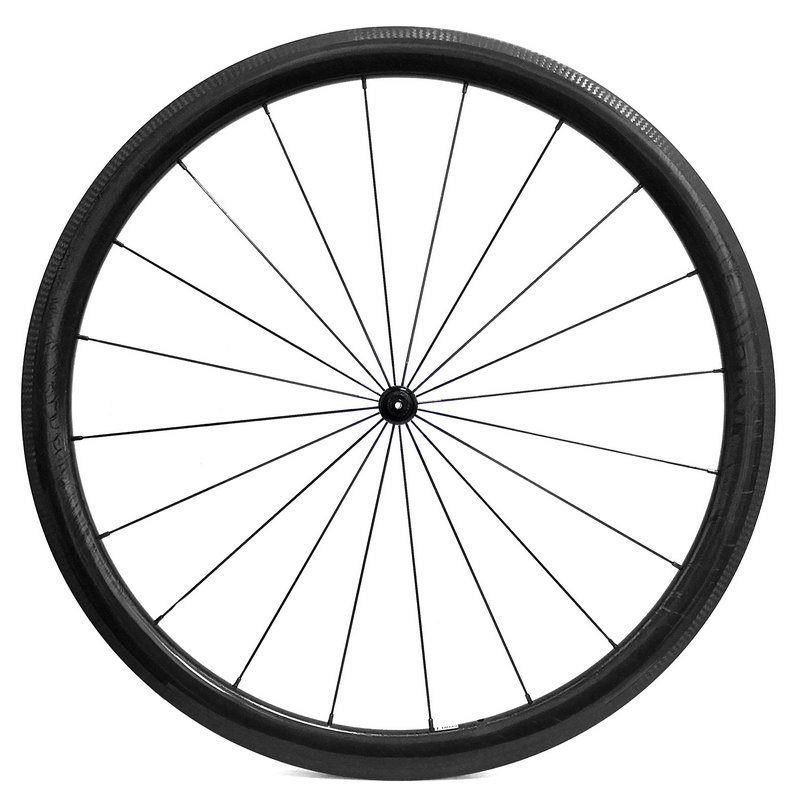

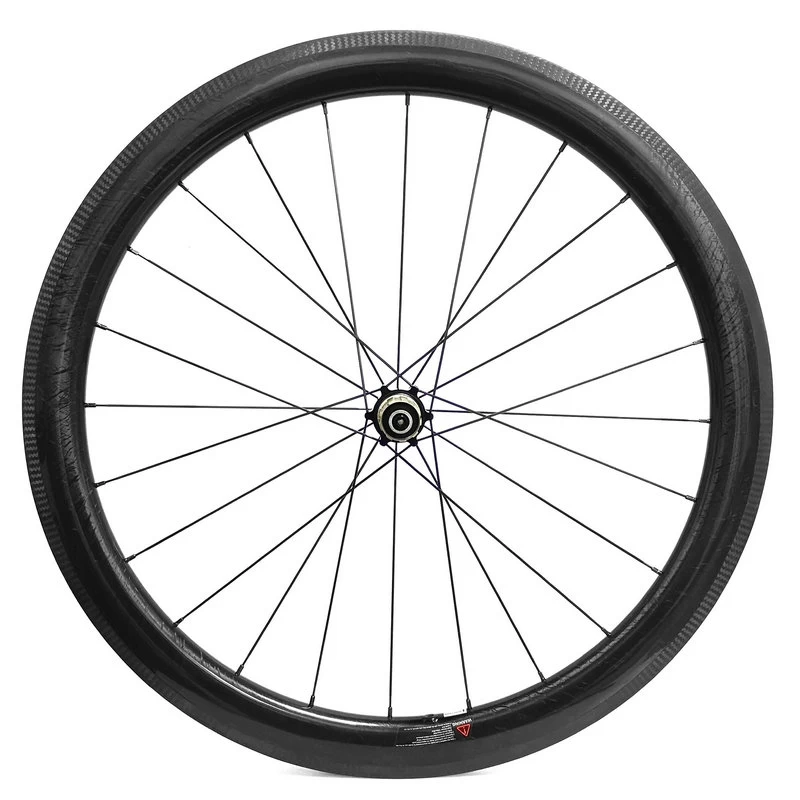

*The photos show wheel rims are RX38SH front & RX50DH rear, rims are marble weave, gloss finish.
*Rim brake surface available: 3k twill brake track (recommended
) and basalt brake track.

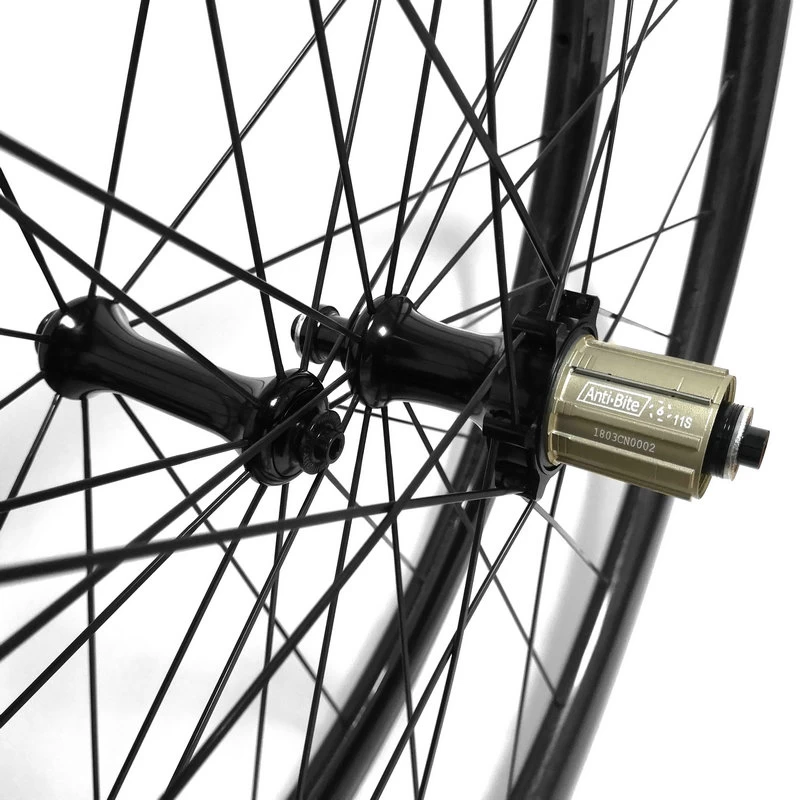

Hub:
Bitex BX303F & BX303R, straight pull;
Size-axle: Front - 100x9mm, Rear - 130x10mm;
Cassette body: Shimano Road 11S / Sram XDR;
Hole: front 20, rear 24;
Color: black.
Spoke:
Sapim CX-Ray spokes, straight pull, black.
Nipple:
Sapim alloy or brass nipples, black or red.
Lacing:
Front wheel - radial;
Rear wheel - non drive side radial, drive side 2 cross.
Extra: Spare spokes/nipples, skewers and brake pads included.
Weight:
Hub: 300g/set;
Spokes + nipples: 200g;
Weight without rims: 500g.
Rim model vs Complete wheel weight:
Model
|
Rim type
|
Rim weight / pc
|
Complete wheel weight (±5%) / set
|
Max weight limit
|
RX30SH
|
700c clincher 30x25mm
|
430g
|
1360g
|
115kgs
|
RX38SH
|
700c clincher 38x25mm
|
470g
|
1440g
|
120kgs
|
RX38DH
|
700c clincher 38x25mm- asymmetric
|
470g
|
1440g
|
120kgs
|
RX45SH
|
700c clincher 45x25mm
|
480g
|
1460g
|
125kgs
|
RX50SH
|
700c clincher 50x25mm
|
500g
|
1500g
|
125kgs
|
RX50DH
|
700c clincher 50x25mm - asymmetric
|
500g
|
1500g
|
125kgs
|
RX60SH
|
700c clincher 60x25mm
|
560g
|
1620g
|
130kgs
|
RX88SH
|
700c clincher 88x25mm
|
720g
|
1940g
|
135kgs
|
RX38L
|
700c clincher 38x28mm
|
480g
|
1460g
|
120kgs
|
RX50L
|
700c clincher 50x28mm
|
510g
|
1520g
|
125kgs
|
RT30S
|
700c tubular 30x25mm
|
310g
|
1120g
|
115kgs
|
RT38S
|
700c tubular 38x25mm
|
360g
|
1220g
|
120kgs
|
RT38D
|
700c tubular 38x25mm- asymmetric
|
360g
|
1220g
|
120kgs
|
RT50S
|
700c tubular 50x25mm
|
410g
|
1320g
|
125kgs
|
RT50D
|
700c tubular 50x25mm- asymmetric
|
410g
|
1320g
|
125kgs
|
RT60S
|
700c tubular 60x25mm
|
470g
|
1440g
|
130kgs
|
RT88S
|
700c tubular 88x25mm
|
530g
|
1560g
|
135kgs
|
* Complete wheel weights are subject to a ±5% variance.
* Each
wheelset will ship with: spare spokes, nipples; pair of quick-release
skewers; carbon-specific brake pads; freehub spacer for 10 speed
cassettes.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite rim model, leave a message below to get a best quote for your next carbon road bicycle wheelset!
