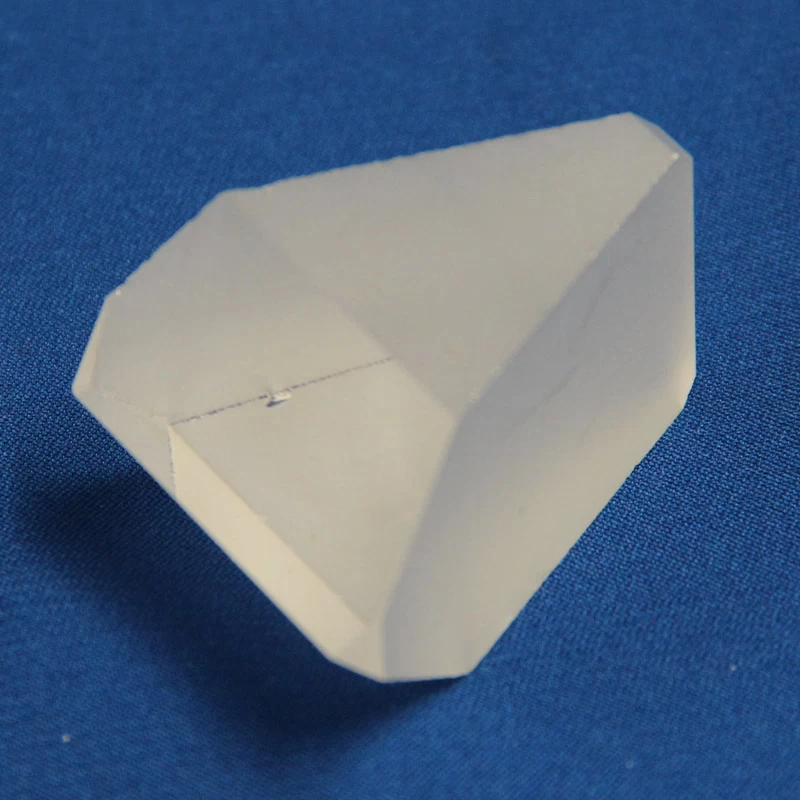

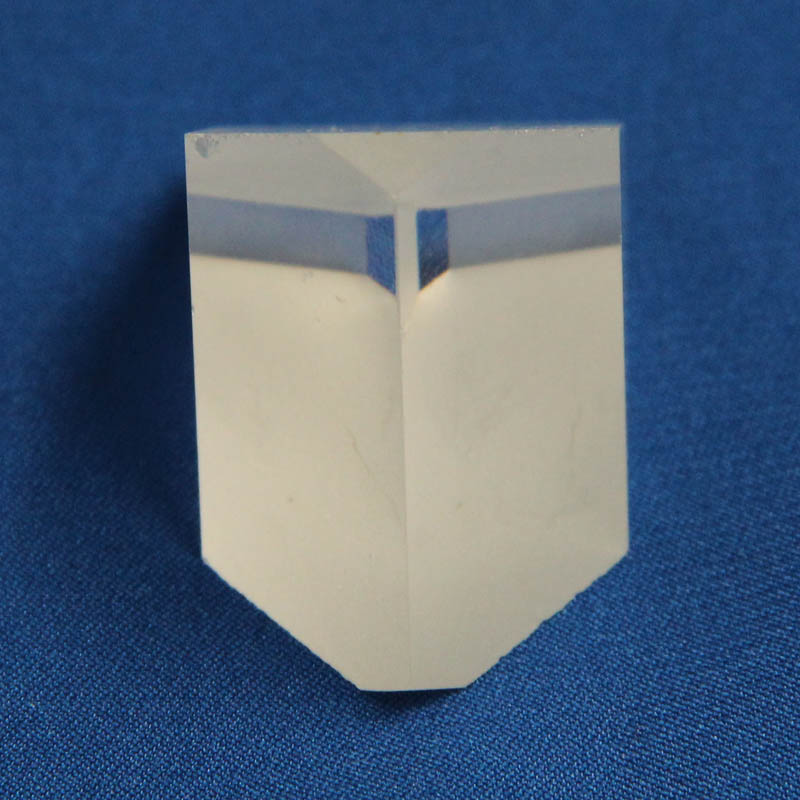

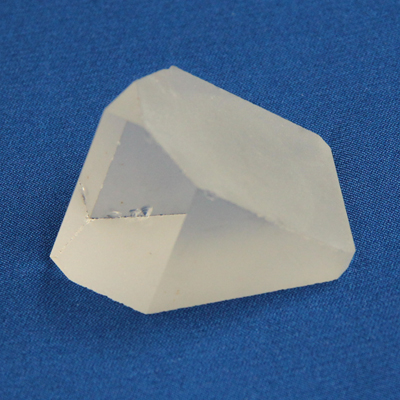

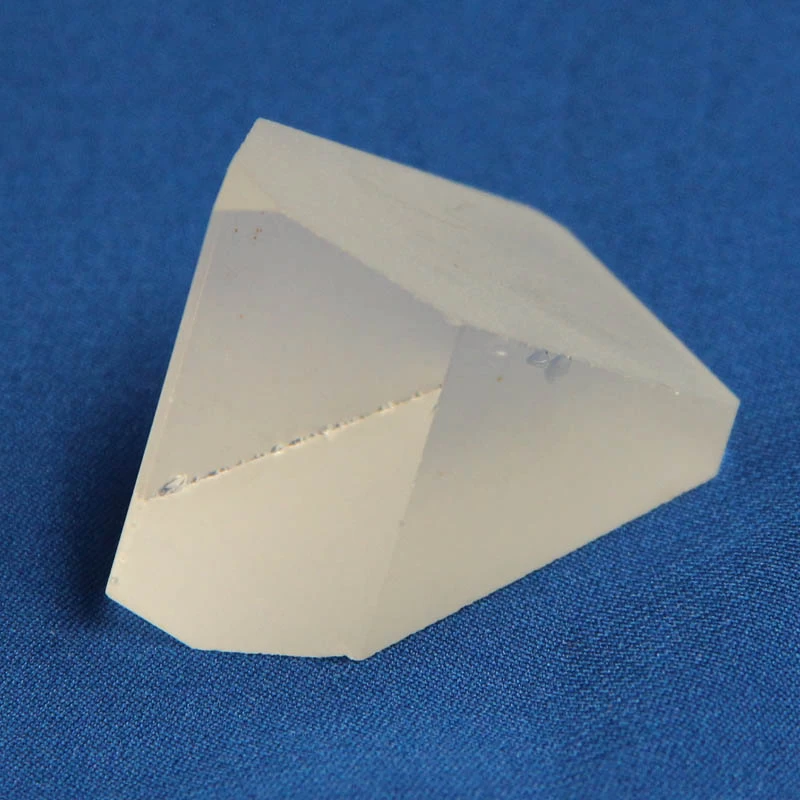

BK7 and Fused Silica Glass Schmidt Prisms

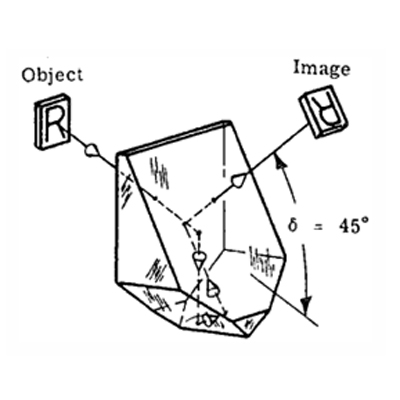

Schmidt prisms are used to invert and revert an image to angle of 45°. The 45° deviation makes Schmidt prisms useful in eyepiece assemblies and imaging systems requiring a path bend. The aluminized roof surfaces enhance the overall efficiency while the high accuracy roof angle tolerance increases the prism’s resolution.
|
Material
|
BK7, Fused Silica, etc. Optical Glass
|
|
Dimensions Tolerance
|
+/ - 0.10mm
|
|
Surface Flatness
|
λ/4 at reflecting surface λ/2 at other surface
|
|
Surface Quality
|
40/20 scratch & dig
|
|
Angular Tolerance
|
±5'
|
|
Roof Angular Tolerance
|
+/- 5" or 15 "
|
|
Chamfers
|
0.1- 0.25 mm x 45°+/- 5°
|
|
Coating
|
AR, HR Coated Upon request
|
|
|
|
|
Different Shape, Size, Material requiremenat are available.
