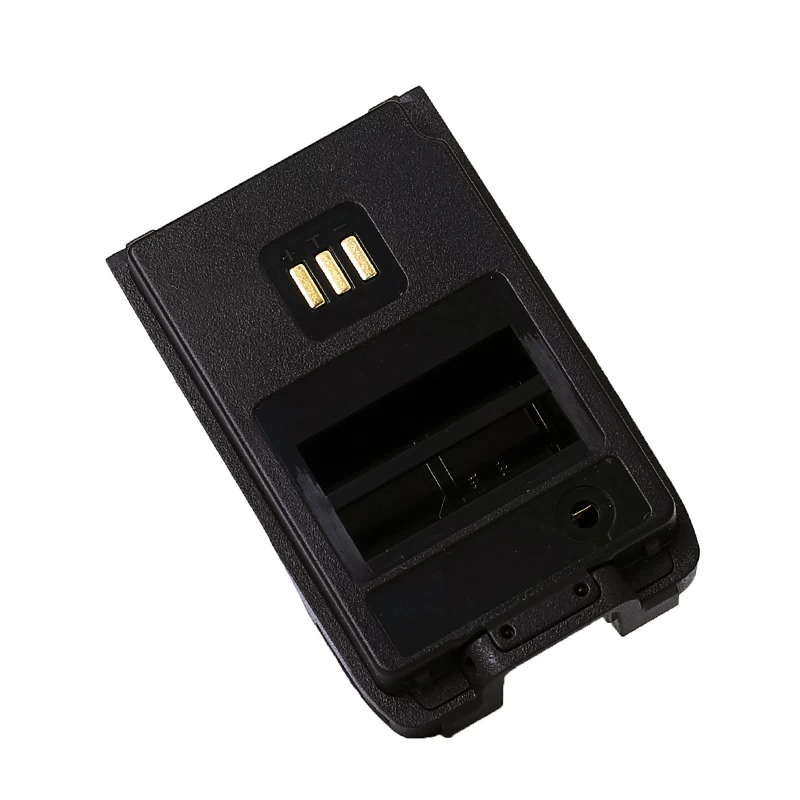

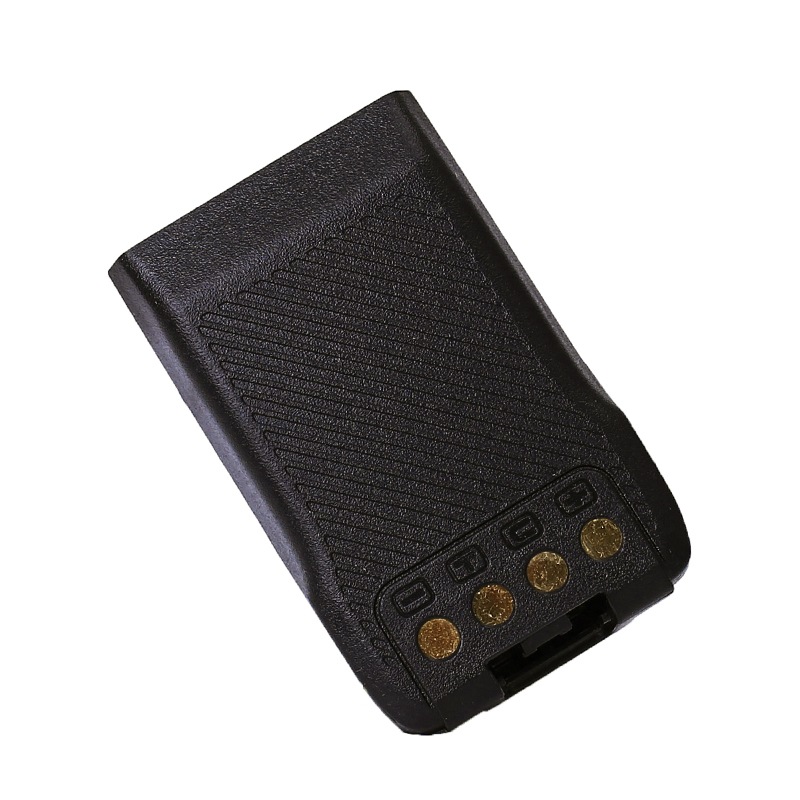

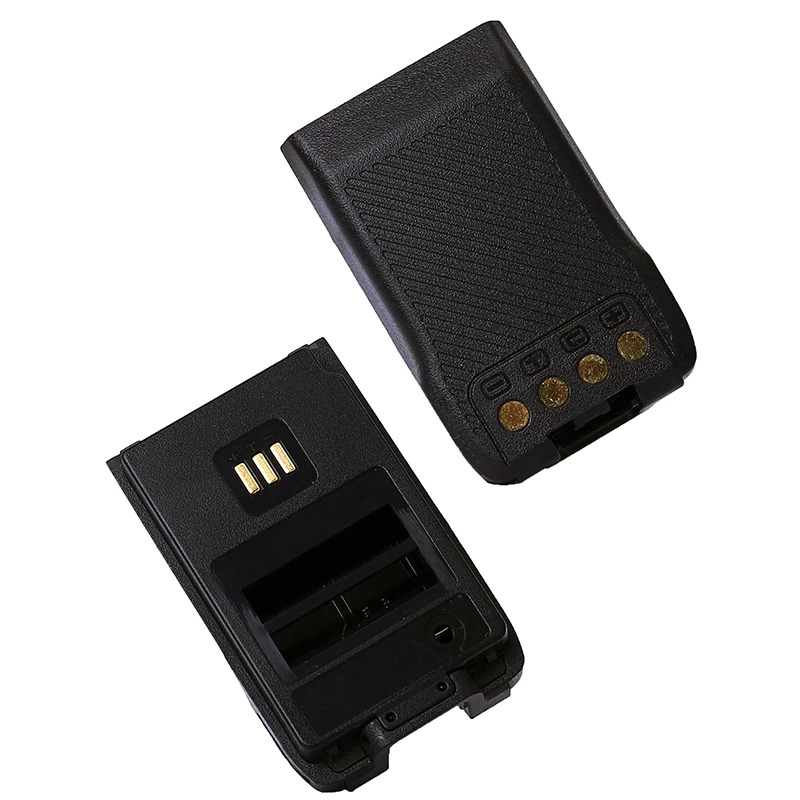

BL2020 Explosion-proof battery Li-ion 2600mAh / 3200mAh, compatible for Hytera PD405 PD485 PD500 PD502 PD505 PD505LF PD508 PD562 PD565 PD600 PD605 PD560 PD660 PD665 PD590 PD662 PD680 PD682 PD685 radio.
Similar model recommendation：
BL1502 LI-ION 1500mAh.
BL1504 LI-ION 2600mAh.
BL2010 LI-ION 2000mAh.
|
General Specifications
|
|
Original Model No.
|
BL2020
|
|
Compatible Radio Models
|
PD405 PD485 PD500 PD502 PD505 PD506 PD508 PD560 PD562 PD565 PD566 PD568 PD600 PD602 PD605 PD606 PD608 PD660 PD662 PD665 PD666 PD668 PD680 PD682 PD685 PD686 PD688 PD505LF etc.
|
|
Place Of Original
|
China
|
|
Voltage/Type
|
7.4V LI-ION
|
|
Capacity
|
2600/3200 mAh
|
|
Dimensions (mm)
|
82(W)*58(D)*17(H)
|
|
Compatible Charger Models
|
CH10A07
|
|
Mechanical
|
|
Cells used
|
Chinese cell or Japanese cell
|
|
Plastic material
|
PC+ABS+fireproofing material
|
|
Assembly construction
|
Housings bonded by ultrasonic
|
|
Charger&radio contacts
|
Gold-plate
|
|
Environmental
|
|
Charging temperature
|
+0°C to +45°C
|
|
Discharging temperature
|
-20°C to +60°C
|
|
Storage temperature
|
+25°C + –5°C
|
|
Storage position
|
non-critical
|
|
Package
|
|
Inner packing
|
Polyethylene tape packaged batteries in white separate boxes
|
|
Outer packing
|
Put white separate boxes into 34*34*34cm carton, 100PCS each carton
|
