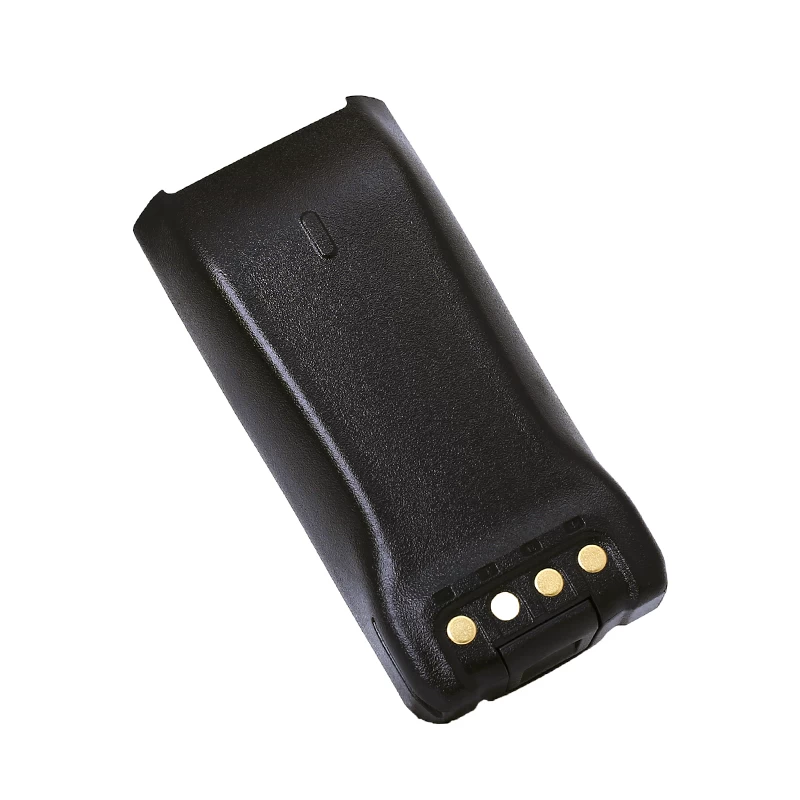

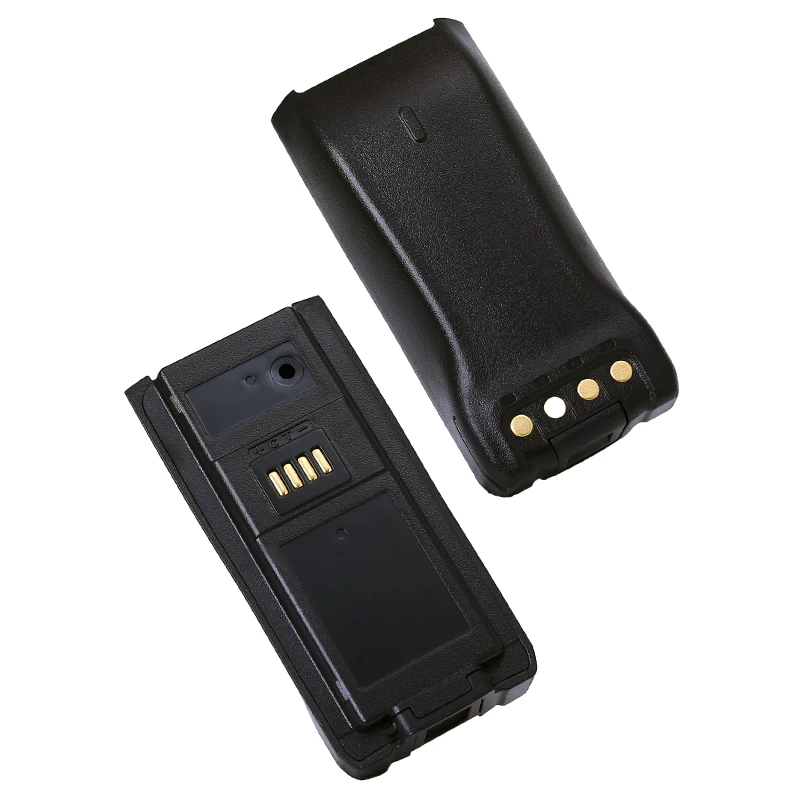

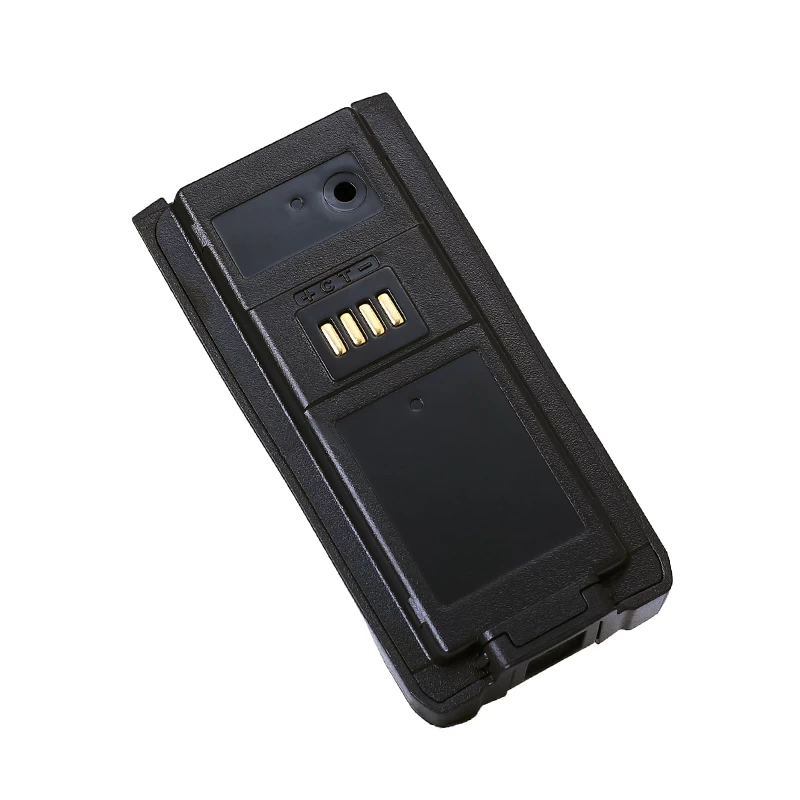

High quality battery box made of PC + ABS plastic.
Use original Japanese cells, and sealing by ultrasonic wave.
Perfect performance at Drop Test，Tensile test，Extrusion test and Hot test.
|
General Specifications
|
|
Original Model No.
|
BL2505
|
|
Compatible Radio Models
|
PT580 PT580H PT580H Plus
|
|
Place Of Original
|
China
|
|
Voltage/Type
|
7.4V LI-ION
|
|
Capacity
|
2500 mAh
|
|
Dimensions (mm)
|
114(W)*56(D)*25(H)
|
|
Compatible Charger Models
|
CH10A07
|
|
Mechanical
|
|
Cells used
|
Chinese cell or Japanese cell
|
|
Plastic material
|
PC+ABS+fireproofing material
|
|
Assembly construction
|
Housings bonded by ultrasonic
|
|
Charger&radio contacts
|
Gold-plate
|
|
Environmental
|
|
Charging temperature
|
+0°C to +45°C
|
|
Discharging temperature
|
-20°C to +60°C
|
|
Storage temperature
|
+25°C + –5°C
|
|
Storage position
|
non-critical
|
|
Package
|
|
Inner packing
|
Polyethylene tape packaged batteries in white separate boxes
|
|
Outer packing
|
Put white separate boxes into 34*34*34cm carton, 100PCS each carton
|
