Tea fermentation process machine mainly used for processing black tea and other fermentation tea, also can also be used for fermentation of seeds or other food.
The automatic intelligent black tea fermentation machine is mainly made of fermented tea such as black tea. It can control the temperature and humidity of the machine box independently and accurately. At the same time, oxygen and gas are exchanged for the tea, so that the tea can be fermented under the most suitable conditions. Let the color of the tea be red, the grassy taste disappears, and the fruit is ripe.
1. This machine is suitable for the fermentation process in the production process of black tea;
2, can accurately control the temperature and humidity of the box wind, so that the control of the fermentation process can be freely desired, so that the production of fine black tea can be copied in batches;
3, the use of advanced integrated circuits, coupled with efficient atomizing head and electric heating system, accurately control the internal temperature and humidity of the box;
4. The patented air circulation system ensures uniform temperature and humidity of each floor;
5. The inner tank, water tank and material plate are made of stainless steel.

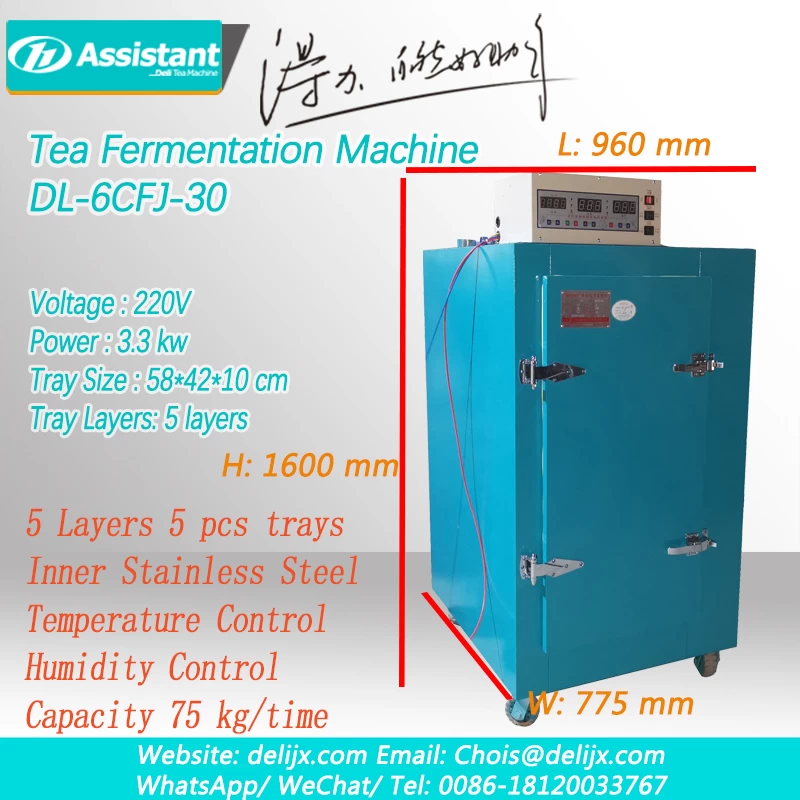

DL-6CFJ-30 automatic Intelligent black tea fermentation machine specification:
|
Model
|
DL-6CFJ-30
|
|
Size
|
960×775×1600 mm
|
|
Voltage
|
220/50 V/Hz
|
|
Heating mode
|
Heating wire
|
|
Heating power
|
3.3 KW
|
|
Heating group
|
1 Group
|
|
Fan
motor
|
Power
|
60 W
|
|
Speed
|
2200 rpm
|
|
Voltage
|
220 V
|
|
Tray size
|
580*420*100 mm
|
|
Tray quantity
|
5 pcs
|
|
Tray layers
|
5
|
|
Efficiency
|
75 kg/time
|
The above data is based on fresh tea leaf water content of 75-80%
DL-6CFJ-30 automatic Intelligent dark tea black tea fermentation machine decomposition diagram:
|
①
|
Exhaust vent
|
②
|
Hingle
|
③
|
Door
|
④
|
Sealing strip
|
⑤
|
Nylon wheel
|
⑥
|
Air motor
|
⑦
|
Electric control panel
|
⑧
|
Door handle
|
⑨
|
Tank body
|
|

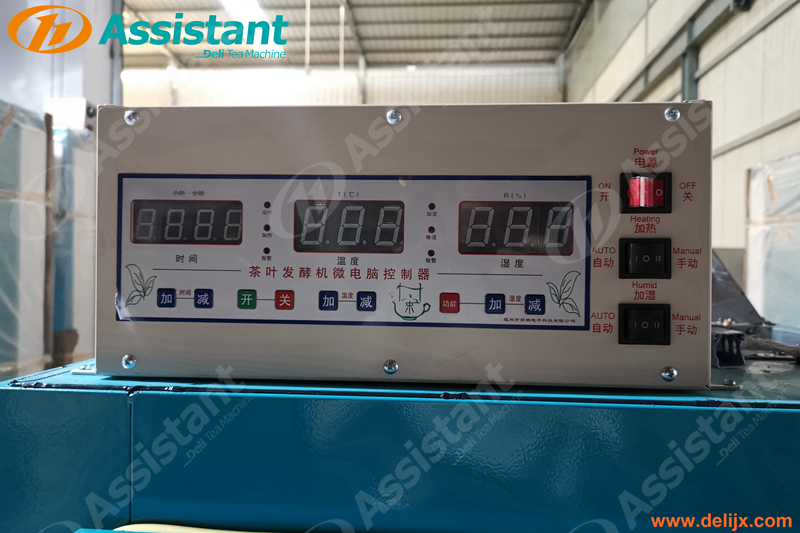

Intelligent temperature, time and humidity control system, Temperature and humidity can be adjusted according to demand, ensure that tea is fermented in the most suitable environment.
|
|
Layered humidification, the bottom of the material tray has fine holes, tea fermentation is more uniform, crushed tea will not fall off, with bracket, loading and unloading is quicker.
|
|
With multiple atomizing heads, the physicochemical speed is faster, zero noise circuit is adopted, stop working when water is scarce, more quiet and energy saving
|
|
Equipped with high-precision temperature and humidity sensors, with intelligent control system, the fermentation is controlled in the best environment.
|
|

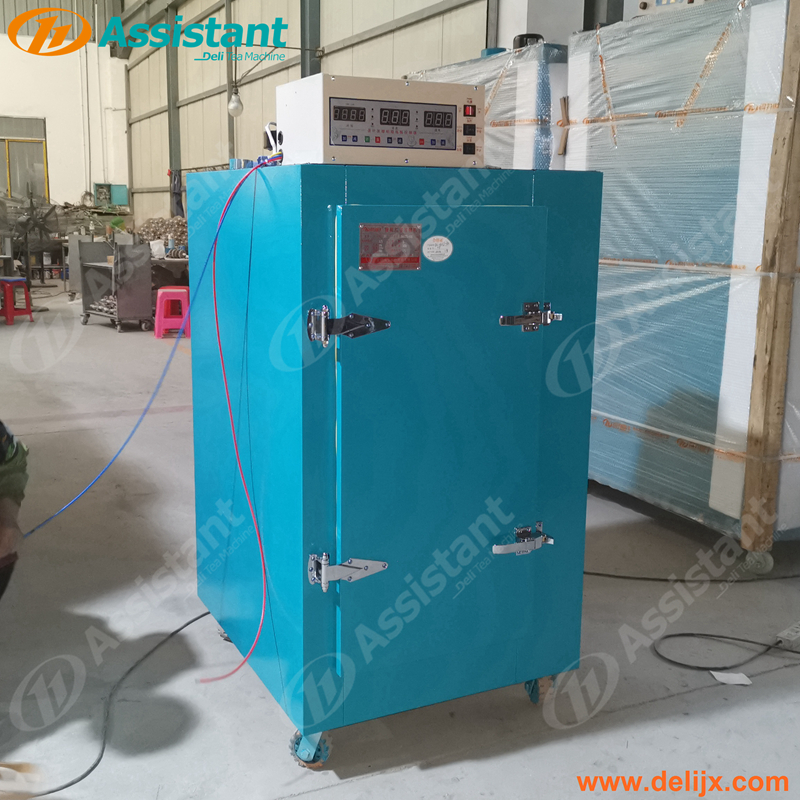

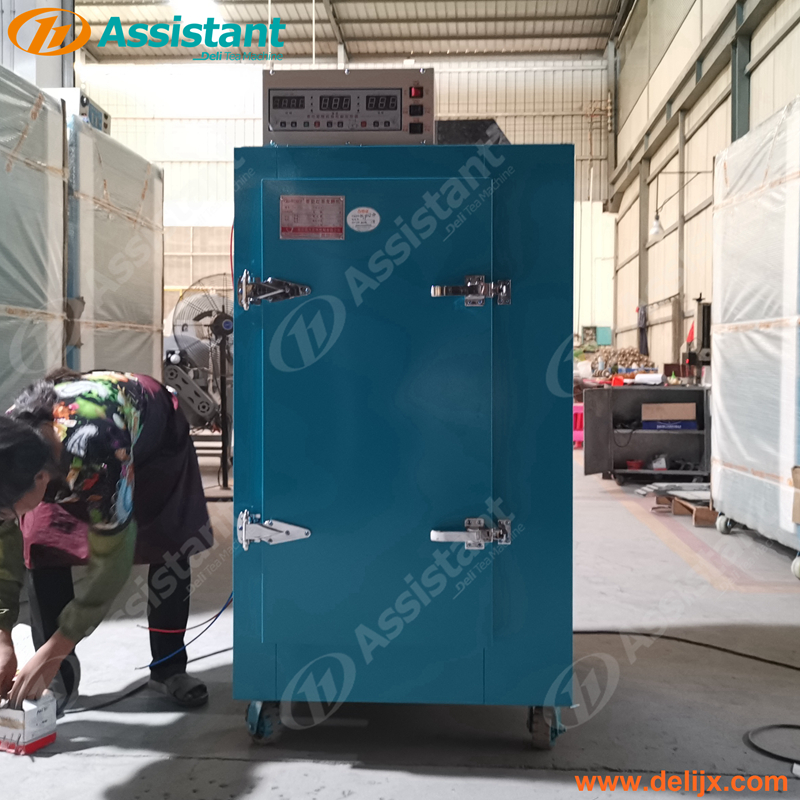

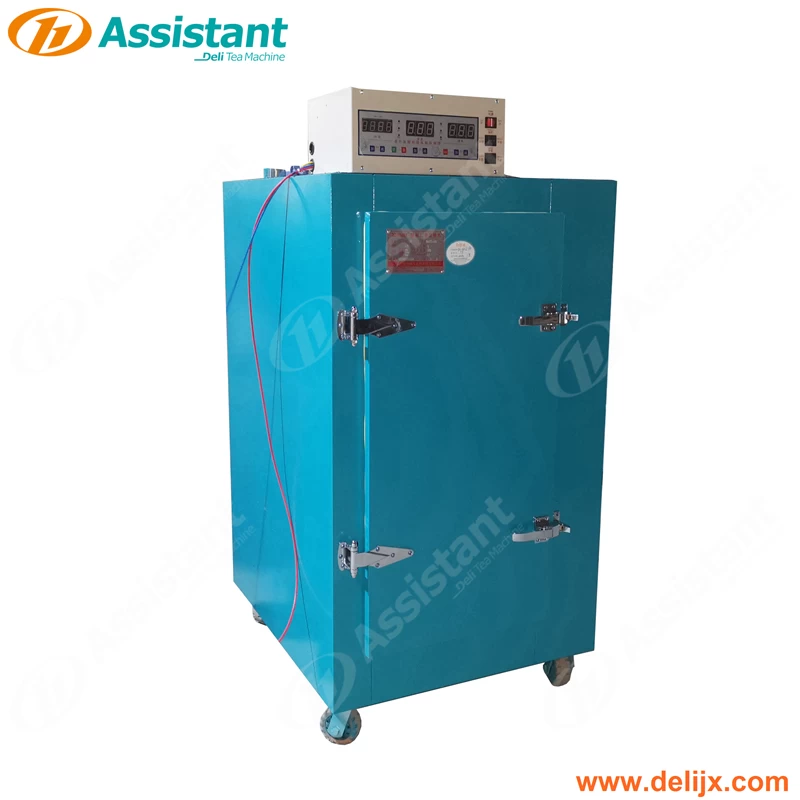

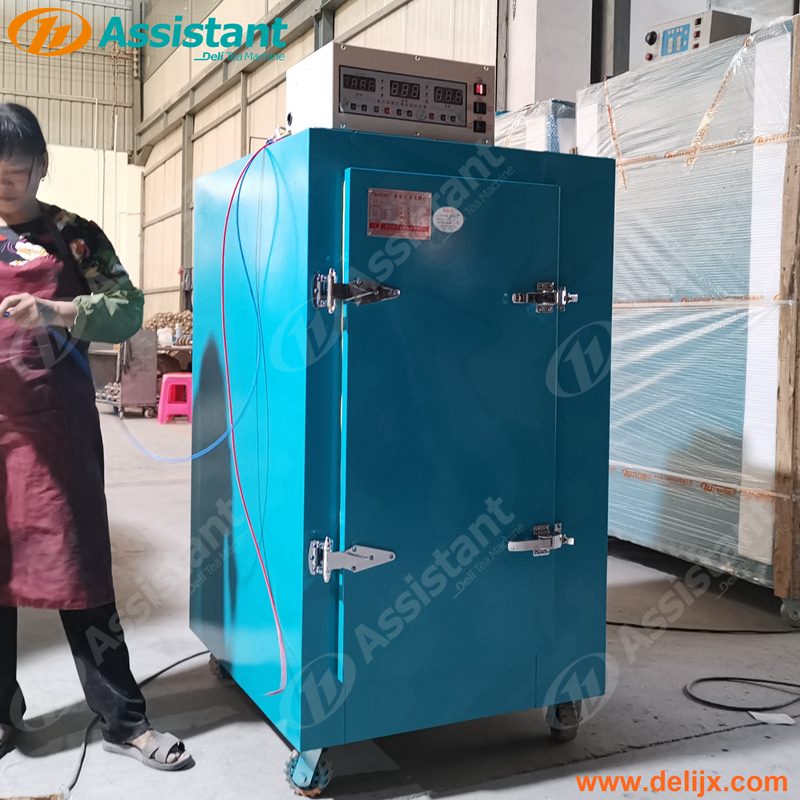

DL-6CFJ-80 tea fermentation machine photos:
|
