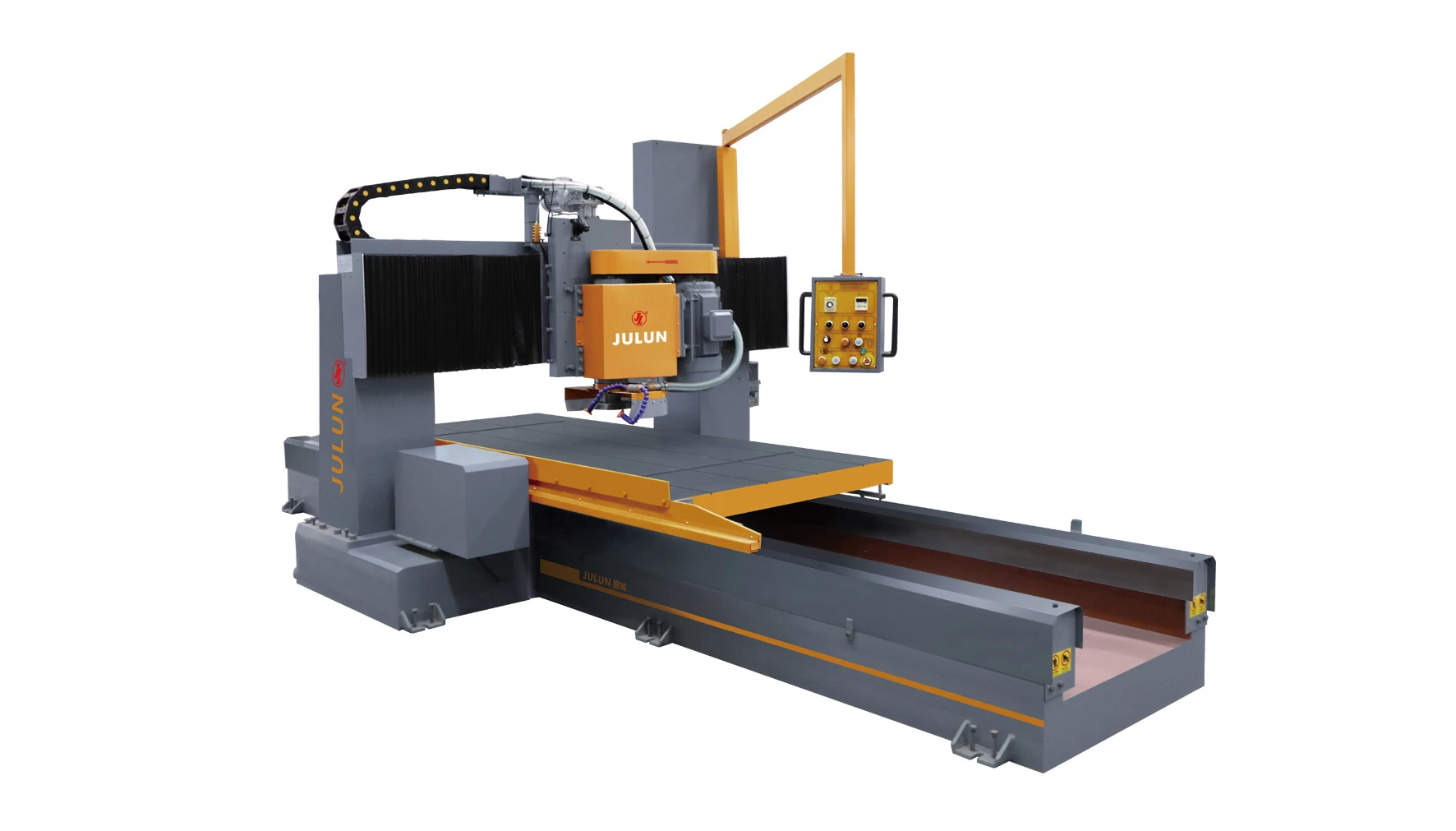

Block Base-plate Flat Cutting Machine
1:Uses jointed structure,trolley adopts frequency control, can adjust the feed rate according to the stone material and the feeding amount,with high cutting efficiency,high degree of automation,mainly applicable to cutting flat from the surface of the block base-plate,
2:can make full using of block base-plate, improve the utilization rate of stone resources, turn waste into treasure, bring more economic benefits.
.
Specification
|
Appellation
|
Unit
|
SPC-1300
|
|
Max.blade diameter
|
mm
|
Φ400-Φ600
|
|
Worktable size
|
mm
|
3000×1300
|
|
Range of processing height
|
mm
|
50~300
|
|
Water consumption
|
m3/h
|
3
|
|
Air consumption
|
kW
|
22
|
|
Total power
|
kW
|
25.5
|
|
Dimension(LXWXH)
|
mm
|
5850×2800×2400
|
|
Weight
|
kg
|
4300
|
Photos
