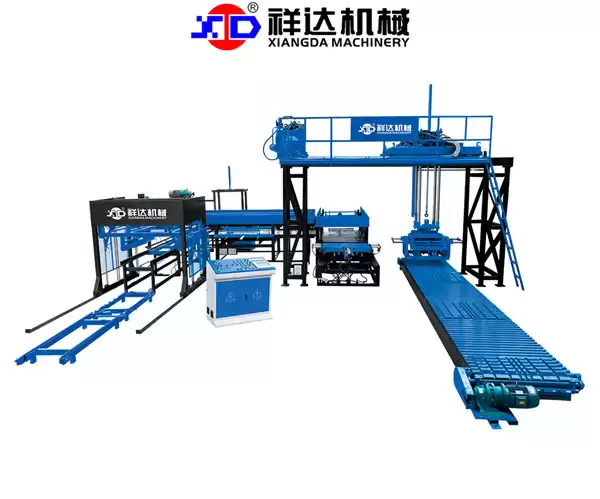

XD1200B Simple Palleting System for bricks
This palletizing production line is suitable for dry product palletizing of simple block producing line.It is a semi-automatic palletizing production line.Under normal circumstance,it is set independently in the vicinity if product maintenance yard.For the cured blocks,it can be stacked on the spot.It also can work as part of the fully automatic block producing line.
The automatic palletizing system can separate bricks and plates of different types and different specifications produced by different types of brick machines,and finally form a square of about one meter for cross-stacking,and can automatically generate forks brick hole position as need.The stacking height can be up to 1400mm. After the palletizing is completed,the block stacking will be sent by the heavy-duty chain conveyor,which can be manually packed or matched with an automatic baler.Each node can on the entire production line has a prestored position to save forklift running time.
The whole system adopts PLC+touch screen control,cooperates with laser induction+intelligent sensor to realize unmanned automatic operation,automatically stops alarm and displays the fault position,when out of order.It can be easily eliminated without professional technicians.With remote control system+cloud data equipment manufactures can solve all problems at the office all the time.The operation of the equipment is controlled by electricity,air and hydraulic respectively.They don't interfere with each other and act coherently.It can be palletizing in about 16s,and about 15000 pieces per day.
Technical parameter
Entire area:19*10 m
Total weight: 1800 kg
Device maximum:5 m
Stacking specifications:1*1 m(standard solid brick layer 48 pieces,stack 936 pieces)
Highest stacking size: 1.5 m
Operating cycle:15-18 sec/layer
Total power: 35 kw
Palletizing Efficaenc
|
Name
|
size
|
PCS/layer
|
cycle time
|
Intervals
|
Height
|
PCS/Stack
|
|
Solid brick
|
240*115*51
|
72
|
13-16 second/layer
|
15-20 second/stack
|
1150mm
|
764 retaining hole
|
|
holland brick
|
200*100*60
|
50
|
13-16 second/layer
|
15-20 second/stack
|
1200mm
|
960 retaining hole
|
|
Hollow block
|
400*200*200
|
18
|
13-16 second/layer
|
15-20 second/stack
|
1140mm
|
102 retaining hole
|
Packaging & Shipping
Packaging:standard Container, Nude Packs or in Bulk.The electrical motor or spare parts will be packed by wooden case or steel frame.Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Unique workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transportation and shipment.
Shipping:we deliver the cargo to China's main sea ports,like Xiamen port.And then the container will be transported to your country by sea.
