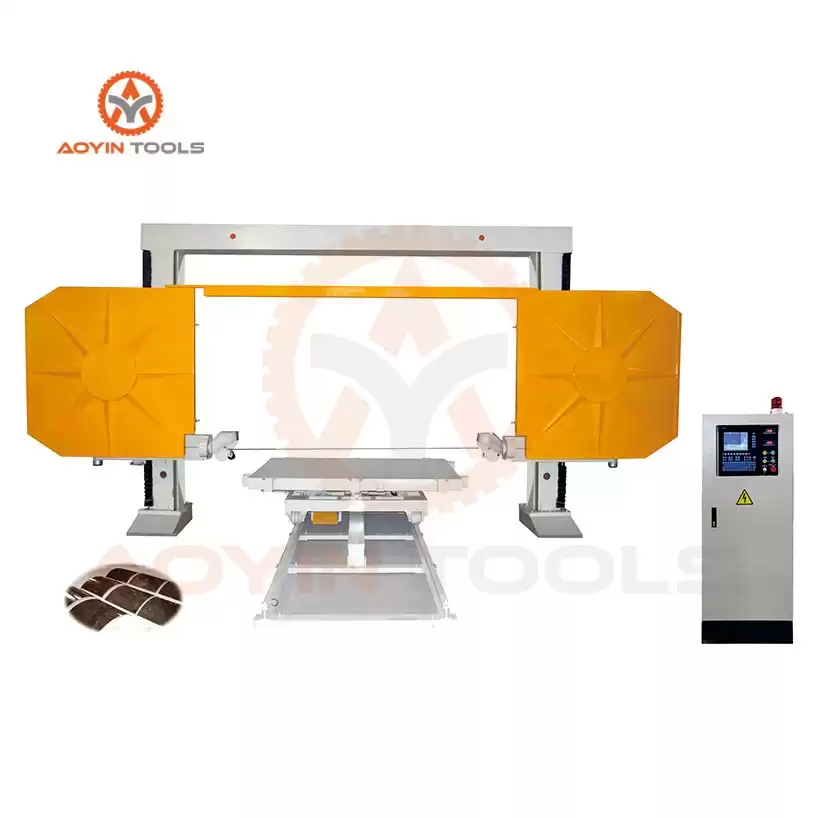

Block Trimming Wire Saw Machine
Introducing our advanced and state-of-the-art block trimming wire saw machine, designed to revolutionize the cutting and trimming process for various materials. This exceptional machine combines innovative technology and precision engineering, ensuring efficient operation and precise results.
| Parameter |
unit |
MTS-1800 |
MTS-2200 |
| Main Motor Power |
kw |
11 |
15 |
| Speed of Wire |
m/s |
0~40 |
0~40 |
| Worktable size |
mm |
3000X2000 |
| Worktable Load Capacity |
T |
50 |
| Worktable Whether Revolve |
|
360° |
| Range of Cutter Movement |
mm |
1900 |
2200 |
| Max Cutting Size（L*W*H) |
mm |
3600x2000x1800 |
3600x2000x2100 |
| Diameter of Wire |
mm |
Ф8~Ф11 |
| Production efficiency |
m²/h |
1~3(Marble) 0.5~2(Granite)
|
| Total Power |
kw |
23 |
27 |
| Water Consumption |
m³/h |
4 |
4 |
| Dimensions (LxWxH) |
mm |
8800x6800x4900 |
9800x6800x5800 |
| Net weight |
kg |
10500 |
11800 |
Product Features:

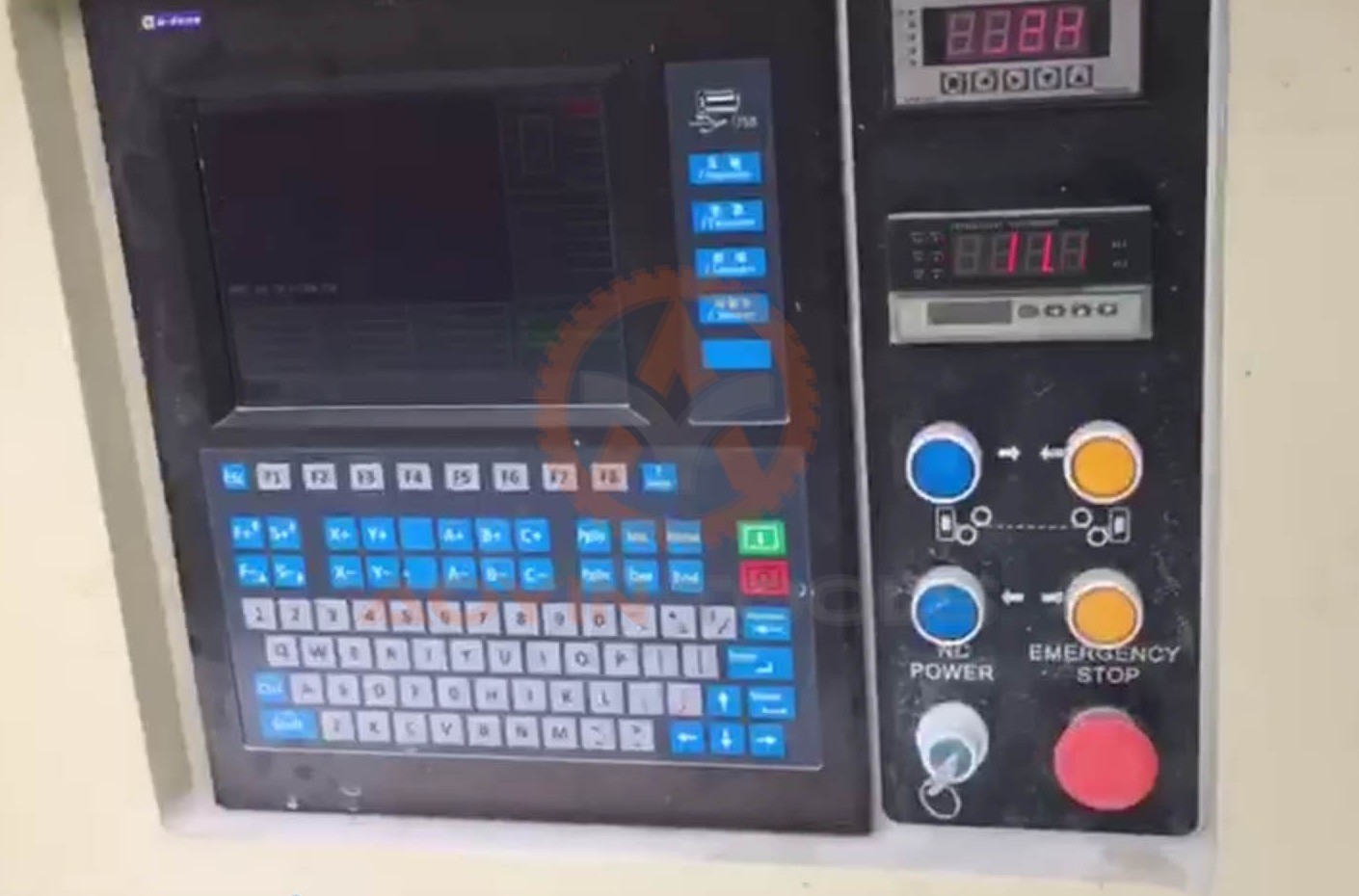

1. PLC and Touch Screen Control: Our wire saw machine is equipped with a PLC (Programmable Logic Controller) and a user-friendly touch screen interface. This advanced control system simplifies the operation and provides direct feedback on vital information. With just a few touches, you can effortlessly control and monitor the entire cutting process.
2. Servo Motor + High-Precision Screw Drive: To guarantee smooth and precise cutting, our machine incorporates a servo motor and a high-precision screw drive structure. This combination ensures stable control and exceptional slice precision. The up-down drive and slice drive are impeccably coordinated, allowing for flawless trimming and cutting.
3. Extended Wire Saw Service Life: Our machine is designed to accommodate both traditional and no joint wire saws, allowing you to choose the most suitable option for your specific needs. The use of no joint wire saws significantly extends the service life, saving you costs on frequent replacements.
4. Protective Screw Rod and Oil Immersion Lubrication: We understand the importance of equipment durability and longevity. For this reason, our wire saw machine is equipped with a protective device for the transmission screw rod. This added protective measure safeguards the machine and enhances its lifespan. Additionally, the oil immersion lubrication mechanism ensures smooth and efficient operation even under heavy workloads.
With these exceptional features, our block trimming wire saw machine offers numerous advantages in the industry. The precision cutting and trimming it delivers ensure high-quality finished products. It is widely applicable in various fields, including stone processing, ceramic cutting, and even metalworking.
Our company takes pride in providing superior products and services to our valued customers. Our team of experts has carefully manufactured this wire saw machine using the highest quality materials and innovative manufacturing techniques. We strive for excellence, ensuring that every aspect of our machine meets the highest standards.
FAQ:
Q: What are the specifications of the block trimming wire saw machine?
A: The machine has a cutting length of 3600mm, a cutting width of 2500mm, and a cutting height of 1800/2100mm.
Q: What materials can this machine cut?
A: Our wire saw machine can effectively cut various materials, including granite, marble, ceramics, and even metals like aluminum.
Q: What are the advantages of using a wire saw for block trimming?
A: The use of a wire saw offers several advantages, such as precise cutting, reduced material wastage, and flexibility in trimming various shapes and sizes.
Q: How does your company ensure customer satisfaction?
A: At our company, customer satisfaction is our top priority. We offer comprehensive after-sales services, technical support, and timely assistance. Should you encounter any issues or have any queries, our dedicated team is always ready to assist you.
In conclusion, our block trimming wire saw machine is a game-changer in the cutting and trimming industry. With its advanced features, precision engineering, and exceptional durability, it guarantees outstanding results. Invest in our wire saw machine and experience the superior quality and efficiency it brings to your operations.
