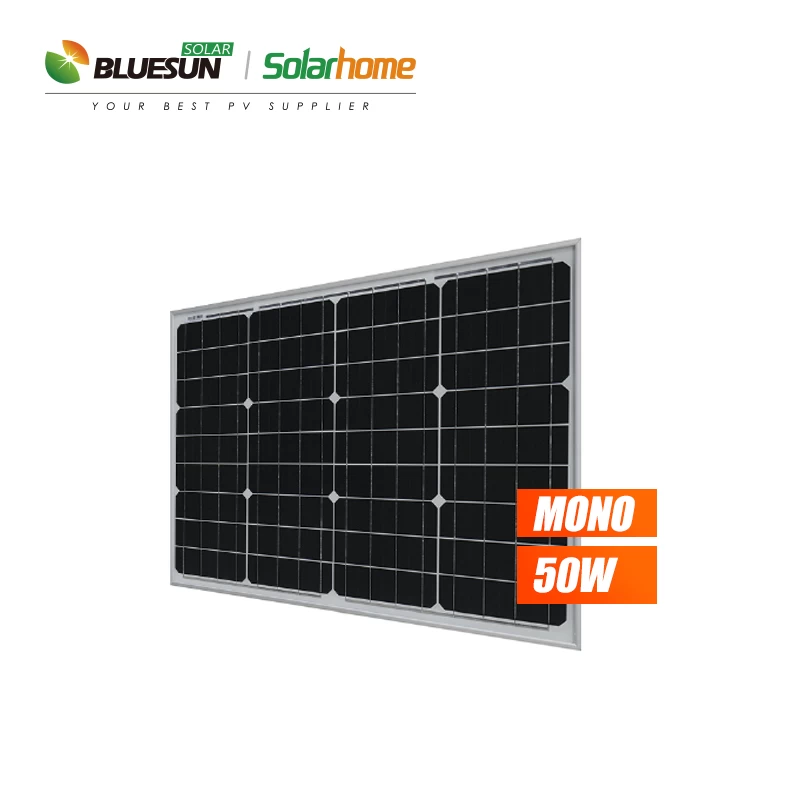

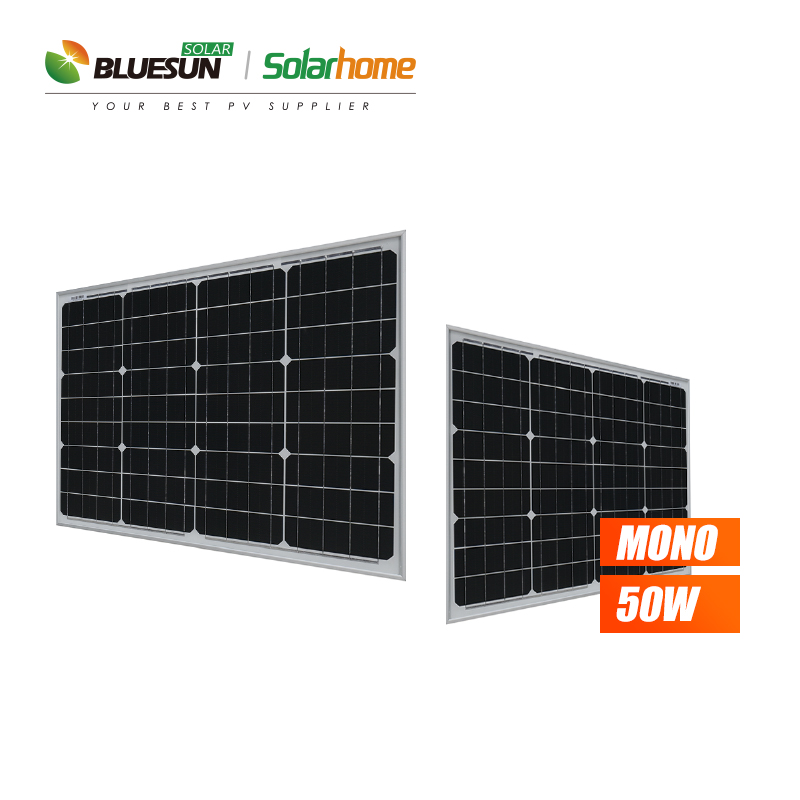

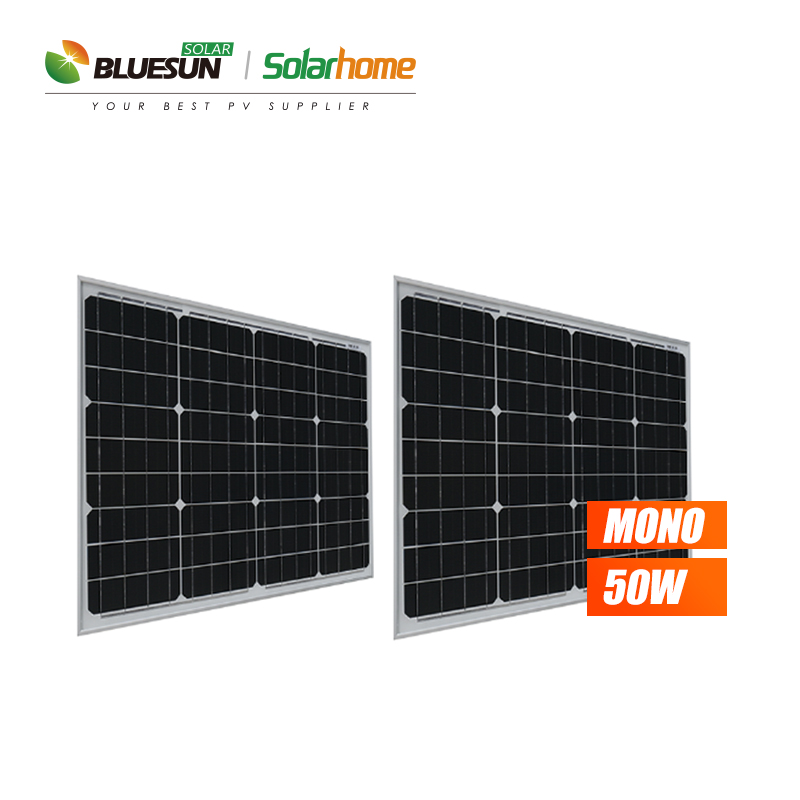

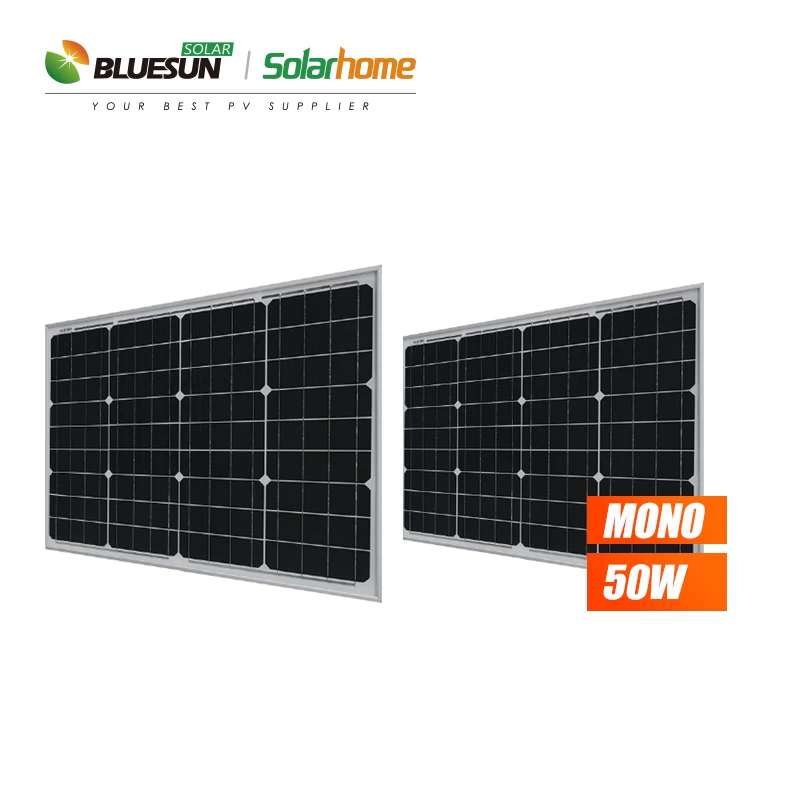

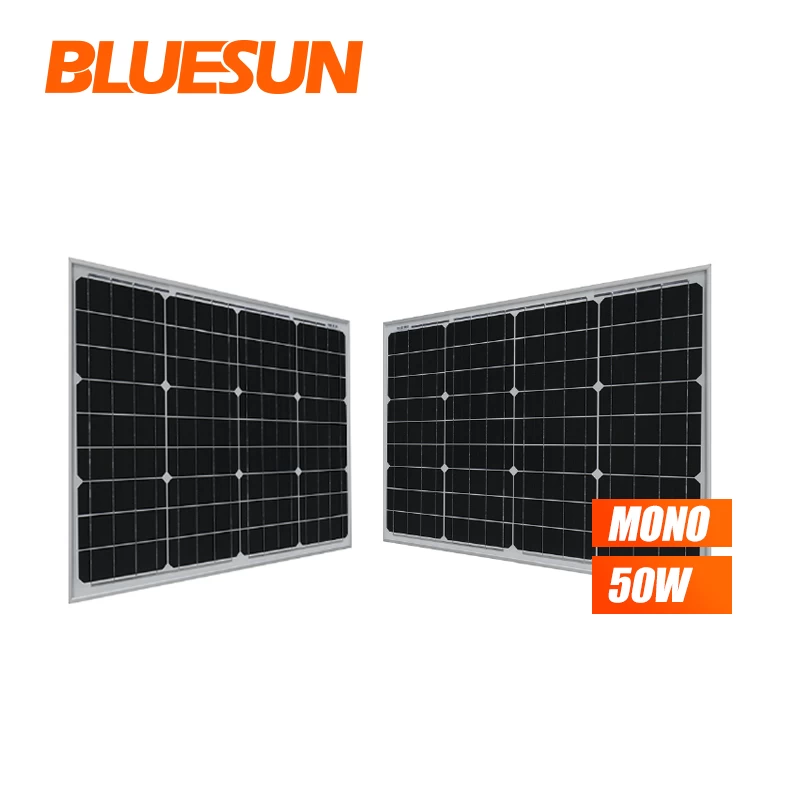

BLuesun 50Watts 12 Volts Monocrystalline Solar Panel 50W Solar Panel

Monocrystalline solar cells high efficiency 345w 350watt 360wp 355w solar panels for home solar power system , Higher conversion efficiency – higher capacity and power output performance per unit area ,48v pv system solar module for microgrid solar power plant 24v mono solar panel


  • PaymentT/T, L/C, Paypal, Western Union
  • Warranty25 years
  • CertificateTUV, CEC, CE, ISO
  • Lead time5 days
  • Size870*665*30mm
  • Power range50w
  • Solar cellmonocrystalline 47*156.75mm
  • Number of cells36

Product Description





Mechanical Specifications

Module

BSM50M-36

External Dimensions

500*665*30mm

Weight

4.0kg

Solar Cells

mono crystalline 47*156.75mm (36pcs)

Front Glass

3.2 mm tempered glass low iron

Frame

Anodized aluminum alloy

Junction Box

IP67

Cables/Connector

Optional

Mechanical Load

5400 Pa





Mechanical Specifications

Module

BSM100M-36

External Dimensions

870*665*30mm

Weight

6.5kg

Solar Cells

mono crystalline 90*156.75mm (36pcs)

Front Glass

3.2 mm tempered glass low iron

Frame

Anodized aluminum alloy

Junction Box

IP67

Cables/Connector

Optional

Mechanical Load

5400 Pa




Mechanical Specifications

Module

BSM150M-36

External Dimensions

1270*674*35mm

Weight

9.5kg

Solar Cells

mono crystalline 133.25*156.75mm (36pcs)

Front Glass

3.2 mm tempered glass low iron

Frame

Anodized aluminum alloy

Junction Box

IP67

Cables/Connector

Optional

Mechanical Load

5400 Pa




Project



Packing Information

Module

BSM50M-36

BSM100M-36

BSM150M-36

Piled pallet size20/40’GP

1390*1130*628mm

1565*1130*795mm

1390*1130*998mm

1800*1130*795mm

1310*1130*800mm

Gross weight per pallet

306 kg/434 kg

466 kg

310 kg

Quantity per pallet

64 pcs/96 pcs

64 pcs

30 pcs

Quantity per 20 feet container

1536 pcs

1024 pcs

480 pcs

Quantity per 40 feet container

4032pcs

2304 pcs

 1530 pcs
