Product Description

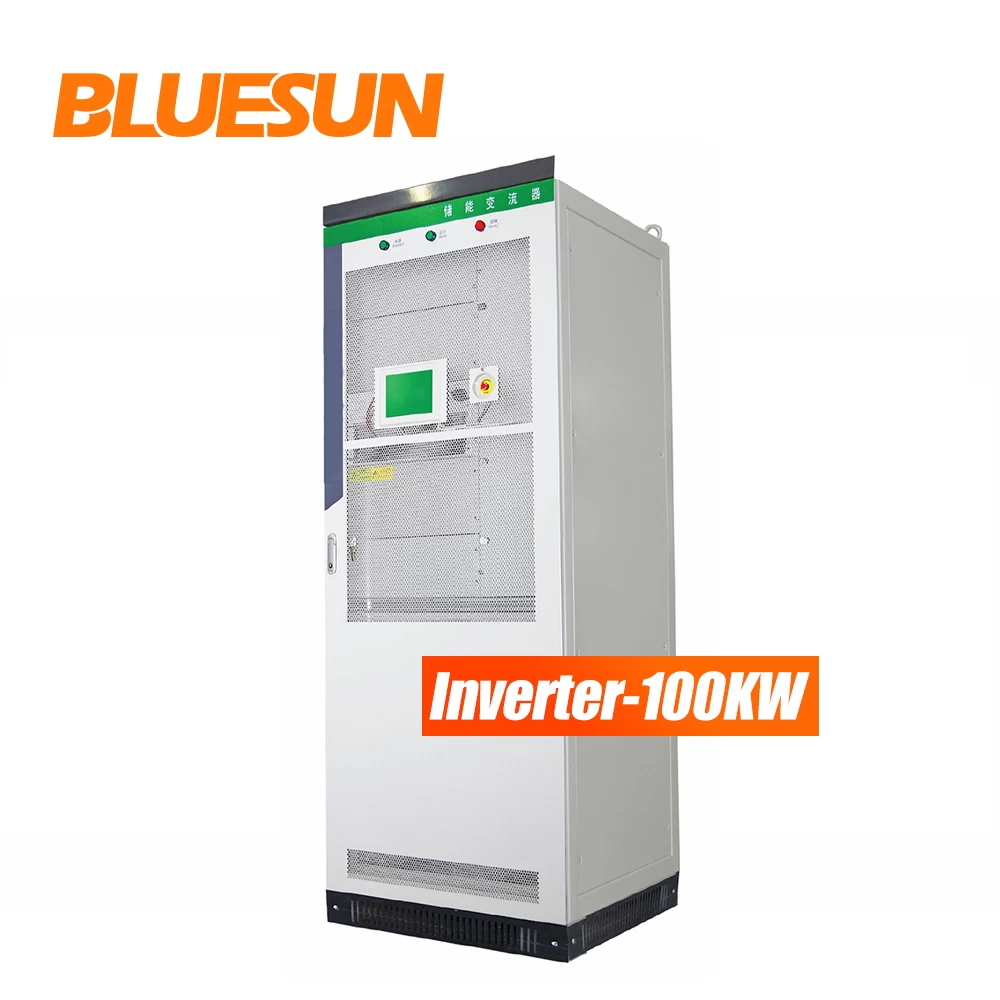

Energy Storage Inverter Features:
1.Three-level circuit design, low harmonic, high efficiency.
2.Modular configuration, easy to transport and easy to maintain.
3.Switching to smart grid design, controllable energy scheduling, and active and reactive power regulation.
4.Can support 4 dc input, independent control, solve the circulation problem.
5. Support iec 60870-5-104, IEC61850 and other communication protocols.
Range Of Application:
1.Small micro grid system.
2. Suitable for European and American power grids.
3.Commercial application.
4.Weak power area supply.
Technical Parameters
|
Model
|
BSMG2-50K-NA
|
BSMG2-100K-NA
|
BSMG2-50K-EX
|

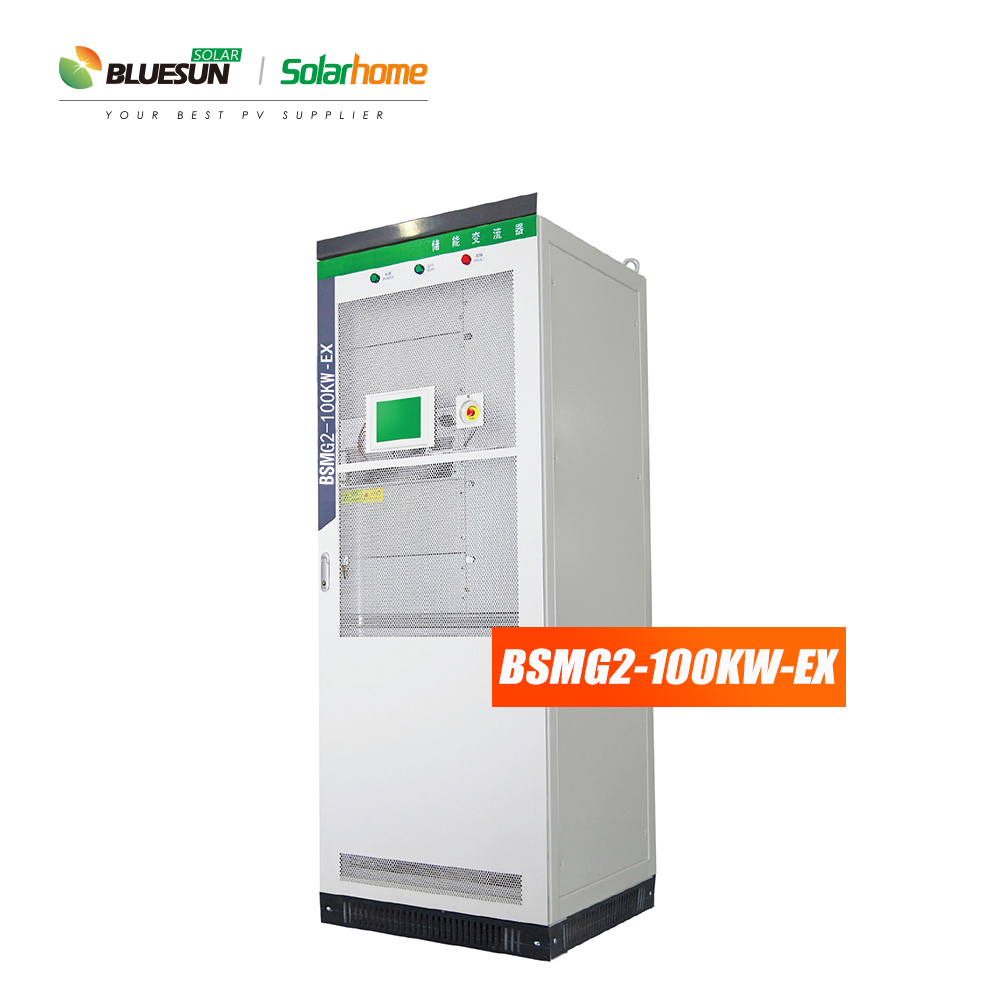

BSMG2-100K-EX
|
|
Utility-interactive Mode
|
|
|
Battery voltage range
|
400V(250~520V) 400V(250~520V)
|
400V(250~520V) 400V(250~520V)
|
|
Batter DC Max Current
|
150A
|
300A
|
150A
|
300A
|
|
PV Voltage Range
|
520~900V (MPPT 520V~800V)
|
520~900V (MPPT 520V~800V)
|
|
PV DC. Max Current
(in case of completely consumption)
|
192A
|
384A
|
192A
|
384A
|
|
AC voltage
|
480V(423V~528V)
|
400V(340V~460V)
|
|
AC current
|
60A
|
120A
|
72A
|
144A
|
|
Nominal power
|
50kW
|
100kW
|
50kW
|
100kW
|
|
AC frequency
|
60Hz(59.5Hz~60.5Hz)
|
50/60Hz(±2.5Hz)
|
|
Output THDI
|
≤3%
|
|
AC PF
|
Listed: 0.8~1 leading or lagging(Controllable)
Actual: 0.1~1 leading or lagging(Controllable)
|
|
Stand-alone Mode
|
|
|
Battery voltage range
|
250~520V
|
250~520V
|
|
Battery DC MaxCurrent
|
150A
|
300A
|
150A
|
300A
|
|
PV Voltage Range
|
520~900V (MPPT 520V~800V)
|
520~900V (MPPT 520V~800V)
|
|
PV DC. Max Current
(in case of completely consumption)
|
192A
|
384A
|
192A
|
384A
|
|
AC output voltage
|
480V(±10% configurable)
|
400V(±10% configurable)
|
|
AC output current
|
60A(Max 66A)
|
120A(Max 132A)
|
72A(Max 79A)
|
144A(Max 159A)
|
|
Nominal AC output power
|
50kW
|
100kW
|
50kW
|
100kW
|
|
AC Max Power
|
55kW
|
110kW
|
55kW
|
110kW
|
|
Output THDu
|
≤2%
|
|
AC frequency
|
60Hz
|
50/60Hz
|
|
AC PF
|
Listed: 0.8~1 leading or lagging(Controllable)
Actual: 0.1~1 leading or lagging(Controllable)
|
|
Overload Capability
|
105%~115% 10min;115%~125% 1min;125%~150% 200ms
|
|
Physical
|
|
|
Cooling
|
Forced air cooling
|
|
Noise
|
70dB
|
|
Enclosure
|
NEMA / IP20
|
IP20
|
|
Max elevation
|
3000m/10000feet (> 2000m/6500feet derating)
|
|
Operating temp.
|
-20°C to 50°C (De-rating over 45°C)
|
|
Humidity
|
0~95% (No condensing)
|
|
Size (W*H*D)
|
800*2160*800mm
|
800*2160*800mm
|
|
Weight
|
520kg 750kg
|
520kg 750kg
|
|
Installation
|
Floor standing
|

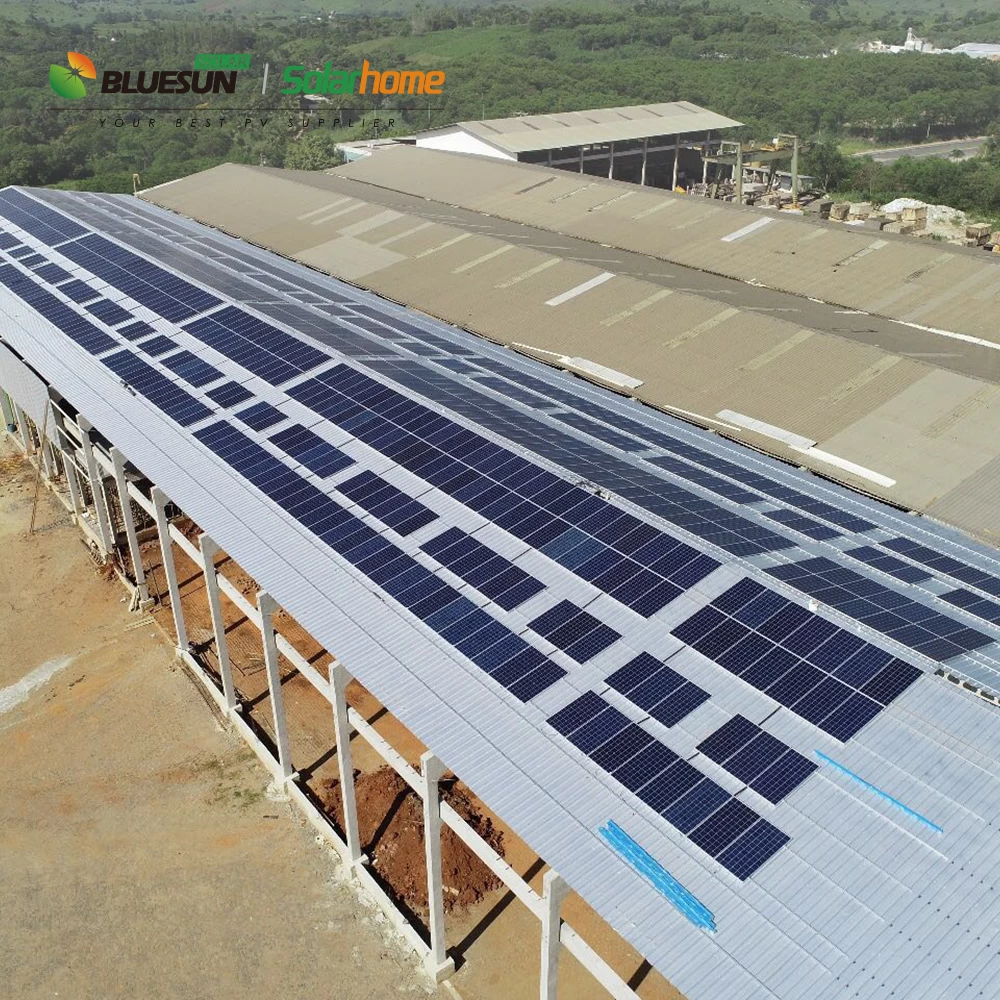

Project
