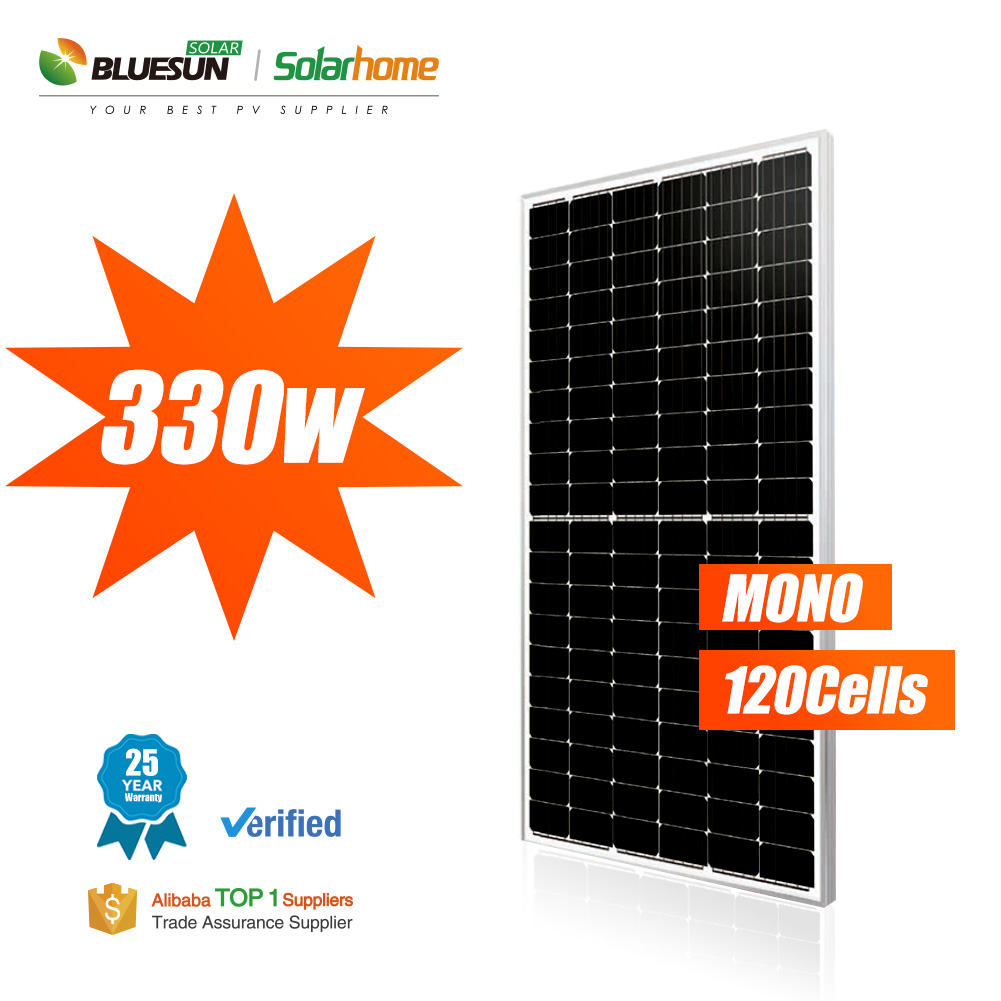

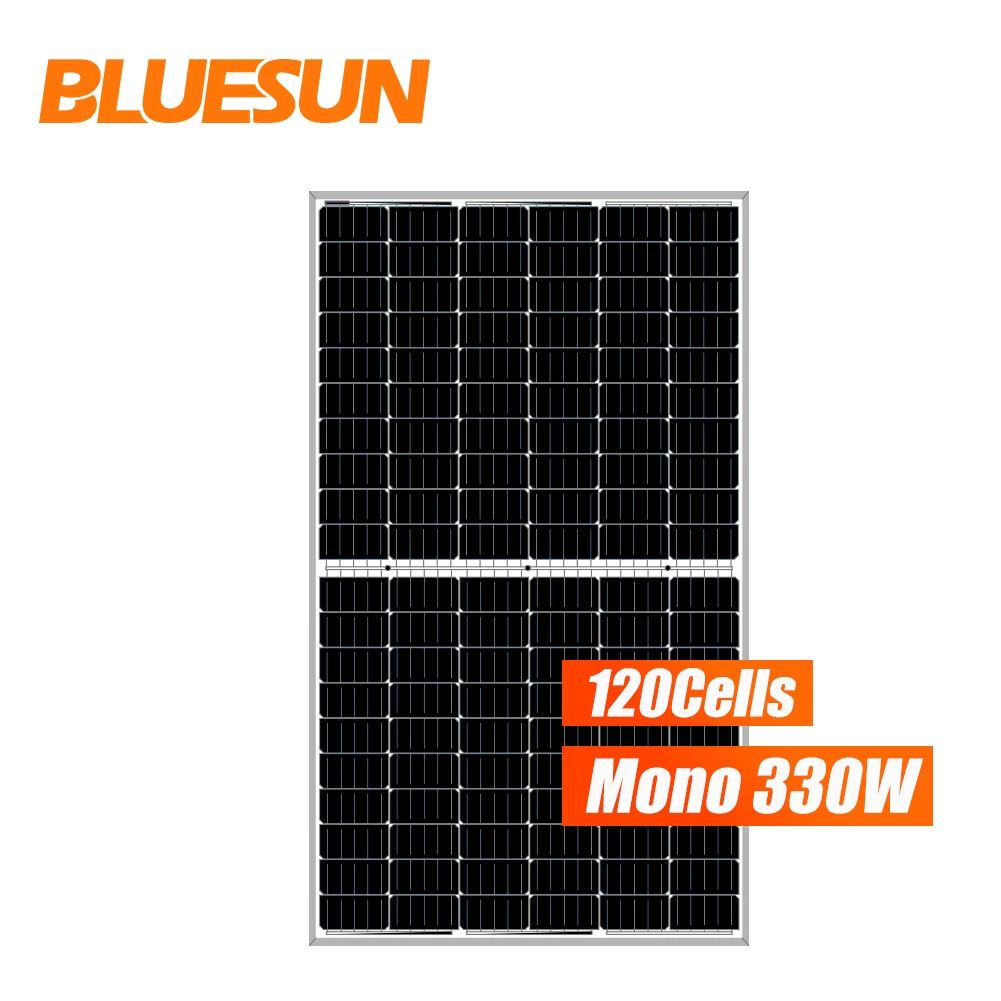

Product Description
1.Higher Yield Due to Better Shading Response
Half Cell Module comprises two separated and identical solar cell arrays, which means the ordinary strings of cells are cut into halves, and these shorter strings compose which has separated current paths. When a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing power. Under this circumstance, when a module is shaded, the affected working areas of Blade will be 50% less.
By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced.
2.Less Mismatch Loss
Instead of 6 internal strings of cells, half cell module has 2*6 shorter ones. This design effectively deals with the mismatch happened between cells caused by shadow, out of sync performance degradation, etc.
|
ELECTRICAL PARAMETERS AT STC
|
|
Model
|
BSM60M
-310HC
|
BSM60M
-315HC
|
BSM60M
-320HC
|
BSM60M
-325HC
|
BSM60M
-330HC
|
|
Nominal Power
|
310W
|
315W
|
320W
|
325W
|
330W
|
|
Open-circuit Voltage(Voc)
|
40.2V
|
40.4V
|
40.6V
|
40.8V
|
41V
|
|
Short-circuit Current(Isc)
|
10.12A
|
10.23A
|
10.34A
|
10.45A
|
10.56A
|
|
Maximum Power Voltage(Vmp)
|
33.3V
|
33.5V
|
33.7V
|
33.9V
|
34.1V
|
|
Maximum Power current(Imp)
|
9.32A
|
9.42A
|
9.51A
|
9.6A
|
9.69A
|
|
Module Efficiency(%)
|
0.1877
|
0.1907
|
0.1937
|
0.1968
|
0.1998
|
|
Power Tolerance
|
0~+5W
|
|
Maximum System Voltage
|
1000V / 1500V DC(IEC)
|
|
Maximum Series Fuse Rating
|
15A
|
|
Operating Temperature
|
-40 ℃ to 85 ℃
|
Packing & Delivery
Project
If you are an end users , we can offer more detail information to you. So that you can get the satisfied solar power system for your home solar generator solution or factory solar system plant .
Please, if you have any questions or concerns about shipping time and delivery, contact us prior on leaving a negative feedback as we are dedicated to provide you with the best buying experience.You can ask our professional products consultant.
