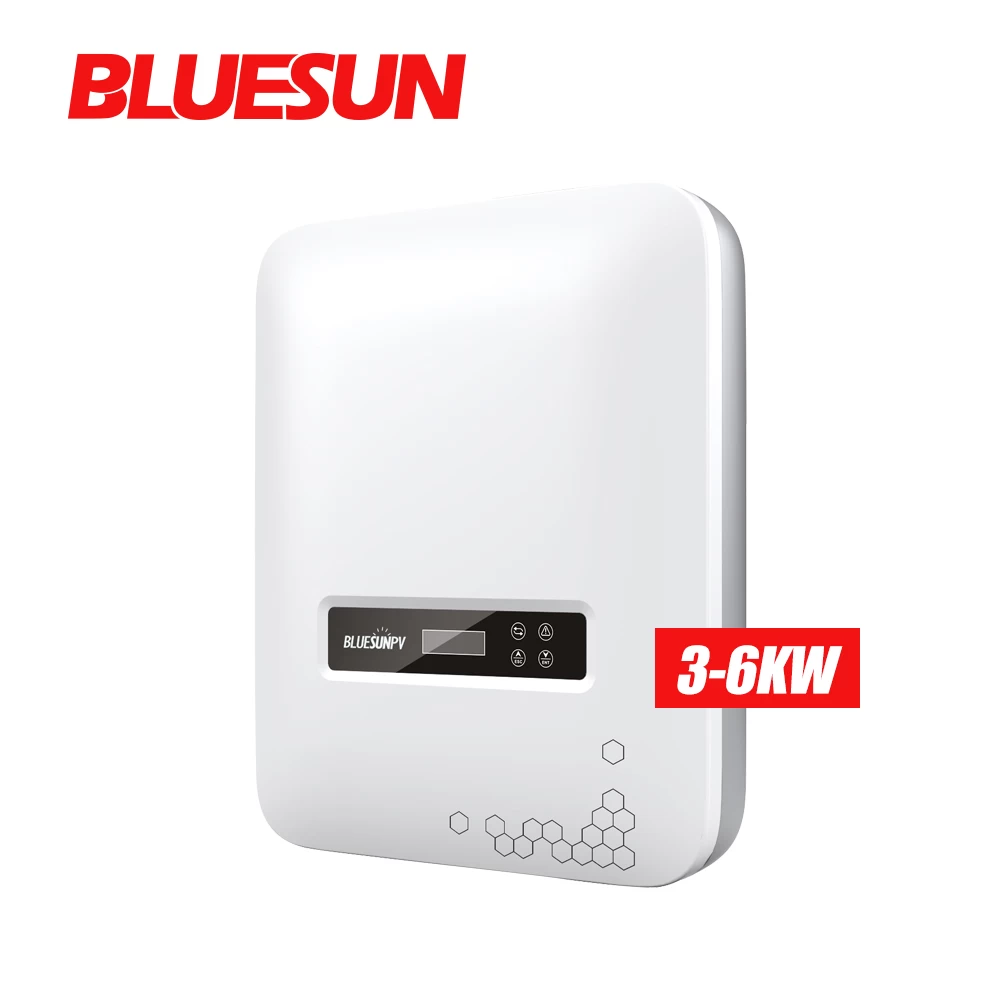

Product Description
Recommended product: BSM3000/5000/6000-B2 This type of inverter is well protected and suitable for outdoor use and is easy to install.
Smart On Grid Inverter

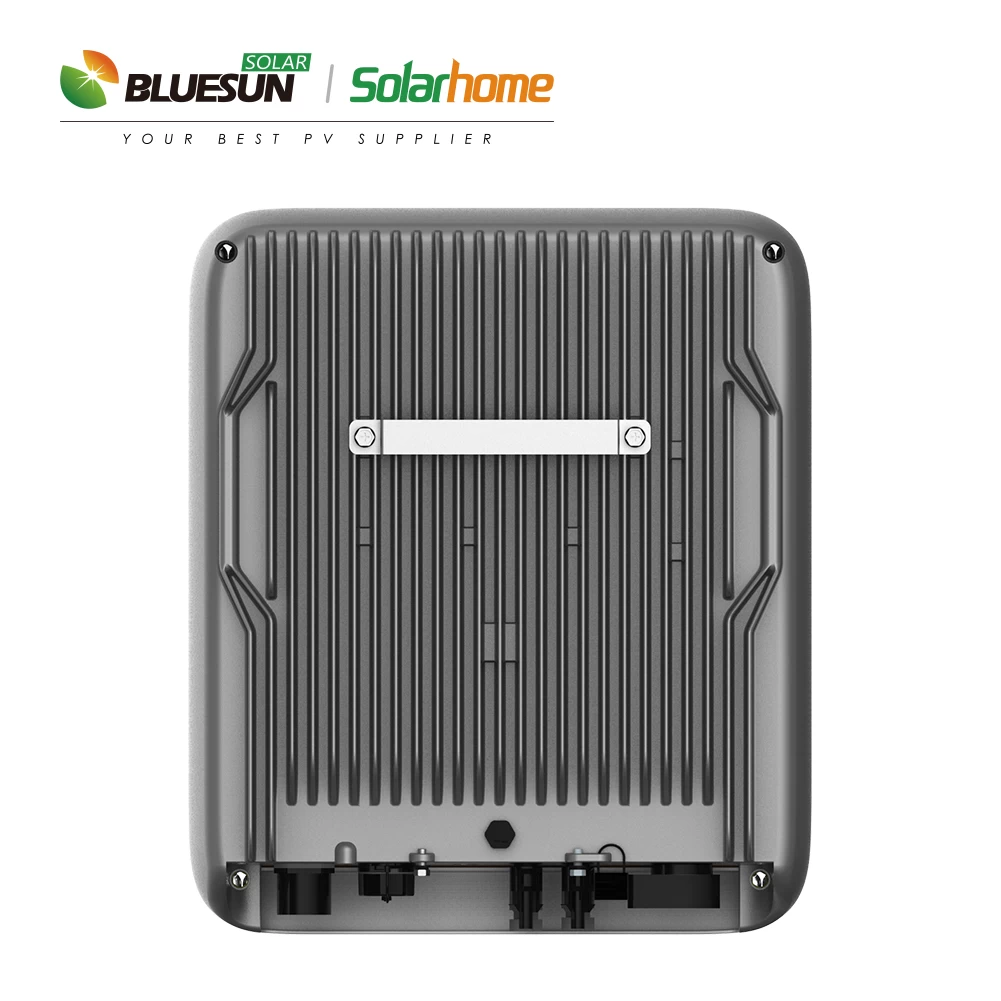

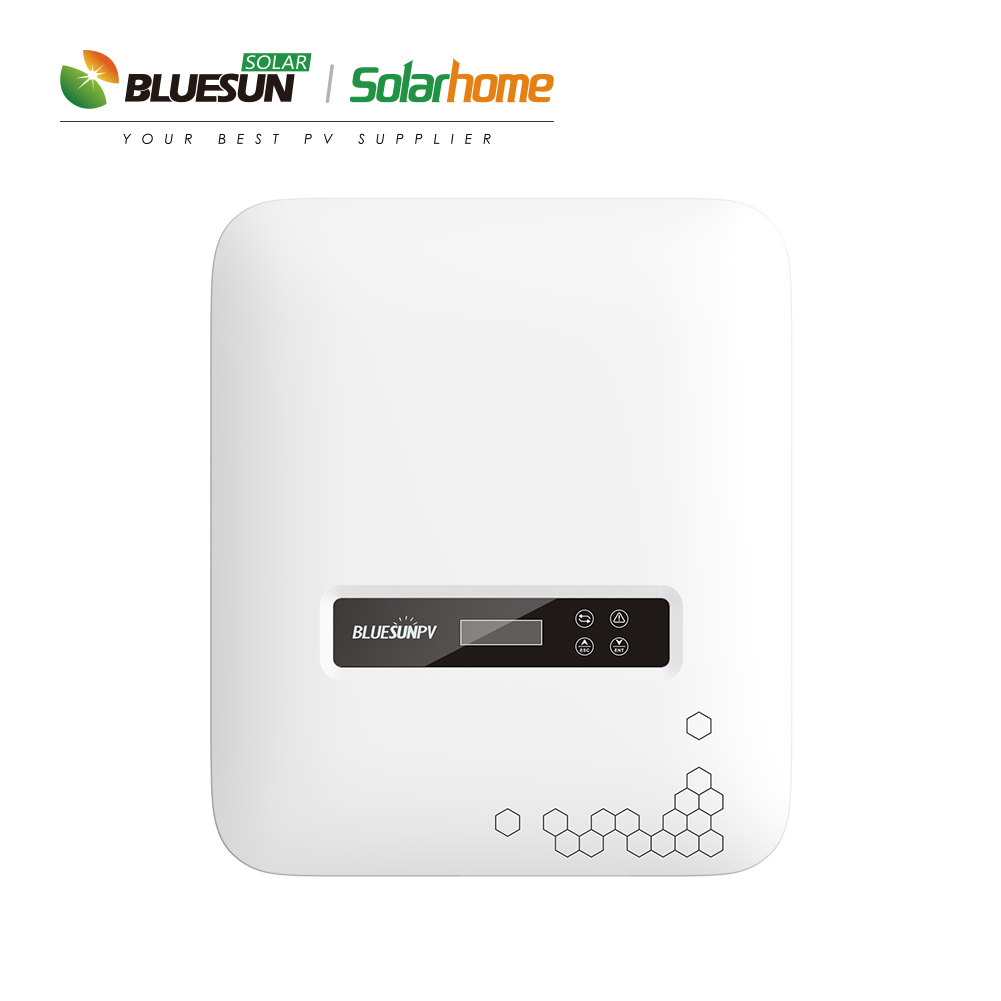

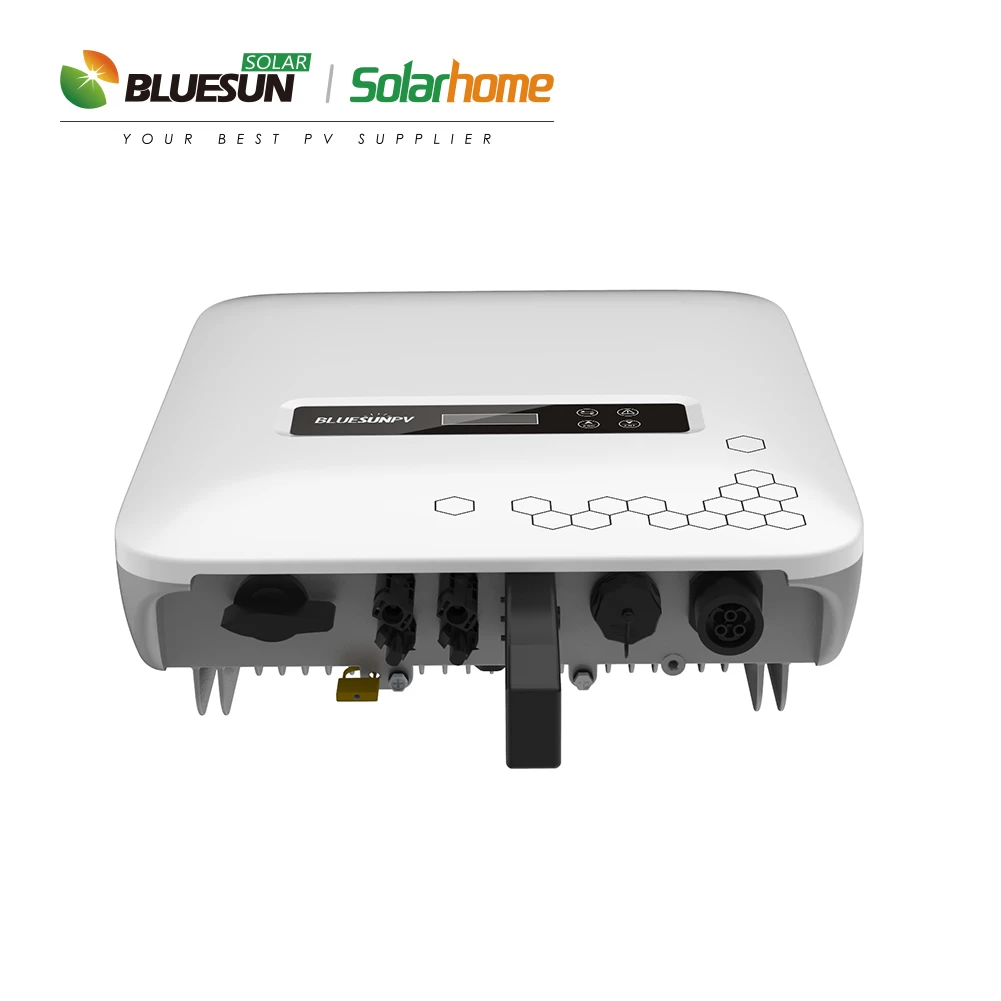

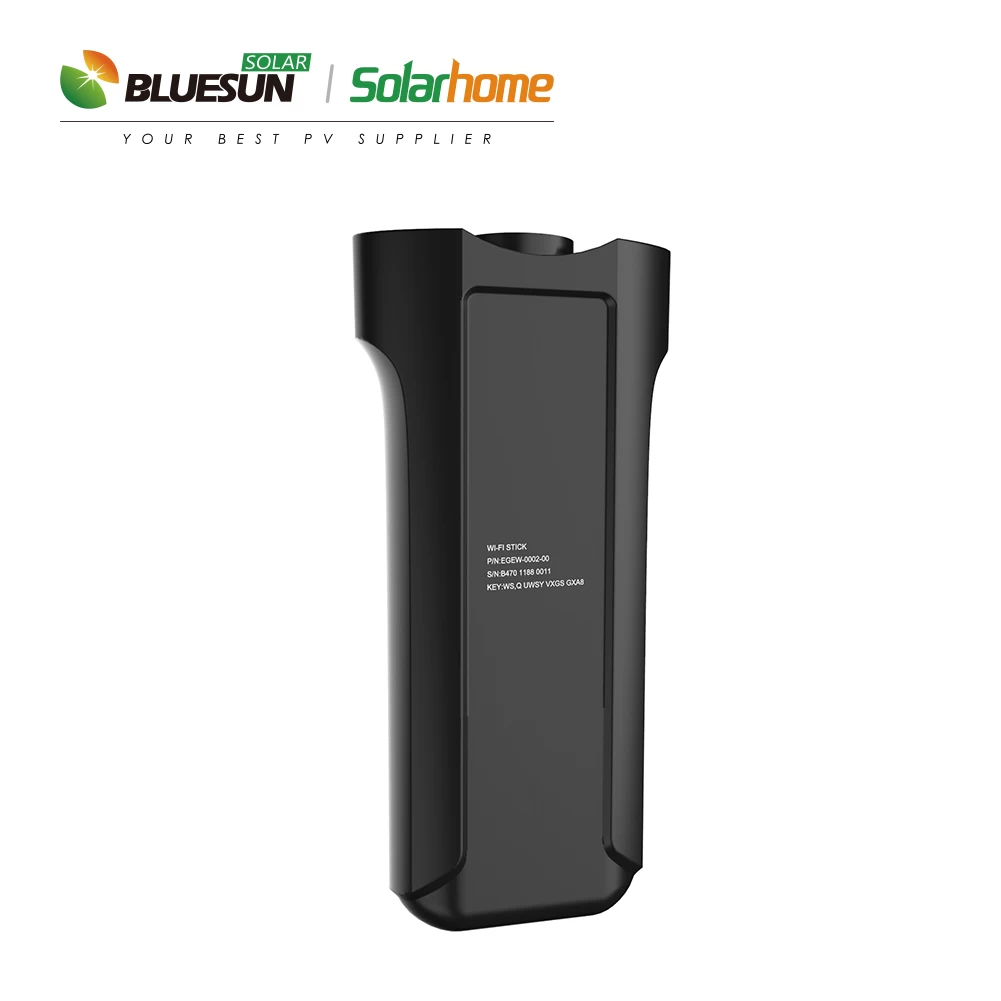

Detailed Images
Technical Parameters
|
Items
|
BSM3000-B2
|
BSM4000-B2
|
BSM5000-B2
|
BSM6000-B2
|
|
DC Input
|
|
Max. PV input voltage
|
600Vdc
|
|
Rated PV voltage
|
360Vdc
|
|
Max. PV input current
|
22A(2×11A)
|
|
No. of MPPTs
|
2
|
|
No.of PV strings per MPPT
|
1/1
|
|
MPPT voltage range
|
100Vdc ~500Vdc
|
|
Starting voltage
|
120Vdc
|
|
AC Output
|
|
Rated AC output power
|
3.0kW
|
4.0kW
|
5.0kW
|
6.0kW
|
|
Max. output power
|
3.3kVA
|
4.4kVA
|
5.5kVA
|
6.0kVA
|
|
Rated AC output voltage
|
220V/230Vac
|
|
Rated output current
|
13.0A
|
17.4A
|
21.7A
|
26.0A
|
|
Max. output current
|
14.3A
|
19.1A
|
23.9 A
|
26.0 A
|
|
Rated grid frequency
|
50/60Hz
|
|
Grid frequency range
|
45~55Hz/55~65Hz
|
|
Power factor
|
>0.99 full load
|
|
Adjustable power factor
|
0.8 (leading) ~ 0.8 (lagging)
|
|
THDi
|
<3% (rated power)
|
|
Efficiency
|
|
Max. efficiency
|
98.10%
|
98.30%
|
|
European efficiency
|
97.70%
|
97.90%
|
|
General
|
|
Dimensions (W×H×D)
|
360×420×125 mm
|
|
Weight
|
12.6kg
|
|
IP grade
|
IP65
|
|
Noise level
|
≤25 dB
|
|
Night power consumption
|
<1W
|
|
Cooling type
|
Natural cooling
|
|
Altitude
|
4000m (>2000m derating )
|
|
Operating temperature
|
-40ºC~60ºC (>45ºC derating)
|
|
Relative humidity
|
0~95%
|
|
Display
|
LCD display + LED indicator
|
|
Communication
|
RS485/WiFi (optional)/GPRS (optional)/DRM(Australia)
|
|

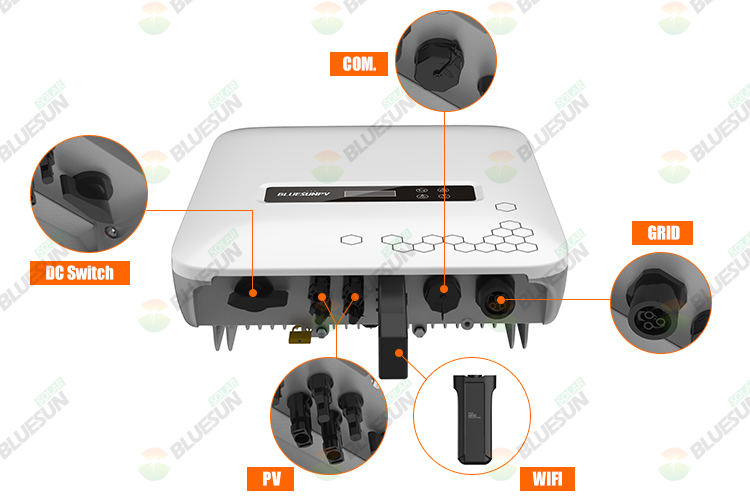

DC terminal
|
MC4 Terminal
|
|
AC terminal
|
Plug and play connector
|
|
Installation method
|
Wall-mounted
|
|
Standard
|
EN62109-1, EN62109-2 NB/T32004, AS3100, AS4777, EN 61000-6-2, EN 61000-6-3 , IEC 62116:2014 ,IEC 61727:2004 ,IEC 60068-2-1:2007
|
|
|
,IEC 60068-2-2:2007 ,IEC 60068-2-14:2009 ,IEC 60068-2-30:2005
|

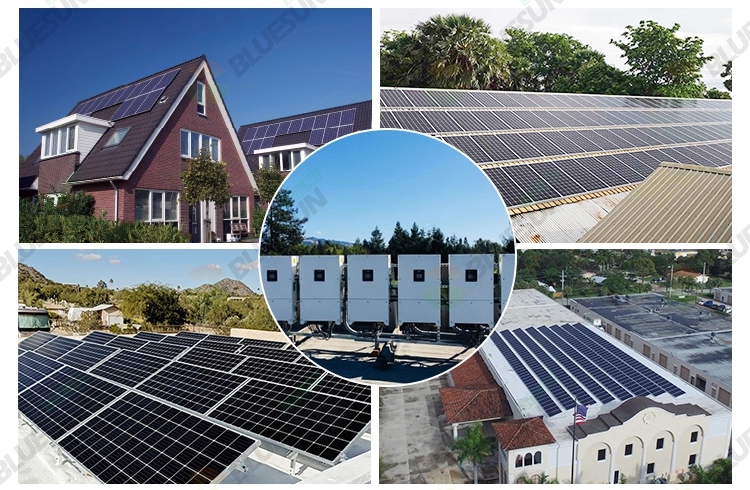

Packing&Projects
