Bluesun solar inverter 50KW 60KW 80KW 100KW solar grid tie inverter for home use 380v 400v three phase 50Hz

The energy storage inverters are to convert the AC current of the city electricity into the DC current to charge and store the battery (battery), and then convert the DC current stored in the battery into the AC current of the city electricity for the use of household appliances when the city power is cut off.









  • Size600×860×294mm
  • CertificateEN62109-1, EN62109-2, NB/T32004, AS4777.2,EN 61000-6-2, EN 61000-6-4, DIN VDE0126, UTE C15-712-1, VFR2014, ERDF-NOI-RES_13E,
  • Voltage300Vdc~1000Vdc
  • Power50KW/60KW/70KW/80KW
  • Lead time7 DAYS
  • PaymentT/T,PAYAPL,WESTERN UNION,L/C
  • Warranty5/10 YEARS

Product Description



Recommended product: BSMBSM50K/60K/70K/80K-BHV  This type of inverter is well protected and suitable for outdoor use and is easy to install.

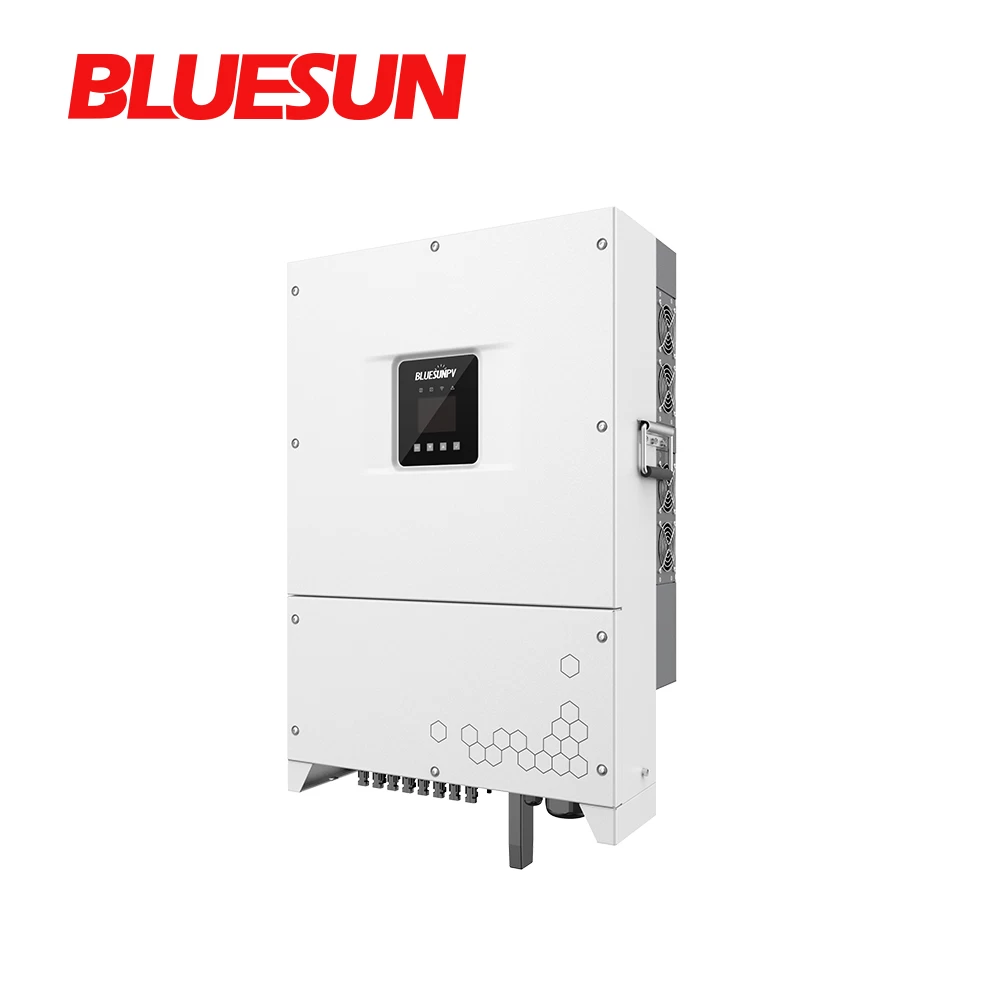

Smart On Grid Inverter

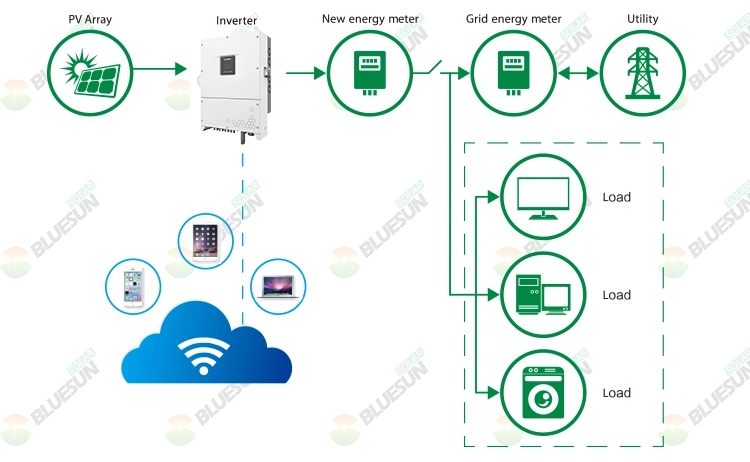

Working Diagrams





Technical Parameters


Items BSM50K-BHV BSM60K-BHV BSM70K-BHV BSM80K-BHV
DC Input
Max. PV input voltage 1000Vdc 1100Vdc
Rated PV voltage 710Vdc 740Vdc 800Vdc 800Vdc
Max. PV input current 120A (12×10A) 120A (12×10A) 120A (12×10A) 176A (16×11A)
No. of MPPTs 4 4 4 4
No.of PV strings per MPPT 3/3/3/3 3/3/3/3 3/3/3/3 4/4/4/4
MPPT voltage range 300V~1000V
Starting voltage 250Vdc
AC Output
Rated AC output power 50kW 60kW 70kW 80kW
Max. output power 55kVA 66kVA 77kVA 88kVA
Rated AC output voltage 480Vac 540Vac 540Vac
Rated output current 57.7A 72.2A 74.8A 85.5A
Max. output current 63.5A 79.4A 82.3A 94.1A
Rated grid frequency 50Hz/60Hz
Grid frequency range 45~55Hz/55~65Hz
Power factor >0.99 (full load)
Adjustable power factor 0.8 (leading)-0.8 (lagging)
THDi <3% (rated power)
Efficiency
Max. efficiency 98.80% 99%
European efficiency 98.49% 98.49% 98.49% 98.50%
General
Dimensions (W×H×D) 600×860×294mm
Weight 65kg 76.5kg
IP grade IP65
Noise level <65dB
Self-consumption at night <1W
Cooling type Intelligent forced air cooling
Altitude 5000m (>3000m derating)
Operating temperature -25ºC~+60ºC(>45ºC derating)
Relative humidity 0~95% (Non-condensation)
Display LCD+LED
Communication RS485/WIFI/GPRS(Optional) RS485/WiFiGPRS/PLC(Optional)

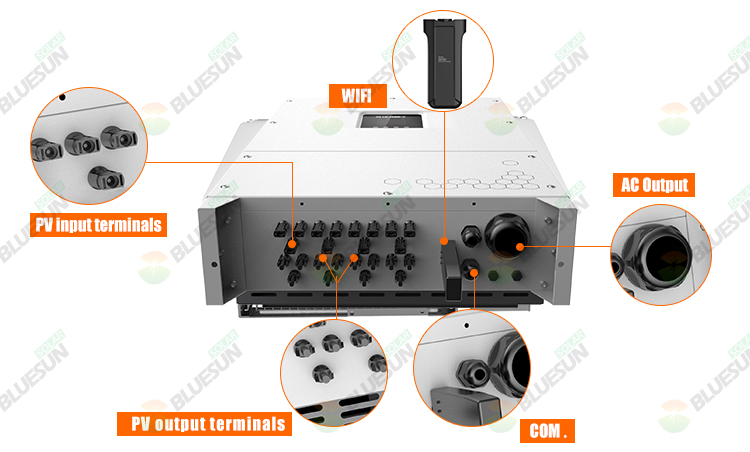

DC terminal MC4 Terminal
AC terminal OT Terminal
Installation method Wall-mounted
Standard EN62109-1, EN62109-2, NB/T32004, AS4777.2,EN 61000-6-2, EN 61000-6-4, DIN VDE0126, UTE C15-712-1, VFR2014, ERDF-NOI-RES_13E,
IEC61727, IEC62116,GB/T 19964-2012
