Product Description

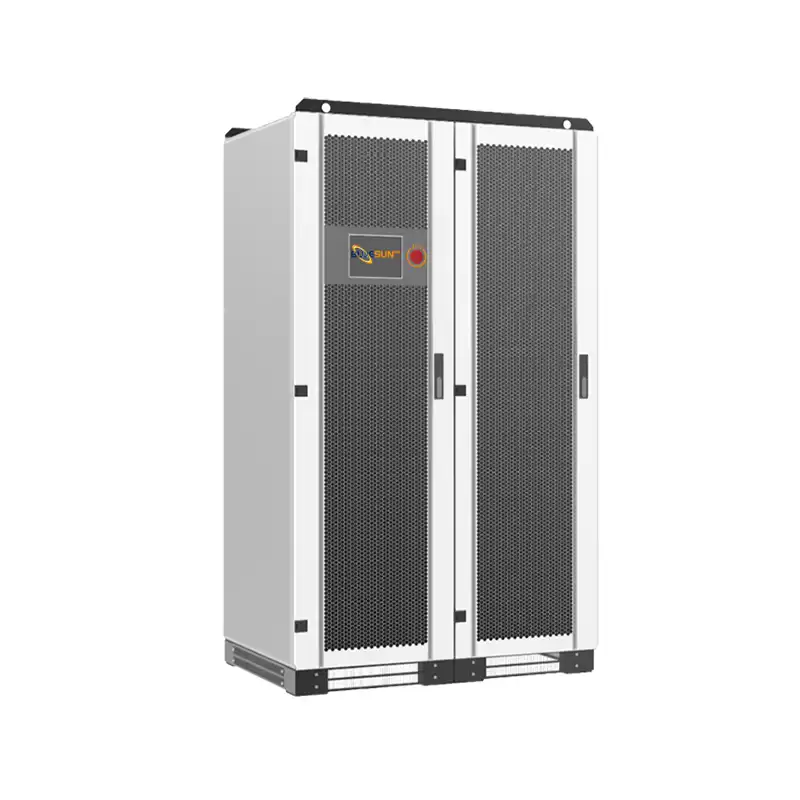

Bluesun Hybrid Inverter Energy Storage Power from 30-500KW,With Three Advantages：
*Flexible
Various working modes can be set flexibly.Flexible Battery Type(li-ion,lead-acid).PV controller can be expanded to facilitate flexible.configuration of photovoltaic capacity
*Convenient
Integrated design to support loads, batteries,power grids,diesel generators and PV be connected.Integrated EMS function, power supply security and stabilit maximum utilization of new energy.
*Reliable
Prediction intelligent battery management and discharge time.CAN and RS485 communication interface, modbus protocol.Seamless transfer between on and off grid.Strong load adaptability.Perfect protection function to protect inverters and batteries.
|
Model
|
BPS30
|
BPS50
|
BPS100
|
BPS150
|
BPS250
|
BPS500
|
|
AC(grid-connected)
|
|
Apparent power
|
33kVA
|
55kVA
|
110kVA
|
165kVA
|
275kVA
|
550kVA
|
|
Rated power
|
30kW
|
50kW
|
100kW
|
150kW
|
250kW
|
500kW
|
|
Rated voltage
|
400V
|
|
Rated current
|
43A
|
72A
|
144A
|
217A
|
361A
|
722A
|
|
Voltage range
|
320V-460V
|
|
Rated frequency
|
50/60Hz
|
|
Frequency range
|
45-55/55-65Hz
|
|
THDI
|
<3%
|
|
PF
|
0.8lagging-0.8leading
|
|
AC connection
|
3W+N+PE
|
|
Transformer
|
Yes
|
|
AC(off-grid)
|
|
Apparent power
|
33kVA
|
55kVA
|
110kVA
|
165kVA
|
275kVA
|
550kVA
|
|
Rated power
|
30kW
|
50kW
|
100kW
|
150kW
|
250kW
|
500kW
|
|
Rated voltage
|
400V
|
|
Rated current
|
43A
|
72A
|
144A
|
217A
|
361A
|
722A
|
|
THDU
|
≤2% linear
|
|
Rated frequency
|
50/60Hz
|
|
Overload capability
|
110%-10min120%-1min
|
|
PV
|
|
Max. PV open-circuit voltage
|
1000VDC
|
|
MAX PV power
|
60/120KW
|
120/180/240KW
|
300/360KW
|
600/660/720KW
|
|
PV mppt voltage range
|
200V-850V
|
|
MPPT number
|
1/2
|
2/3/4
|
5/6
|
10/11/12
|
|
Battery
|
|
|
Battery voltage range
|
150V-850V
|
420V-850V
|
500V-850V
|
|
Battery full Load operating voltage range
|
150V-850V
|
420V-850V
|
500V-850V
|
|
Genera data
|
|
Dimension(W*D*H)
|
800*800*1900mm
|
1200*800*2050mm
|
1800*800*2050mm
|
2800*800*2050mm
|
|
Weight
|
440kg
|
620kg
|
900kg
|
1250kg
|
1700kg
|
3520kg
|
|
Environmental temperature
|
-25ºC~+55ºC
|
|
Relative humidity
|
0-95%non-condensing
|
|
Protection degree
|
IP20
|
|
Noise emission
|
75dB(A)@1m
|
|
Max.imum altitude
|
5000m(derate over 3000m)
|
|
Cooling
|
Forced-air
|
|
Communication
|
|
Display
|
Touch screen LCD
|
|
Communication interface
|
RS485/CAN
|
