BMW Fiber Optic MOST Amplifier Logic 7 Surround Audio System
Available Car Model
BMW 5 Series F10 / F11 / G30
BMW 3 Series F30 / F31 / F34
BMW X1 E84 / F48
BMW X3 F25
Product Introduction
Many of low configuration BMW cars just come with 4 standard door speakers with poor sound quality, we offer the the complete audio upgrading solution package to improve the sound quality.

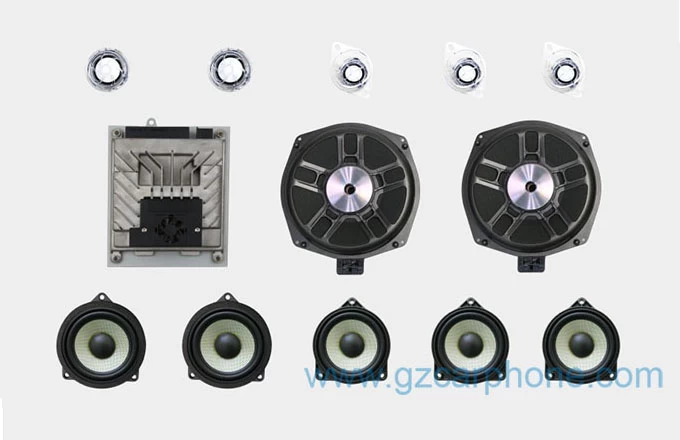

Complete Surround Audio System Package

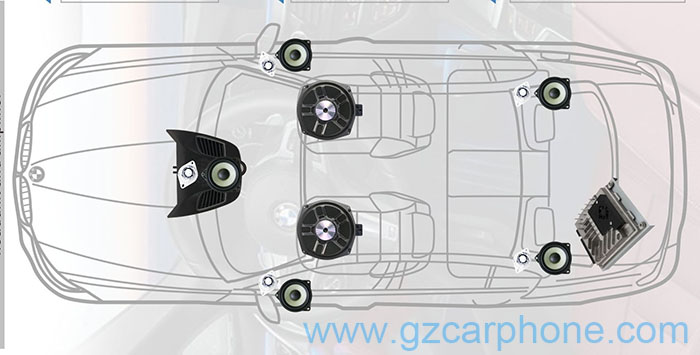

Full package including below things:
DSP Amplifier(installed in trunk): 1pc
Subwoofer(installed under 2 front seats): 2pcs
Midrange speakers(1pc in front center dashboard, 2pcs in front door, 2ocs behind back 2 seats): 5pcs
Tweeters(1pc in front center dashboard, 2pcs in front door, 2pcs behind back 2 seats): 5pcs
Fiber Optic MOST DSP Amplifer
BMW original head unit system come with MOST fiber optic output but does not come with RCA output, when doing the audio system upgrading, it can only convert the high level audio signal to low level audio signal to the amplifier, which will cause signal distortion, leading the missing of details of sound and compression of dynamic range
To solve the problem, the best solution is to get digital audio audio output from original MOST fiber. Our amplifier connect to original headunit through original fiber optic socket, fiber digital interface will convert the MOST output to IIS digital audio perfectly, to guarantee the high quality audio output.to ensure less signal loss and best audio source.
|
Specification
|
|
Input
|
Original MOST fiber optic
|
|
Output
|
10 ways high voltage level channel
|
|
Output power
|
2 x 90W, 8 x 45W
|
|
Output impedance
|
Bass: 2 ohm, Middle: 4 ohm
|
|
Frequency response
|
40Hz ~ 22000 Hz
|
|
SNR
|
112dB
|
|
THD
|
＜0.001%
|
|
Working voltage
|
9.6 ~ 18V
|

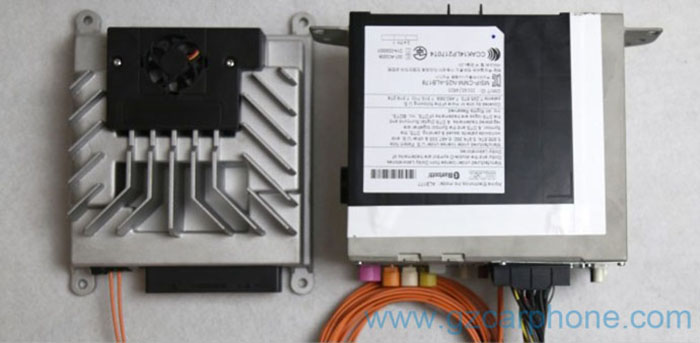

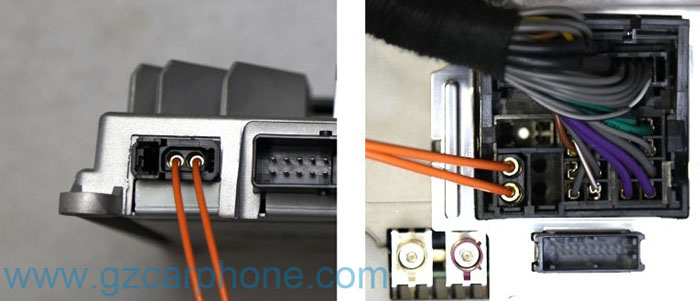

Cable connection of original headunit and amplifier: through fiber optic cable

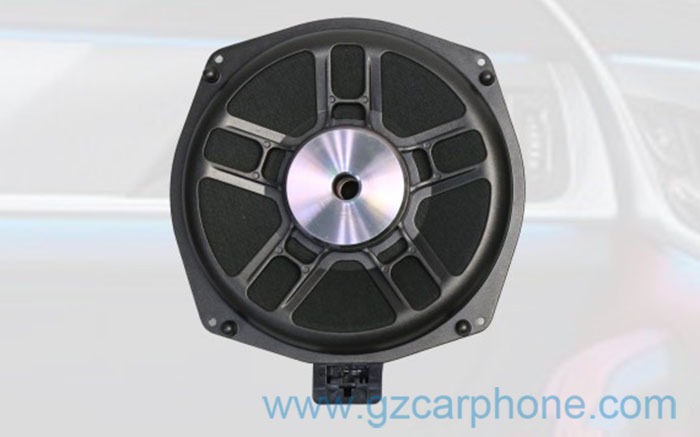

Subwoofer
|
Specification
|
|
Speaker unit size
|
8''
|
|
Rated Power
|
75W x 2
|
|
Frequency Resopnse
|
20Hz - 2 Khz
|
|
Frequency response
|
91dB
|
|
Impedance
|
2 ohm
|

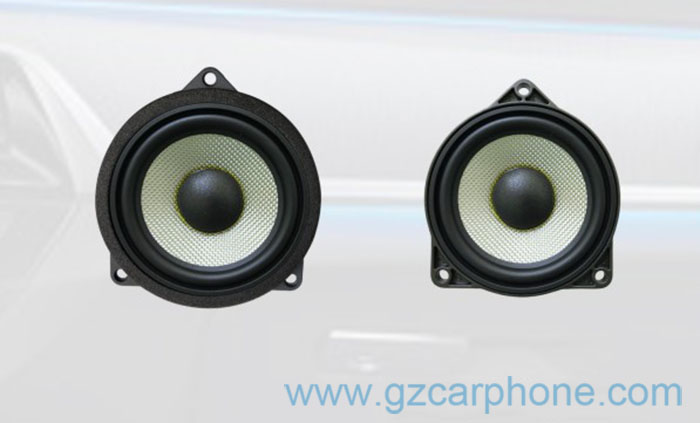

Midrange Speaker
|
Specification
|
|
Speaker unit size
|
4'' / 4.5''
|
|
Rated Power
|
40W x 5
|
|
Frequency Resopnse
|
100Hz - 10 Khz
|
|
Sensitivity
|
90 dB
|
|
Impedance
|
4 ohm
|

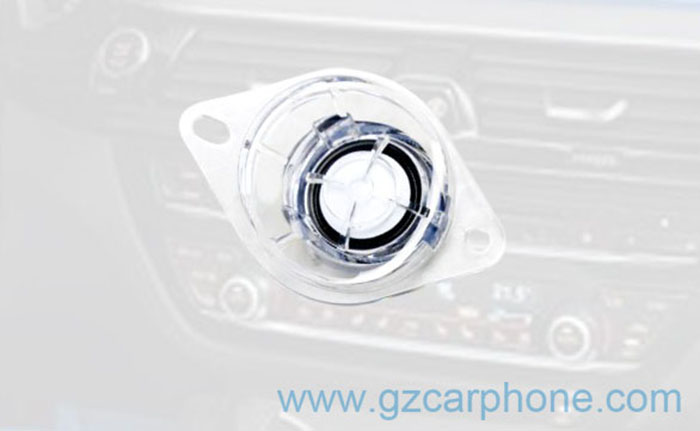

Tweeter
|
Specification
|
|
Speaker unit size
|
1''
|
|
Rated Power
|
20W x 5
|
|
Frequency Resopnse
|
1.3kHz - 20 Khz
|
|
Sensitivity
|
89 dB
|
|
Impedance
|
4 ohm
|

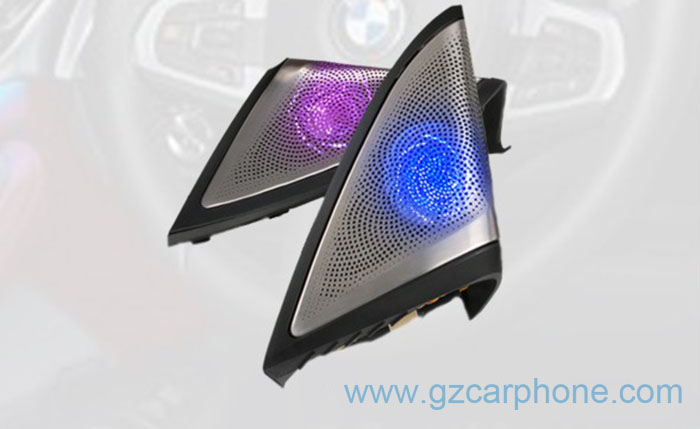

Optional Diamond tweeter for BMW 5 Series G30
Product link: BMW 5 Series Bowers & Wilkins Design Tweeter
|
Specification
|
|
Speaker unit size
|
1''
|
|
Rated Power
|
20W x 2
|
|
Frequency Resopnse
|
1.3kHz - 20 Khz
|
|
Sensitivity
|
89 dB
|
|
Impedance
|
4 ohm
|

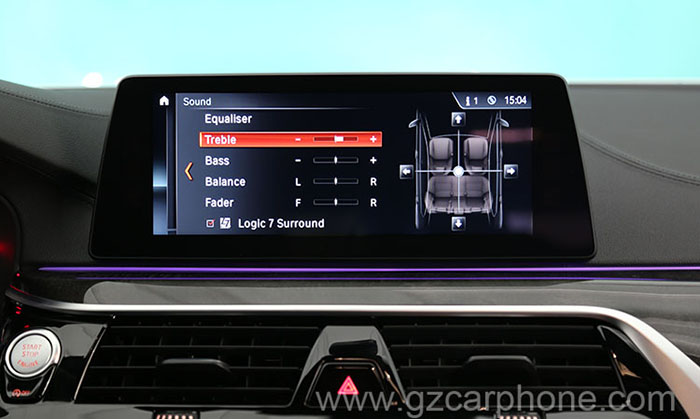

BMW Logic 7 Surround Menu
Remain all original sound control, can activate the Logic 7 menu with computer coding in the car to custom listening preference by yourself
