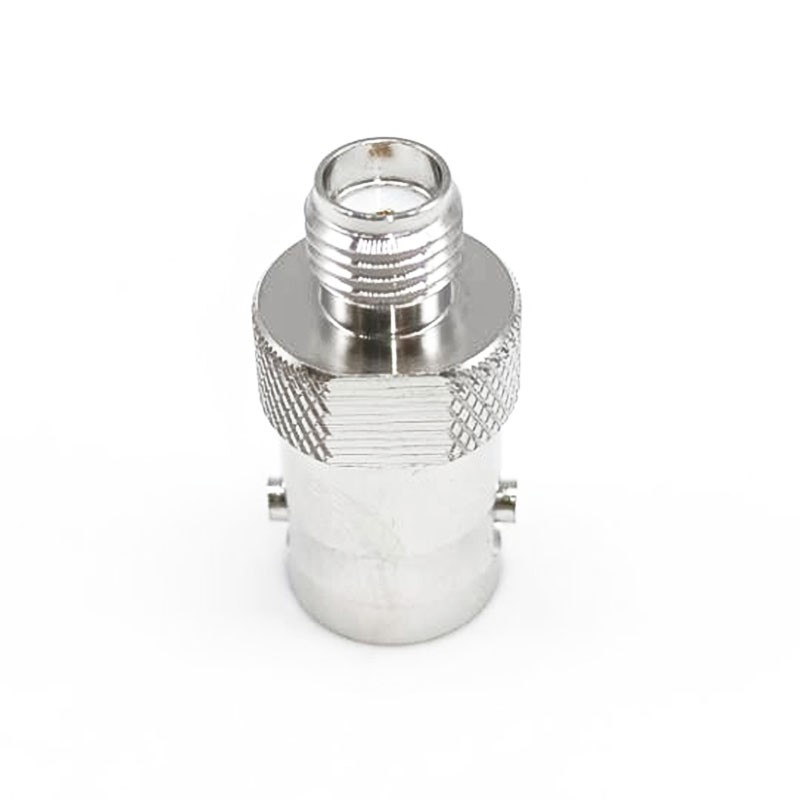

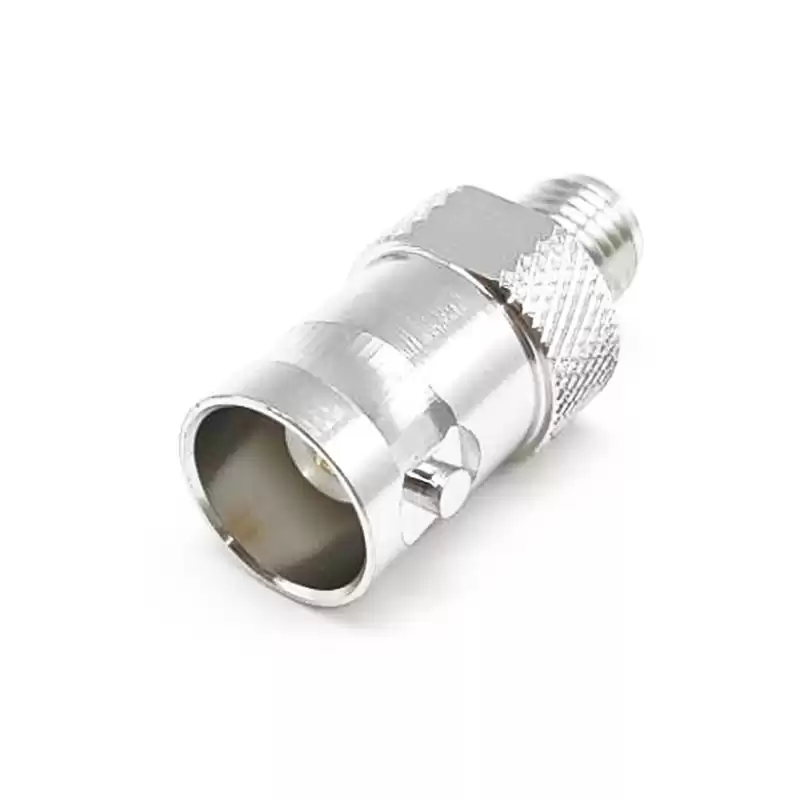

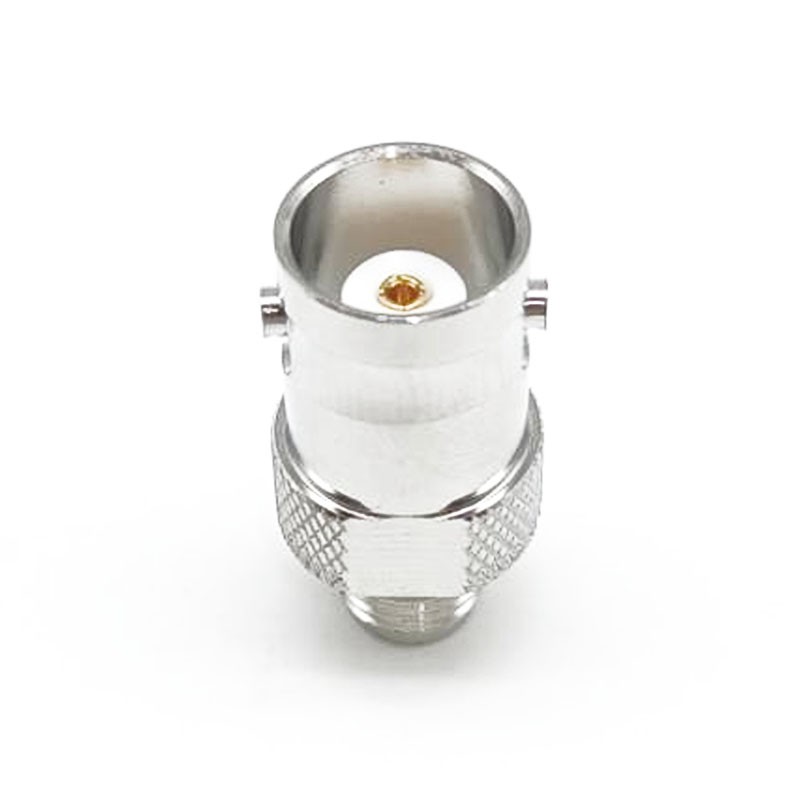

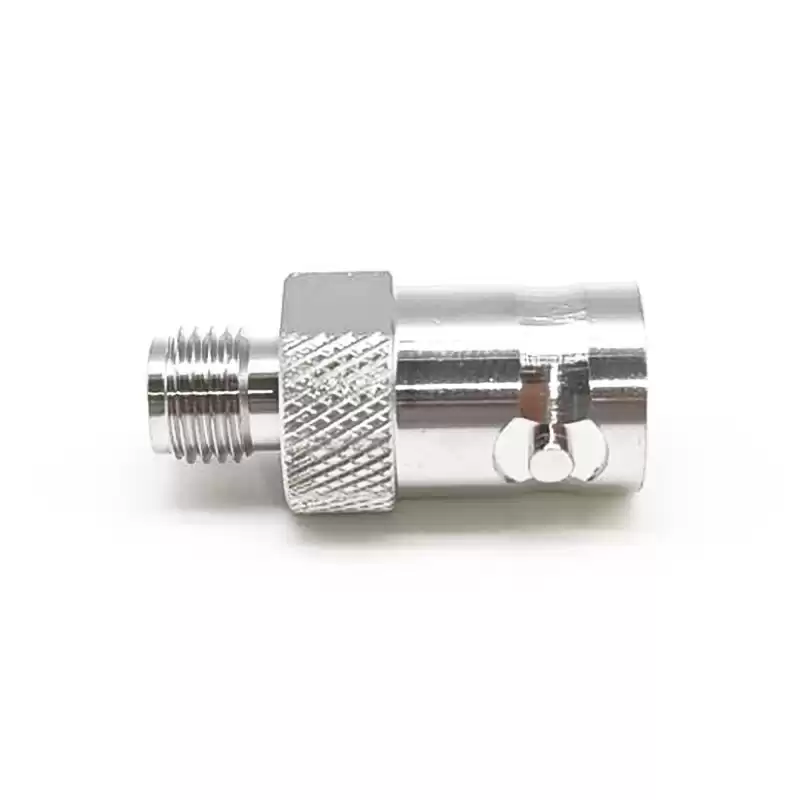

BNC Female to SMA Female Straight RF Connector Adapter
The BNC Adapter has different BNC to SMA adapter gender, is a between series coaxial adapter. The BNC to SMA adapters has female to female, female to male, male to female or male to male gender designs. it has straight body, and has bulkhead or mountless configurations. ROHO's BNC to SMA adapters offers standard or high performance designs. This BNC female to SMA female adapter has a maximum frequency of 4GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
BNC |
| Adapter Side 1 Style |
Female |
| Adapter Side 2 Series |
SMA |
| Adapter Side 2 Style |
Female |
| Frequency (Max GHz) |
4 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| ELECTRICAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Suitable for Antennas
- Broadcast, Radios
- Wi-Fi, Telecom,LMR
- Wireless LAN Devices, CCTV
- Microwave Applications and Digital Communication System
