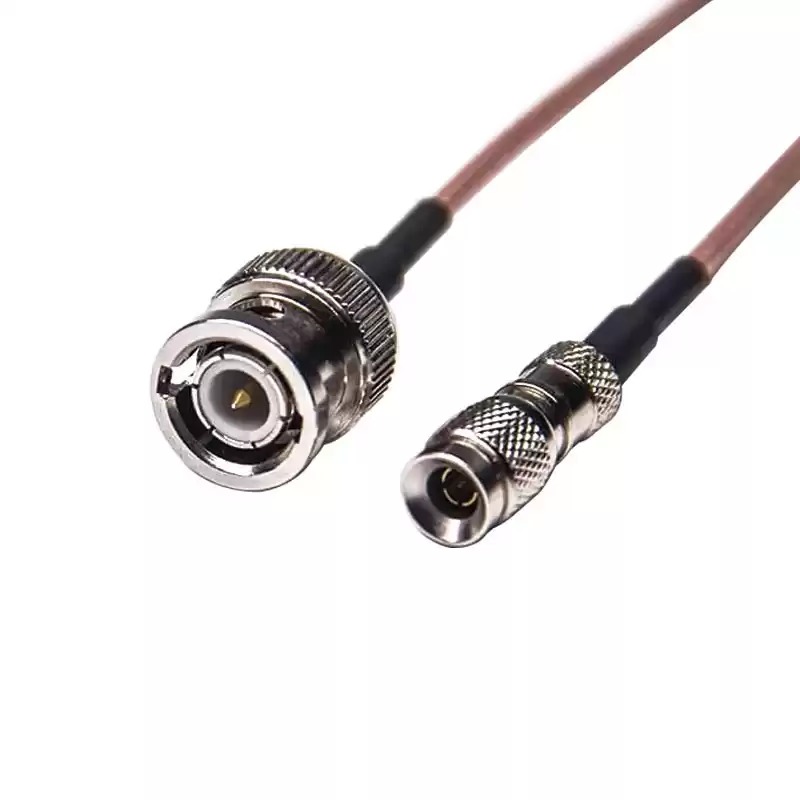

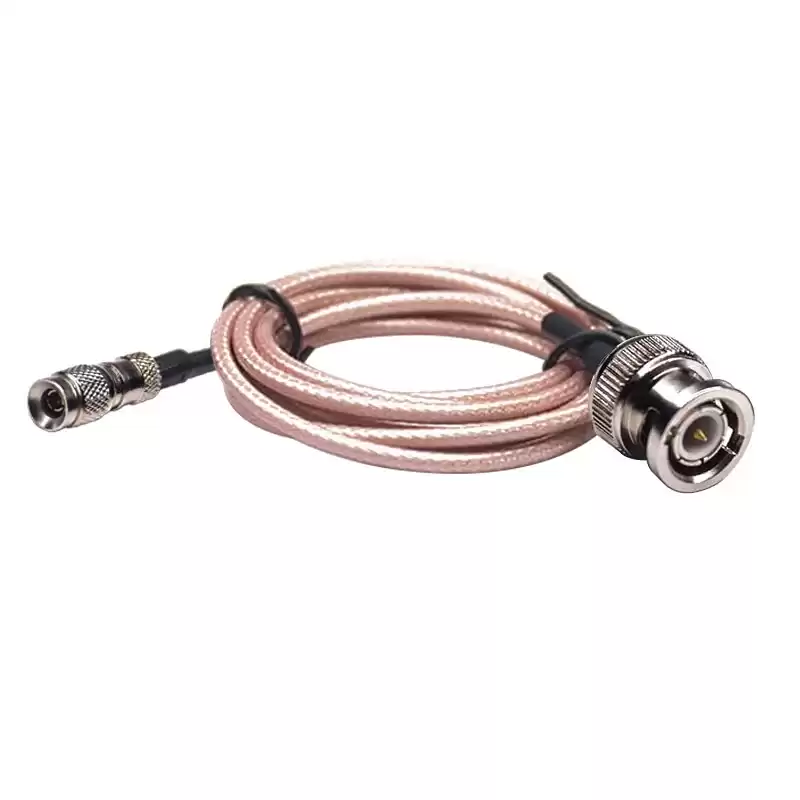

BNC Male to DIN 1.0-2.3 Male Plug Connector RF Coaxial Cable Assembly with RG316 Cable
The BNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195, LMR240, RG142, RG174, RG178, RG179, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG405, RG55, RG58 or RG59 cable; the body of BNC to UHF cable assembly is right angle or straight connectors which is female to male, male to female or male to male gender. This BNC male to DIN 1.0-2.3 plug cable assembly uses a 50ohm straight type BNC for connector 1 and a 75ohm straight type DIN 1.0-2.3 for connector 2, Cable is 50ohm flexible cable type RG316.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
BNC |
| Connector 1 Style |
Str Male |
| Cable Type |
RG316 |
| Connector 2 Series |
DIN 1.0-2.3 |
| Connector 2 Style |
Str Plug |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
75 |
| Low PIM |
No |
| Max Frequency |
3GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Telecommunications
- Automotive
- Computers/LANs
- Medical Equipment
- Base Stations
- Antennas
