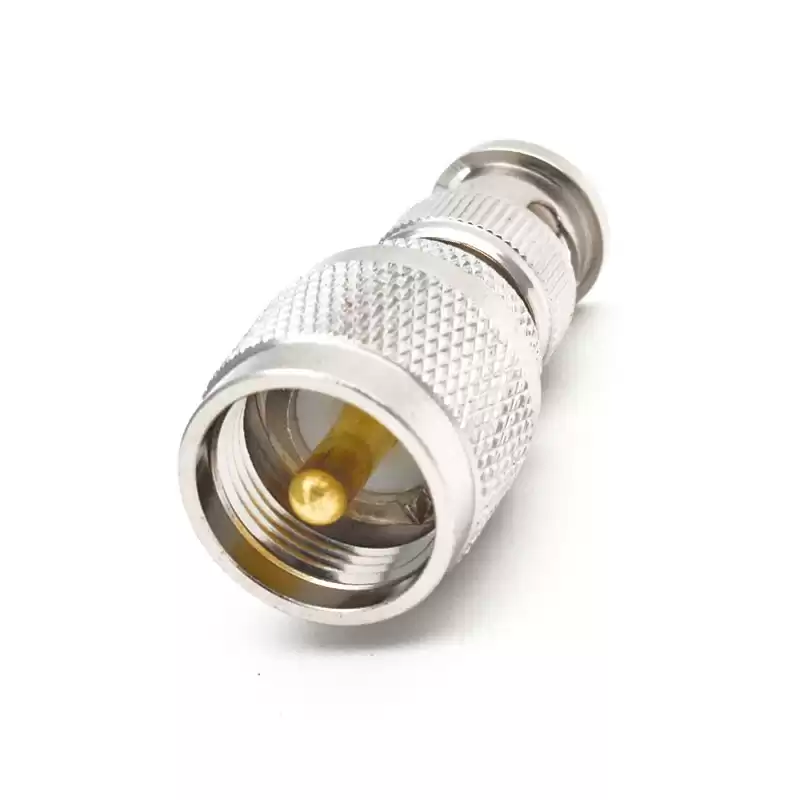

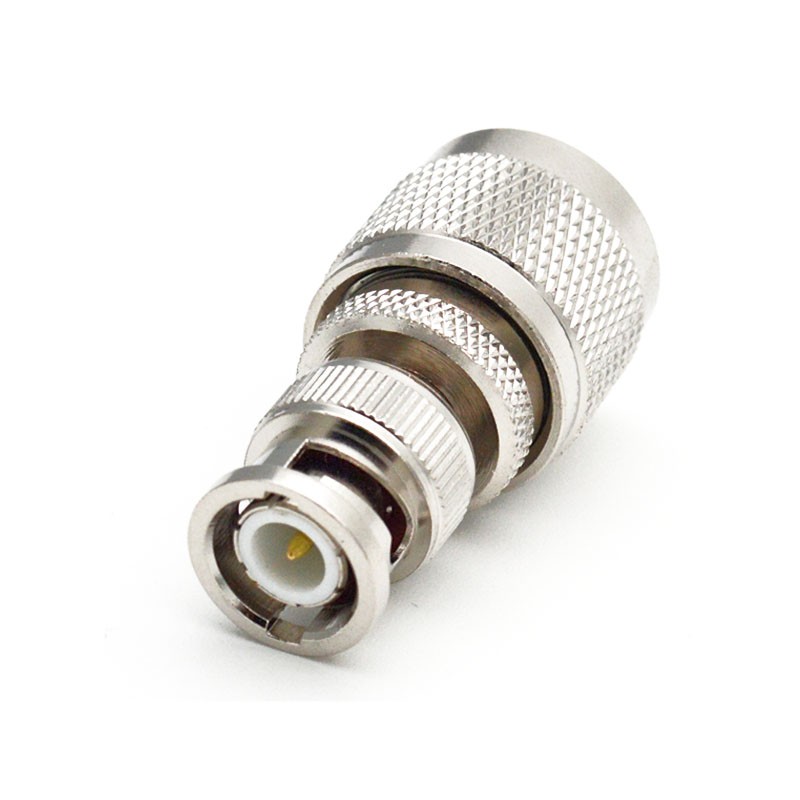

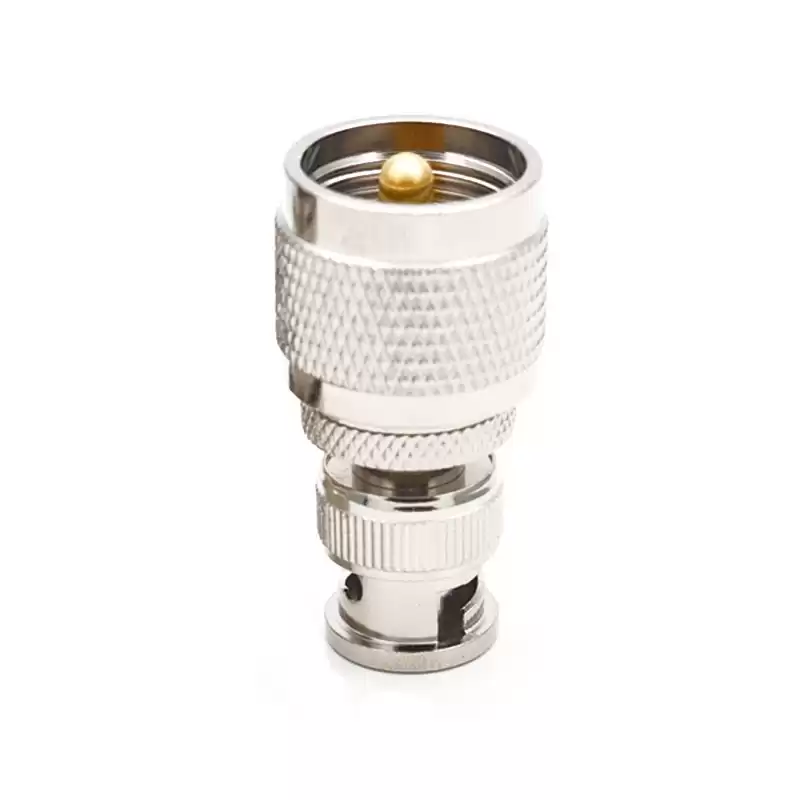

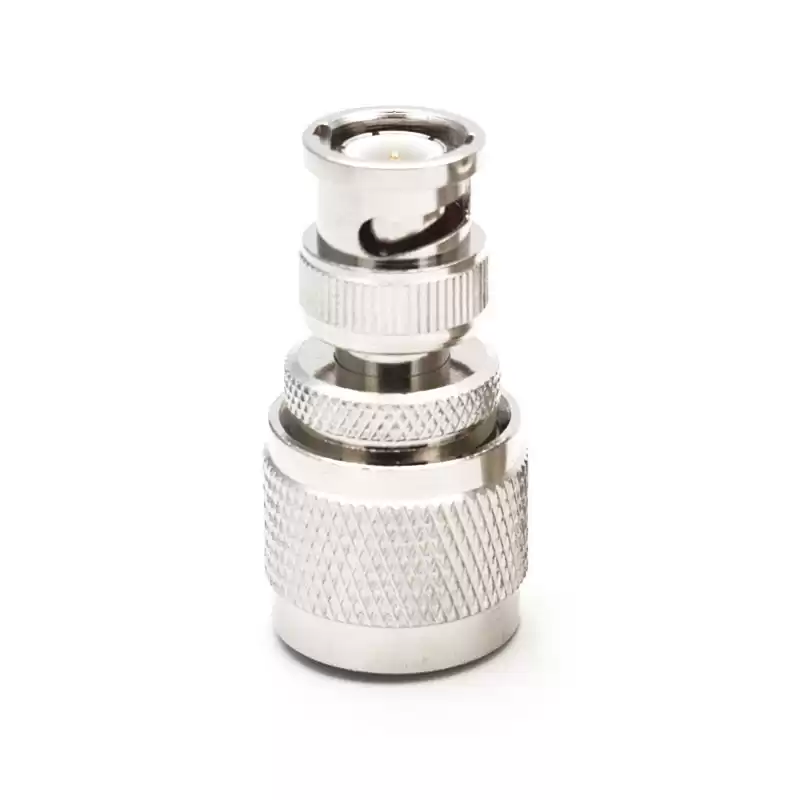

BNC Male to UHF Male PL259 Straight RF Connector Adaptor
BNC adapters Features：
- Allow to interface BNC connectors with BNC, F, MCX, MMCX, N, RCA, SMA, SMB, TNC or UHF connectors;
- Has female to female, female to jack, female to male, female to plug, female to sexless, male to female, male to jack, male to male, male to plug or male to sexless gender combinations;
- Has straight or right angle versions;
- Has bulkhead, 4 hole panel or mountless configurations;
- Has 50ohm or 75ohm impedance;
- BNC adaptors are miniature, lightweight and reliable;
- Has standard or high performance designs.
BNC Male to UHF Male PL259 Straight RF Connector Adaptor
The BNC Adapter has different BNC to UHF adapter gender, is a between series coaxial adapter. The BNC to UHF adapters has female to female, female to male, male to female or male to male gender designs. it has straight body. ROHO's BNC to UHF adapters offers standard or high performance designs. This BNC male to UHF male adapter has a maximum frequency of 300MHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | BNC |
| Adapter Side 1 Style | Male |
| Adapter Side 2 Series | UHF |
| Adapter Side 2 Style | Male |
| Frequency (Max MHz) | 300 |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| ELECTRICAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Suitable for Antennas
- Broadcast, Radios
- Wi-Fi, Telecom,LMR
- Wireless LAN Devices, CCTV
- Microwave Applications and Digital Communication System
