EF20 Horizontal High Frequency Transformer Bobbin 10 Pin

5+5 pin EF20 power transformer bobbin. Single slot EF20 horizontal bobbin. Bobbin Size=22mmX18.2mmX14.6mm. Parallel Distance=15.24mm. Pin pitch=3.81mm. PET material EF20 bobbin. DIP transformer bobbin.

EF20 Transformer Bobbin Ferrite Core Bobbin 3+3 Pins

3+3 pin transformer bobbin EF20. Horizontal power transformer bobbin. Bobbin Size=20mmX19mmX20.55mm. Parallel Distance=16mm. Pin pitch=5mm. PET and nylon material transformer bobbin. DIP transformer bobbin.

EF20 3+3 Pins Double Slots Horizontal Transformer Bobbin

Double slots bobbin EF20 3+3 pins. EF20 horizontal power transformer bobbin. Bobbin Size=20mmX19mmX20.55mm. Parallel Distance=16mm. Pin pitch=5mm. PET and nylon material transformer bobbin. DIP transformer bobbin.

EF20 Horizontal 3+3 Pins Transformer Bobbin With Four Slots

Four slots bobbin EF20 with 3+3 pins. EF20 horizontal power transformer bobbin. Bobbin Size=20mmX19mmX20.55mm. Parallel Distance=16mm. Pin pitch=5mm. PET and nylon material transformer bobbin. DIP transformer bobbin.

EF20 Vertical Bobbin For Power Supply Transformer

3+3 pin vertical EF20 bobbin. Single slot EF20 transformer bobbin. Bobbin Size=18.8mmX13.1mmX20.1mm. Parallel Distance=9.8mm. Pin pitch=5.1mm. Phenolic material EF20 bobbin. DIP transformer bobbin.

Electronic Component Horizontal Transformer Bobbin EF20

EF20 ferrite core bobbin. 4+4 pins EF20 horizontal transformer bobbin. Bobbin Size=21mmX20.8mmX18.4mm. Parallel Distance=15mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.

EF20 4+4 Pins Horizontal Transformer Bobbin With Two Slots

Double slots EF20 transformer bobbin. 4+4 pins EF20 horizontal transformer bobbin. Bobbin Size=21mmX20.8mmX18.4mm. Parallel Distance=15mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.

Horizontal EF20 4+4 Pins Transformer Bobbin Four Slots

4+4 pins four slots EF20 bobbin. EF20 horizontal power transformer bobbin. Bobbin Size=21mmX20.8mmX18.4mm. Parallel Distance=15mm. Pin pitch=5mm. PET and nylon material transformer bobbin. DIP transformer bobbin.

EF20 Horizontal Double Groove Bobbin for High Frequency Transformer

EF20 horizontal 4+4 pins inductor bobbin. EF20 double slots transformer bobbin. Bobbin Size=20.8mmX20.7mmX14.5mm. Parallel Distance=15mm. Pin pitch=5mm. PA66 material transformer bobbin. DIP transformer bobbin.

EF25 Horizontal 4+4 Pin Bobbin Four Slots For Transformer

EF25 coil bobbin four slots. 4+4 pins horizontal EF25 transformer bobbin. Bobbin Size=26mmX25.4mmX21.4mm. Parallel Distance=20mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.

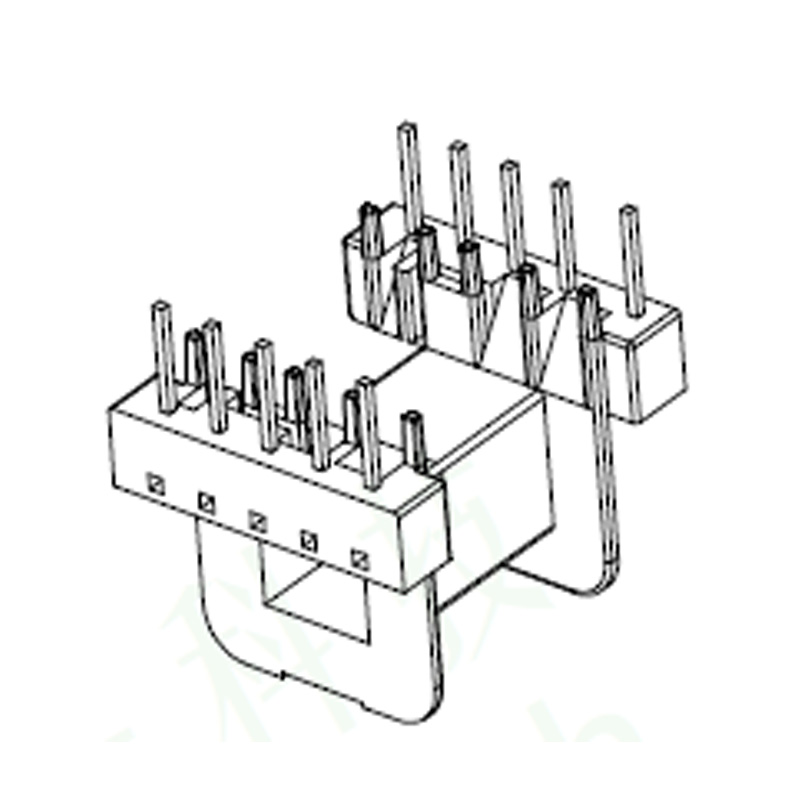

EF25 Horizontal Ferrite Core Transformer Bobbin Pin 5+5

EF25 horizontal bobbin 5+5 pins. Single slot EF25 coil bobbin. Bobbin Size=25.8mmX25mmX21.7mm. Parallel Distance=20mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.

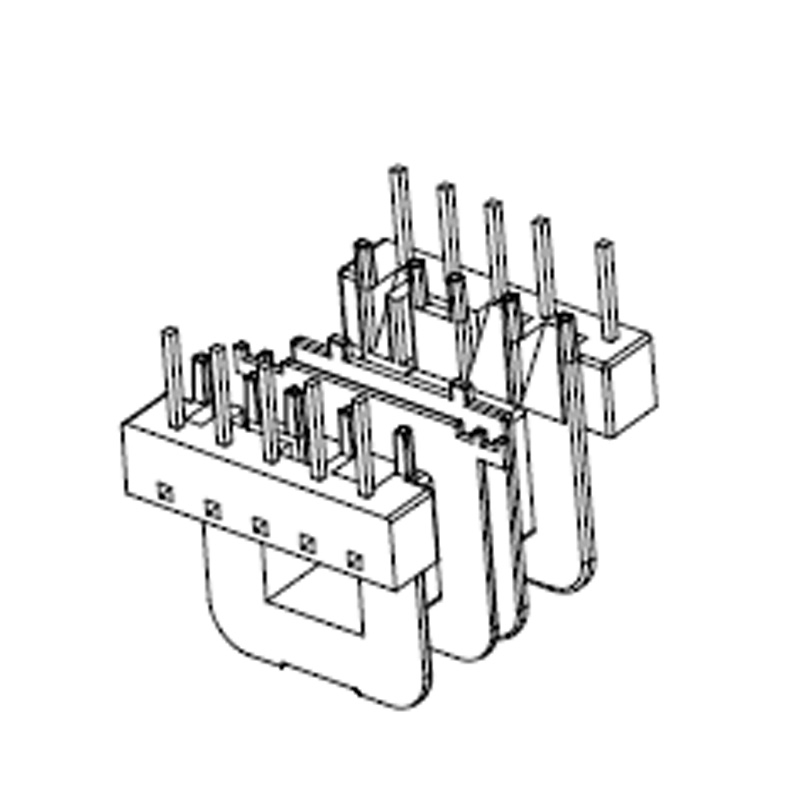

EF25 Horizontal Three Slots 5+5 Pin Transformer Bobbin

Three slot EF25 coil bobbin. 5+5 pins EF25 transformer bobbin. Bobbin Size=25.8mmX25mmX21.7mm. Parallel Distance=20mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.

EF25 High Voltage Transformer Horizontal Bobbin

EF25 high power horizontal bobbin. 5+5 pins EF25 coil bobbin. Bobbin Size=25.8mmX25mmX21.7mm. Parallel Distance=20mm. Pin pitch1=5mm. Pin pitch2=4mm. Nylon and PET material bobbin. DIP transformer bobbin.

EF25 Horizontal 5+5 Pin Transformer Bobbin Three Slots

EF25 multi section coil bobbin. 5+5 pins EF25 transformer bobbin. Bobbin Size=25.8mmX25mmX21.7mm. Parallel Distance=20mm. Pin pitch1=5mm. Pin pitch2=6mm. Nylon and PET material bobbin. DIP transformer bobbin.

EF25 High Frequency Power Transformer 5+5 Pins Bobbin

Lead free EF25 horizontal bobbin. 5+5 pins EF25 coil former. Bobbin Size=25.8mmX25.2mmX18.9mm. Parallel Distance=20mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.

EF25 High Frequency Horizontal Bobbin 5+5 Pin With Three Slots

Three slots EF25 horizontal bobbin. 5+5 pins EF25 transformer bobbin. Bobbin Size=25.8mmX25.2mmX18.9mm. Parallel Distance=20mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.

EF25 Vertical High Frequency Transformer Bobbin

EF25 vertical transformer bobbin. 4+4 pins EF25 transformer bobbin. Bobbin Size=25.4mmX23mmX28.2mm. Parallel Distance=17mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.

EF25 Ferrite Core Vertical Bobbin For Transformer

EF25 transformer bobbin 4+4 pins. EF25 vertical transformer bobbin. Bobbin Size=37mmX20.1mmX20.4mm. Parallel Distance=32mm. Pin pitch=4.5mm. Nylon and PET material bobbin. DIP transformer bobbin.

EF25 PC40 Ferrite Core Horizontal Bobbin 4+4 Pins

EF25 4+4 pin horizontal bobbin. Single slot EF25 coil former. Bobbin Size=25.4mmX25.4mmX21mm. Parallel Distance=19.9mm. Pin pitch=5mm. PET material bobbin. DIP transformer bobbin.

Transformer Bobbin EF25 Vertical 4+4 Pins Bobbin

EF25 vertical bobbin 4+4 pins. EF25 single slot transformer bobbin. Bobbin Size=37mmX18.5mmX20.4mm. Parallel Distance=17.3mm. Pin pitch=4.5mm. Nylon and PET material bobbin. DIP transformer bobbin.

Power Supply Transformer Bobbin EF25 Horizontal 4+4 Pin

EF25 horizontal transformer bobbin. 4+4 pins EF25 coil former. Bobbin Size=24.4mmX17.5mmX18.8mm. Parallel Distance=21.7mm. Pin pitch=4.7mm. PA66 material bobbin. DIP transformer bobbin.

High Voltage Transformer EF25 Bobbin 5+5 Pins Horizontal Bobbin

EF25 5+5 pins horizontal bobbin. EF25 single slot bobbin. Bobbin Size=25.1mmX21.6mmX21.7mm. Parallel Distance=22.86mm. Pin pitch1=5.08mm. Pin pitch2=4mm. Phenolic material bobbin. DIP transformer bobbin.

EF25 Power Charge Transformer 4+4 Pin Horizontal Bobbin

EF25 ferrite core transformer bobbin. 4+4 pins horizontal EF25 coil former. Bobbin Size=24.3mmX17.5mmX21.8mm. Parallel Distance=21.5mm. Pin pitch=4.7mm. PA66 material bobbin. DIP transformer bobbin.

EF25 Horizontal 5+5 Pin Transformer Bobbin With Three Slots

Multi section transformer bobbin EF25. 5+5 pins horizontal EF25 coil former. Bobbin Size=25.1mmX21.6mmX17.35mm. Parallel Distance=22.86mm. Pin pitch1=3.81mm. Pin pitch2=5.08mm. PA66 material bobbin. DIP transformer bobbin.

EF25 Transformer Ferrite Core Horizontal Bobbin Pin 4+4

EF25 PC40 ferrite core bobbin. 4+4 pins horizontal EF25 coil former. Bobbin Size=28.2mmX17.5mmX22.58mm. Parallel Distance=21.7mm. Pin pitch=4.7mm. PA66 material bobbin. DIP transformer bobbin.

EF25 5+5 Pin Horizontal Bobbin For High Frequency Transformer

Manufacture EF25 horizontal bobbin. EF25 5+5 pins transformer bobbin. Bobbin Size=25.9mmX25mmX22.2mm. Parallel Distance=20mm. Pin pitch=5mm. PA66 material bobbin. DIP transformer bobbin.

EF20 Horizontal 4+4 Pin Transformer Bobbin With Two Slots

4+4 pin horizontal EF20 bobbin. EF20 double slots transformer bobbin. Bobbin Size=20.84mmX20.7mmX13.8mm. Parallel Distance=15mm. Pin pitch=5mm. PBT material transformer bobbin. DIP transformer bobbin.

EF25 Soft Ferrite Core Bobbin Horizontal 5+5 Pin

EF25 5+5 pin horizontal bobbin. EF25 ferrite core transformer bobbin. Bobbin Size=25.9mmX25mmX21.7mm. Parallel Distance=20mm. Pin pitch=5mm. PA66 material bobbin. DIP transformer bobbin.

EF25 Horizontal Bobbin 5+5 Pin With Three Slots

Multi section EF25 bobbin. Horizontal EF25 transformer bobbin. Bobbin Size=25.8mmX25.1mmX21.7mm. Parallel Distance=20mm. Pin pitch=5mm. PA66 material bobbin. DIP transformer bobbin.

Double Slots EF25 Bobbin 3+3 Pin Horizontal Bobbin

EF25 3+3pin horizontal bobbin. Double slots EF25 transformer bobbin. Bobbin Size=21mmX18.2mmX21mm. Parallel Distance=15.5mm. Pin pitch=5mm. PA66 material bobbin. DIP transformer bobbin.

EF25 4+4 Pin Horizontal Transformer Bobbin Double Slots

EF25 horizontal two slots bobbin. 4+4 pins EF25 transformer bobbin. Bobbin Size=25.7mmX25.6mmX20.5mm. Parallel Distance=20mm. Pin pitch=5mm. Phenolic material bobbin. DIP transformer bobbin.

EF25 Horizontal 9+9 Pin Coil Former For Transformer

EF25 transformer horizontal bobbin. EF25 9+9 pin transformer bobbin. Bobbin Size=26mmX26mmX19.5mm. Parallel Distance=20.32mm. Pin pitch=2.54mm. Phenolic material bobbin. DIP transformer bobbin.

Bobbin EF28 Horizontal 7+7 Pin Double Slots

EF28 double slots transformer bobbin. EF28 7+7 pin horizontal bobbin. Bobbin Size=45.2mmX28.2mmX22.5mm. Pin pitch1=4.0mm. Pin pitch2=4.75mm. Parallel distance=36.0mm. PA66 material bobbin. SMD transformer bobbin.

EF28 High Frequency Horizontal Bobbin Pin 6+6

Coil former manufacturer. EF28 6+6 pin horizontal bobbin. Bobbin Size=40.2mmX26.2mmX20.5mm. Pin pitch=4.6mm. Parallel distance=32.8mm. PA66 material bobbin. SMD transformer bobbin.

Power Transformer Bobbin EF28 12Pins

High frequency bobbin. EF28 6+6 pin horizontal bobbin. Bobbin Size=40.2mmX26.2mmX21.0mm. Pin pitch=4.6mm. Parallel distance=27.7mm. PA66 material bobbin. DIP transformer bobbin.
