All products

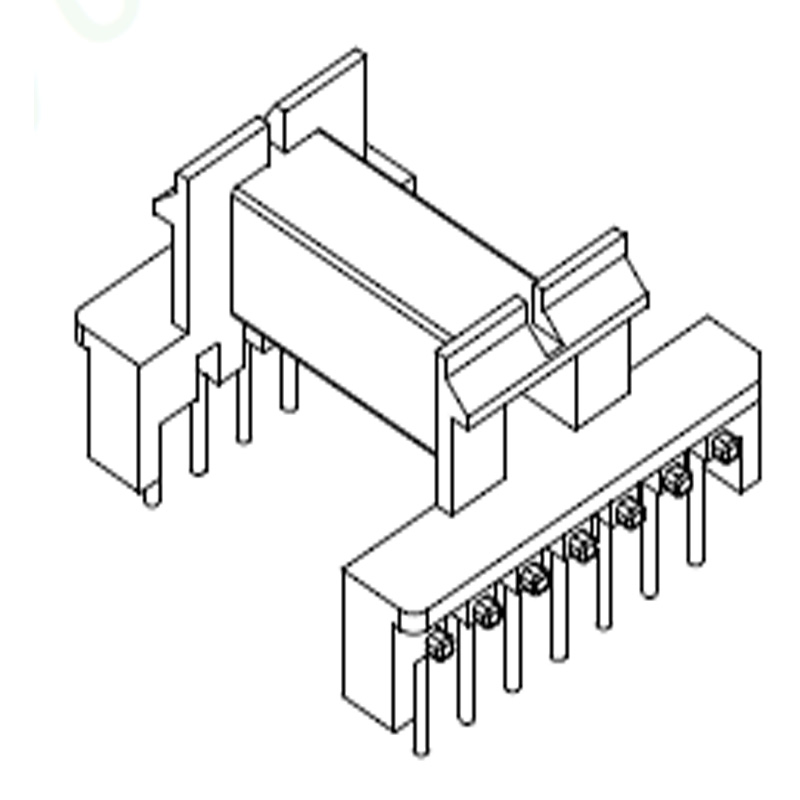

EEL19 High Frequency Horizontal Bobbin Bakelite Bobbin 5+7 Pin

EEL19 electronic transformer bobbin. 5+7 pin horizontal EEL bobbin. DIP bobbin. Pin pitch1=3.5mm. Pin pitch2=4.5mm. Parellel distance=25.5mm. We can make bobbin tooling. Bobbin Size=30mmX25.6mmX15.5mm. UL REC:94V-0

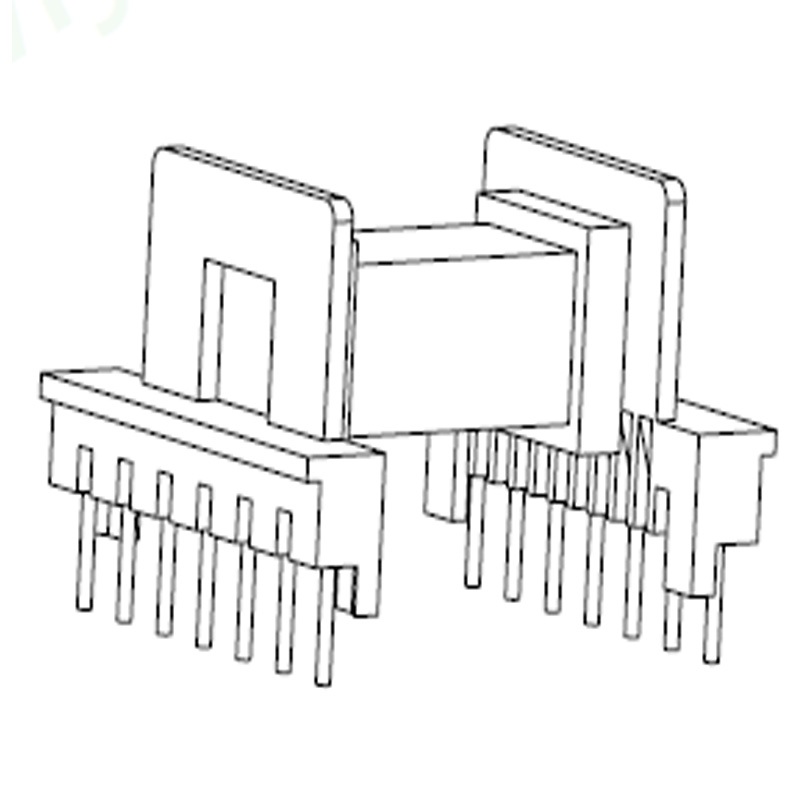

EEL19 Transformer Bobbin For Magnetic Cores 5+7 Pin Bobbin EEL

High quality EEL19 plastic coil bobbin. Horizontal EEL19 transformer bobbin. 5+7 pin EEL19 bobbin. Pin pitch=3.5mm. We can make bobbin tooling. Parallel distance=25mm. Bobbin EEL19 Size=30mmX28mmX15.5mm.

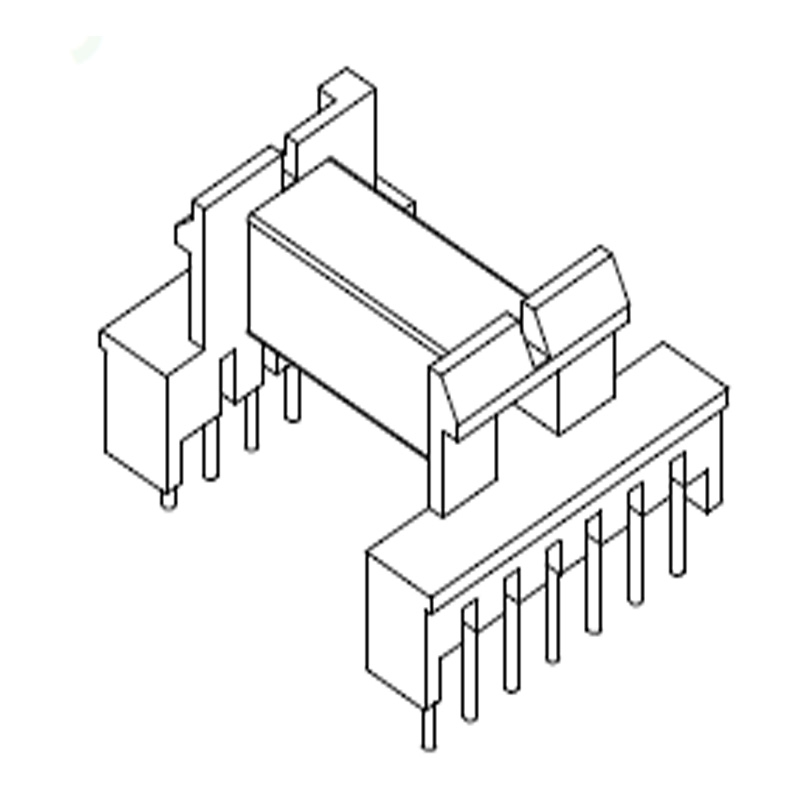

High Frequency Bakelite Bobbin EEL19 Horizontal 5+7 Pin Bobbin

High quality EEL19 plastic coil bobbin. Horizontal EEL19 transformer bobbin. 5+7 pin EEL19 bobbin. Pin pitch=3.5mm. We can make bobbin tooling. Parallel distance=25mm. Bobbin EEL19 Size=30mmX28mmX15.5mm.

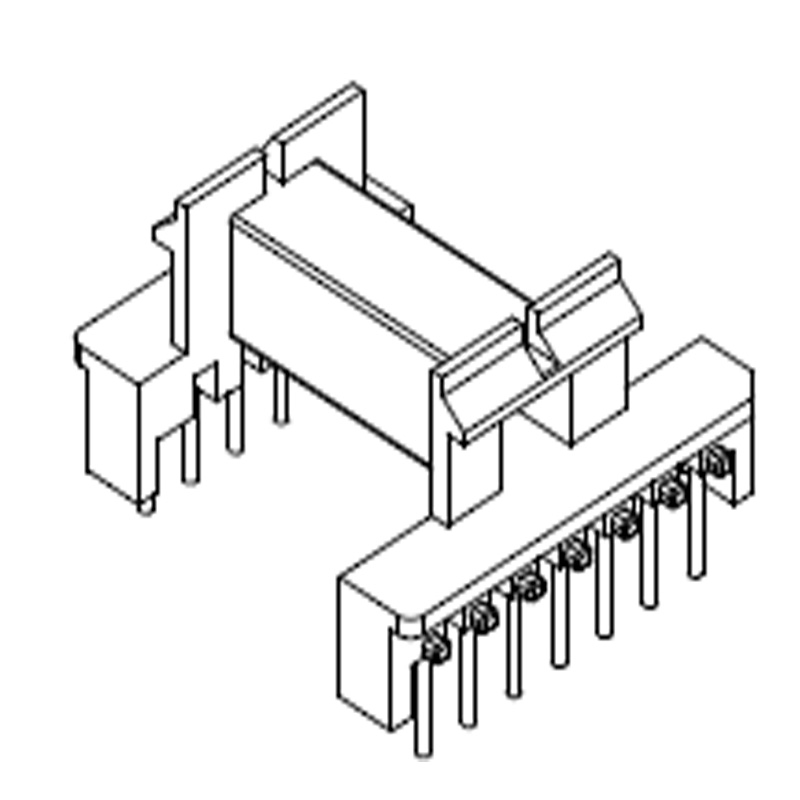

EEL19 Horizontal High Frequency Transformer Bobbin 5+7 Pins

Hot sale EEL19 phenolic coil bobbin. EEL19 horizontal type transformer bobbin. 5+7 pin bobbin. Parallel distance=24.1mm. Pin pitch=3.5mm. Bobbin EEL19 Size=30mmX20.9mmX15.6mm. We can make bobbin tooling.

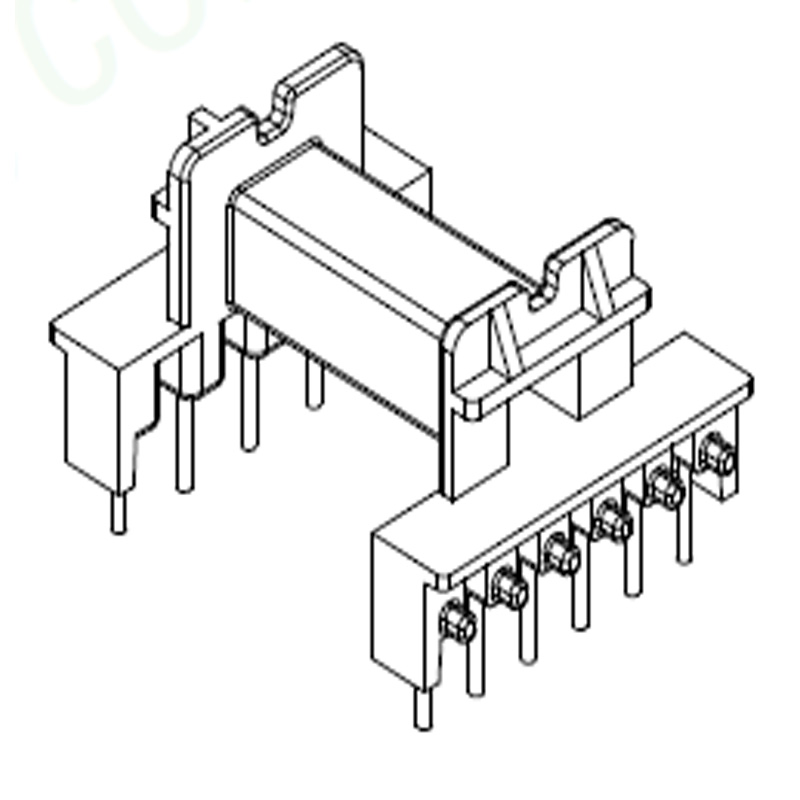

EEL19 High Frequency Transformer Bobbin 5+6 Pin Bakelite Bobbin

5+6 pin EEL19 transformer bobin. EEL19 horizontal coil former. Phenolic bobbin. Parallel distance=23.5mm. Pin pitch1=5mm. Pin pitch2=4mm. EEL19 Bobbin Size=30.5mmX24mmX17.4mm. We can make bobbin tooling.

Switching Power Transformer Bobbin Phenolic Horizontal EEL19 Bobbin

EEL19 filter inductor bobbin. High frequency coil former. Phenolic bobbin. Parallel distance=23.5mm. Pin pitch1=5mm. Pin pitch2=4mm. EEL19 Bobbin Size=30.5mmX24mmX17.4mm. We can make bobbin tooling.

EEL25 Horizontal High Frequency Transformer Bakelite Bobbin 7+7 Pin

EEL25 horizontal bakelite bobbin. High frequency EEL25 coil former. Phenolic bobbin. Parallel distance=27.2mm. Pin pitch=4mm. Bobbin Size=32.8mmX30.9mmX19.9mm. Dip bobbin. We can make bobbin tooling.

EEL25 Power Transformer Bobbin 7+7 Pin High Frequency Horizontal Bobbin

EEL25 7+7 pins horizontal bobbin. Phenolic material EEL25 bobbin. Bobbin Size=32.9mmX30.9mmX19.9mm. Parallel distance=27.2mm. Pin pitch=4mm. Dip bobbin. We can make bobbin tooling.

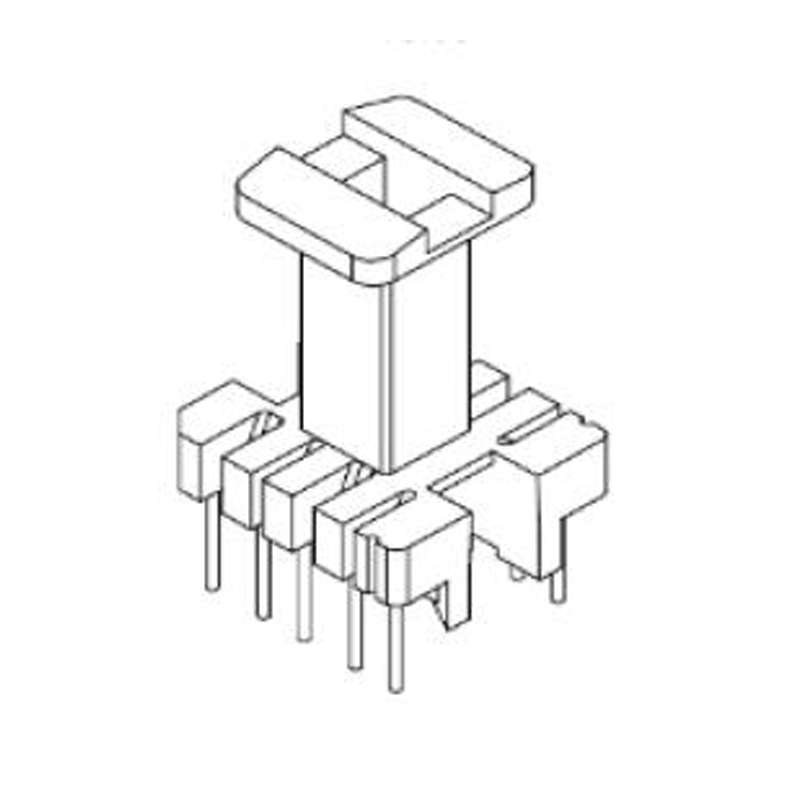

High Frequency EEL22 LED Transformer Vertical Bobbin

EEL22 low power transformer. Vertical EEL22 bobbin 5+5pins. Bobbin size=22.1mmX20.0mmX31.6mm. Pin pitch=3.75mm. Parallel Distance=15.0mm. EEL22 transformer mainly used in communication power supply,SMPS,UPS power supply and other electronic equipment.

UF16 Line Filter Choke Inductor Four Slots Bobbin

2+2 pins UF16 horizontal bobbin. Pin Pitch=9.9mm. Parallel Distance=12.8mm. Bobbin Size=16.7mmx16.5mmx21.4mm. UF16 inductor has high permeability, high saturation flux density and low loss. UF16 bobbin mainly used for power transformers, choke coils, communication transformers, high frequency transformers, etc.

Horizontal Bobbin UF16 Transformer Bobbin With 2+2 Pins

2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=18.8mmx17mmx21mm

7+7 Pins ETD34 High Frequency Flyback Electronic Transformer Bobbin

7+7 Pins ETD34 bobbin for transformer. Parallel Distance=25.6mm. 14 Pins horizontal ETD34 transformer bobbin. Phenolic bobbin. Bobbin Size=39.9mmX35mmX29.9mm. UL REC:94V-0.

ETD34 Vertical 7+7 Pins High Frequency Flyback Electronic Transformer Bobbin

ETD34 7+7 Pins transformer Bobbin. Parallel Distance=12.4mm. 14 Pins vertical ETD34 transformer bobbin. Phenolic bobbin. Bobbin Size=34.7mmX27.4mmX33.3mm. UL REC:94V-0.

ETD34 High Frequency Transformer Bobbin 7+7 Pins Double Slots Bobbin

Double slots ETD34 transformer bobbin. Parallel Distance=30.2mm. 7+7 Pins horizontal ETD34 transformer bobbin. Phenolic bobbin. Bobbin Size=35mmX35mmX26.5mm. UL REC:94V-0.

ETD34 High Power Transformer Bobbin 7+7 Pins Phenolic Transformer Bobbin

ETD34 power transformer bobbin. Parallel Distance=30.2mm. 7+7 Pins horizontal ETD34 transformer bobbin. Phenolic bobbin. Bobbin Size=39.9mmX35mmX26.5mm. UL REC:94V-0.

High Frequency ETD34 Flyback Transformer Bobbin 7+7 Pins Horizontal Bobbin

ETD34 high frequency transformer bobbin.UL REC:94V-0. 7+7 Pins horizontal ETD type transformer bobbin. Phenolic bobbin. Size=40mmX38.5mmX30.5mm. Parallel Distance=25.4mm.

7+7 Pins ETD34 High Frequency Transformer Bobbin for Ferrite Core

ETD34 electronic transformer bobbin. Parallel Distance=25.5mm. 7+7 pins horizontal ETD34 transformer bobbin. Phenolic bobbin. Bobbin Size=40mmX40mmX30.8mm. UL REC:94V-0.

ETD35 High Frequency Flyback Transformer Bobbin 6+6 Pins Vertical Bobbin

ETD35 vertical transformer bobbin. 6+6 pins bobbin. Parallel Distance=25.5mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=34mmX30.2mmX35mm. Accept make bobbin tooling.

ETD39 Flyback Transformer Bobbin Vertical Bobbin

8+8 pins ETD39 vertical transformer bobbin. We manufacture final ETD39 high frequency transformer. Pin Pitch=5.8mm. Bobbin Size=44.5mmX28.5mmX47.5mm. Parallel Distance=25.4mm. Accept make bobbin tooling.

ETD39 Horizontal High Frequency Transformer Bobbin with 8+8 Pins

8+8 pins ETD39 electronic flyback transformer bobbin. Parallel Distance=30.4mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=44.5mmX44.1mmX35.3mm. Accept make bobbin tooling.

ETD59 Horizontal High Frequency Transformer Bobbin 13+13 Pins Coil Former

13+13 pins ETD59 coil former(transformer bobbin). DIP bobbin. Parallel Distance=50.8mm. Pin Pitch=5.08mm. UL REC:94V-0 Bobbin Size=66.8mmX67mmX48.35mm. Accept make bobbin tooling.

26 Pins Horizontal ETD59 Coil Former for High Voltage Transformer

13+13 pins ETD59 coil former(transformer bobbin). DIP bobbin. Parallel Distance=50.8mm. Pin Pitch=5.08mm. UL REC:94V-0 Bobbin Size=66.8mmX67mmX48.35mm. Accept make bobbin tooling.

ETD29 Ferrite Core Bobbin For Power Supply Transformer

7+7 pins ETD29 vertical bobbin(coil former). Pin Pitch=5mm. Bobbin Size=35mmX23.8mmX39mm. Parallel Distance=20.3mm. Accept make bobbin tooling. DIP bobbin. UL REC:94V-0.

ETD29 Vertical High Frequency Transformer Bobbin 7+7 Pins

ETD29 7+7 pins vertical bobbin. Phenolic material ETD series transformer bobbin. Bobbin Size=38.3mmX27mmX42mm. Pin Pitch=5mm. Parallel Distance=22.9mm. We accept make new bobbin tooling. DIP bobbin. UL REC:94V-0.

ETD29 Power Bobbin For High Frequency Transformer

High performance ETD29 horizontal bobbin. Pin Pitch=5mm. Bobbin Size=35mmX29.2mmX24.6mm. Phenolic material transformer bobbins. Parallel Distance=25.8mm. Accept make bobbin tooling. DIP bobbin. UL REC:94V-0.

ETD29 Horizontal Bobbin For PCB Mounting Transformers

7+7 pins horizontal bobbin. Pin Pitch=5.08mm. Bobbin Size=37mmX34.8mmX28mm. Phenolic material transformer bobbins. Parallel Distance=25.4mm. Accept make bobbin tooling. DIP bobbin. UL REC:94V-0.

ETD49 Vertical Transformer Bobbin 9+9 Pin

ETD49 power charge transformer. Vertical type ETD49 bobbin. Bobbin Size=50.5mmX37.5mmX50.6mm. Pin distance=5.0mm. Parallel Distance=28.5mm. T375 material ETD49 transformer bobbin. DIP bobbin.

High Frequency ETD49 Ferrite Core Vertical Bobbin

ETD49 welding transformer bobbin. 11+11 pins vertical ETD49 bobbin. Bobbin Size=53.4mmX34.0mmX55.2mm. Pin distance=5.0mm. Parallel Distance=28.0mm. Lead free transformer bobbin. DIP bobbin.

ETD44 Flyback Transformer Horizontal Bobbin 9+9 Pins

ETD44 high frequency bobbin. Horizontal ETD44 transformer. Bobbin Size=50.6mmX49.5mmX39.3mm. Pin distance=5.0mm. Parallel Distance=35.7mm. Lead free transformer bobbin. DIP bobbin.

ETD49 High Frequency SMPS Transformer Horizontal Bobbin

ETD49 coil bobbin for transformer. Horizontal ETD49 bobbin with 20 pins. Bobbin Size=54.0mmX46.0mmX40.0mm. Pin distance=5.0mm. Parallel Distance=40.6mm. Lead free transformer bobbin. DIP bobbin.

ETD54 PCB Circuit Transformer Ferrite Core Bobbin

ETD54 two slots coil former. Horizontal transformer ETD54 bobbin 8+11 pins. Bobbin Size=60.8mmX60.8mmX50.0mm. Pin distance=5.08mm. Parallel Distance=45.72mm. Lead free transformer bobbin. DIP bobbin.

SMPS Transformer ETD54 Horizontal Bobbin

ETD54 power transformer with wide range, stable performance and low temperature rise. 11+11 pins horizontal ETD54 bobbin. Bobbin Size=61.5mmX61.2mmX44.8mm. Pin distance=5.08mm. Parallel Distance=45.9mm. DIP bobbin.

High Frequency Transformer ETD59 Ferrite Core Bobbin

9+13 pins horizontal ETD59 bobbin. Multi section coil former. Parallel Distance=51.4mm. Pin Pitch=5.08mm. Bobbin Size=66.8mmX66.2mmX48.95mm. PET material transformer bobbin. UL REC:94V-0

ETD59 Horizontal 12+12 Pin Flyback Transformer

ETD59 horizontal power transformer. 12+12 pin coil former ETD59. Parallel Distance=50.8mm. Pin Pitch=5.0mm. Bobbin Size=66.7mmX65.5mmX48.60mm. PET material transformer bobbin. UL REC:94V-0

ETD49 Switching Power Transformer Coil Bobbin

ETD49 PCB mount transformer. Horizontal ETD49 10+10 pins coil former. Parallel Distance=41.0mm. Pin distance=5.0mm. Bobbin Size=57.0mmX54.6mmX41mm. ETD49 electronic transformer has strong anti-interference, high impedance, distributed capacitance, attenuation of low transmission, etc. Mainly used in fax machines and PBX.
