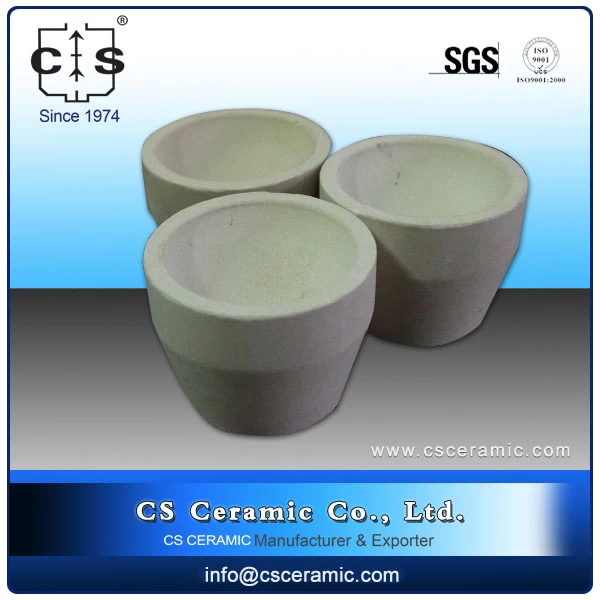

Item name :Bone Ash Cupel Tapered Cone
Cupel design:
More demensions of the crucibles for melting gold we have are as follows:
|
Size
|
D (mm)
|
D1 (mm)
|
D2 (mm)
|
B/R
|
H (mm)
|
H1 (mm)
|
H2 (mm)
|
|
CS-6A
|
40.0
|
32.7
|
30.0
|
3.7
|
25.4
|
12.3
|
6.0
|
|
CS-6C
|
40.2
|
30.3
|
30.5
|
5.0
|
27.5
|
8.0
|
9.0
|
|
CS-6D
|
38.8
|
32.8
|
30.0
|
3.0
|
30.0
|
7.8
|
9.5
|
|
CS-7A
|
39.7
|
31.2
|
30.0
|
4.3
|
28.5
|
11.8
|
9.0
|
|
CS-7AL
|
39.7
|
31.2
|
30.0
|
4.3
|
28.5
|
12.3
|
6.0
|
|
CS-7AS
|
40.0
|
31.0
|
30.0
|
4.5
|
34.0
|
14.0
|
12.0
|
|
CS-7B
|
39.7
|
31.2
|
30.0
|
4.3
|
32.0
|
11.8
|
12.5
|
|
CS-7C
|
40.0
|
33.0
|
30.0
|
3.5
|
30.0
|
9.5
|
4.0
|
|
CS-8
|
44.3
|
34.2
|
34.6
|
5.1
|
27.1
|
8.5
|
9.0
|
|
CS-8A
|
45.3
|
38.0
|
36.9
|
3.7
|
35.0
|
12.5
|
13.0
|
|
CS-9
|
51.0
|
40.0
|
42.1
|
5.5
|
29.0
|
10.5
|
9.0
|
|
CS-10
|
60.0
|
52.6
|
49.7
|
3.7
|
30.2
|
11.5
|
11.0
|
|
CS-11
|
56.8
|
47.8
|
48.8
|
4.5
|
44.0
|
14.8
|
10.0
|
|
CS-12
|
80.2
|
57.5
|
62.5
|
11.4
|
47.0
|
16.5
|
11.0
|
|
CS-14
|
110.0
|
80.0
|
88.0
|
15.0
|
70.0
|
24.0
|
14.0
|
|
CS-PC
|
254.0
|
184.7
|
203.2
|
34.7
|
161.6
|
55.0
|
32.3
|
Cupels are magnesia or bone ash cup shaped containers used in assaying to separate precious metals from base elements such as lead. They operate as a "differential filter" and are porous to metal oxides, but not metals. Used in an oxidizing atmosphere, base metals are oxidized and are absorbed into the cupel. Since precious metals do not oxidize, they are not absorbed and are left on top of the cupel for weighing or further analysis.
More information, please contact us freely. info@csceramic.com
