Boom Lift Trucks Dongfeng

Basket cranes, Aerial Platform Lift Bucket Truck,Aerial Access Platforms,Aerial Platform Trucks,Truck mounted telescopic aerial platform,ISUZU Hydraulic Aerial Platform Truck

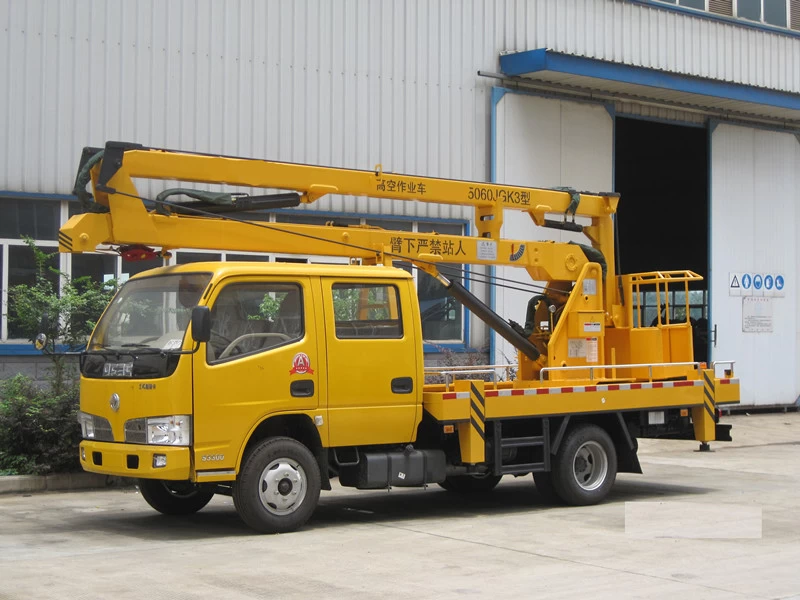

16m Aerial Lift Truck Dongfeng

aerial platform truck dongfeng

Function:

Aerial Lift Working Truck Dongfeng (also called Aerial lift truck, aerial platform vehicle, bucket boom truck, basket cranes, overhead working tru, man lift truck, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.



Features:

---- DONGFENG chassis ensures perfect driving performance;
---- CHAOYANG engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specification:

Similar Key Words:  Hydraulic lifting platform, Man lift truck, Aerial working platform, Aerial lift and bucket truck, Aerial lift vehicles


 Basket Crane Truck ISUZU (16M)
General Vehicle Brand POWERSTAR
Chassis Brand DONGFENG
Overall Dimension 7650 x 2100 x 3250 mm
GVW / Kerb Weight 6,810 kg / 6,485 kg
Cab Cab Capacity 2+3 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand CHAOYANG engine
Power 95Ps (70KW)
Displacement 3856 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand drive
Transmission  5-forward gears & 1 reverse
Wheelbase/No. of axle 3300 mm / 2
Tyre Specification 7.00-16 or 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 16 m
Beam The beam is articulated & telescopic extension type, hydraulic actuated and controlled
Slewing Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
Control Control both on the ground and remote control in cage
Safety Device Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
Leveling System Hydraulic stabilizer to level the vehicle on uneven ground
Optional Insulated cage; Wireless remote control system

 Aerial working platform truck Isuzu boom lift vehicle
