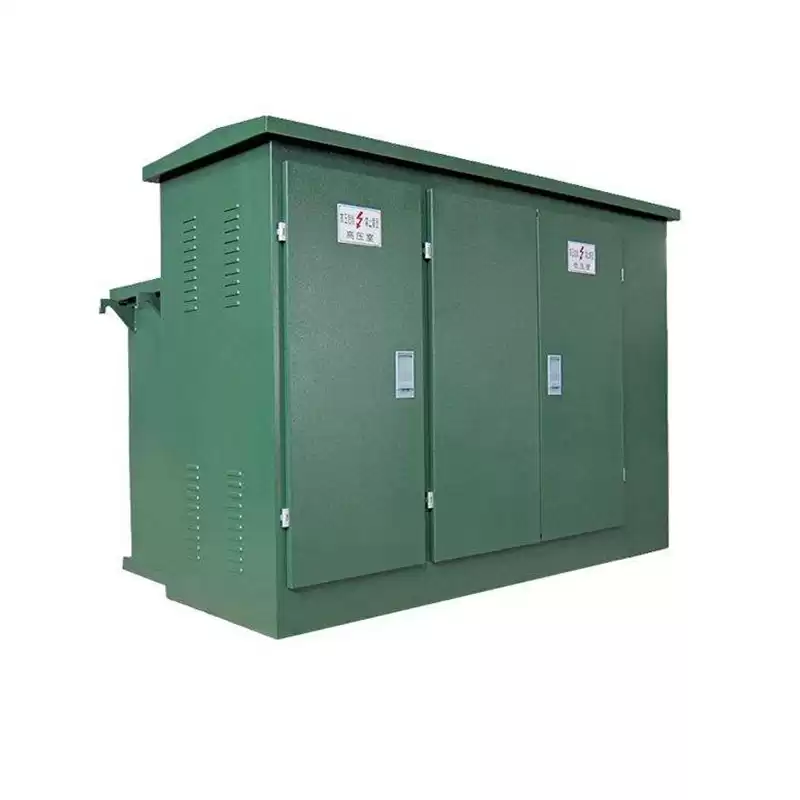

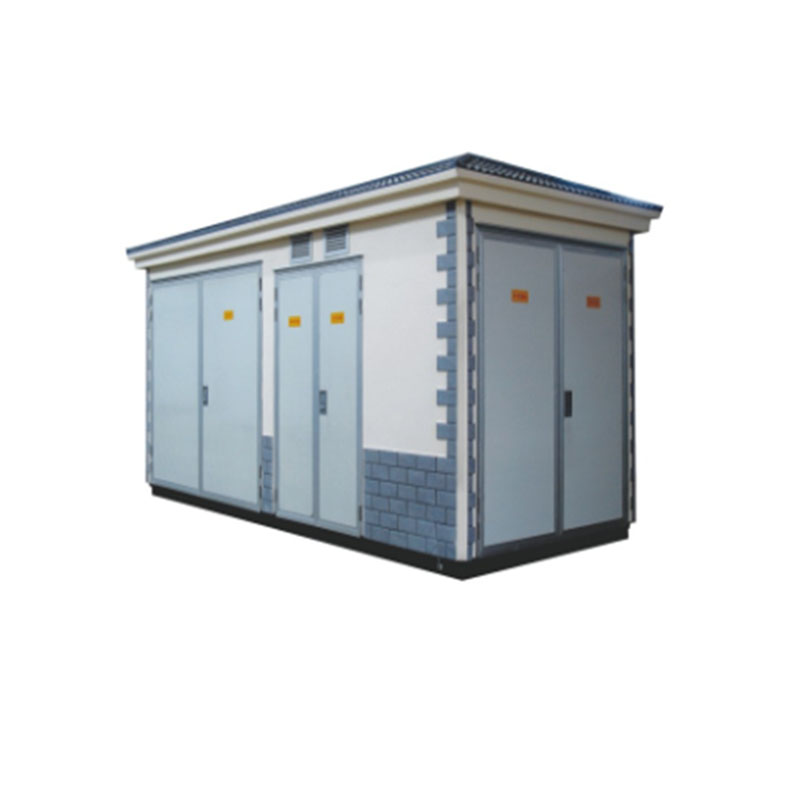

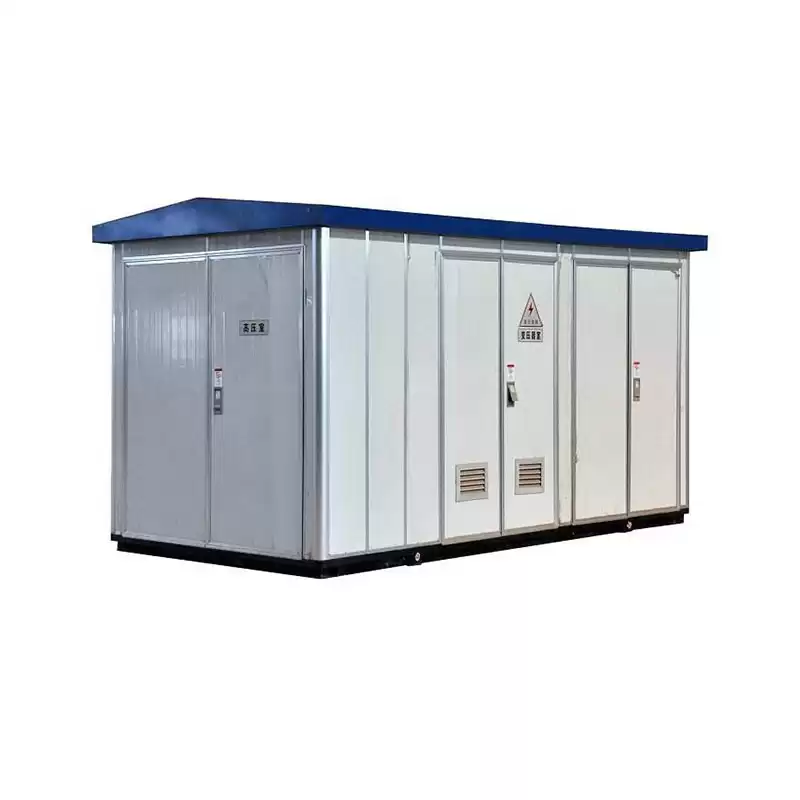

It can realize different scheme combinations and meet various wiring methods. The box type closed industrial substation in the opening and closing station can also be combined with 10kV power supply PT, distributed power supply module, DTU, and communication control terminal to realize the automation of the medium voltage distribution network, which greatly improves the reliability of the urban power supply and distribution network. Its simple, convenient and flexible connection and combination mode, economical, reliable and durable structural features have become the first choice for distribution network cable engineering.
1. Small volume, cover a small area, compact structure, easy to move.
2. Simple installation, quick power supply, simple maintenance, no person on duty.
3. The box body adopts a good heat insulation and ventilation structure, beautiful and generous appearance, good heat insulation performance, and the box body is equipped with upper and lower ventilation devices. Can be equipped with forced air cooling device and automatic temperature control device, which can automatically control the temperature of the transformer, ensure the transformer to operate at full load.
4. Each independent unit can be equipped with perfect control, protection device and lighting system.
5. Safety isolation net door is set in the transformer room. Interlock device is installed on the net door to prevent entering and ensure safety.
|
Name
|
Unit
|
Data
|
|
Rated frequency
|
Hz
|
50/60
|
|
High voltage unit
|
Rated
voltage
|
kV
|
3
|
6
|
10
|
35
|
|
Maximum working voltage
|
kV
|
3.
6
|
7.
2
|
12
|
40.5
|
|
Power frequency withstand voltage
to earth/interphase isolating distance
|
kV
|
25/
27
|
30/
34
|
42/
48
|
95/
118
|
|
Lightning impulse withstand voltage
to earth/ interphase isolating distance
|
kV
|
40/
46
|
60/
70
|
75/
85
|
185/
215
|
|
Rated current
|
A
|
≦630
|
|
Rated short-time withstand current
|
kA/ 2s
（kA/ 4s）
|
12. 5 、16、20、25、31. 5
|
|
Rated peak withstand current
|
kA
|
31. 5 、40、50、63、80
|
|
\
|
Rated
voltage
|
V
|
220
|
380
|
690
|
|
Rated current of main circuit
|
A
|
≦3200
|
|
Rated short-time withstand current
|
kA/
1s
|
15、30、50
|
|
Rated
peak withstand current
|
kA
|
30、63、105
|
|
Rated current of branch circuit
|
A
|
≦1600
|
|
Reactive power compensation capacity
|
kvar
|
≦600
|
|
Transformer unit
|
Rated
capacity
|
kVA
|
≦2000
|
|
Impedance voltage
|
%
|
4、4. 5 、6
|
|
Tap ranges
|
|
±2X2. 5%、±5%
|
|
Connections
|
|
Y/ Yn0 、D/ Yn11
|
Remark:Generally, transformer capacity below 315kVA is measured by low voltage, while capacity above 315kVA is measured by high voltage.
1. Altitude shall not exceed 1000m.
2. Surrounding air temperature: upper limit +40 ° C, lower limit -25 ° C (alpine region) and -5° C (general region).
3. Relative humidity of surrounding air: when the maximum temperature is +40℃, it is not more than 50%. When the temperature is low, it is allowed to have a large relative humidity. Due to the change of temperature, it may occasionally has condensation effect.
4. Outdoor wind speed shall not exceed 34m/s.
5. The Inclination of the Ground shall not exceed 3°.
6. The horizontal acceleration of the earthquake shall not exceed 0.4m/s, and the vertical acceleration shall not exceed 0.2m/s.
7. The installation site shall be free from fire, explosion, serious pollution, chemical corrosion and violent vibration.
Note: if the actual conditions of use cannot be met, please consult with the manufacturer.
