1. With a fully enclosed structure, all one-time charged bodies are sealed in the same insulated air chamber welded from stainless steel, high Reliability and personal safety，with IP67 protection.
2. Effective protection, remote control, metering and monitoring of circuits, and support the automation of power distribution systems.
3. Achieve distribution line loss collection and management.
4. Solve the compatibility and extensibility of primary and secondary interfaces.
5. Improve the standardization and integration level of primary and secondary power distribution equipment
6. Improve the operation level, operation and maintenance quality and efficiency of distribution equipment.

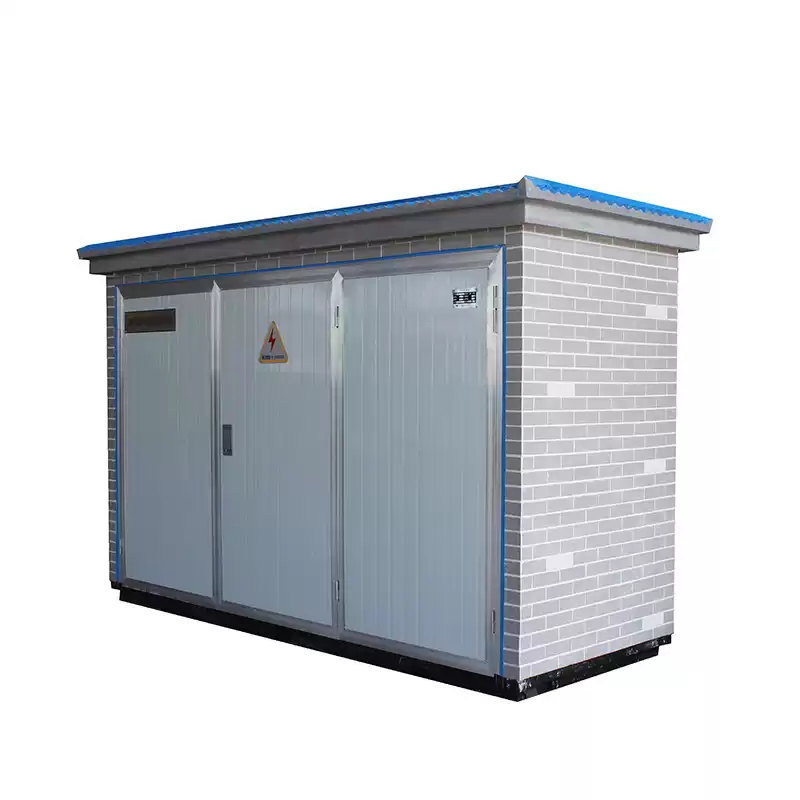

Box type switchgear can be installed in humid, dust pollution areas, especially suitable for mines, box substation and any place where surface flashes are easily caused by air pollution. Widely used in industrial and civil ring network and terminal power supply.
|
NO.
|
Item
|
Type of ring main unit
|
|
Breaker cabinet
|
Load switch cabinet
|
Combination unit cabinet
|
|
1
|
Rated Voltage
|
12kV
|
12kV
|
12kV
|
|
2
|
Rated frequency
|
50/60 Hz
|
50/60 Hz
|
50/60 Hz
|
|
3
|
Rated current
|
630A
|
630A
|
120A
|
|
4
|
Rated short-time power frequency withstand voltage
|
Phase to phase、to earth（1min）
|
42 kV
|
42 kV
|
42 kV
|
|
Isolating distance（1min）
|
48 kV
|
48 kV
|
48 kV
|
|
Secondary circuit to earth（1min）
|
2 kV
|
2 kV
|
2 kV
|
|
5
|
Rated lightning impulse withstand voltage
|
Phase to phase、to earth（1min）
|
75 kV
|
75 kV
|
75 kV
|
|
Isolating distance（1min）
|
85 kV
|
85 kV
|
85 kV
|
|
6
|
Main circuit resistance
|
≤140μΩ
|
≤150μΩ
|
≤450μΩ
|
|
7
|
Rated peak withstand current
|
|
50kA
|
|
|
8
|
Rated short-circuit making current（peak）
|
63kA
|
50kA
|
|
|
9
|
Remote control function, remote communication function,
telemetry function
|
Have
|
Have
|
Have
|
1. Altitude: ≤ 4000m (the equipment is fully insulated and sealed, can be used in high-altitude areas. When the equipment operates at high altitude above 1000m, please make special note so that we can adjust the pressure during manufacturing).
2. Surrounding temperature: -25 ~ +40℃ (the highest average daily temperature does not exceed 35℃).
3. Relative humidity: the daily average is no more than 95% and the monthly average is no more than 90%.
4. Wind speed: no more than 35m/s.
5. Earthquake intensity: 8 degrees.
6. the pollution level: 3 level.
7. Installation site: It shall be installed in a place without fire, explosion or violent vibration, good ventilation and corrosive gas.
8. Ground slope: no more than 3°.
Note: The working environment conditions are different from the above, please consult with the manufacturer.
