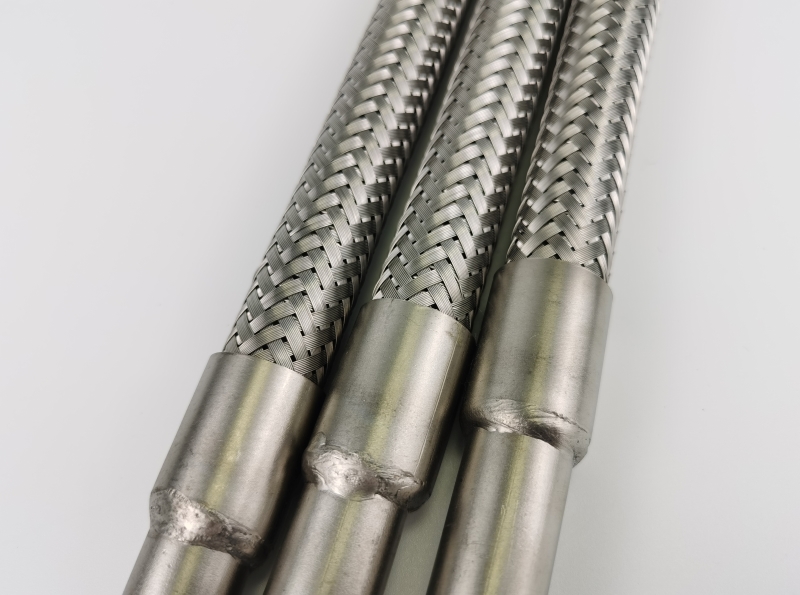

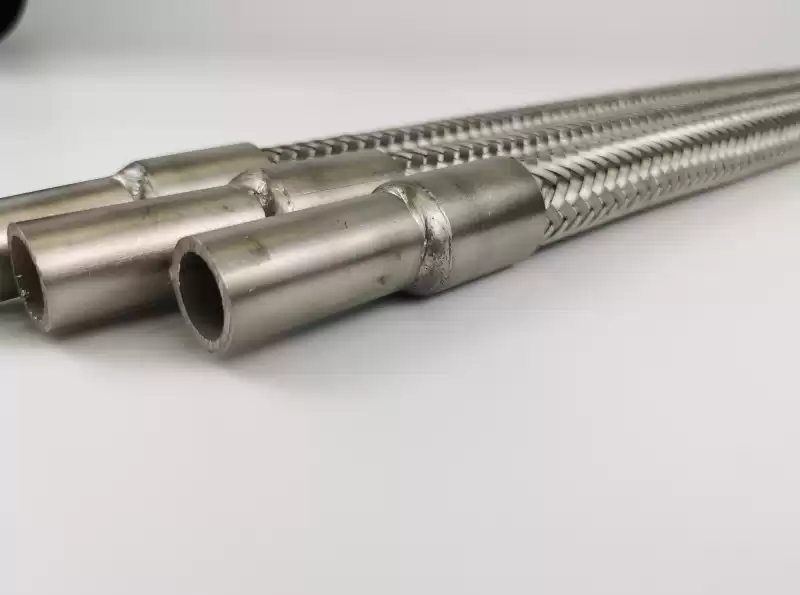

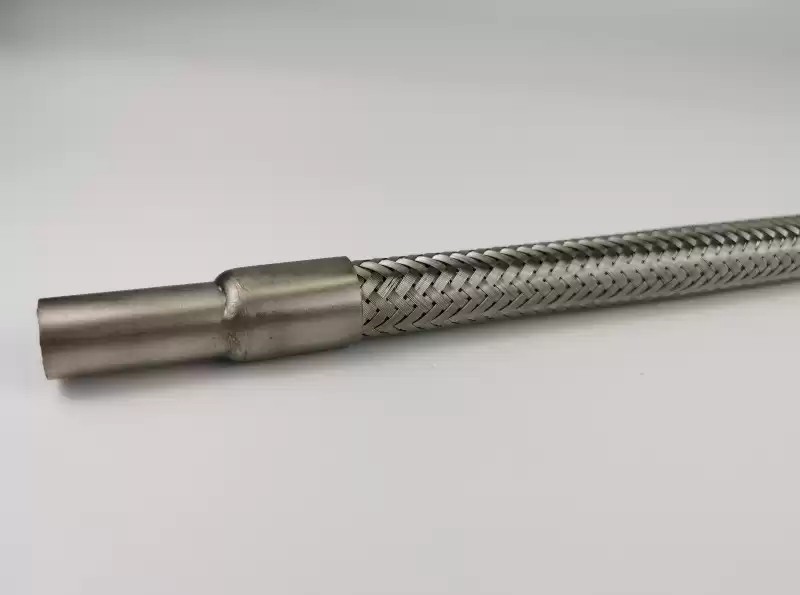

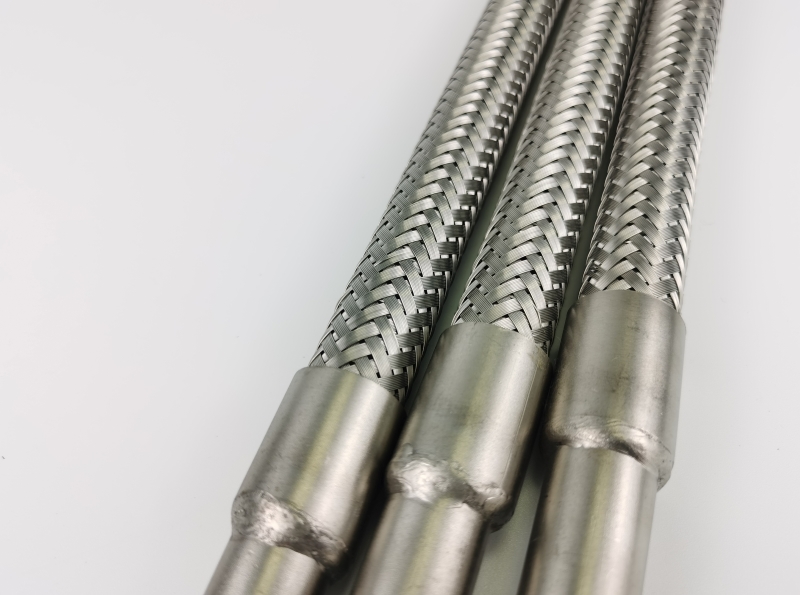

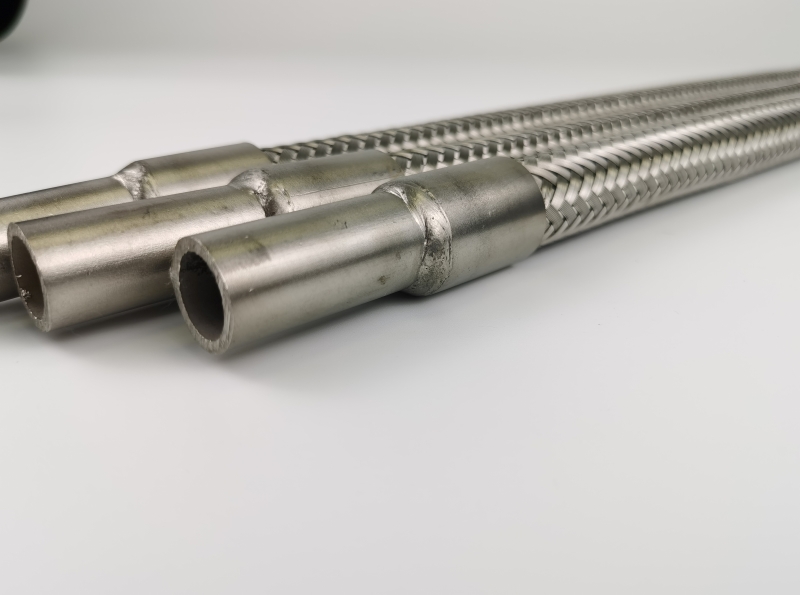

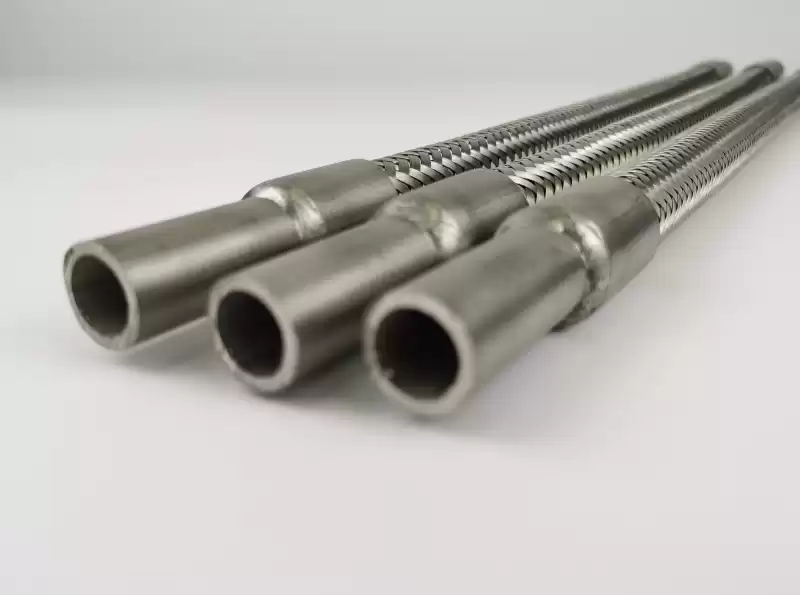

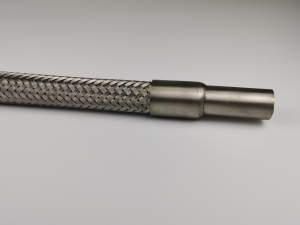

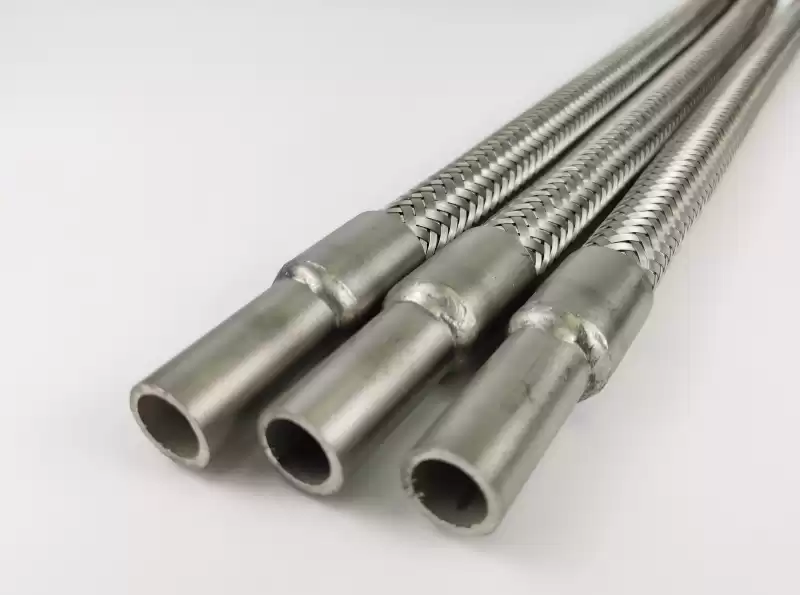

Braided Flexible Metal Hose with connector welded
Feature hot sale heat resistant and corrosion resistant braided industrial flexible metal hose with connector welded. Stainless steel flexible metal hose as a flexible pressure pipe installation in the liquid conveying system, used to compensate the pipe or machine, equipment connection end mutual displacement, absorption of vibration energy, can play a damping, muffling effect, with good flexibility, light weight, corrosion resistance, fatigue resistance, high and low temperature and other points. Stainless steel flexible metal hose, made of imported SUS304(0Cr18Ni9)/SUS316(0Cr17Ni12Mo2)/SUS316L(00Cr17Ni14Mo2).
The product has the advantages of good flexibility, corrosion resistance, fatigue resistance, high and low temperature resistance, shock absorption and noise reduction, strong sealing, long service life and so on. Widely used in textile, chemical fiber, printing and dyeing, petroleum, chemical industry, steel, gas, air conditioning, automobile, fire, urban water supply, construction, metallurgy and petrochemical fields.
Construction of Flexible Metal Hose Assemblies:
Inner Core: Corrugated Stainless Steel
Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel.
Stainless steel bellows formed into corrugations parallel to one another.
annular corrugated/ spiral corrugated option available upon requirement.
Outer Core: Braided Stainless Steel Layers
The braided layers plays the role of strengthening and shielding.
The material of the layers are generally the same as that of the corrugated bellows, included 304, 321 and 316L stainless steel.
Braided Flexible Metal Hose with single or double braided layers.
Installation:
Flexible Metal Hose can be installed horizontally, vertically or diagonally, ideally vertically, and should be avoided near wheels, with a baffle if necessary.
Advantages:
1. Suitable for all kinds of complex, bad indoor and outdoor environment.
2. In contact with water, no oxidation stains are formed, which optically resemble corrosion.
3. Qualified superior sealability.
4. High pressure and high temperature, high temperature and low temperature resistant, corrosion resistant.
Feature's industrial flexible metal hose maintain the high quality of standard products, delivery on-time and non-standard custom long-term steady supply reliable qualified and stable supplier.
All proesses Certificated by ISO9001, all products 100% qualified before shipping.

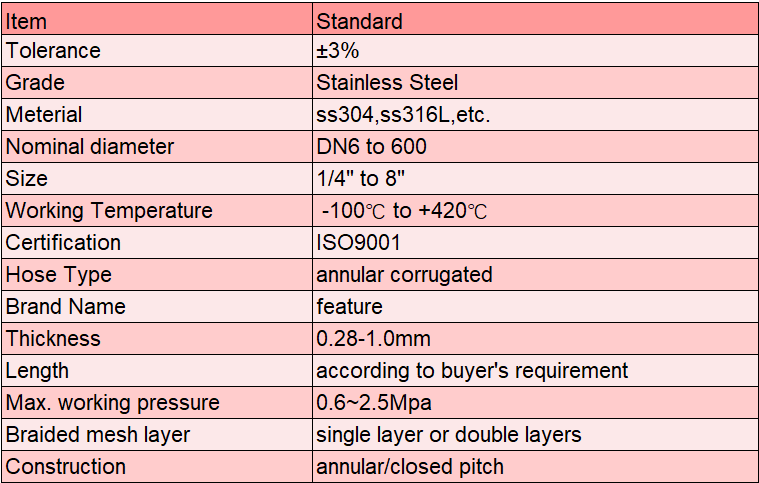

Product Standards:

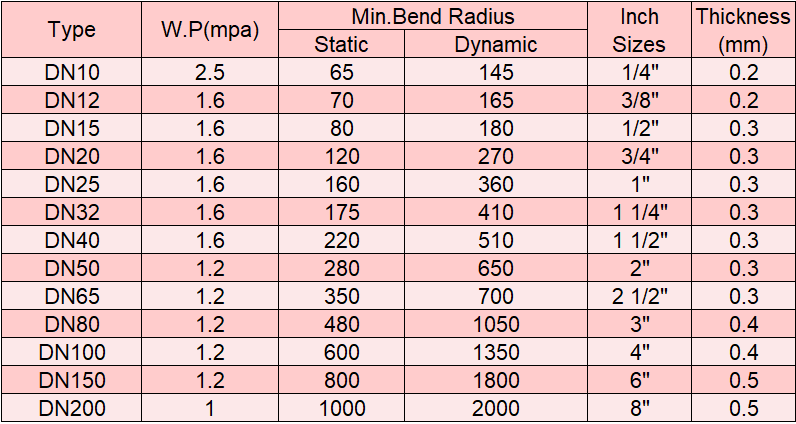

Flexible Metal Hose Performance Parameters As Below:
Custom Service:
1.Costomized with specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc.
2.OEM/ODM service can provide what you wanted and custom design printed to your specification.
3.Purchas a free sample order for test quality before place on full order.
