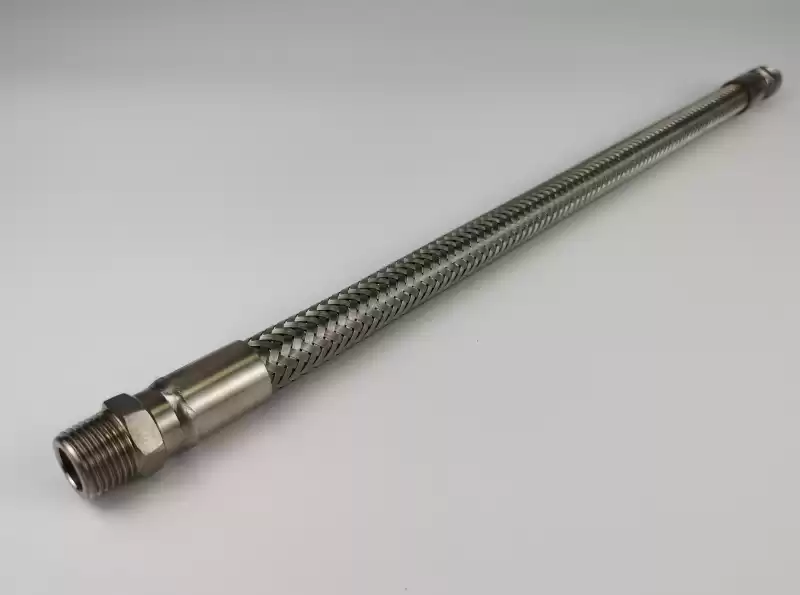

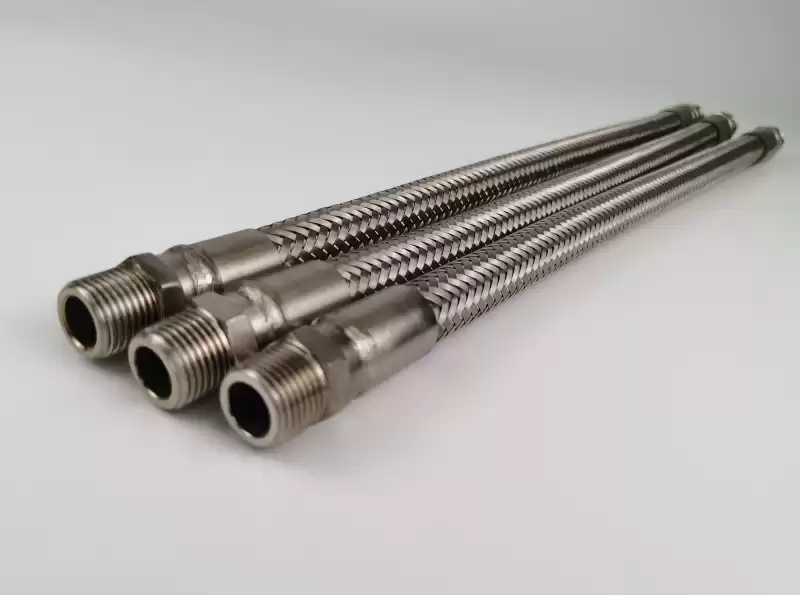

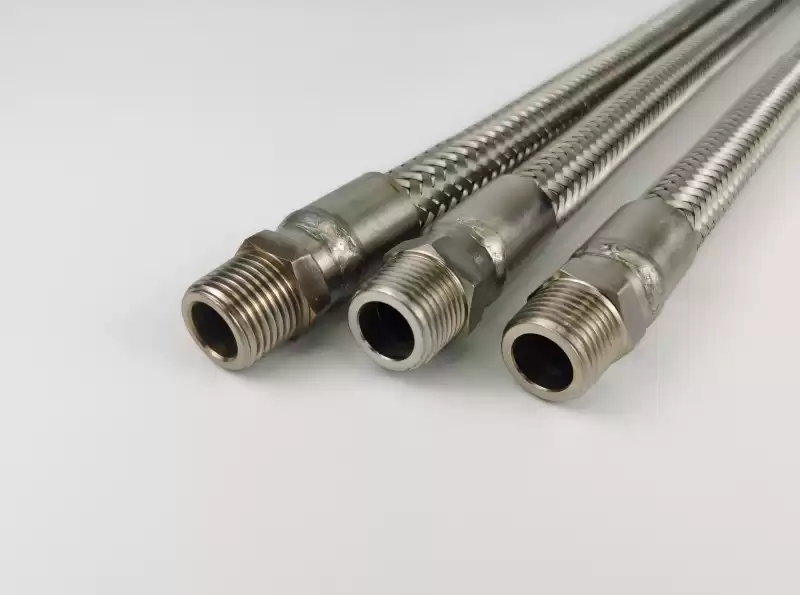

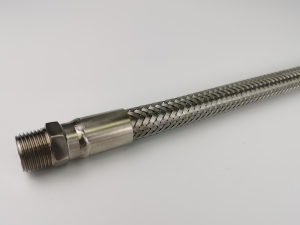

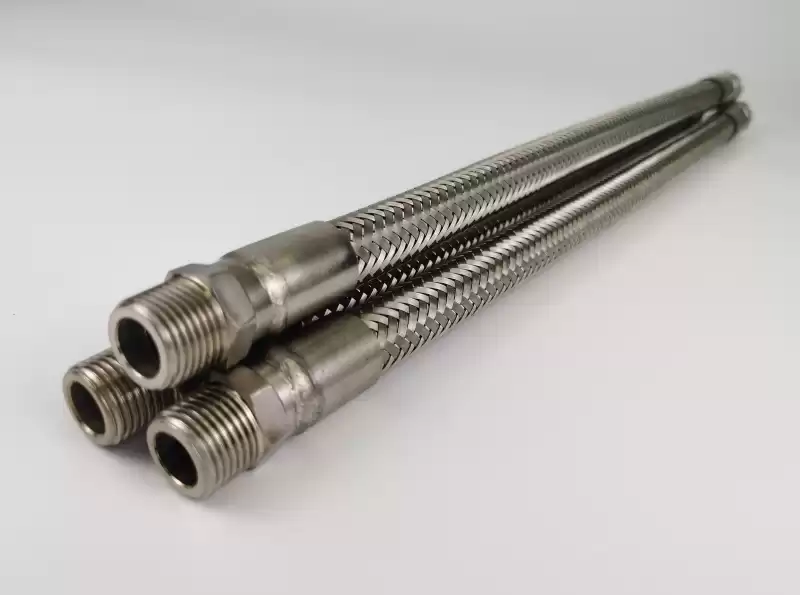

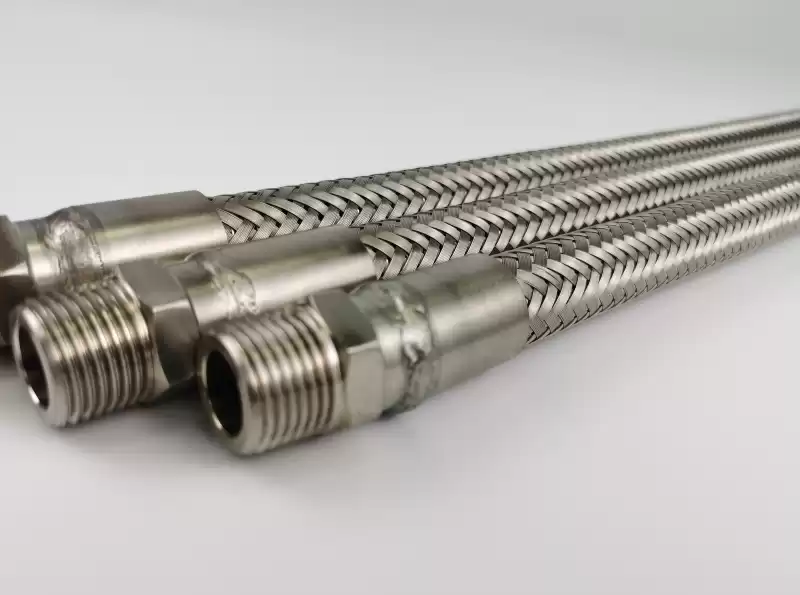

Braided Flexible Metal Hose with the male thread connector

Both ends of the flexible metal hose is connected with the male thread, screw thread conformed to NPT/BSP standard.

Customized with buyer's specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc.



Braided Flexible Metal Hose with the male thread connector


Stainless steel braided flexible metal hose as a flexible pressure pipe installation in the liquid conveying system, used to compensate the pipe or machine, equipment connection end mutual displacement, absorption of vibration energy, can play a damping, muffling effect, with good flexibility, light weight, corrosion resistance, fatigue resistance, high and low temperature and other points.

Stainless steel braided flexible metal hose is made of stainless steel bellows braided with a layer or multilayer steel wire, both ends with joint or flange head, used for conveying various media flexible components.


Construction of Flexible Metal Hose Assemblies:
Connector:

  • Both ends of connectors materials are available in 304 stainless steel

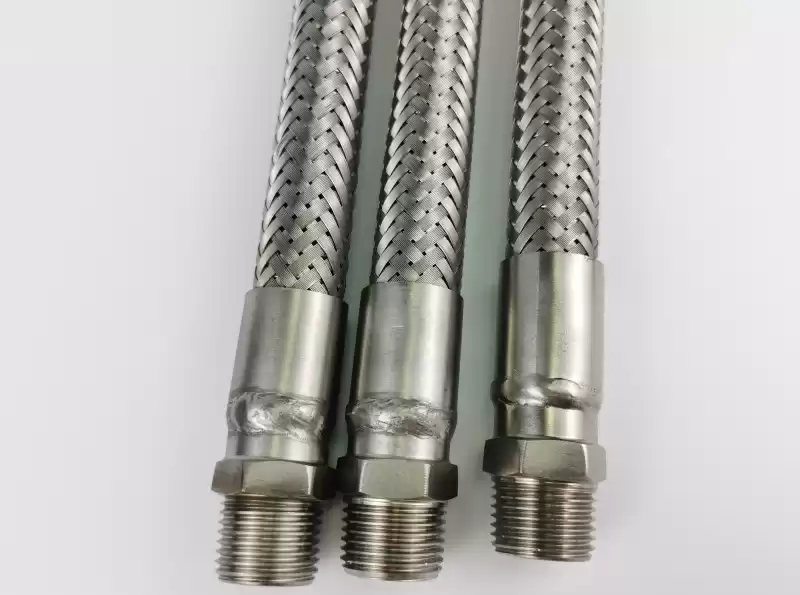

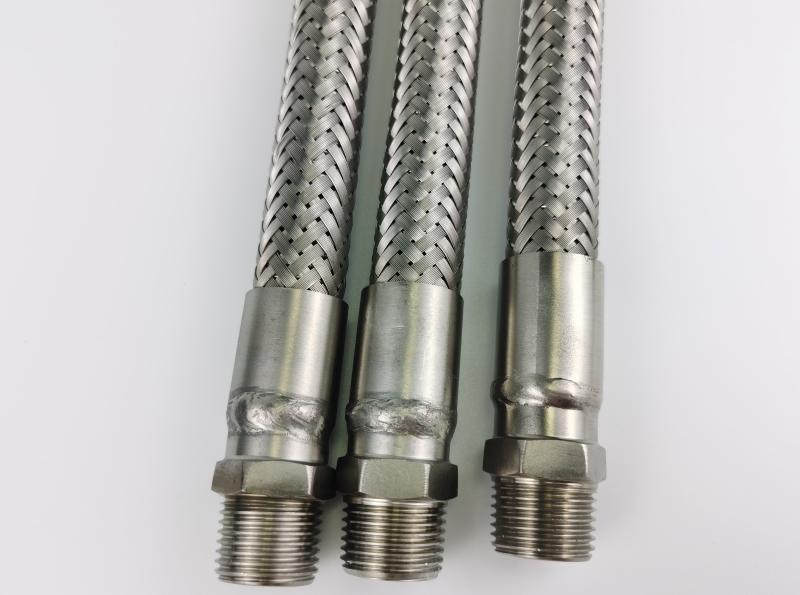

  • The male thread connectors welded to ends of hose

  • Pipe thread standard conforms to NPT/PT/BSP etc.

Inner Core: Corrugated Stainless Steel

  • Flexible metal hose materials are available in 304, 321 and 316L stainless steel

  • Annular corrugated/ spiral corrugated option available upon requirement

  • Stainless steel bellows formed into corrugations parallel to one another

Outer Core: Braided Stainless Steel Layers

  • Braided Flexible Metal Hose with single or double braided layers

  • The material of the layers are generally the same as that of the corrugated bellows, included 304, 321 and 316L stainless steel

  • The braided layers plays the role of strengthening and shielding



Advantages:

1. Suitable for all kinds of complex, bad indoor and outdoor environment

2. In contact with water, no oxidation stains are formed, which optically resemble corrosion

3. qualified superior sealability

4. high pressure and high temperature, high temperature and low temperature resistant, corrosion resistant.


Feature's industrial flexible metal hose maintain the high quality of standard products, delivery on-time and non-standard custom long-term steady supply reliable qualified and stable supplier.

All proesses Certificated by ISO9001, all products 100% qualified before shipping.

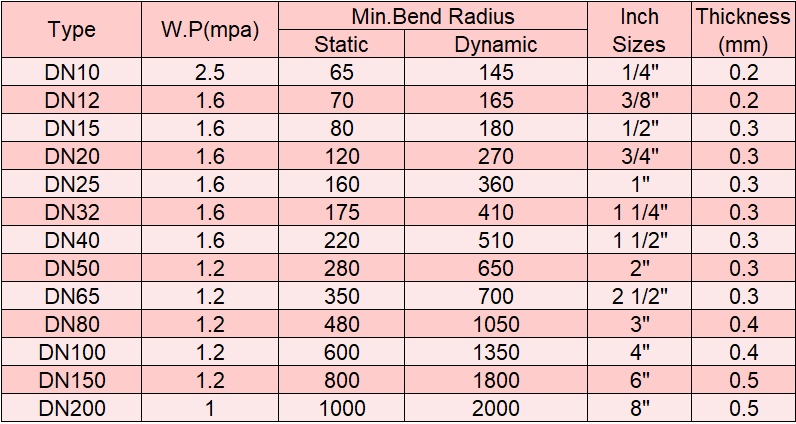

Flexible Metal Hose Performance Parameters As Below:



Custom Service

1.Costomized with specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc.

2.OEM/ODM service can provide what you wanted and custom design printed to your specification.

3.Purchas a free sample order for test quality before place on full order.
