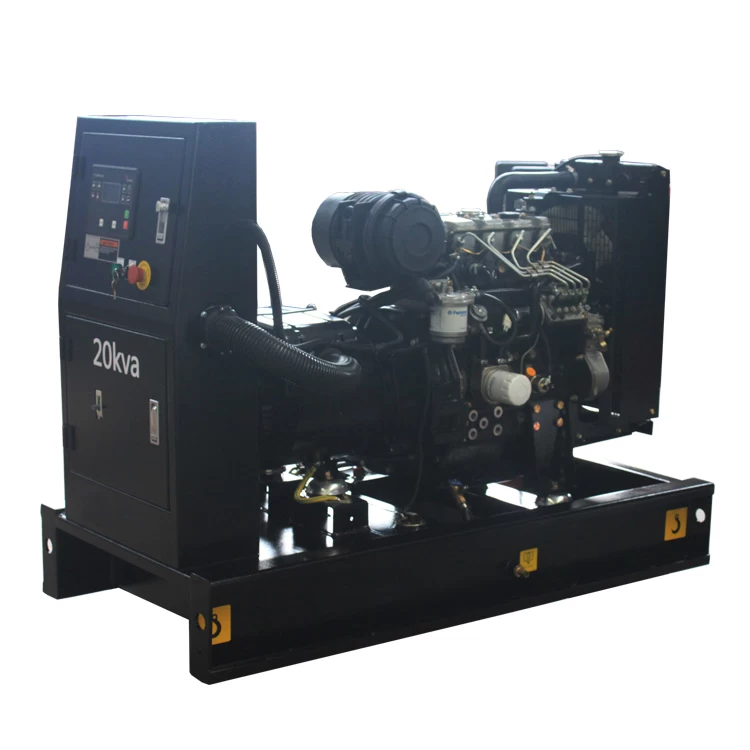

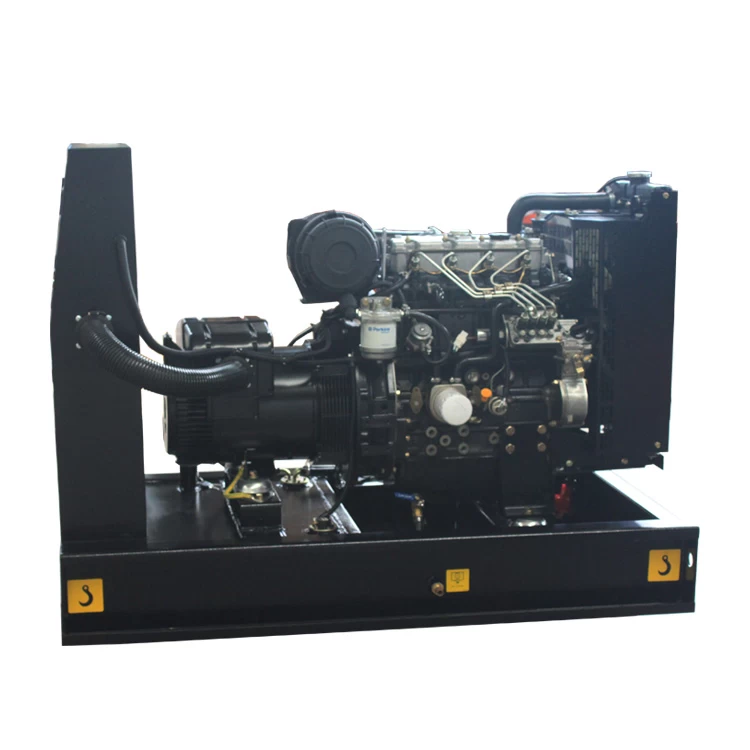

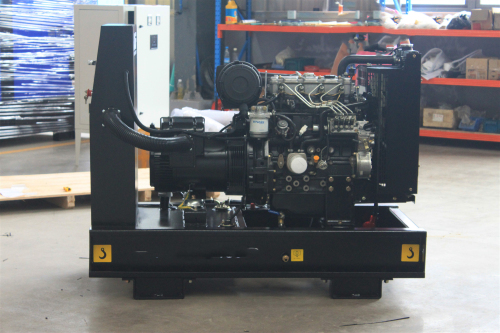

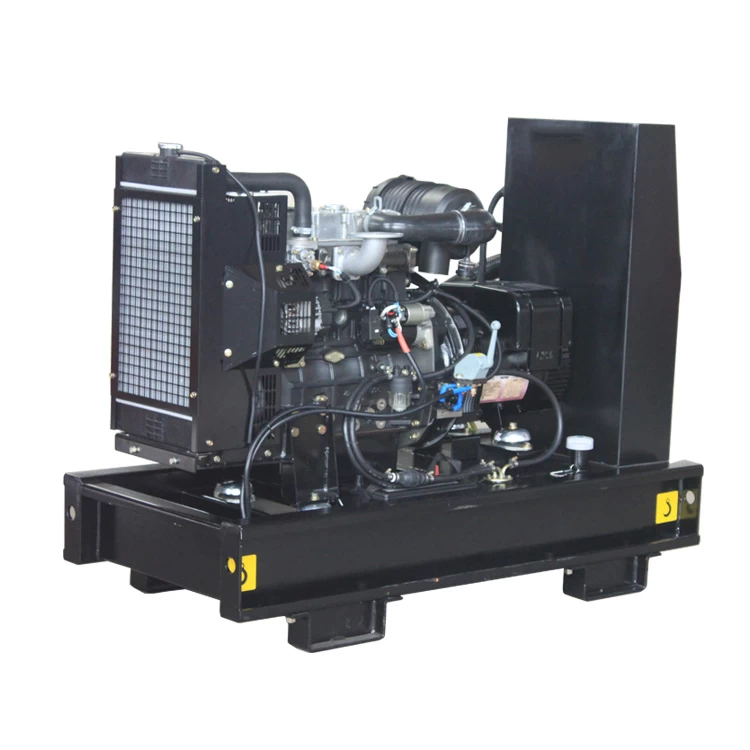

BA Power 20KVA Generator Supliers Powered By Perkins Engine Stamford alternator
Engine Model: 404A-22G1
Alternator Model: PI 144D
Gross engine power:18.7kw
Number of cylinders: 4
Cylinder arrangement: Vertical in-line
Cycle:four stroke
Induction system:Naturally aspirated
Compression ratio:23:1
Bore*Stroke:84*100mm
Cubic capacity:.1·131 litres
Direction of rotation:anti-clockwise viewed from flywheel
anti-clockwise viewed from flywheel:1,3,4,2
Estimated total weight (dry):242 kg
Electrical system
alternator. 15 amps, 12V
starter motor.2 kW, 12V
Low Fuel consumption Generator Set
110%: 244g/kWh (6.1) (litres/hr)
100% : 237 g/kWh (5.3) (litres/hr)
75%: 238 g/kWh(4.0) (litres/hr)
50%: 258 g/kWh (2.9) (litres/hr)

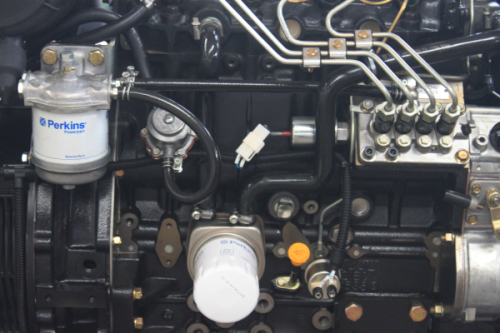

Fuel system
Type of injection: Indirect injection
Fuel injection pump: Cassette type
Fuel injector.:...Pintle nozzle
Nozzle opening pressure:14.7 MPa
Max. particle size.:25 microns
Lubrication system
Lubricating oil capacity
Max. sump capacity: 10.6 litres
Min. sump capacity:8.9 litres
Maximum engine operating angles
-front up, front down, right side or left side:35° continuous
Lubricating oil pressure
relief valve opens . 352 - 448kP
Min. oil pressure:120 kPa
at maximum no-load speed..TBA
Oil flow at rated speed ..109 litres/min
Normal oil temperature..125°C
Alternator Specs
Model: PI144D
CONTROL SYSTEM:STANDARD AS480 AVR (SELF EXCITED)
VOLTAGE REGULATION:± 1.0 %
SUSTAINED SHORT CIRCUIT:SELF EXCITED MACHINES DO NOT SUSTAIN A SHORT CIRCUIT CURRENT
STATOR WINDING: DOUBLE LAYER CONCENTRIC
WINDING PITCH:TWO THIRDS
WINDING LEADS: 12
MAXIMUM OVERSPEED:2250 Rev/MiN
STATOR WDG. RESISTANCE:0.377 Ohms PER PHASE AT 22°C SERIES STAR CONNECTED
ROTOR WDG. RESISTANCE:0.657 Ohms at 22°C
EXCITER STATOR RESISTANCE:18.5 Ohms at 22°C
EXCITER ROTOR RESISTANCE:0.228 Ohms PER PHASE AT 22°C
EBS STATOR RESISTANCE:12.9 Ohms at 22°C
R.F.I. SUPPRESSION:BS EN 61000-6-2 & BS EN 61000-6-4,VDE 0875G, VDE 0875N. refer to factory for others
WAVEFORM DISTORTION:NO LOAD < 1.5% NON-DISTORTING BALANCED LINEAR LOAD < 5.0%
BEARING:Single
Insulation: H
Protection Degree: IP 23

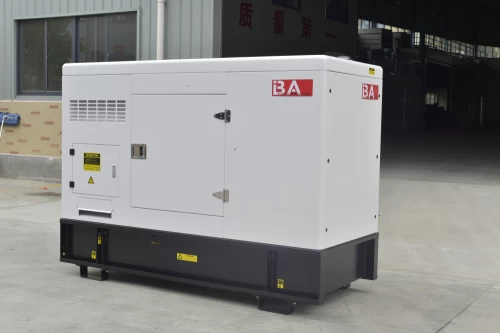

Silent Type Perkins Diesel Generator with normal silent, super silent and container type canopy for options, with single door, double doors, top lifting structure for options.
The low-noise unit adopts a special high-efficiency weight-reducing muffler unit body as a combination, which is easy to install, maintain and has a firm structure. The chassis is double-layered and equipped with a shock absorbing device. A control screen observation window is opened on the cabinet for easy observation. Built-in fuel tank.
If need on any more information, feel free to contact us at any time.
