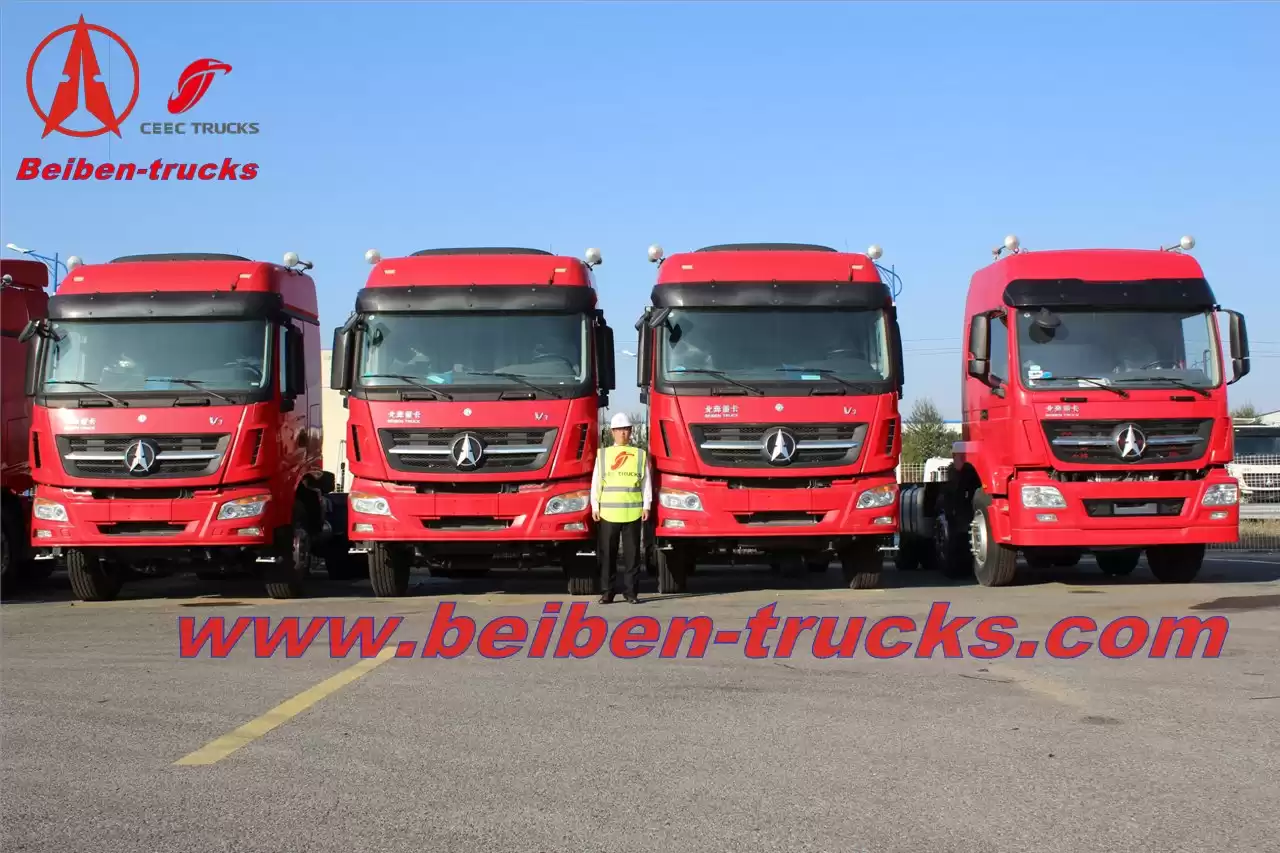

brand new 6x4 beiben V3 trailer truck/ north benz tractor truck

Mercedes Benz technology
Engine: WEICHAI
Driving type: 6x4
Gearbox:RT11509C



Dimension(Lx W xH)unloaded

6295×2500×3260

Approaching angle/Departure angle°

26/35

Overhang(front/rear)          (mm)

1410/1085

Wheel base                   (mm)

3800

Max speed                 km/h

90

Curb weight                 kg

7320

Max Towing Weight          kg

34800

Max slope climbing           %

30

Max loading on fifth wheel, Permitted(kg)

10500

Engine

Steyr technology, made in China

Model

WP10.336,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection

Displacement     L

9.726/Diesel

Bore X stroke     (mm)

126/130

Max power      kw/rpm

235/2200

Max torque   Nm/rpm

1250/1400-1600

Emission

EURO3

Fuel tanker            L

400

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic control and compressed air assisted

Gearbox

Model

RT11509C mechanism,9gears,1reverse gear, manual, synchronization

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system (ZF company)

Model

ZF 8098,whole circulation in ball, hydraulic booster

Frame

Fish belly, shape, variable width, variable sections, side beam structure

The fifth wheel

Model

50#Single

Height of fifth wheel(mm) (unload)

1410

Radius of front gap (mm)

2300

Radius of rear slew (mm)

1720

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle



Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, casting, double reduction driving axle



Tyre

12.00-R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab with single sleeper;

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly;

With air suspension seat for driver
