Description

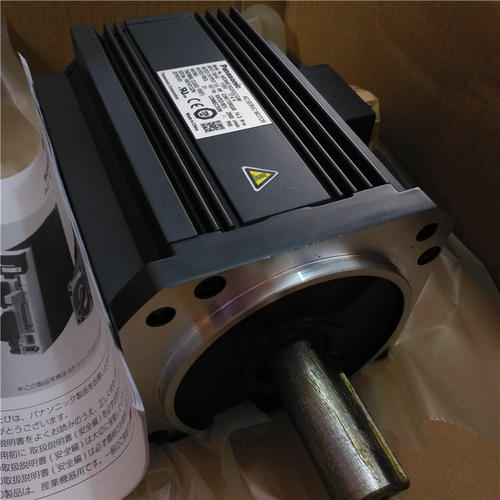

Model Number: MHMF302L1G6M
-
MATSUSHITA ELECTRIC
-
PANASONIC
-
MHMF302L1G6M
-
SERVO MOTOR
-
REBUILT SURPLUS
-
NEVER USED SURPLUS
-
2 YEAR RADWELL WARRANTY
|
Item
|
Specifications
|
|
Part Number
|
MHMF302L1G6M
|
|
Details
|
High inertia, Connector type
|
|
Family Name
|
MINAS A6
|
|
Series
|
MHMF Series
|
|
Type
|
High inertia
|
|
Special Order Product
|
Special Order Product
|
|
Cautions for Special ordering product
|
Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
|
|
Enclosure
|
IP67
|
|
About Enclosure
|
Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector.
|
|
For more details
|
Please contact us
|
|
Flange sq. dimension
|
176 mm sq.
|
|
Flange sq. dimension (Unit:mm)
|
176
|
|
Motor lead-out configuration
|
Connector
|
|
Motor encoder connector
|
Motor connector: JL10,
Encoder connector: Large size JL10
|
|
About Motor encoder connector
|
Connector JL10 (Large size): Also applicable to screwed type
|
|
Power supply capacity (kVA)
|
5.2
|
|
Voltage specifications
|
200 V
|
|
Rated output
|
3000 W
|
|
Rated current (A (rms))
|
17.0
|
|
Holding brake
|
without
|
|
Mass (kg)
|
13.8
|
|
Oil seal
|
with
|
|
Shaft
|
Key-way
|
|
Rated torque (N ⋅ m)
|
14.3
|
|
Continuous stall torque (N ⋅ m)
|
17.2
|
|
Momentary Max. peak torque (N ⋅ m)
|
43.0
|
|
Max. current (A (o-p))
|
72
|
|
Regenerative brake frequency (times/min)
|
Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel
|
|
About regenerative brake frequency
|
Please refer to the details
|
|
Rated rotational speed (r/min)
|
2000
|
|
Rated rotational Max. speed (r/min)
|
3000
|
|
Moment of inertia of rotor ( x10-4 kg ⋅ m²)
|
85.3
|
|
Recommended moment of inertia ratio of the load and the rotor
|
5 times or less
|
|
About recommended moment of inertia ratio of the load and the rotor
|
Please refer to the details
|
|
Rotary encoder: specifications
|
23-bit Absolute/Incremental system
|
|
Notice
|
When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
|
|
Rotary encoder: Resolution
|
8388608
|
