Brass Ball Valve Angle Valve Making Machine

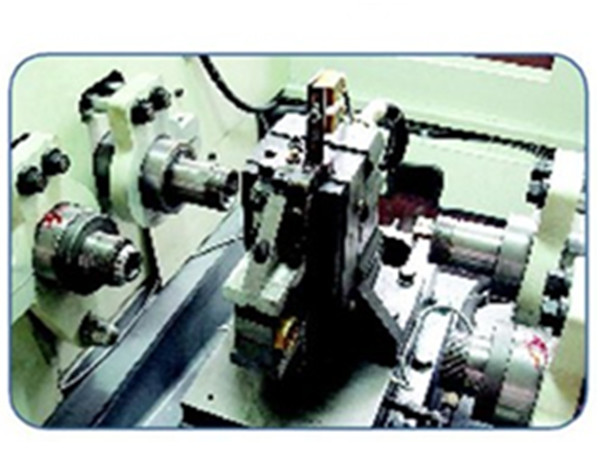

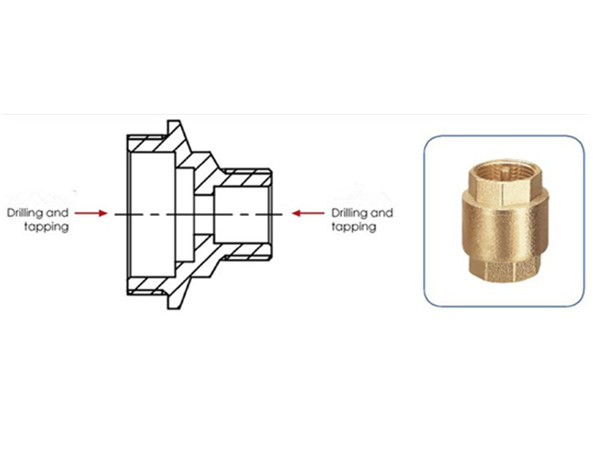

Compact structure : The integrated 4 spindles of a machine make it possible to process each ways of a manifold in one cycle, including drilling, tapping and facing the groove of seals rings;
High Flexibility : The processing range expanded from 2to 8 ways brass manifold, moreover the max center distance of work piece is 390mm;
Control Tech : It is controlled by the 10” colored touch panel, PLC and the fixture base plate is drove by servo motor;
Patents : It is owned the national patens of China: ZL 2010 101298043; ZL 2010 201376599;
World class accessories : To make our machine more stable and easier to maintaining, we adopted all of important accessories with world class.
|
Item
|
Parameter
|
|
Model
|

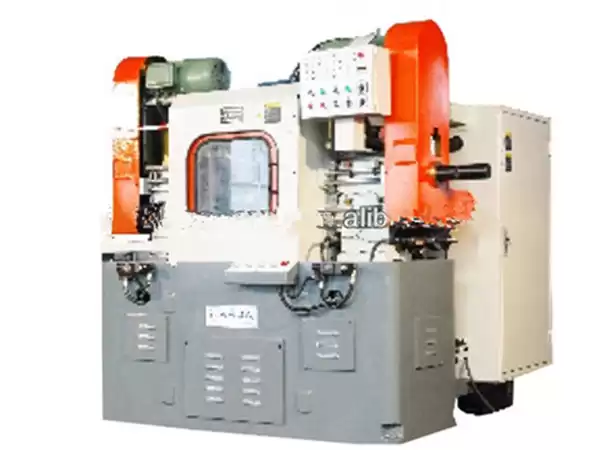

RZT-4-FT Two Way Four Spindles Lift Type Manifold Machine
|
|
Quantity of spindles
|
4 Spindles
|
|
Capability
|
½"~1½" Brass manifold, the max center distance "L" is 390mm
|
|
Production efficiency
|
Depending on the ways of the manifold.
|
|
Spindle speed
|
Drilling & facing spindle
|
1340 rpm
|
|
Tapping spindle*
|
680 rpm*
|
|
Travel
|
Drilling spindle
|
≤110mm
|
|
Tapping spindle
|
≤60mm
|
|
Drilling &Facing spindle
|
X axle≤50mm,Z axle≤7.5mm
|
|
Fixture base pastle
|
≤390mm
|
|
Control system
|
a 10" Touch palne and the PLC
|
|
Motor power
|
Drilling & facing
|
3kW/4p×2
|
|
Tapping
|
2.2kW/6p×2
|
|
Hydraulic pump
|
3kW/4p×1
|
|
Feed drive
|
Spindles
|
Hydraumatic
|
|
Fixture base pastle
|
Servo motor, 6N-m
|
|
Hydraulic pressure
|
1.5~3.5mPa
|
|
Power supply
|
3 phases, AC380V/50Hz
|
|
Total Power
|
10kW
|
|
Dimension
|
2100mm×1800mm×2100mm
|
|
Net Weight
|
2300kg
|
|
* If tapping motors controlled by inverter, the speed range of the tapping spindle is 200 ~ 800rpm
|
