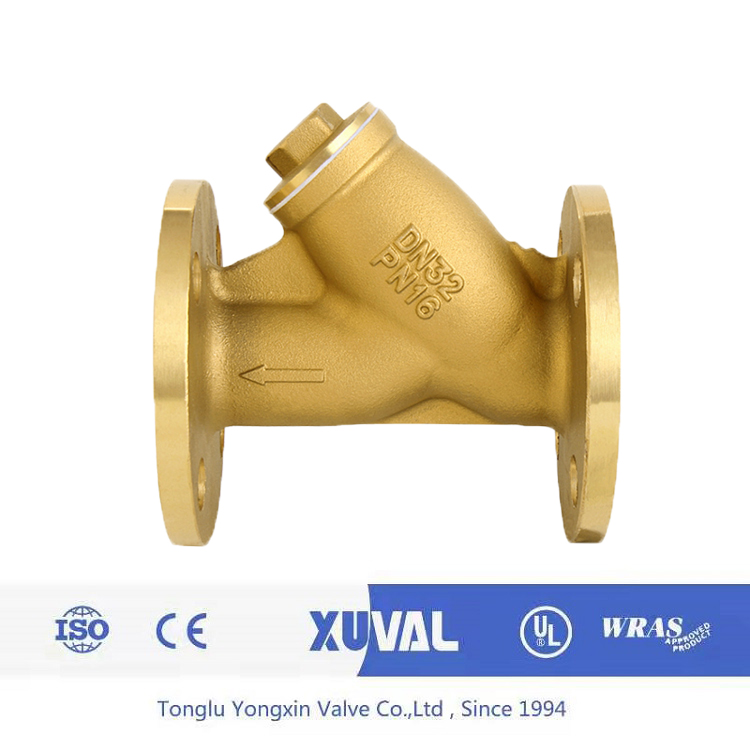

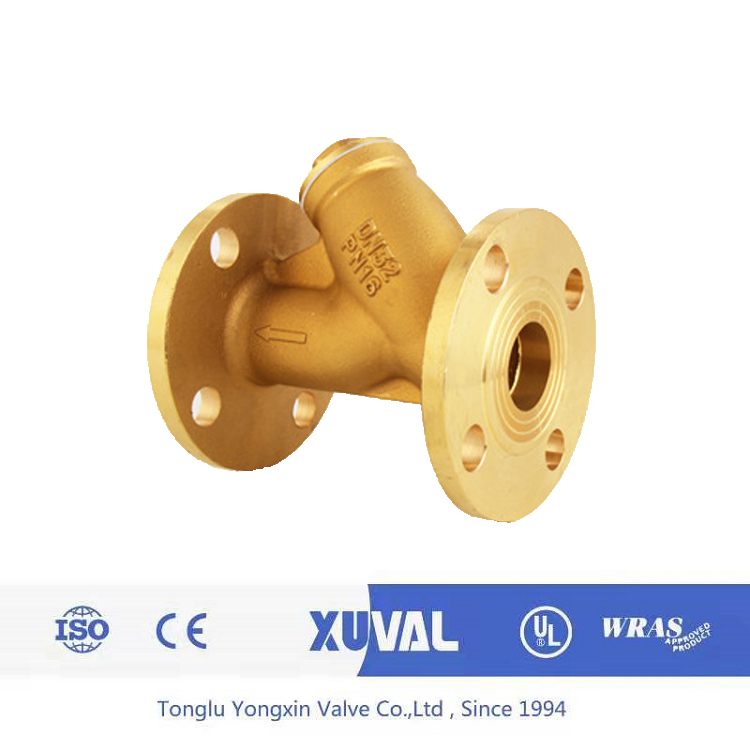

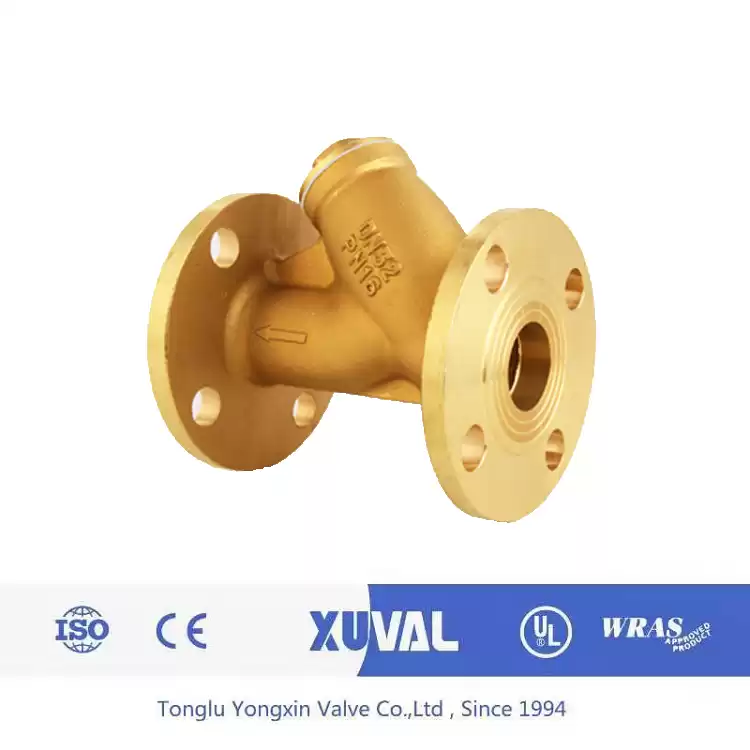

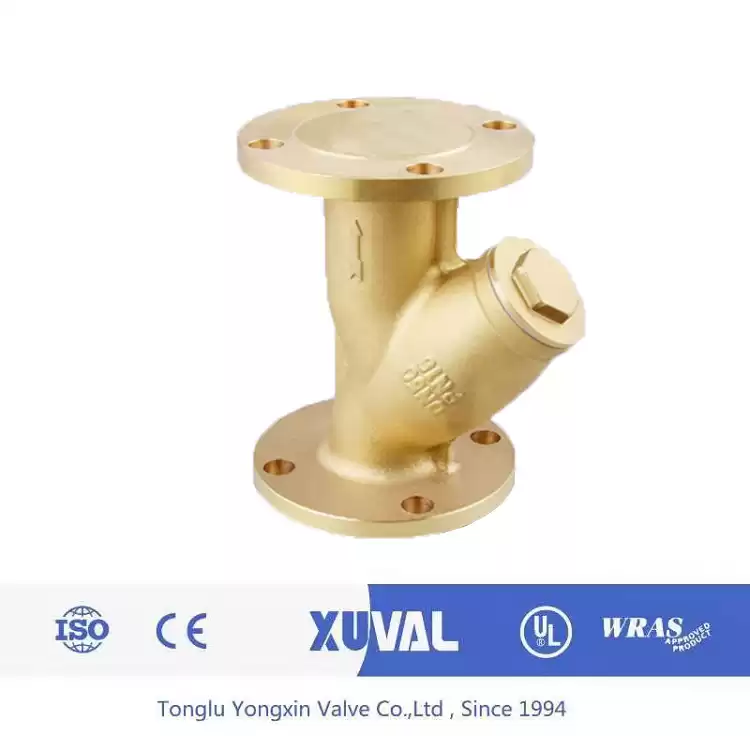

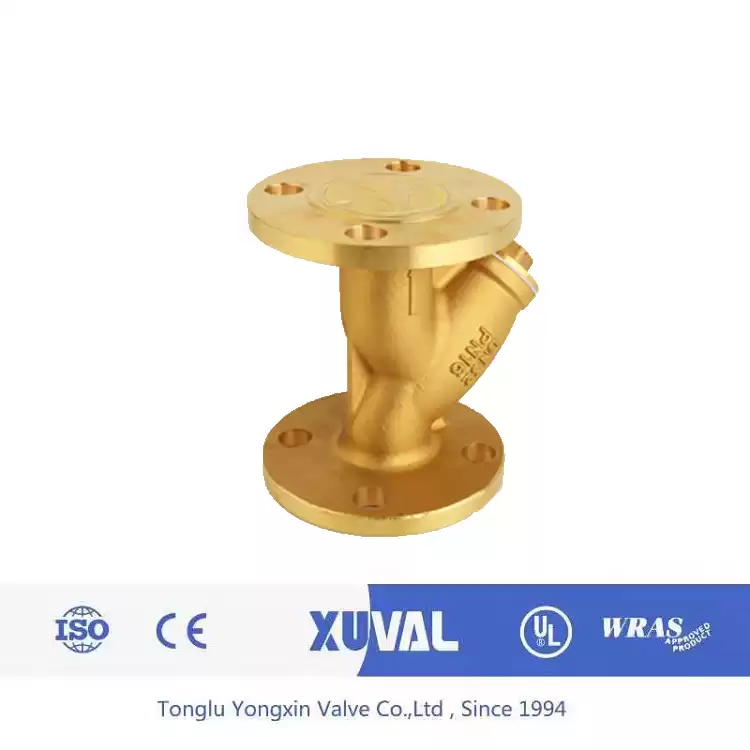

Brass Bronze Flange Y-Strainer
Brass filter is an indispensable device for conveying medium pipelines, usually installed in the pressure relief valve, relief valve, water level valve or other equipment at the inlet end, used to remove impurities in the medium, in order to protect the normal use of the valve and equipment.After when the fluid enters the filter cylinder that has certain specification filter net, its impurity is blocked, and clean filtrate is discharged by filter outlet, when need is cleaned, want to take out removable filter net only, after processing, reload can, accordingly, use maintenance is very convenient
Technology data sheet
|
|
Connection
|
Flange ends
|
|
Thread
|
ASME B16.5,EN 1092,BS 4504,BS 10
|
|
Body material
|
Brass,Bronze,Ductole Iron,Carbon steel,Stainless Steel
|
|
Sealing
|
EPDM,PTFE
|
|
Norminal Diameter
|
1/2"~2",DN15~DN50,can be customized
|
|
Working Medium
|
Water,Non-causticity liquid,Saturated steam
|
|
Working Temperature
|
0℃≤T≤150℃
|
|
Standard
|
ANSI,DIN,JIS
|
|
Pressure
|
1.0Mpa,1.6Mpa,2.5Mpa,4.0Mpa
|
Main parts and Materials
|
|
Number
|
Part Name
|
Material
|
|
1
|
Body
|
Brass or Bronze
|
|
2
|
Plug
|
Brass or Bronze
|
|
3
|
Cover
|
Brass or Bronze
|
|
4
|
Bolt
|
Carbon steel
|
|
6
|
Screen
|
Stainless steel
|
|
Main Dimensions
|
|
DN
|
Size
|
L
|
D
|
H
|
n-φd
|
|
32
|
1 1/4"
|
180
|
140
|
132
|
4-18
|
|
40
|
1 1/2"
|
200
|
150
|
152
|
4-18
|
|
50
|
2"
|
230
|
165
|
154
|
4-18
|
|
65
|
2 1/2"
|
290
|
185
|
173
|
4-18
|
|
80
|
3"
|
310
|
200
|
195
|
8-18
|
|
100
|
4"
|
350
|
220
|
225
|
8-18
|
|
125
|
5"
|
400
|
250
|
268
|
8-18
|
|
150
|
6"
|
480
|
285
|
328
|
8-22
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough
subject to the order quantity. But anyway,normally, we are able to make sure the delivery will not exceed 45 days.
