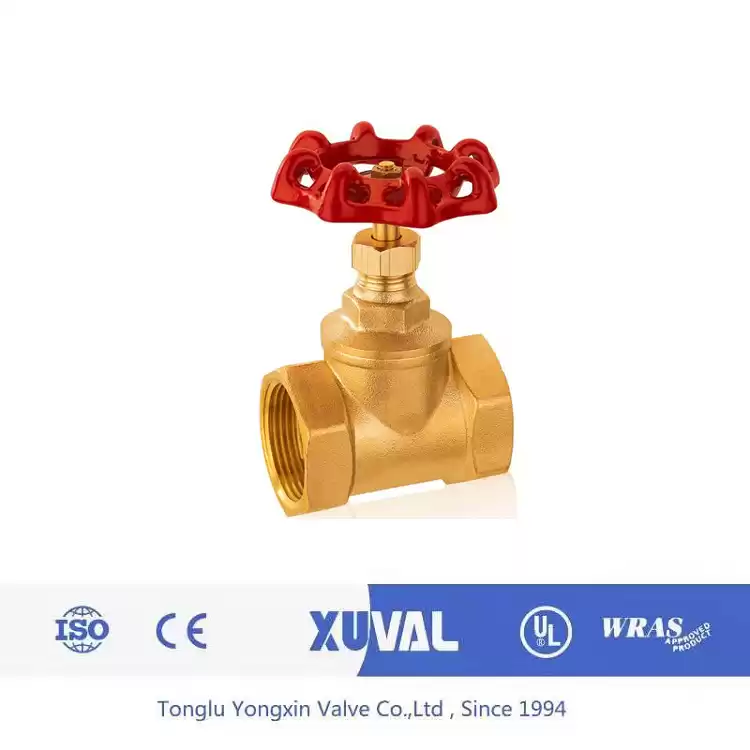

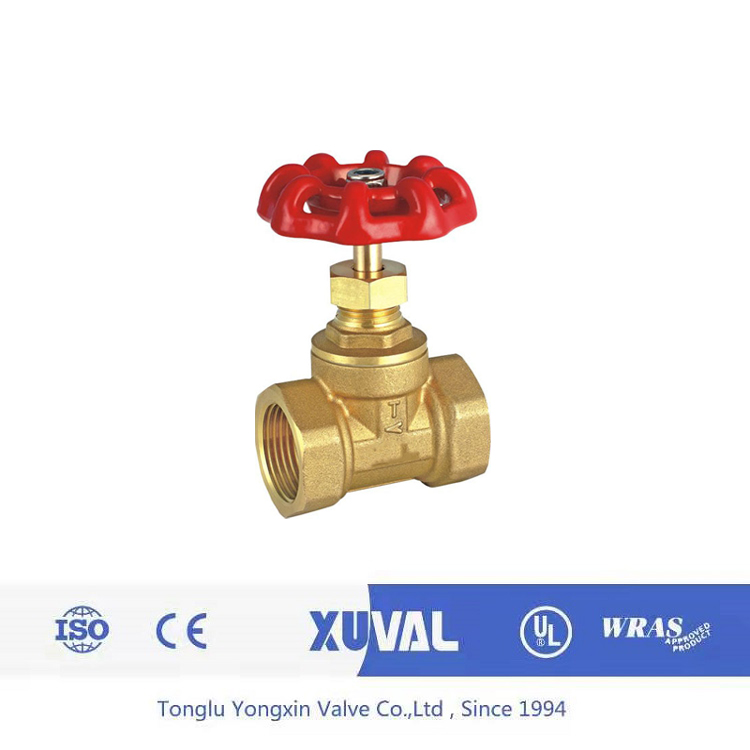

Globe valves are valves with a shutoff valve (disc) moving along the center line of the seat.According to the disc in this form of movement, the change in the valve seat opening is proportional to the disc travel.Due to the relatively short stem opening or closing stroke of this type of valve, and the very reliable cutting function, and the seat port changes in a direct proportion to the stroke of the disc, it is very suitable for flow regulation.So.This type of valve is idea for cutting or regulating as well as throttling.
Application suggestion of globe valve:
The globe valve with pipe thread is connected to the pipe thread at the end of the pipe, where the internal thread is cylindrical and the external thread must be tapered.When installing, wrench the hexagon or octagon part on the same side of the thread, and do not wrench the hexagon or octagon part on the other end of the globe valve, so as not to cause the deformation of the globe valve.
Globe valve Advantages:
1.In the process of opening and closing, the friction between the valve disc sealing surface is smaller than that of gate valve, so that wear resistance.
2.The opening height is generally only 1/4 of the seat passage diameter.
3.Usually only one sealing surface, good manufacturing process, easy to maintain.
|

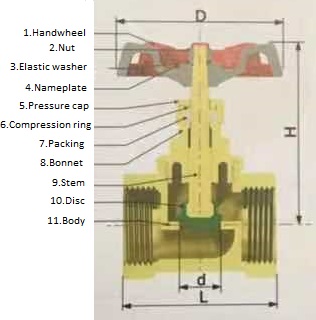

DN
|
SIZE
|
L
|
H
|
D
|
d
|
Number
(only/box)
|
|
15
|
1/2"
|
45
|
62.5
|
53
|
12.5
|
15x8
|
|
20
|
3/4"
|
52
|
71.5
|
53
|
16
|
10x8
|
|
25
|
1"
|
63.5
|
77
|
72
|
20.5
|
6x8
|
|
32
|
1 1/4"
|
72
|
95
|
86
|
26
|
4x8
|
|
40
|
1 1/2"
|
82
|
111
|
98
|
32
|
2x8
|
|
50
|
2"
|
100
|
124
|
108
|
41
|
2x8
|
Technical specification:
1.Nominal pressure: PN≤1.6Mpa.
2.Operating temperature: -20℃~120℃.
3.Working medium: hot and cold water, gas, oil.
4.Thread standard: 55 inch pipe thread.
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
