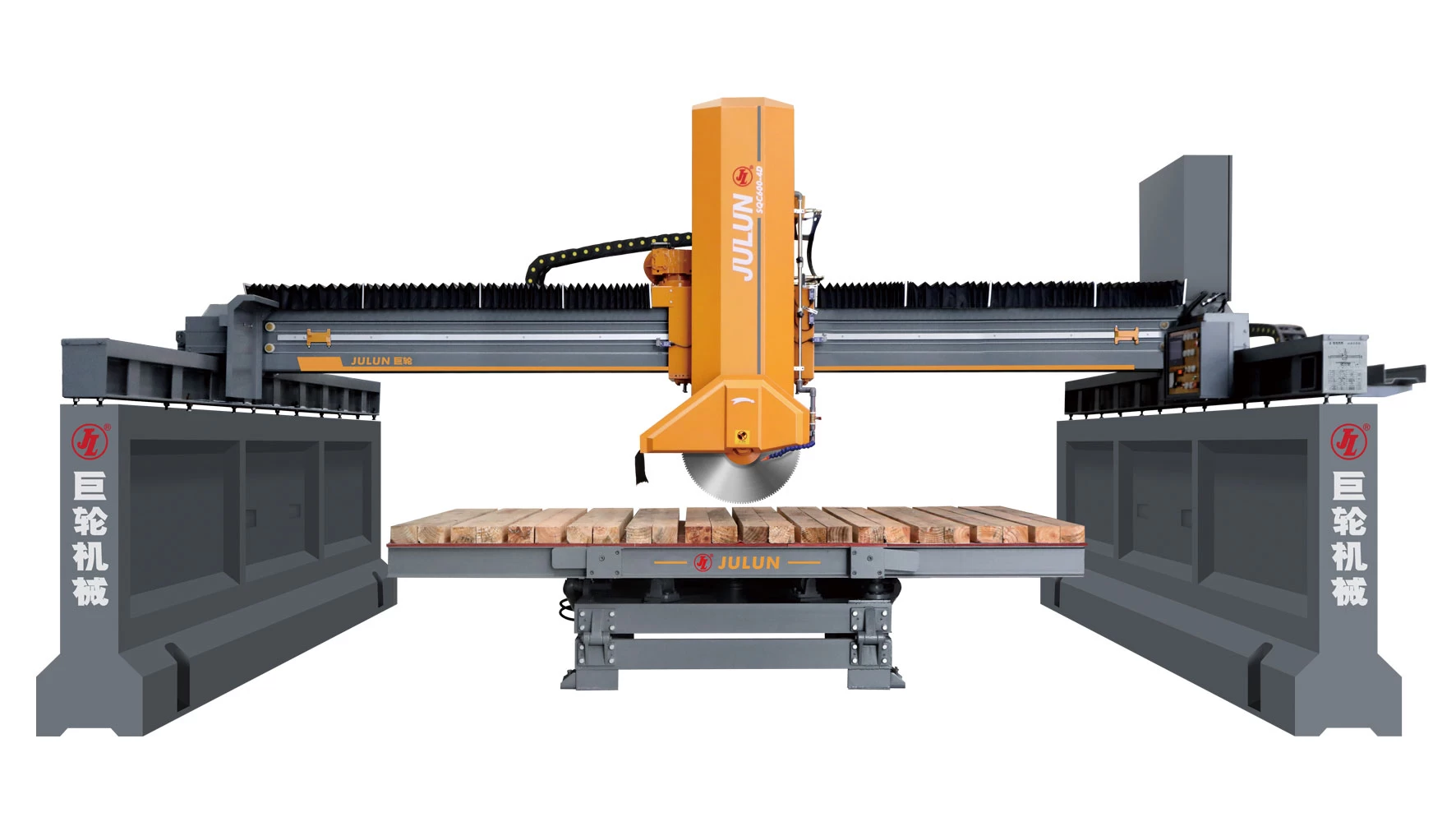

Bridge Cutting Machine Guide Pillar Type

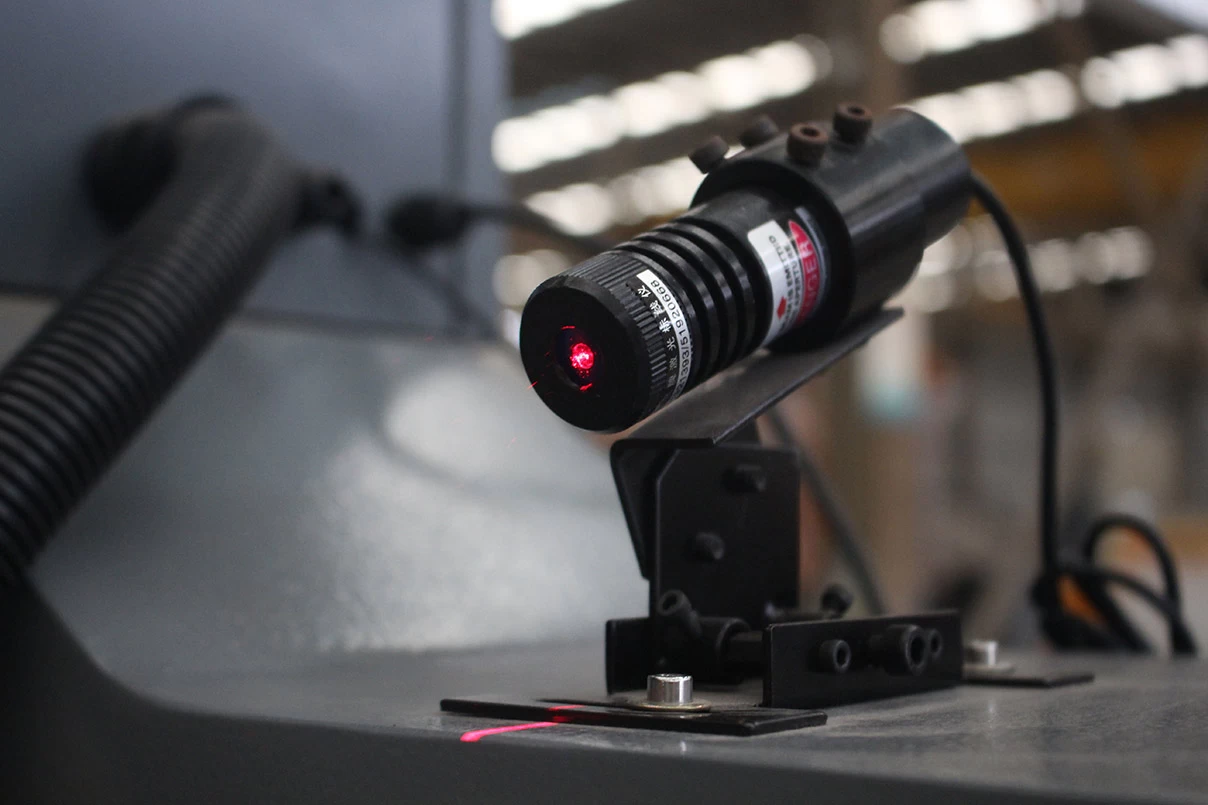

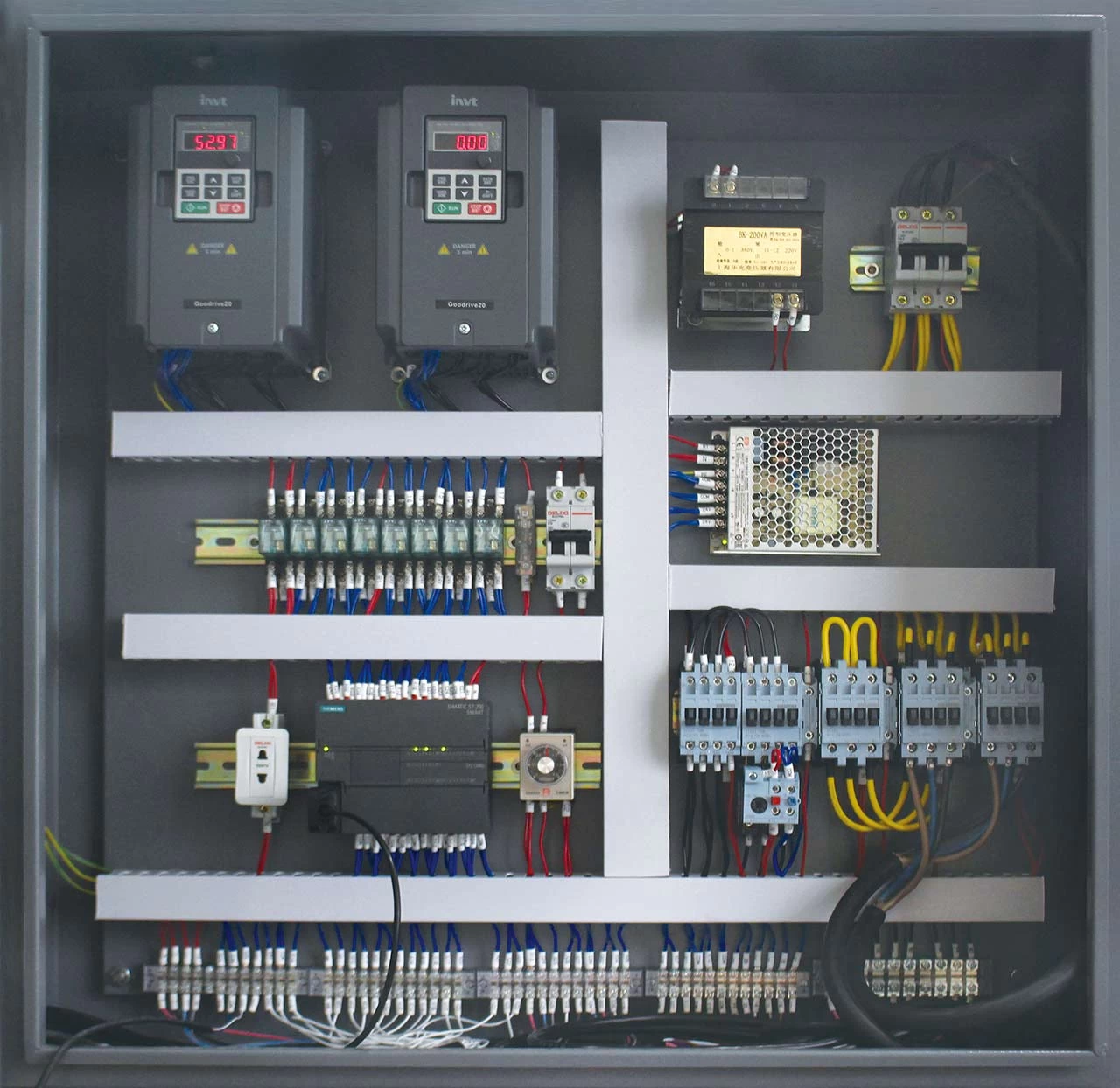

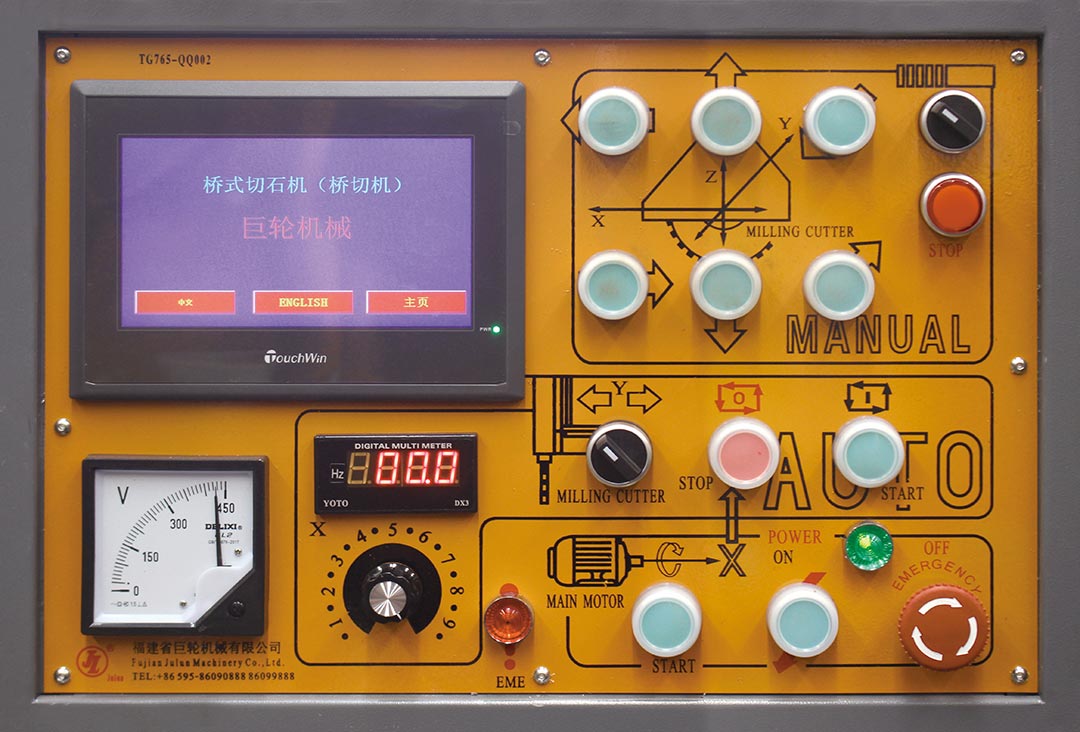

1.Laser cutting machine uses PLC system and Human-machine Interface , combined with Ultra-high precision rotary encoder to locate and infrared device

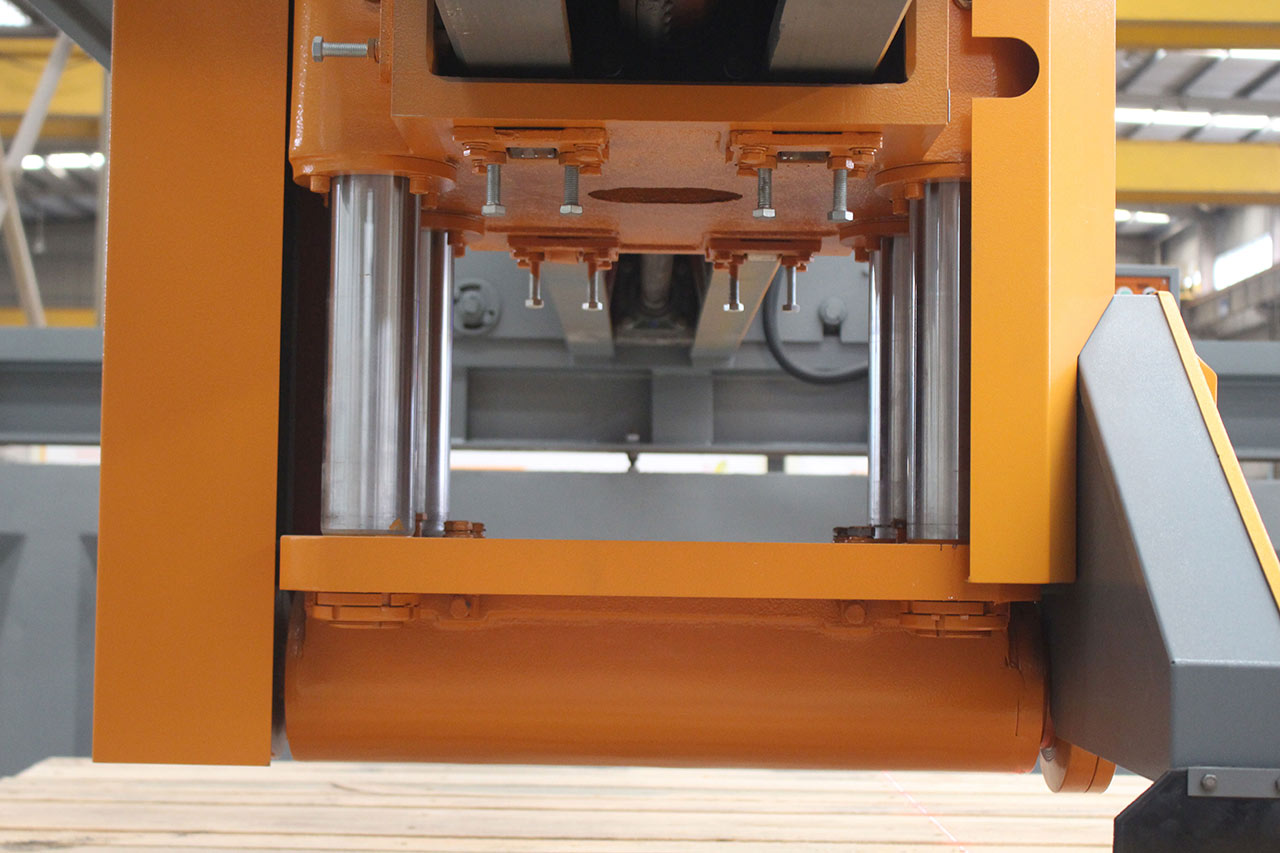

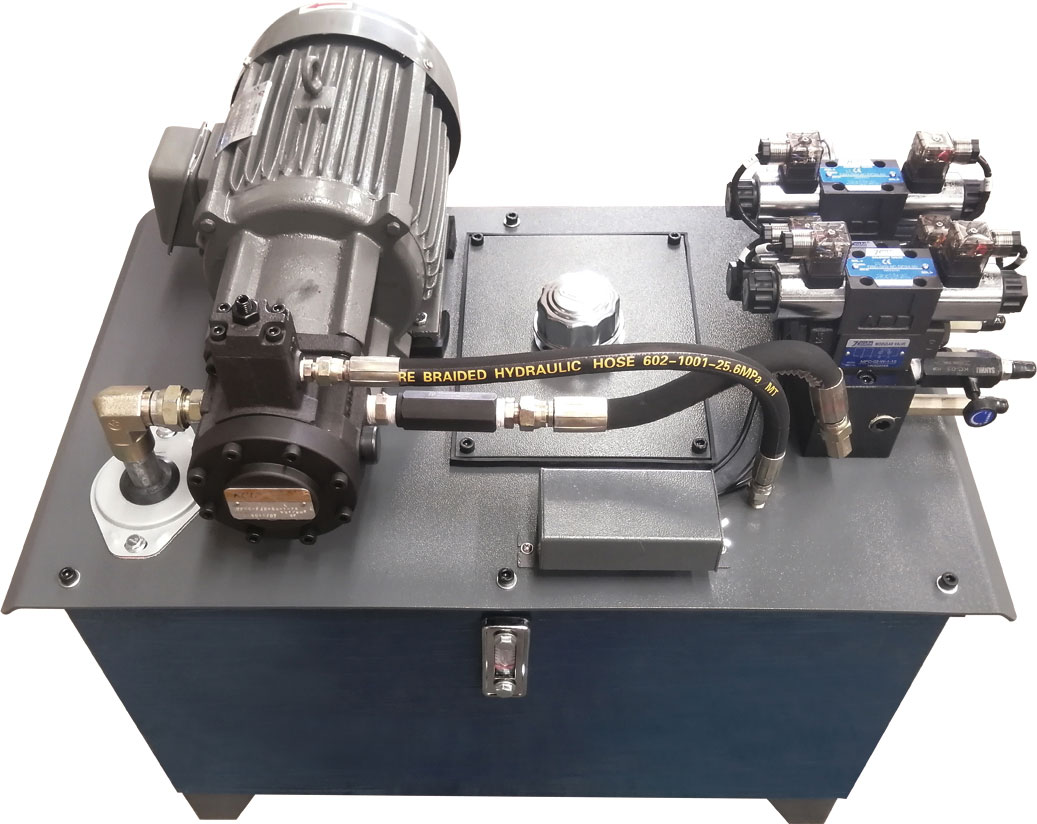

2.It uses inverter to control left-right feeding,adjusts the speed according to the stone material.It uses hydraulic lifting system , combination of Chrome-plated guide pin and wear guide bush,with small gap , wearable, beautiful structure , and Guide Sleeve with multi-layer seals , with waterproof , dustproof , anti-spill , improving the service life .
3.Main spare parts adopt imported good-quality materials .
Thus the whole machine is featured with high cutting efficiency , high cutting precision , high stability , easy –operating to suit granite and marble with high value and big size.
Specification
|
Appellation
|
Unit
|
SQC-450-4D
|
SQC-600-4D
|
SQC-700-4D
|
|
Max.blade diameter
|
mm
|
Φ450
|
Φ600
|
Φ700
|
|
Max.lifting stroke
|
mm
|
220
|
350
|
470
|
|
Worktable size
|
mm
|
3200×2000
|
|
Worktable rotation range(optional)
|
°
|
0°- 90°/0°- 360°（Set up by each 45 degree)
|
|
Worktable turn-over degree
|
°
|
0°- 85°
|
|
Max.rocessing height
|
mm
|
100
|
180
|
220
|
|
Water consumption
|
m³/h
|
3
|
|
Power of main motor(optional)
|
kw
|
15
|
18.5
|
18.5
|
|
Total power
|
kw
|
21
|
24
|
24
|
|
Dimension(L×W×H)
|
mm
|
6000×4800
×3100
|
6000x480
0x3300
|
6000x4800
x3400
|
|
Weight
|
kg
|

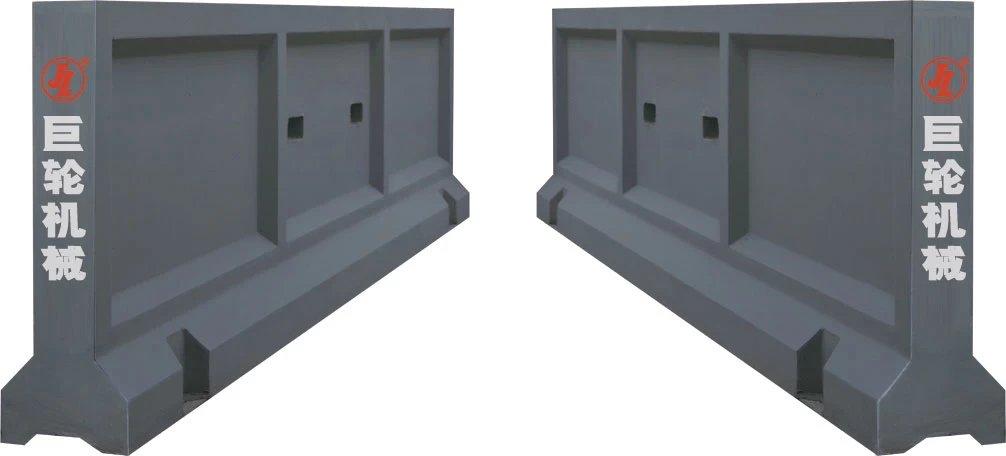

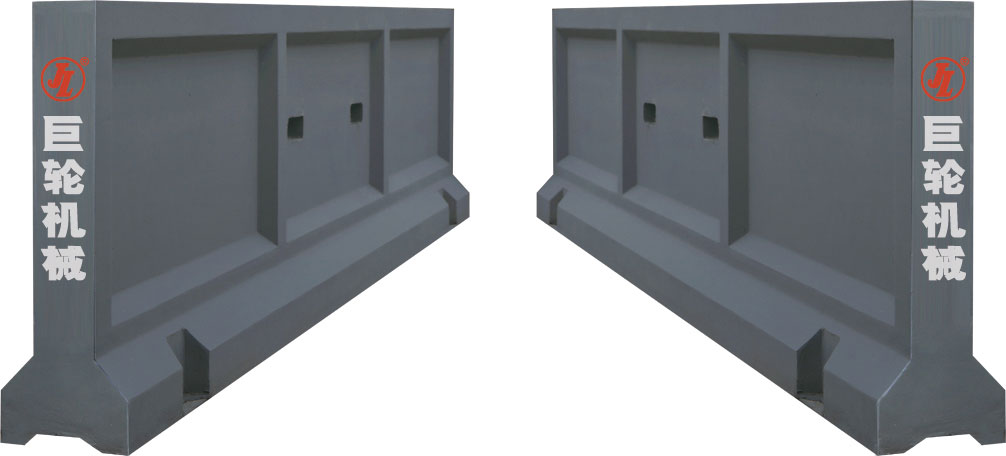

5600 (with cement base 10200kg )
|
5800 (with cement base 10500kg )
|
6000 (with cement base 10800kg )
|

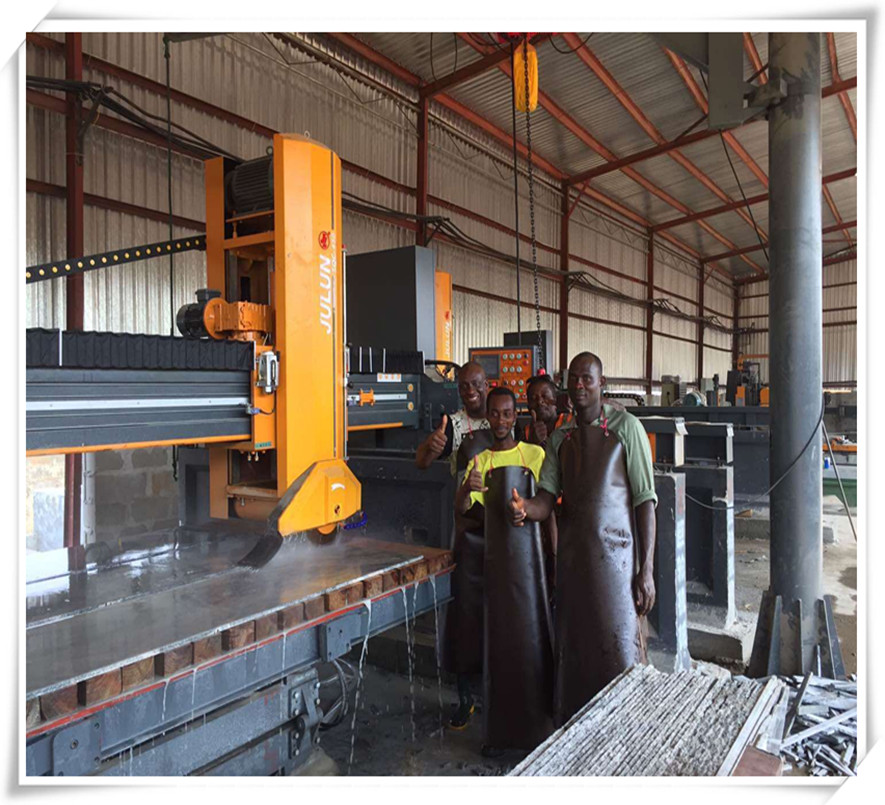

Photos
