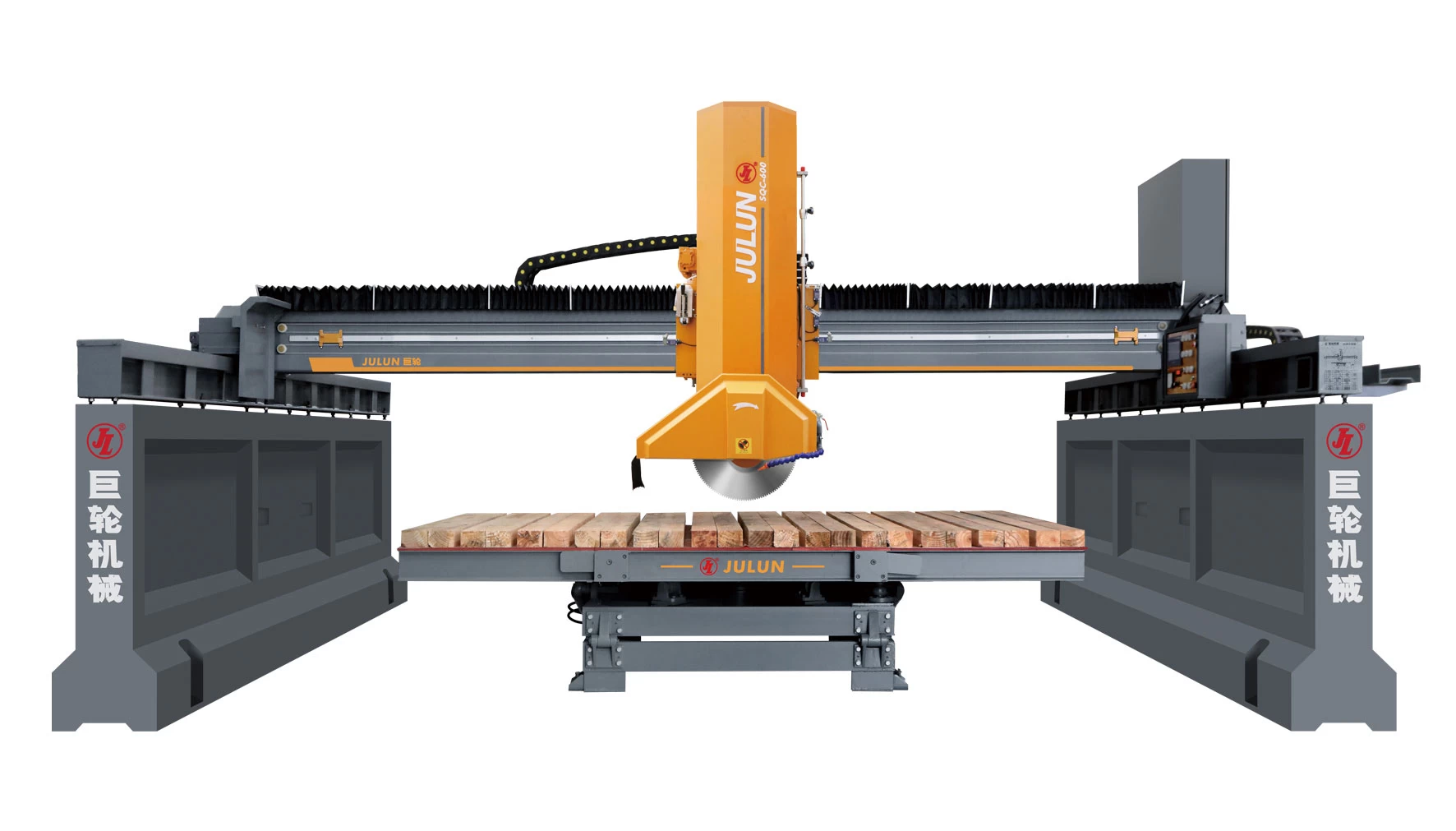

Bridge Cutting Machine Slide Type

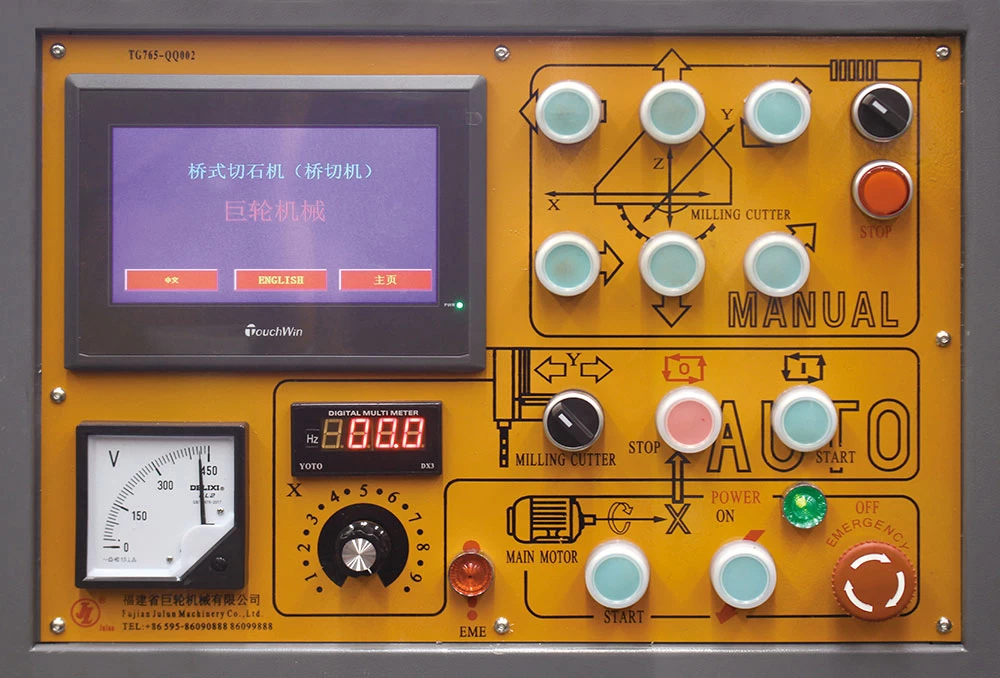

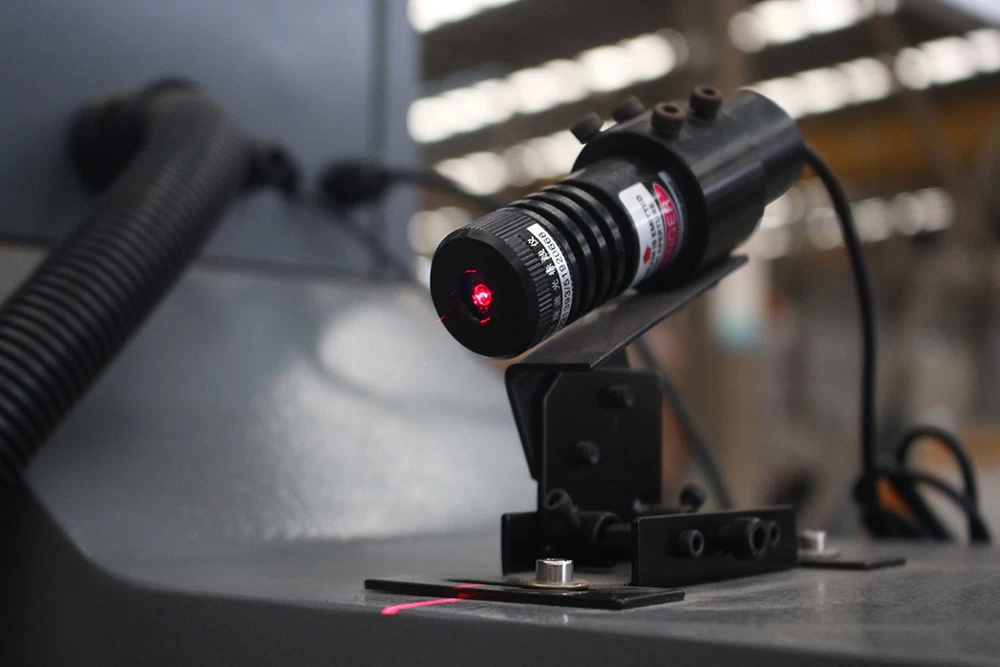

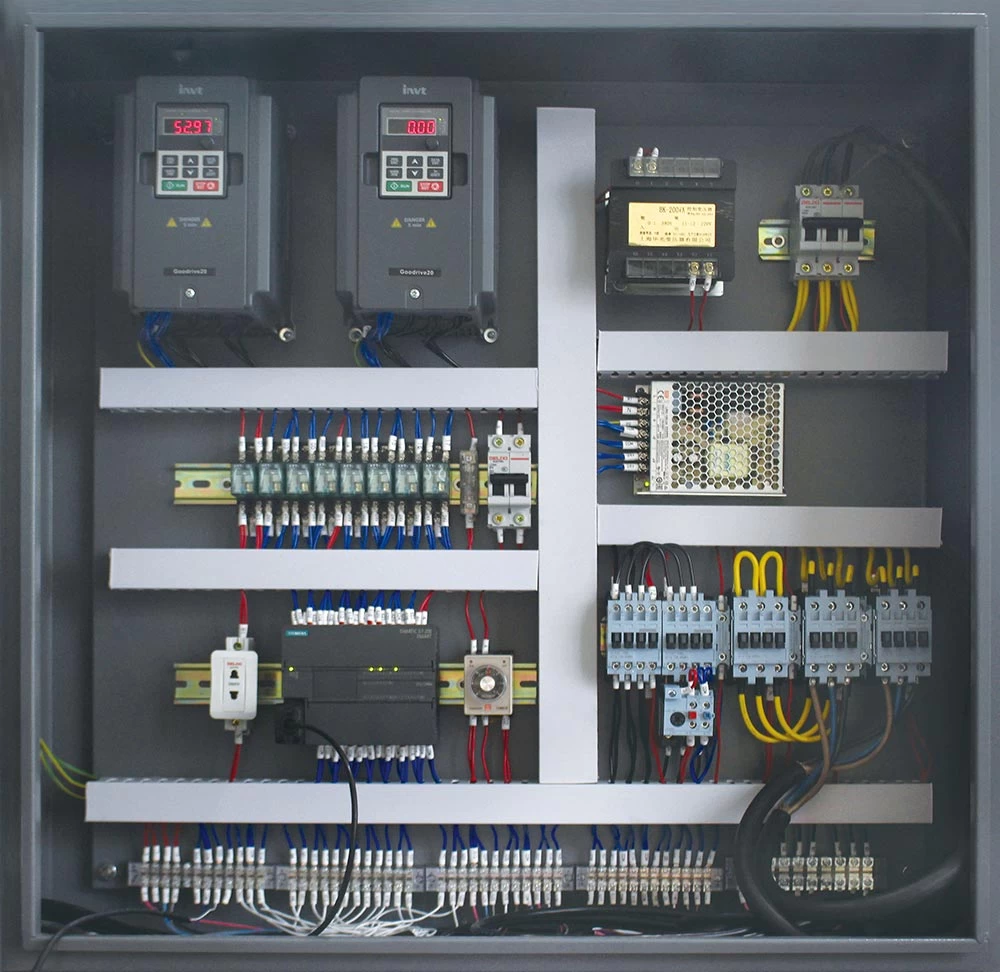

1.It uses PLC system and human-machine Interface, combined with Ultra-high precision rotary encoder to locate and infrared device
2.It uses inverter to control left-right feeding, adjusts the speed according to the stone material.

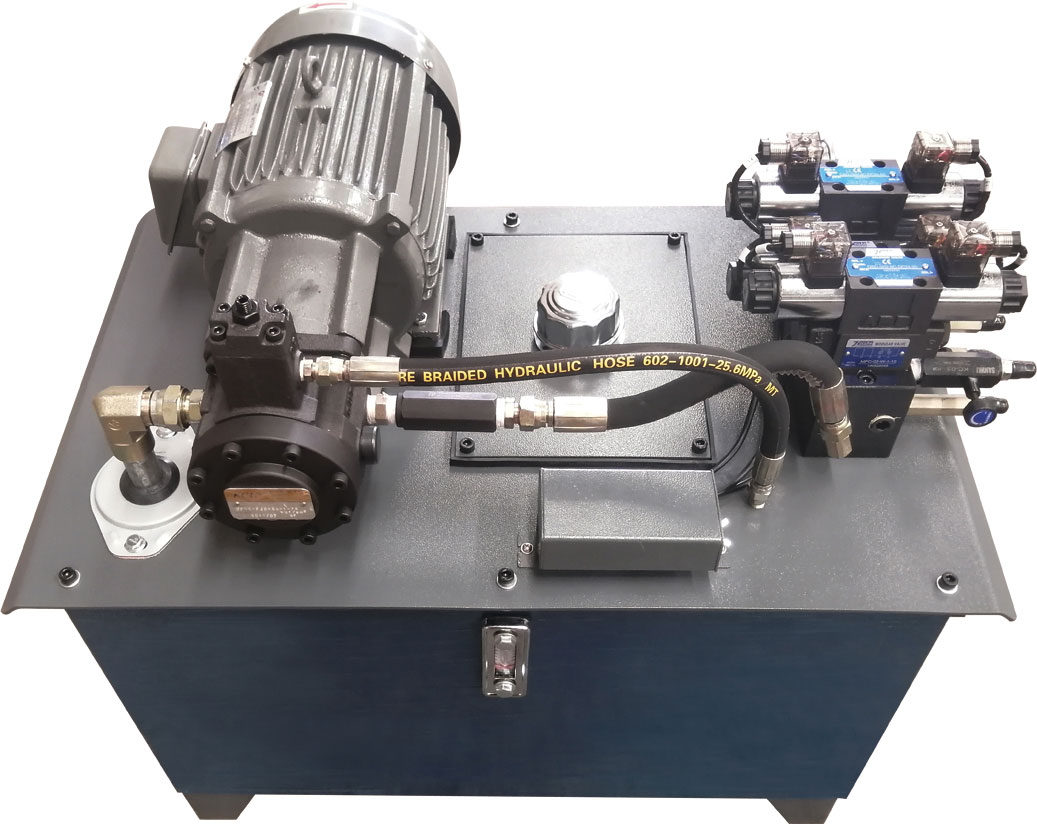

3.It uses hydraulic lifting system,main spare parts adopt imported good-quality materials.
Thus the whole machine is featured as high cutting efficiency,high cutting precision, high stability,easy-operating to suit granite and marble with high value and big size.
Specification
|
Appellation
|
Unit
|
SQC-450
|
SQC-600
|
SQC-700
|
|
Max.blade diameter
|
mm
|
Φ450
|
Φ600
|
Φ700
|
|
Max.lifting stroke
|
mm
|
220
|
350
|
470
|
|
Worktable size
|
mm
|
3200×2000
|
|
Worktable rotation range(optional)
|
°
|
0°- 90°/0°- 360° (set up by each 45°）
|
|
Worktable turn-over degree
|
°
|
0°- 85°
|
|
Max.rocessing height
|
mm
|
100
|
180
|
220
|
|
Water consumption
|
m³/h
|
3
|
|
Power of main motor(optional)
|
kw
|
15
|
18.5
|
18.5
|
|
Total power
|
kw
|
21
|
24
|
24
|
|
Dimension(L×W×H)
|
mm
|
6000×4800
×3100
|
6000x480
0x3300
|
6000x4800
x3300
|
|
Weight
|
kg
|

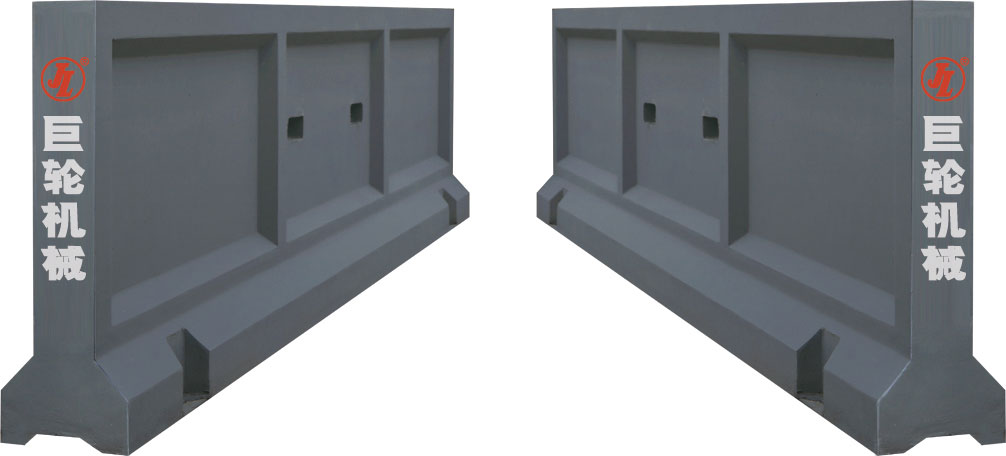

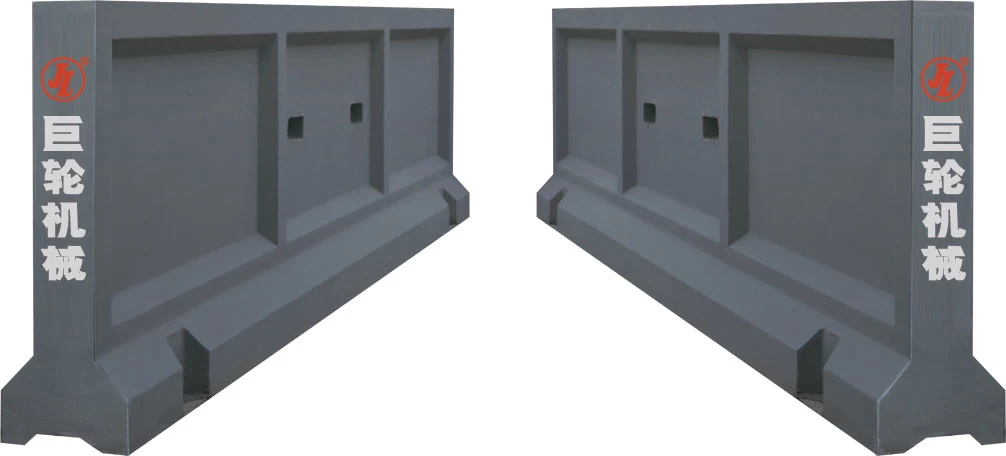

5400 (with cement base 10000kg )
|
5600 (with cement base 10200kg )
|
5800 (with cement base 10500kg )
|

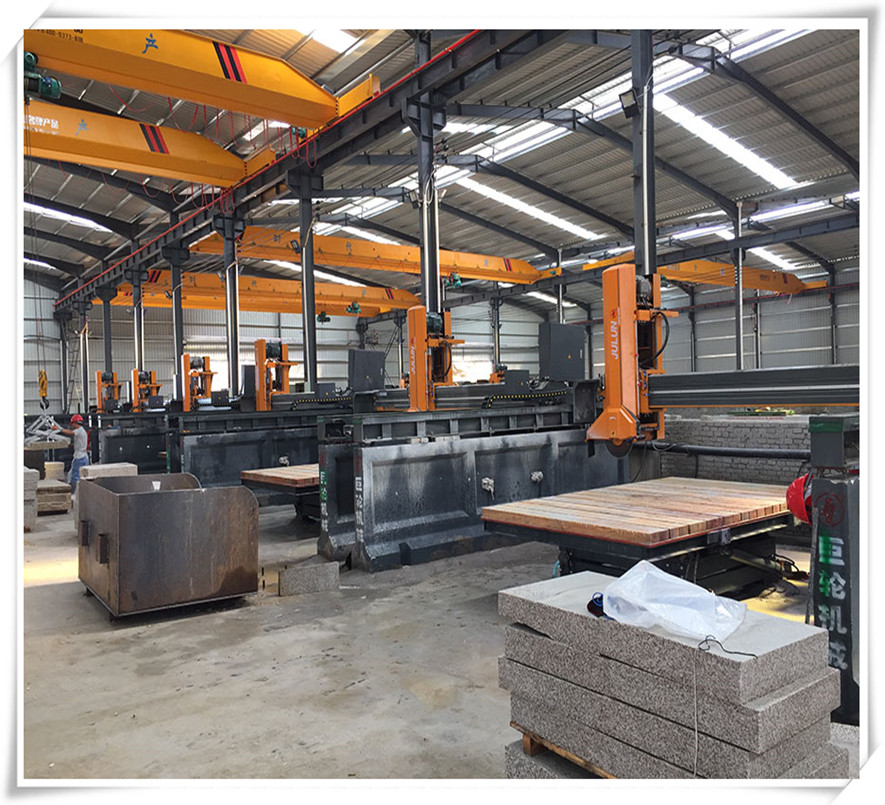

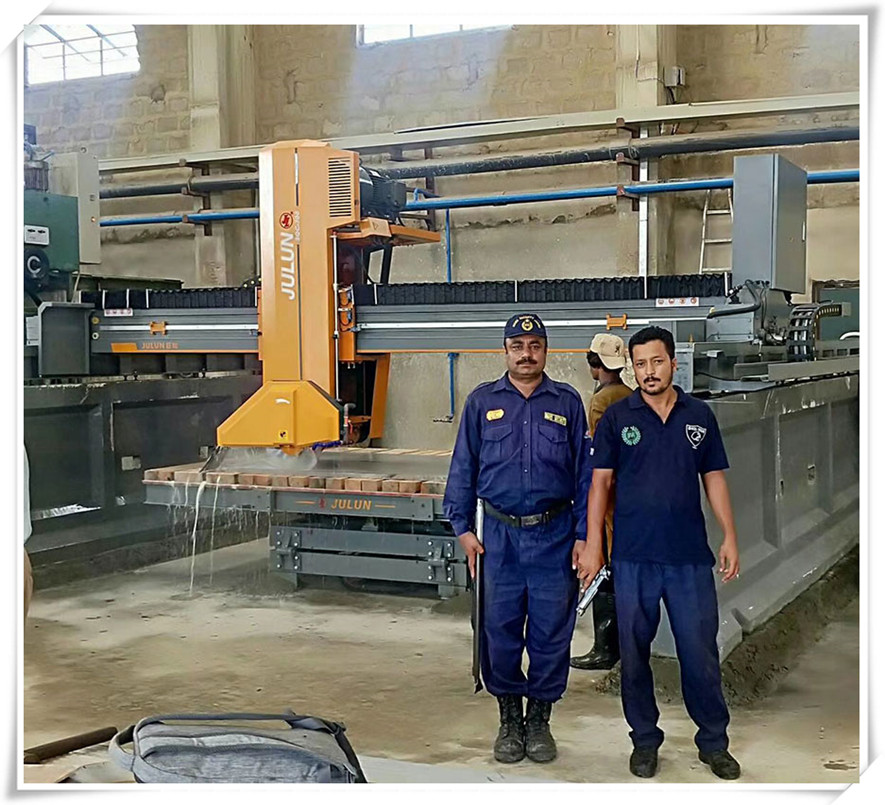

Photos
