Product Introduction

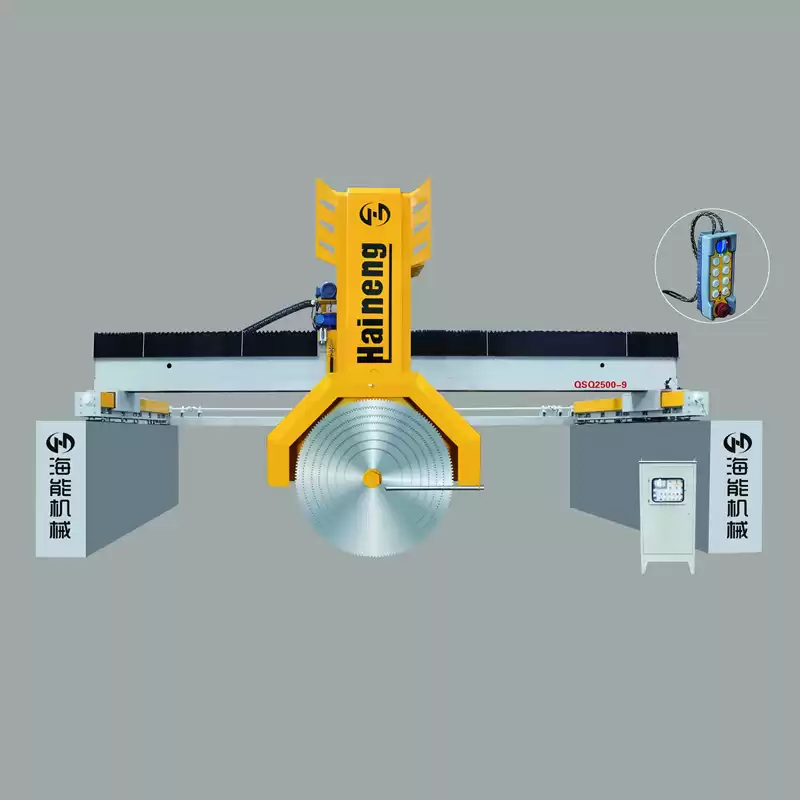

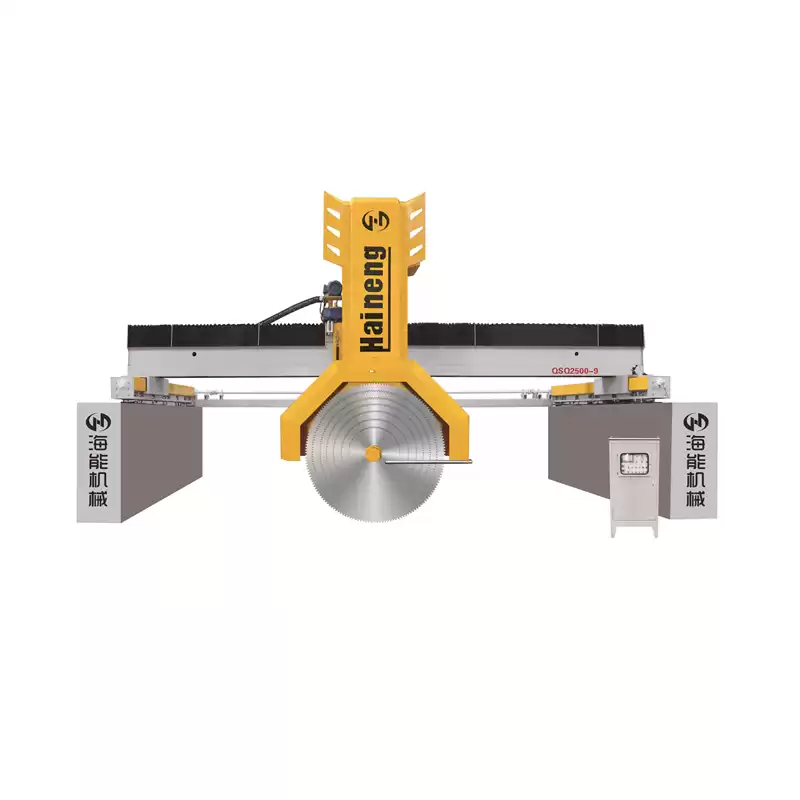

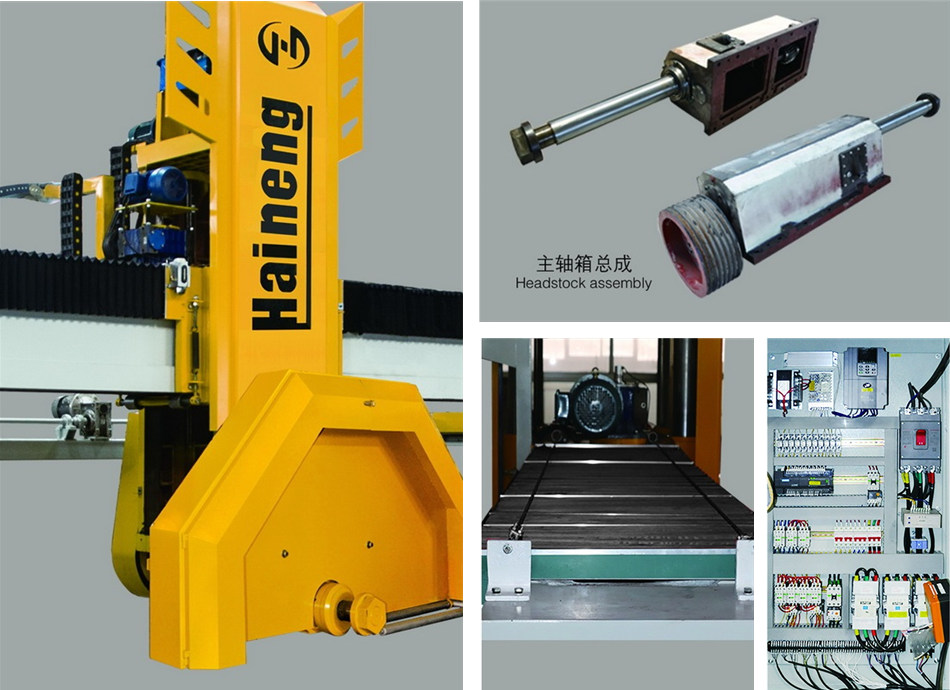

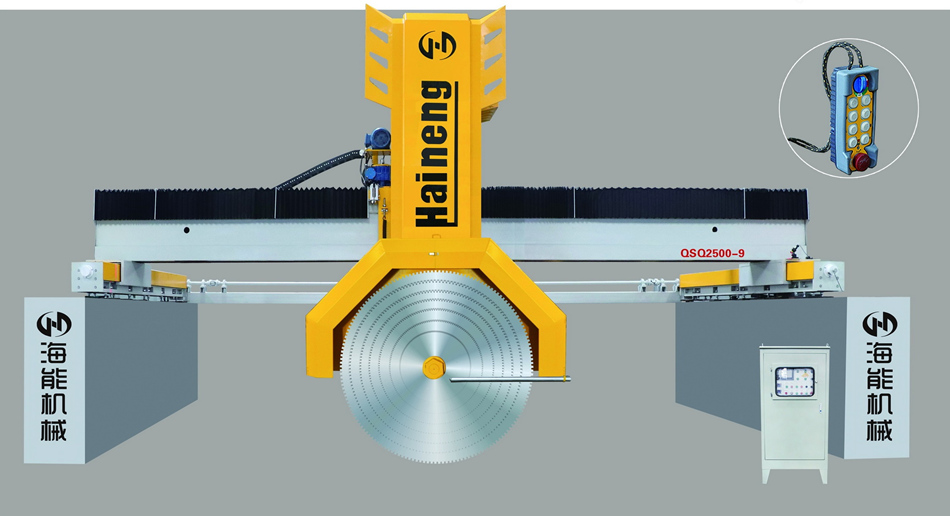

Bridge Hydraulic Stone Cutter adopts long-span bridge structure, the beam side beam sealed oil-immersed guide rail, automatic displacement splice, the lifting system adopts hydraulic lifting (or screw lifting) transmission, to achieve smooth and fast lifting and dropping tool, the transverse cutter adopts frequency converter to achieve stepless speed regulation. Automatic walking cutting, and specially equipped with lifting and side beam transmission protection device.During processing, raw materials can be directly placed on the ground to save the trolley and its maintenance costs. The machine has fine processing, stable performance, high automatic production efficiency, convenient installation, operation and maintenance, and meets the development demand of international stone processing.
Technical Parameters
|
Bridge Hydraulic Stone Cutter
|
|
Type
|
Unit
|
2500A
|
2800A
|
3000A
|
3200A
|
|
Main motor power
|
kw
|
30-37
|
37-45
|
45-55
|
55-75
|
|
Blade diameter
|
mm
|
Φ1600-Φ2500
|
Φ1600-Φ2800
|
Φ1600-Φ3000
|
Φ1600-Φ3200
|
|
Elevation travel of motor
|
mm
|
1200
|
1300
|
1400
|
1500
|
|
Slicing stroke
|
mm
|
2200
|
2200
|
2200
|
2200
|
|
Cutting stroke
|
mm
|
4500
|
4500
|
4500
|
4500
|
|
Saw blade number
|
pcs
|
1-9
|
1-9
|
1-9
|
1-9
|
|
Overall dimensions
(L×W×H)
|
mm
|
8000×3800×4200
|
8000×3800×4500
|
8000×3800×4800
|
8000×3800×5000
|
|
Machine weight
|
kg
|
12000
|
12500
|
13000
|
13500
|
