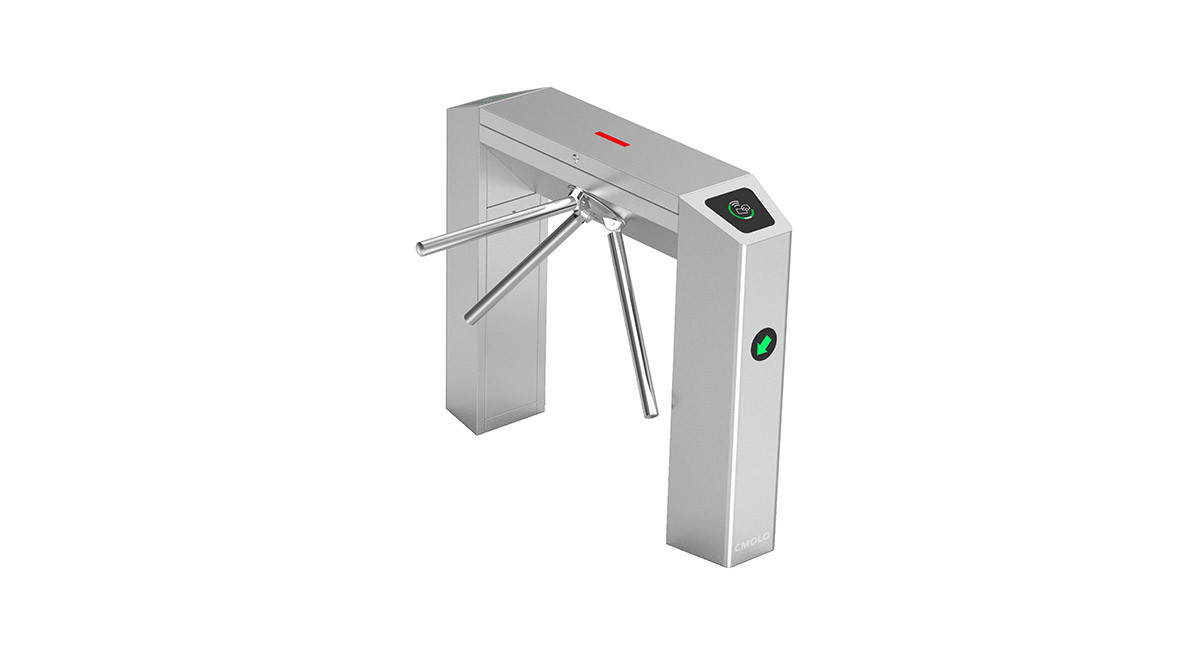

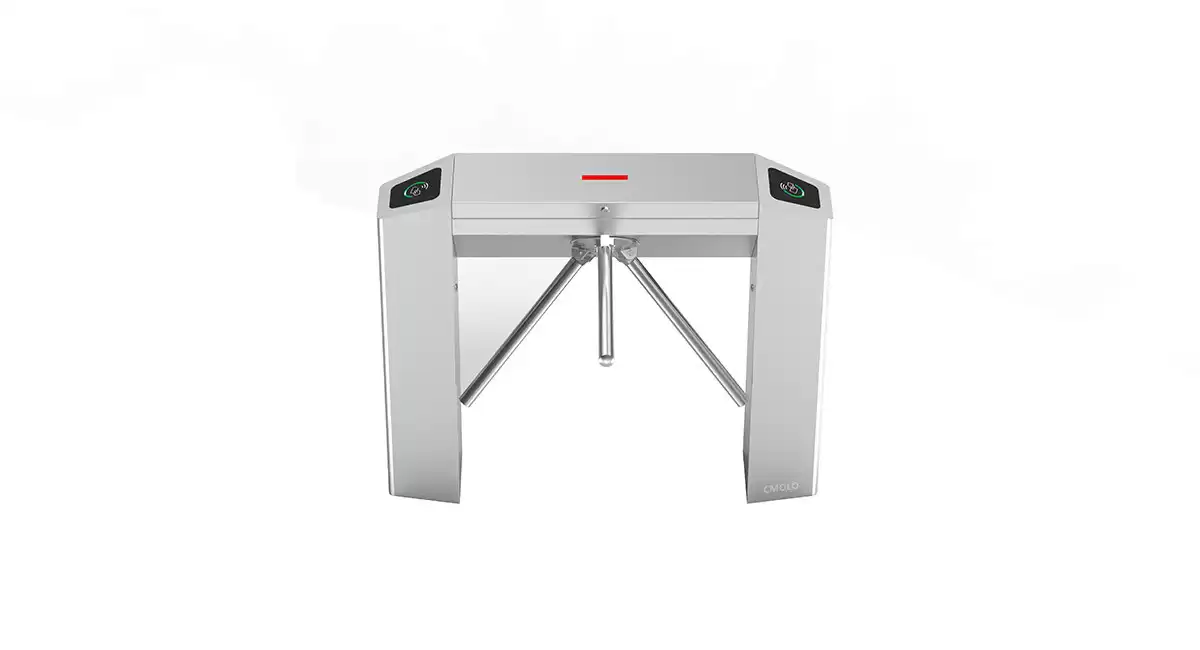

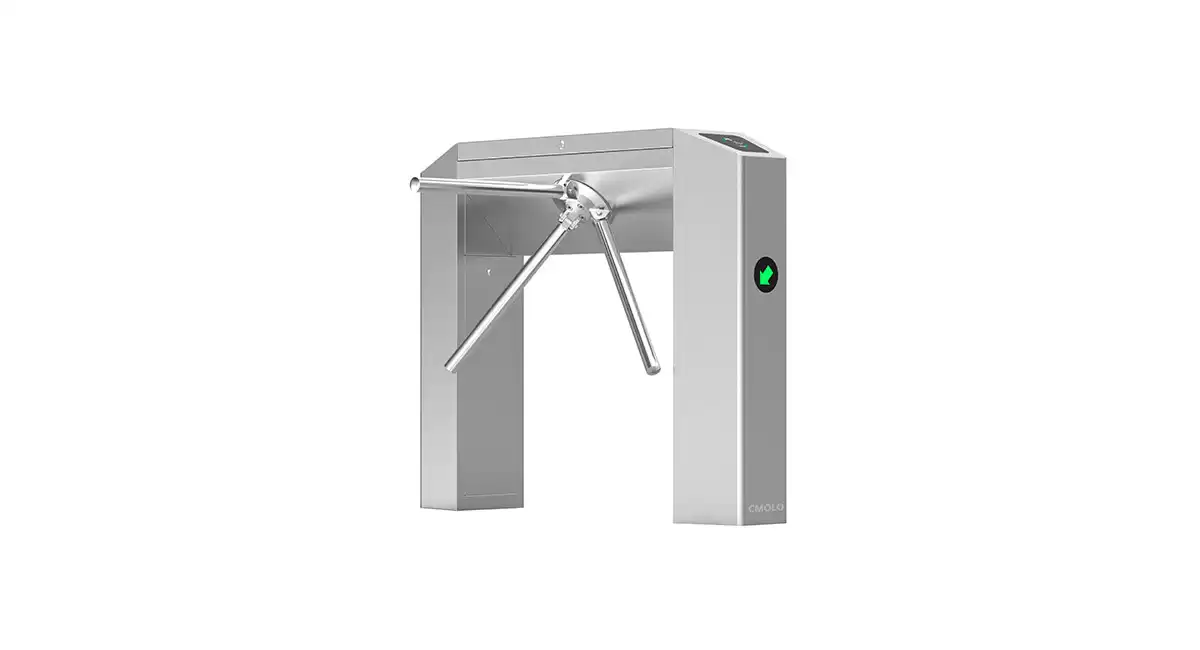

The bridge-type ticketing tripod barrier CPW-406Y can be divided into fully-automatic tripod turnstile and semi-automatic tripod turnstile. Both are adopted mechanical anti-tailgating design, which can realize that single person passes at one time and the anti-tailgating ability is very high.

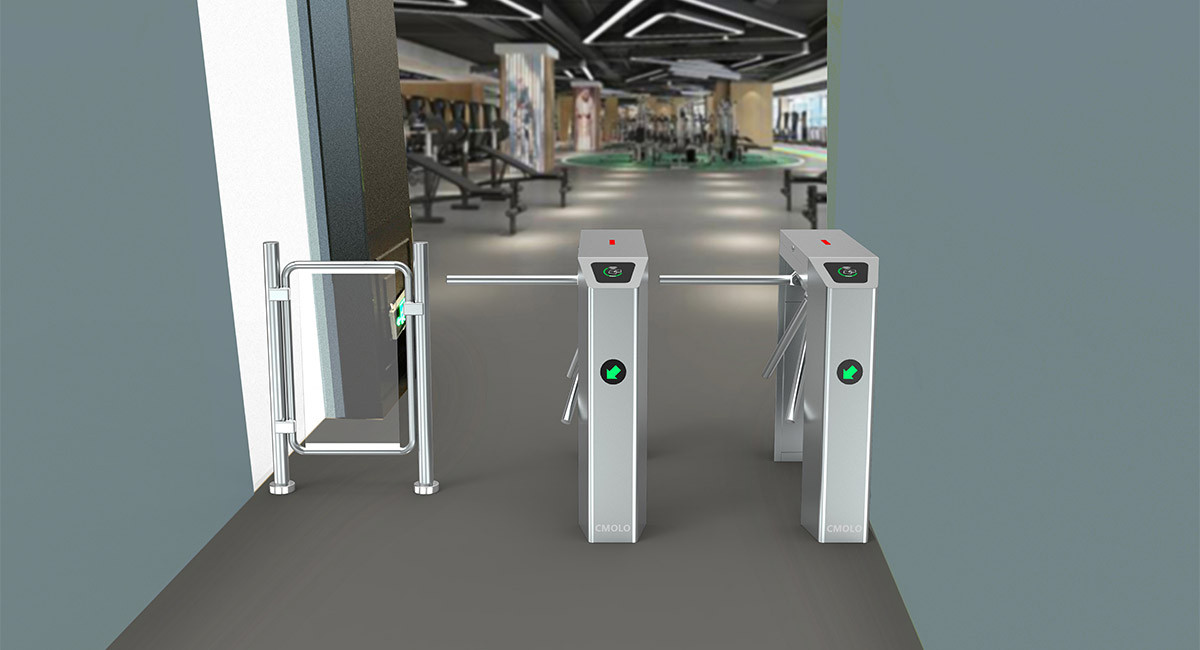

The tripod barrier is suitable for indoor and outdoor occasions such as office gyms, buildings, governments, scenic spots, factories, schools, etc.

The mechanism of the fully-automatic tripod turnstile adopts a secondary transmission mechanical structure, and the gear transmission ratio is accurate, efficient and stable, which can precisely control the rotation angle of the arm and reduce the loss; the mechanism of the semi-automatic tripod turnstile adopts a strong buffer design structure, effectively reduce noise and mechanical vibration, run more efficiently, smoothly and reduce losses. Two mechanism designs can ensure the reliability of the mechanism and enhance the service life of the mechanism.

Facebook Twitter Pinterest LinkedIn 分享

Description

All-around Pedestrian Safety Protection

Type	Semi-auto tripod turnstile	Fully-auto tripod turnstile
Drop arm when power failure	The advanced mechanical structure is independently developed by CMOLO. When the power is cut off, the arm is automatically unlocked, and pedestrians can freely push the arm to quickly evacuate the crowd.
Emergency open	The bridge-type ticketing tripod barrier equips with emergency escape control device, to make the tripod turnstile quickly drop down the arm to evacuate pedestrian.
Anti-electric shock	All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian from being injured by electric shocks.

Advanced & Intelligent Tripod Turnstile Core Technology

Type	Fully-auto tripod turnstile	Semi-auto tripod turnstile
Strong mechanism structure	The lossless modular mechanism structure independently developed by CMOLO adopts CNC machining technology to ensure the high precision of each module of the mechanism.
Strong mechanism structure	The mechanism adopts the mechanical structure of secondary transmission. The gear transmission ratio is precise, efficient and stable, which can precisely control the rotation angle of the arm and reduce the loss, ensure the reliability of the mechanism and enhance the service life of the mechanism.	The mechanism adopts advanced hydraulic buffer, with advanced buffer design structure, which effectively reduces the noise and mechanical vibration, makes the operation more efficient and stable, and reduces the loss, ensures the reliability of the mechanism and enhances the service life of the mechanism.
Core control algorithm	Using advanced servo control system and DSP+ARM motor control technology, combined with the motor control algorithm independently developed by CMOLO, to achieve precise control and positioning of the obstacle.	The main control center adopts the advanced algorithm based on ARM core, with advanced photoelectric sensors and high-quality solenoids, to achieve efficient and accurate control logic.
Arms status monitoring	The bridge-type ticketing tripod turnstile adopts a closed-loop feedback control system to monitor the movement status of the arm, which can sensitively detect behaviors that threaten the safety of the passageway, such as illegally hitting the arm and reverse passage, and then issue warnings in the form of sound and light, and can be linked with other security systems.	--
Passing prompt of Automatic rotation	After the pedestrian provides a legal door opening signal, the arm rotates at a certain angle in the opening direction, indicating that the pedestrian can pass, and then the pedestrian gently pushes the arm, and the arm automatically rotates in the opening direction.	--
Over-force feedback control	When the gate is momentarily subjected to an impact force beyond the safe range, the gate can be slowly pushed for a certain distance to buffer the impact force on the mechanism and the reverse impact force on pedestrians.	--
Prevent reverse passage	Mechanical electric control locking structure design, anti-illegal hitting arm and reverse passage.	Mechanical electric control locking structure design, anti-illegal hitting arm and reverse passage.
Anti-tailgating	The bridge-type ticketing tripod barrier adopts mechanical anti-tailgating design, which can realize only one person passing through at a time.
Long service life	CMOLO's independently developed advanced mechanism structure, equipped with high-quality DC brushless motor (core of the mechanism), so that the mechanism has a long service life. The mechanism and control system of the tripod turnstile have passed 10 million life tests.	CMOLO's independently developed advanced mechanism structure, equipped with high-quality solenoid (core of the mechanism), so that the mechanism has a long service life. The mechanism and control system of the tripod turnstile have passed 10 million life tests.

Customization

Appearance

Cabinet size, material and surface treatment process etc. of turnstile can be moderately customized.

System integration

Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc.

Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.

Integrate with card collection system, and customize card collection device.

Next Product

Prev Product

Product Tags access control turnstile gate systems eletronic pedestrian controlled turnstile door security access control turnstile gate security turnstile gate manufacturer tripod turnstile barrier gate supplier outdoor tripod barrier gate with IP65

advanced core patented technology

high stability, optimize the mechanism structure

long life, longer than 10 million times

accurate & fast detection

high temperature resistance

low temperature resistance

condensation resistance

modular design, easy maintenance

high compatibility, high integration
