Product Introduction

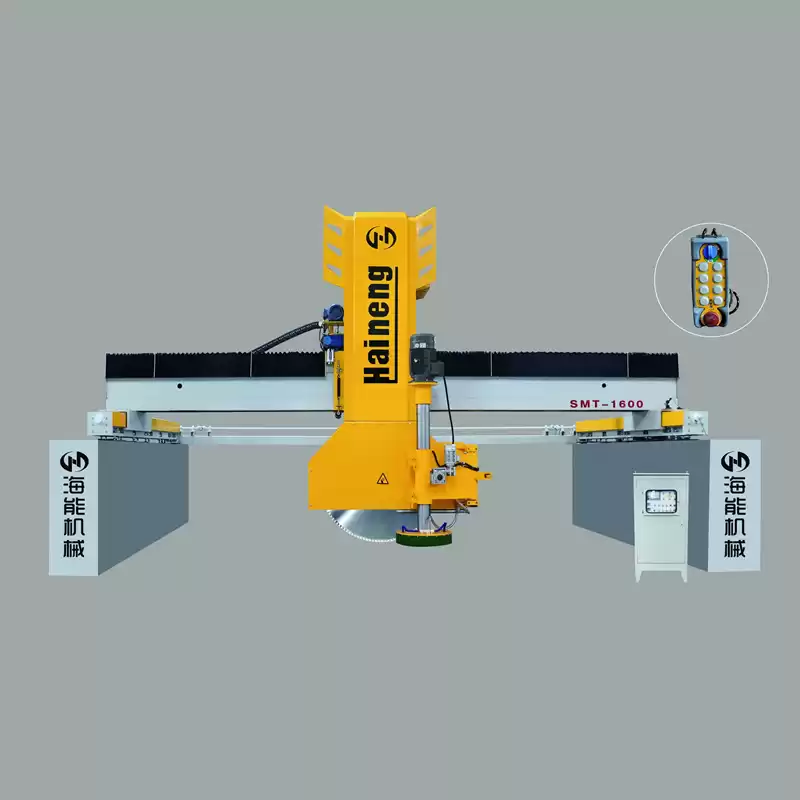

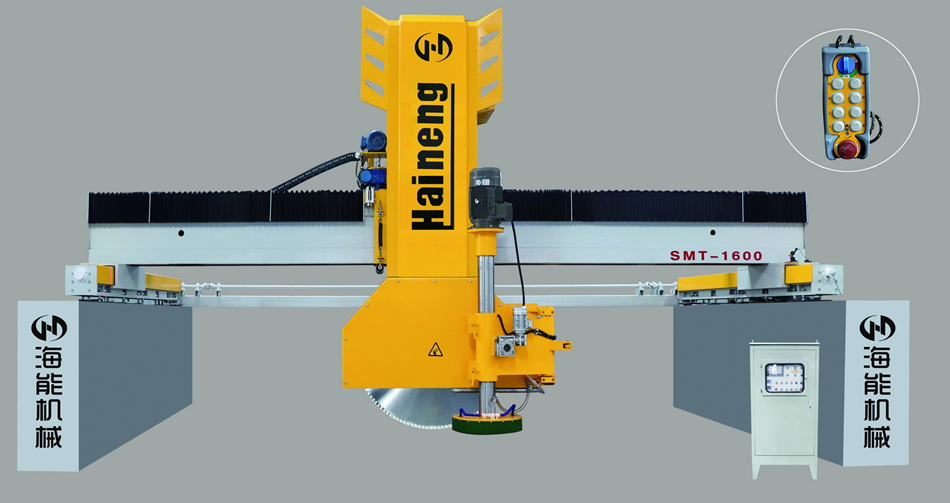

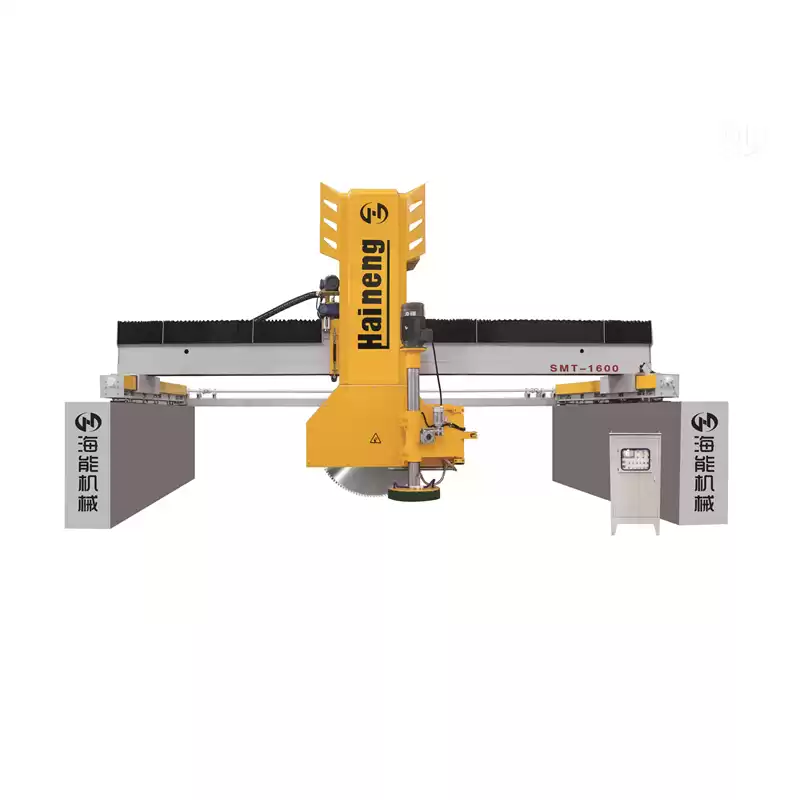

Around the Bridge Type Two-Way Stone Cutter structure of large span bridge, feeding the multi-stage transmission, frequency control of motor speed, and lift adopts mechanical transmission, shard before and after adopting high precision lead screw and nut, spindle power head adopts dual axle gear train, the level of knife lift guide pillar using cylindrical guide rail, hydraulic automatic feed, the control system adopts PLC programmable control system and human-machine interface, lifting, feeding, shard adopt high precision encoders count, ensure the machine cutting precision, durable and reliable. Lifting large stroke, cutting directly on the root of the plate, according to the need of layered cutting, so as to avoid the trouble of manual unloading, improve efficiency.
This machine has the advantages of high cutting efficiency, high splicing precision, good flatness, high stability, simple operation and so on, especially suitable for high-value granite. The cutting of raw marble.
Note:If the production process needs, the user can add 360 rotary table.
Technical Parameters
|
Bridge Type Two-Way Stone Cutter
|
|
Type
|
Unit
|
QS1600
|
QS1800
|
QS2000
|
|
Main motor power
|
kw
|
75/90
|
75/90
|
75/90
|
|
Blade diameter
|
mm
|
Φ1600
|
Φ1800
|
Φ2000
|
|
Horizontal motor power
|
kw
|
15
|
15
|
15
|
|
Horizontal main engine lift stroke
|
mm
|
400-500
|
400-500
|
400-500
|
|
Movements itinerary
|
mm
|
1400
|
1400
|
1400
|
|
Shard trip
|
mm
|
2200
|
2200
|
2200
|
|
Cutting stroke
|
mm
|
3600
|
3600
|
3600
|
|
Saw blade number
|
pcs
|
1+1
|
1+1
|
1+1
|
|
Water consumption
|
m³/h
|
10
|
10
|
10
|
|
Total power
|
kw
|
103/118
|
103/118
|
103/118
|
|
Overall dimensions
(L×W×H)
|
mm
|
7800×3800×6000
|
8300×3800×6100
|
8300×3800×6200
|
|
Machine weight
|
kg
|
12000
|
12500
|
12500
|
