Brush Pattern Film Laminated Steel Coil / Sheet for Refrigerator

Brush Pattern Film Laminated Steel Coils/Sheets for Home Appliance Such as Refrigerator, Freezer, Washer and Air Conditioner.



Brush Pattern Film Laminated Steel Coil / Sheet for Refrigerator

1. Production Specifications:

Product Item Film Laminated Steel Sheet
Base Metal SGCC, SPCC, DX51D, DX52D, DX53D, DX54D
Thickness 0.2-1.0mm (standard 0.3-0.8mm)
Width Size 500-1600mm (standard 600-1250mm)
Length Size 5800mm (max), as per request
Surface Coating PVC, PET Film Laminated
Back Coating Epoxy
Color Range Mono Color, Wooden, Marble, Flower, Brushed Pattern etc.
Film Thickness 50-200μm,  as per request
Back Coating Thickness 5~7μm, as per request
Surface Protection PE protective film
Certificate ISO9001, SGS, ROHS
Pencil Hardness ≥H
T-Bend Test ≤2T
E-Cupping Test 8mm
MEK Test  More than 100 times
Impact Test No cracking and peeling(50kg/cm)
Color Difference △E<0.5
Coil Weight 3~5 Tons/ coil, as per request
Package Coil or Sheet
Sheet: Width≤1600mm,Length≤6000mm
Coil: Width≤1600mm ,Inner Diameter: φ405mm φ505 etc
Application Refrigerator, Wash machine, Water heater, Freezer, DVD, TV etc

Brush Pattern Film Laminated Steel Coil / Sheet for Refrigerator

Brush Pattern Film Laminated Steel Coil / Sheet for Refrigerator

2. Product Picture:

Brush Pattern Film Laminated Steel Coil / Sheet for Refrigerator

3.Company Profile:
"Alucosuper" is our brand.We are JINGGONG STEEL BUILDING GROUP (alucosuper.en.made-in-china.com), - WONDERFUL-WALL BUSINESS DIVISION.
Products are widely used for building material(indoor, outdoor, roofing, ceiling, door), package, home appliance(refrigerator, freezer, wash machine, water-heater, TV, etc.), advertisement, station...and anyother area.

Anhui Wonderful-wall Color Coating Aluminium Science Technology Co., Ltd.

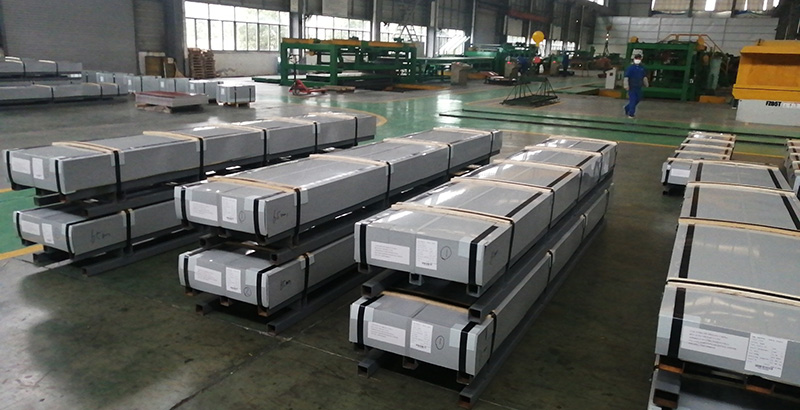

4.Packing Pictures:

Anhui Wonderful-wall Color Coating Aluminium Science Technology Co., Ltd.




Product Tags Brush pattern film laminated steel coils          PVC/PET laminate steel sheet          film laminated steel coil          brushed laminated steel coil          VCM for refrigerator          refrigerator door panel
