BS 5308 Part 1 Type 1 Fire Resistant Cable
MAIN KEYWORDS
BS 5308 part 1 electric cable, MICA tape fire resistant cable, xlpe insulated electrical cable, CAM fire resistant cable, LSZH electric cable, MICA/XLPE/CAM/LSZH Fire Resistant Cable .
PRODUCTS APPLICATION
Hante@ brand BS 5308 Part 1 Type 1 Fire Resistant Cable, BS 5308 cables are designed to carry communication and
control signals in a variety of installation types including
those found in the petrochemical industry. The signals can
be of analogue, data or voice types and from a variety of
transducers such as pressure, proximity or microphone. Part
1 Type 1 cables are generally designed for indoor use and in
environments where mechanical protection is not required.
Suitable for fire resistant installations.

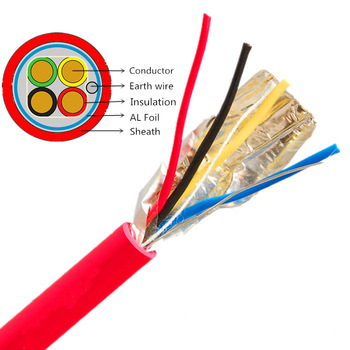

PRODUCTS STRUCTURE
---Conductor Material
Plain
annealed copper wire, meet to IEC 60228.
---Fire Resistant Material
MICA tape
---Insulated Material
XLPE (cross-linked polyethylene)
---Insulated Color
1 core: natural color
2 cores: blue, brown & bare earth.
3
cores: brown, black, grey & bare earth.
4
cores: blue, brown, black, grey.
---Shielded / Screened Material
Al/PET (Aluminium/Polyester Tape)
---Drain Wire Material
Tinned copper wire
---Sheath Material
LSZH (low smoke zero halogen)
---Sheath Color
Black, red, blue, orange, or others.
---Voltage Rate
300/500V
---Operating Temperature
Fixed: -40ºC to +80ºC
Flexed: 0ºC to +50ºC
---Minimum Bending Radius
6 x overall diameter
---Production Standard
BS 5308 part 1 type 1, IEC 60331, UL 94 CAM class.
---Production Delivery
Within 7-10 working days as soon as we
received the 30% deposit before the shipment.
---Packing Type
100 meters per roll, plastic reel, plywood
drum, wooden pallet, wooden drum or others.
REMARK
---The information contained within this
datasheet is for guidance only and is subject to change without notice or
liability.
---All the information is provided in good
faith and is believed to be correct at the time of publication; when selecting
cable accessories, please note that actual cable dimensions may vary due to
manufacturing tolerances.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable:
Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
---Hante Cable: it is
your Production Base, Overseas Warehouse, Purchase Consultant in wire and cable
industry.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
FREQUENTLY ASKED QUESTIONS
1. Are you the manufacturer or
trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is
the professional in wire and cables manufacturer. We can control your
order from the first begining to the last. Welcome to visit Hante Cable,
we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your
quality?
Hante Cable can provide the free sample to you, but you will pay the express
charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200
meters; of cources, the MOQ can be negotiated. But in order to save the
shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires
should be more than 3000 meters, and the MOQ of power cable should be more than
500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls
kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote
your company.
